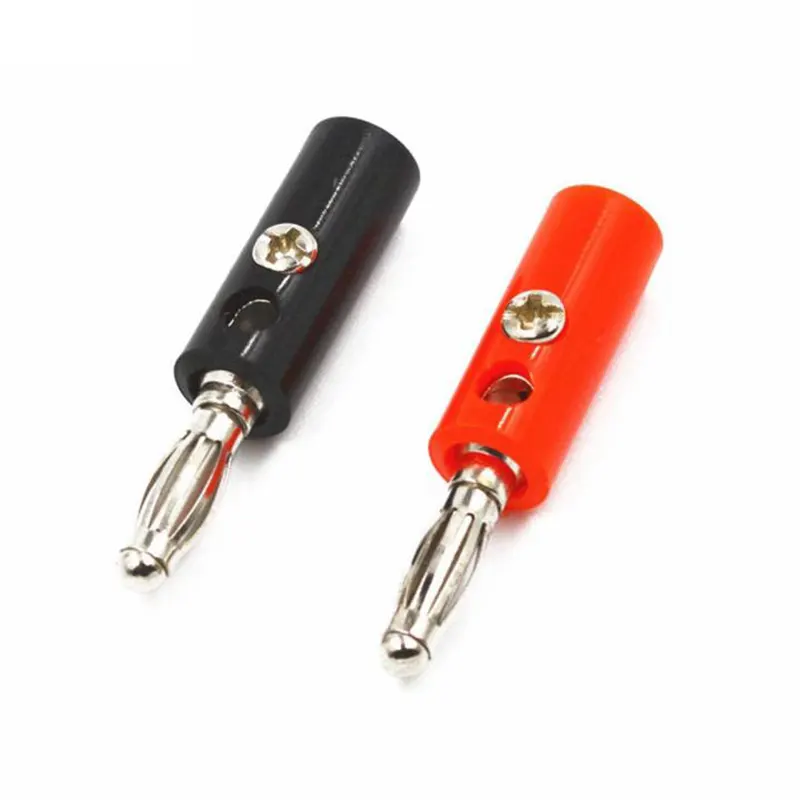

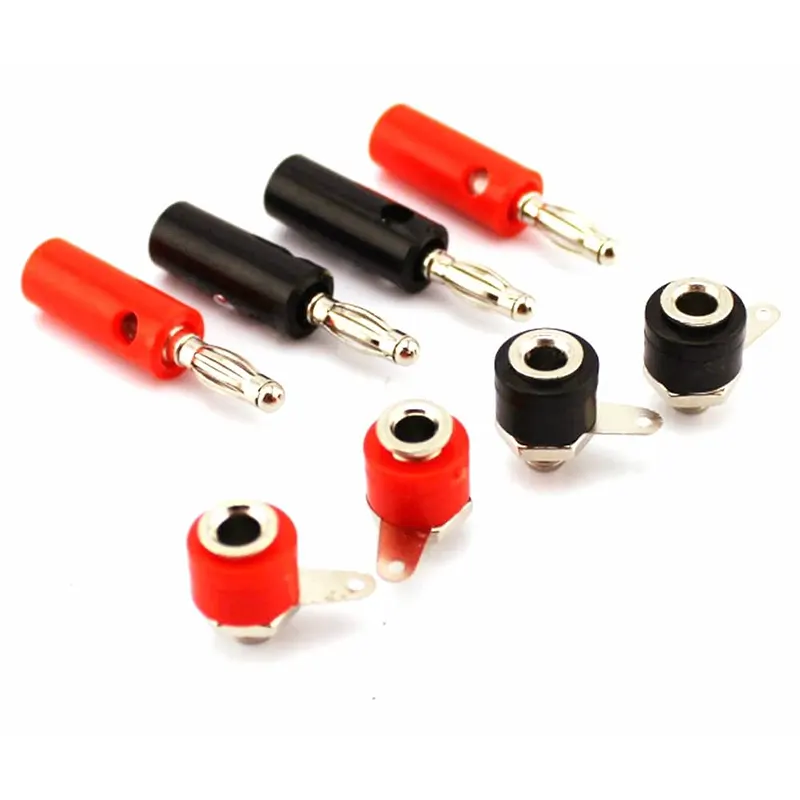

The 4mm Lantern Head Banana Plug Pair (Red & Black) is the professional standard for high-fidelity audio and laboratory testing connections. At Electrapac, we recommend these screw-terminal plugs for users who want a secure, "solder-free" connection that ensures maximum signal integrity for speakers, amplifiers, and power supplies.

Product Overview

These 4mm banana plugs feature a high-tension "Lantern Head" design. The curved longitudinal springs on the male tip expand once inserted into a socket, providing a 360-degree contact surface. This eliminates the "crackle" or signal dropouts common with loose-fitting connectors. With integrated screw terminals, you can attach your speaker wire in seconds without a soldering iron.

Key Features for Electrapac Customers

• High-Tension Lantern Grip: The four-leaf spring head ensures a tight, vibration-resistant fit in any standard 4mm jack, preventing accidental disconnects.

• Solderless Screw Termination: Features a side-entry or rear-entry screw clamp. Just strip your wire, insert, and tighten. Perfect for quick on-site setups or home theater installs.

• Color-Coded Identification: Comes as a matched pair (1 Red, 1 Black) to ensure you maintain proper polarity (+ and -) across your entire system.

• Stackable Design (Select Models): Many of our 4mm plugs feature a rear hole, allowing you to "daisy-chain" or stack another banana plug on top for parallel wiring.

• Heavy-Duty Insulation: The rugged ABS plastic shells protect against accidental short-circuits and provide a comfortable grip when plugging/unplugging.

Installation & Setup Guide

For a clean installation from www.electrapac.com, follow these steps:

1. Unscrew the Housing: Twist the colored plastic shell off to reveal the metal terminal.

2. Prepare the Wire: Strip about 8mm–10mm of insulation from your speaker cable or test lead.

3. Insert & Secure: Thread the wire through the side hole or into the rear barrel and tighten the set-screw firmly against the copper strands.

4. Reassemble: Slide the plastic housing back over the metal plug and tighten.

Primary Applications

• Home Theater & Hi-Fi: The cleanest way to connect high-end speakers to AV receivers and amplifiers.

• Lab Power Supplies: Standard interface for benchtop power supplies and multimeters.

• Test Lead DIY: Build your own custom-length jumper cables for electronic prototyping.

• Education: Ideal for physics classrooms where frequent "plug-and-play" circuit building is required.

Why Shop at Electrapac?

We source 4mm Banana Plugs with high-tensile spring steel to ensure the "lantern" head doesn't lose its shape over time. Visit www.electrapac.com to find these plugs, high-quality speaker wire, and matching 4mm binding posts for your project enclosures.
