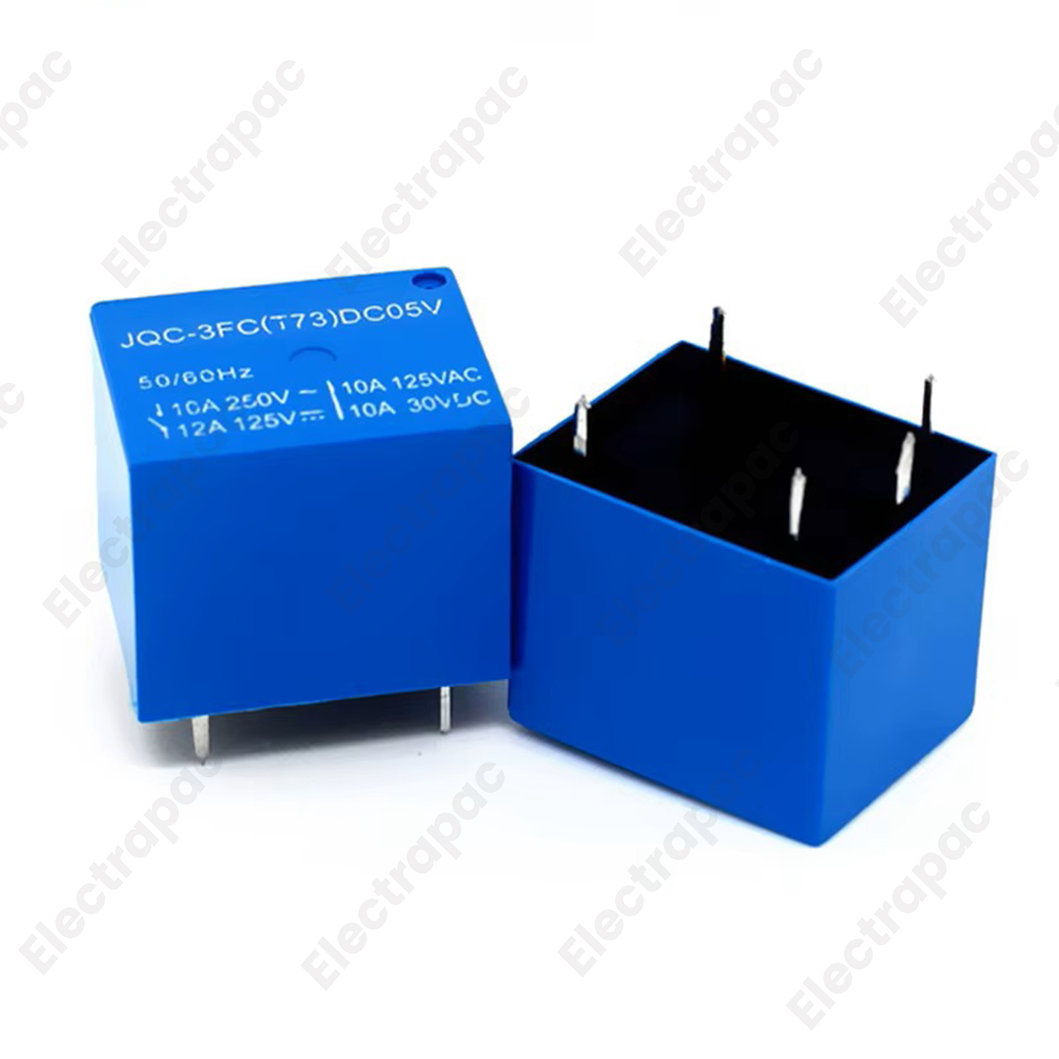

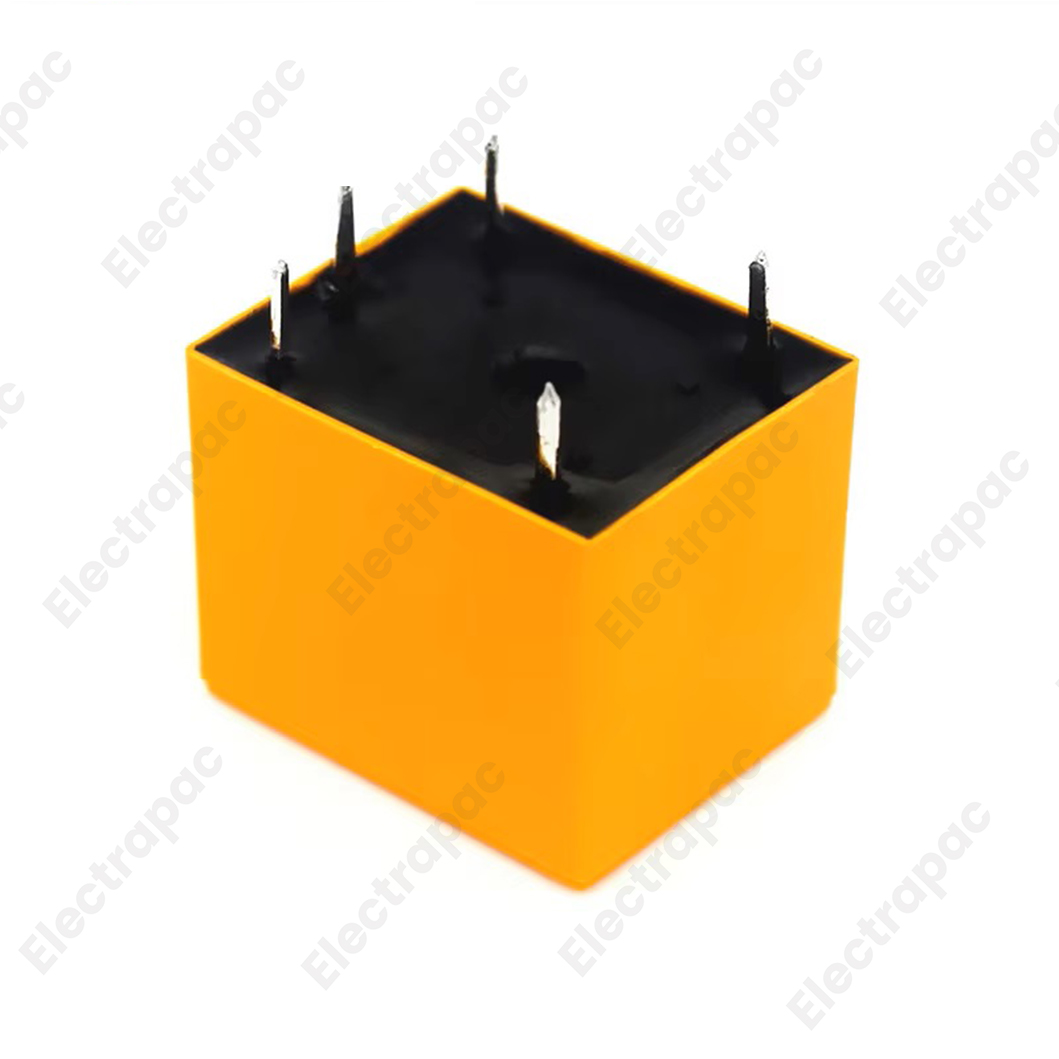

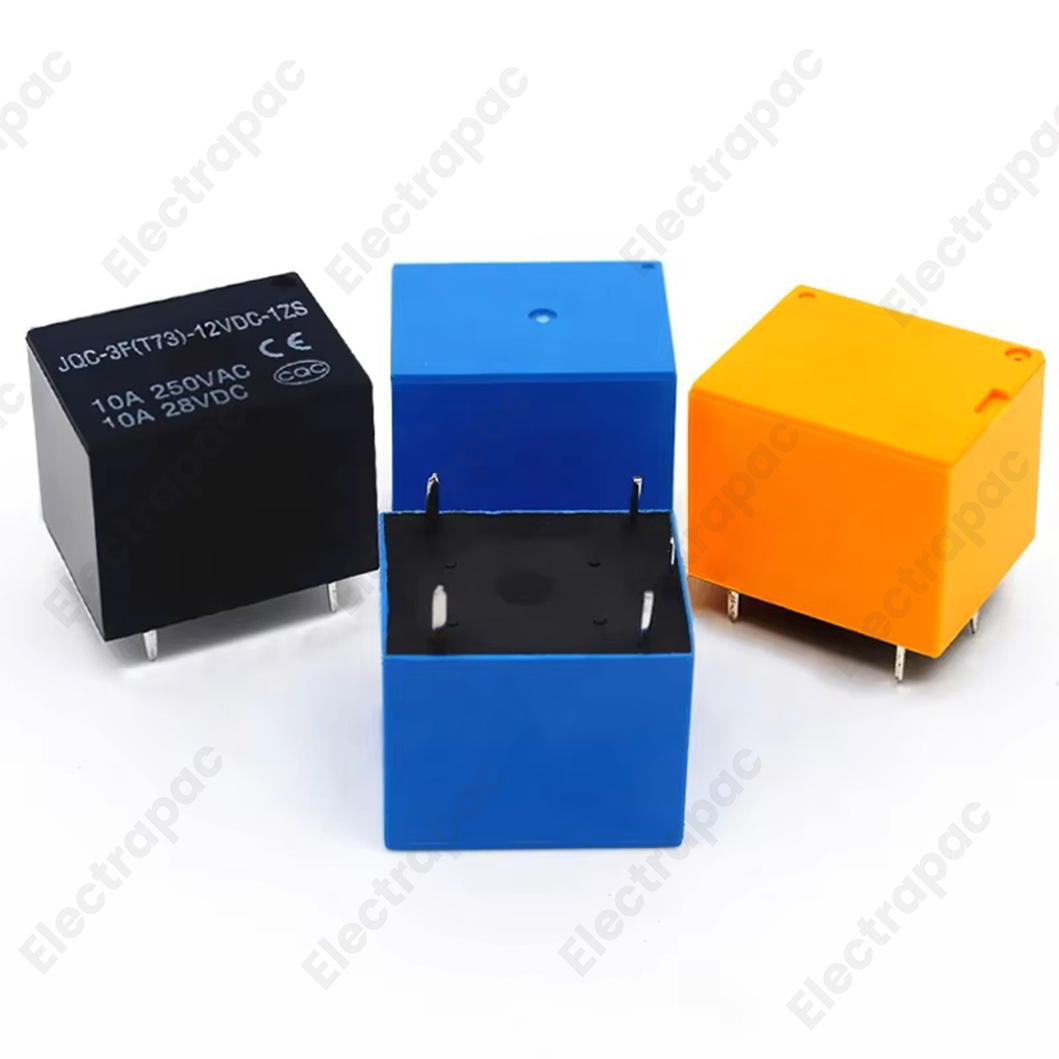

The 12V DC 5-Pin Power Relay is a fundamental component for any project requiring a low-power signal to control a high-power circuit. At Electrapac, we recommend this high-quality relay for its reliability and "Single Pole Double Throw" (SPDT) versatility, making it perfect for both simple switching and complex logic control.

Product Overview

This electromagnetic relay acts as an electrically operated switch. When 12V DC is applied to the internal coil, it creates a magnetic field that moves a physical contact arm. Because the control circuit (the coil) is completely isolated from the load circuit (the pins), it is the safest way to control high-voltage or high-current devices using a microcontroller or a small switch.

Understanding the 5-Pin Layout

To integrate this relay into your Electrapac project, it is essential to understand what each pin does:

1. Pins 1 & 2 (Coil): These are the input pins. Applying 12V across these pins "activates" the relay.

2. Pin 3 (Common - COM): The main terminal where you connect your incoming power or signal.

3. Pin 4 (Normally Closed - NC): This pin is connected to COM when the relay is OFF.

4. Pin 5 (Normally Open - NO): This pin is connected to COM only when the relay is ON.

Key Features for Electrapac Customers

• Galvanic Isolation: Safely separates your sensitive electronics (like an Arduino) from high-voltage appliances.

• SPDT Switching: Allows you to toggle between two different loads (e.g., turning a Green light OFF while turning a Red light ON).

• High-Current Handling: Rated for up to 10A, allowing you to control pumps, heaters, and large LED arrays.

• Standard Footprint: Fits into standard relay sockets or can be soldered directly onto a PCB.

• Audible Feedback: Provides a satisfying "click" when activated, making it easy to troubleshoot your system during testing.

Technical Implementation Guide

To ensure the longevity of your Electrapac relay and the safety of your circuit, follow these two critical tips:

• Flyback Diode: When the relay turns off, the coil releases a high-voltage spike. Always place a diode (like a 1N4007) in reverse across the coil pins to protect your transistor or microcontroller.

• Switching Current: While the relay is rated for 10A, avoid "hot-switching" heavy inductive loads (like large motors) at full capacity, as this can cause the internal contacts to "arc" and eventually stick together.

Primary Applications

• Home Automation: Controlling lamps, fans, and AC appliances via smart switches.

• Automotive Electronics: Adding aftermarket horns, fog lights, or fuel pump cut-offs.

• Industrial Controls: Acting as an interface between PLC logic and high-power contactors.

• Security Systems: Triggering sirens or magnetic door locks when a sensor is tripped.

• Battery Protection: Disconnecting a load when a battery voltage drops too low.

Why Shop at Electrapac?

We source our 12V 5-Pin Relays with high-purity silver alloy contacts to prevent pitting and ensure thousands of successful cycles. Visit us at www.electrapac.com for the switching components that bridge the gap between logic and power.
