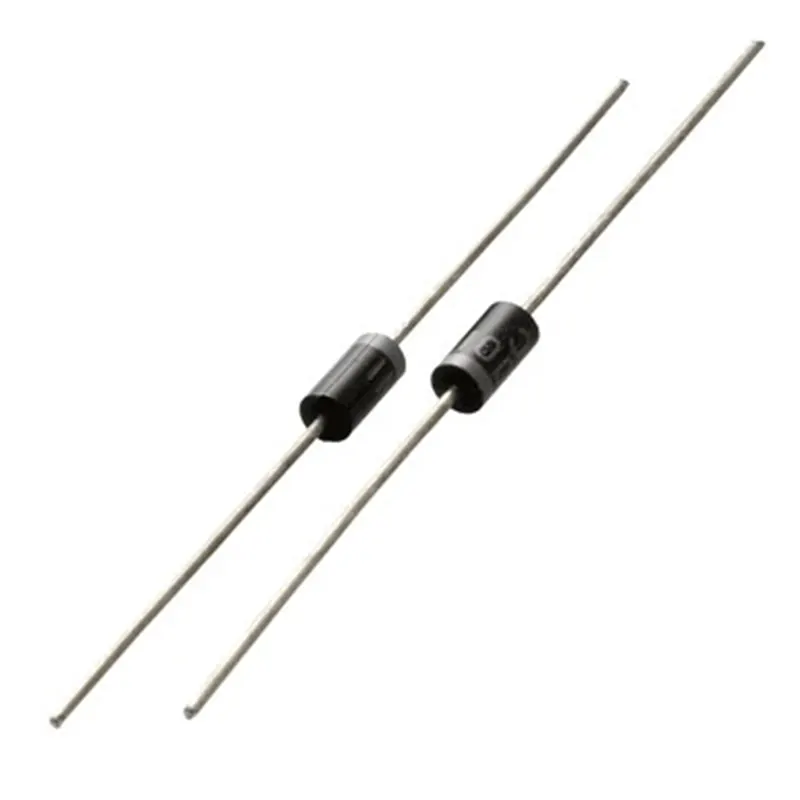

The 1N4007 is arguably the most famous and widely used rectifier diode in the world of electronics. It is a member of the 1N400x series and is specifically designed to convert Alternating Current (AC) to Direct Current (DC).

As a rectifier, it allows current to flow in only one direction, acting like a "one-way valve" for electricity.

Why it’s a "Bench Staple"

• High Voltage Tolerance: While other diodes in this series (like the 1N4001) are only rated for 50V, the 1N4007 can handle up to 1000V. Because it costs nearly the same, most engineers use the 1N4007 for everything to simplify their inventory.

• Robustness: It is designed to handle temporary surges of up to 30A, making it resilient against the initial "inrush" of power when a device is turned on.

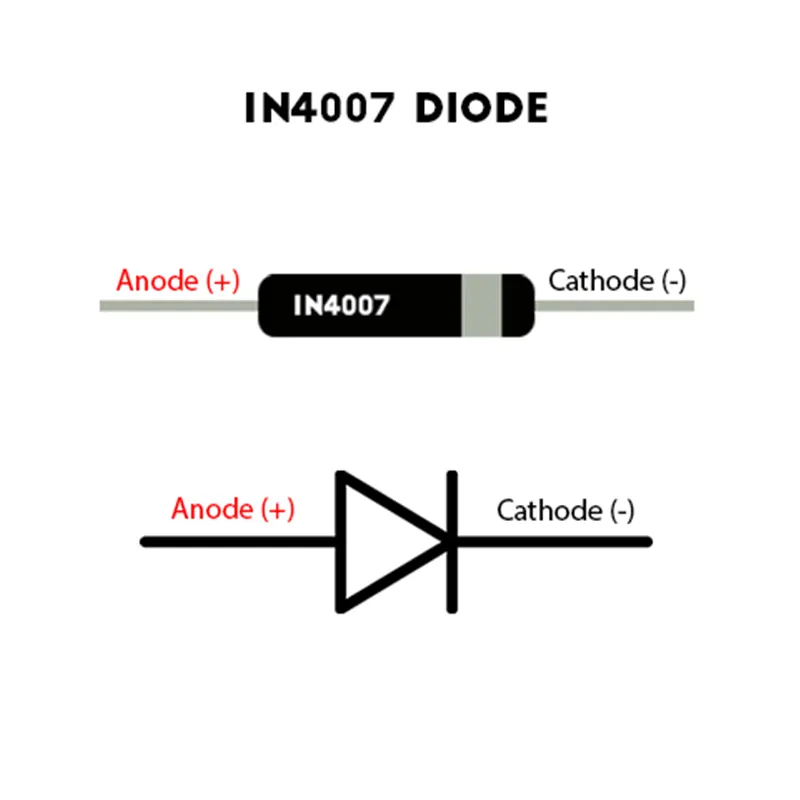

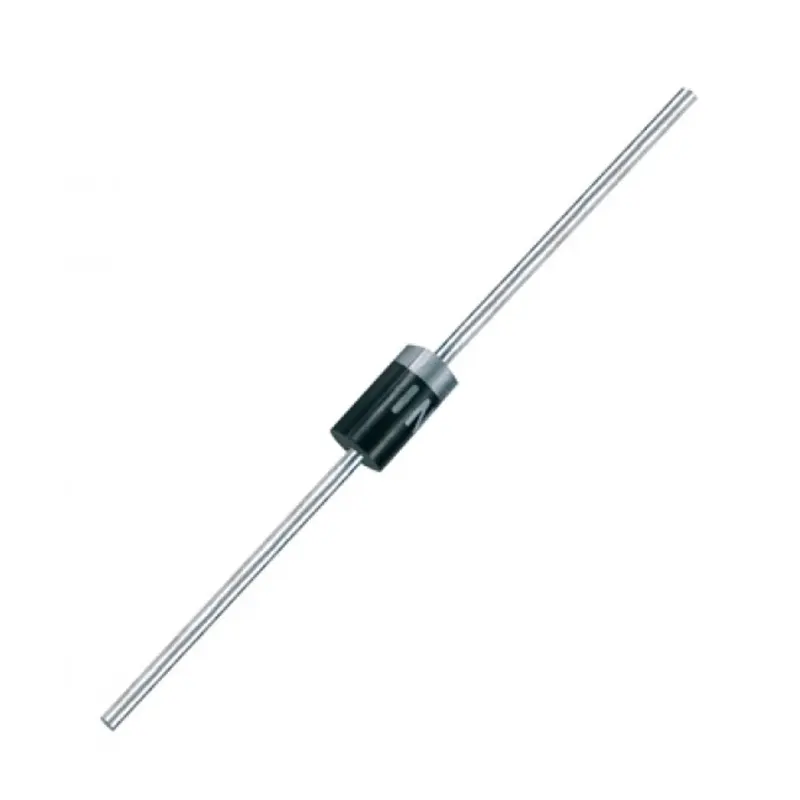

• Standard Polarity: It features a clear silver band on one end to indicate the Cathode (Negative side). Current flows from the side without the band (Anode) toward the side with the band.

Common Applications

• Bridge Rectifiers: Combining four 1N4007 diodes to convert AC wall power into DC for power supplies.

• Flyback/Freewheeling Diode: Placed across a relay coil or DC motor to protect sensitive components (like Arduinos or transistors) from the high-voltage spike that occurs when the magnetic field collapses.

• Reverse Polarity Protection: Placed in series with a battery input so that if the user plugs the battery in backward, no current flows, protecting the circuit from frying.

• Voltage Clamping: Preventing signals from exceeding a certain voltage level.

⚠️ Important Considerations

• Speed: The 1N4007 is a Standard Recovery diode. It is perfect for 50Hz/60Hz power supplies but is not suitable for high-speed switching applications like PC power supplies (SMPS). For those, you would need a "Fast Recovery" diode (like the UF4007) or a Schottky diode.

• Voltage Drop: Remember that every diode "steals" a little bit of voltage. Expect a drop of roughly 0.7V to 1.1V across the diode when it is conducting.
