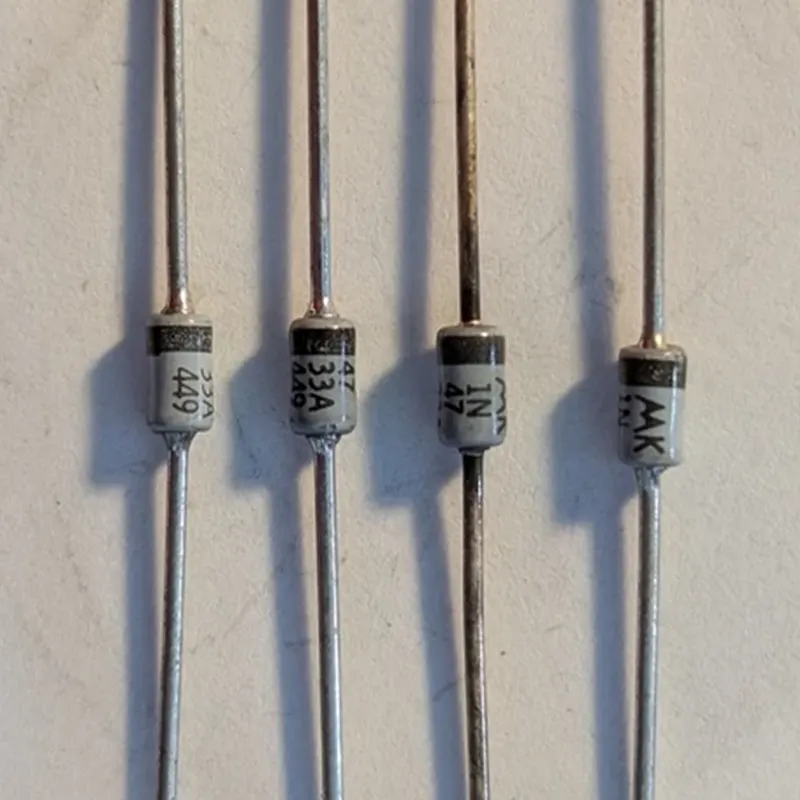

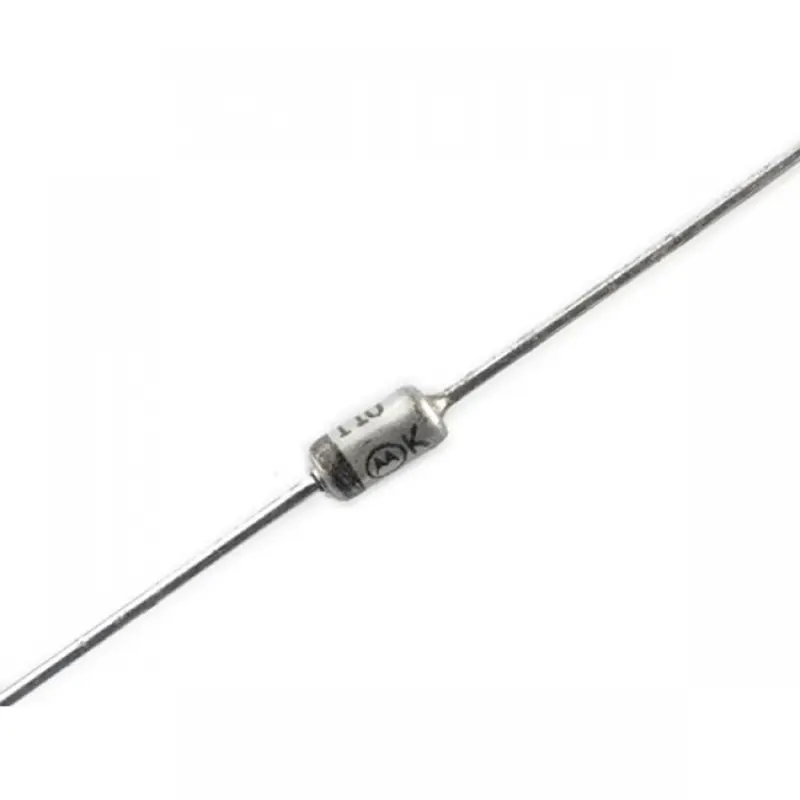

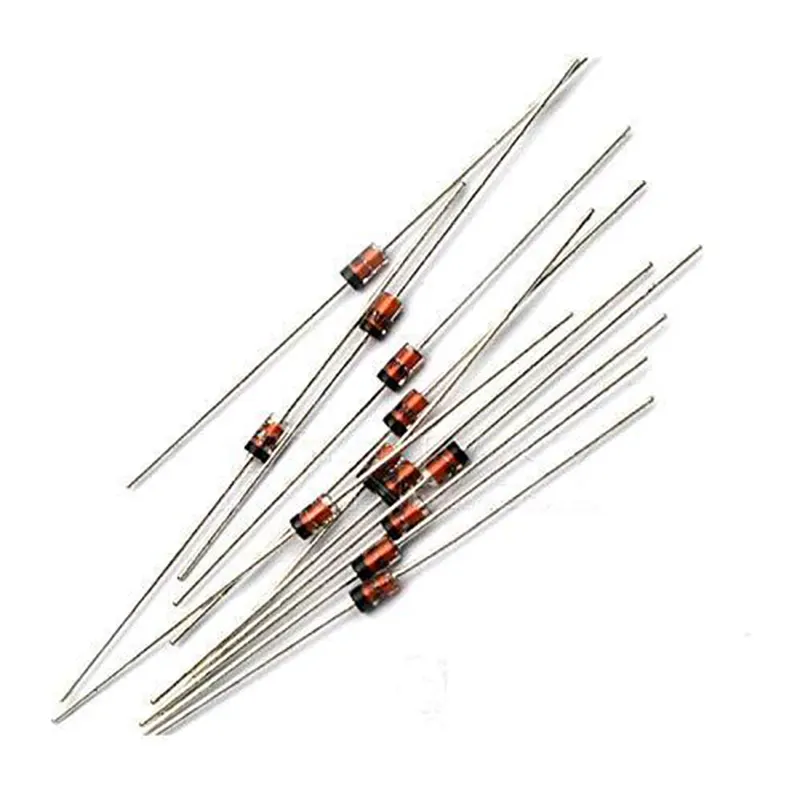

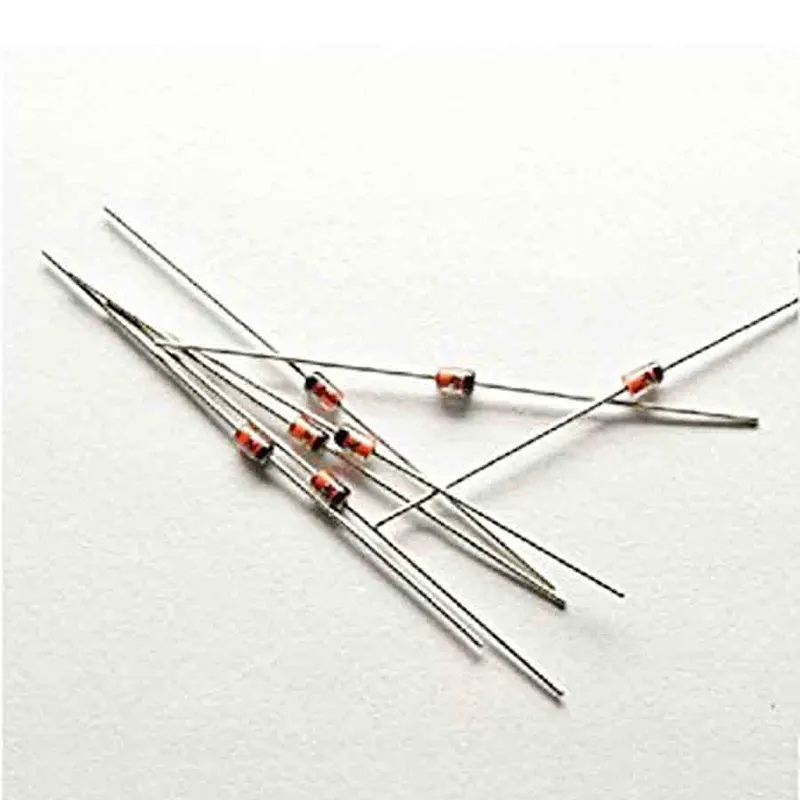

The 1N4733A Zener Diode is a high-precision voltage regulation component designed to maintain a stable output in sensitive electronic circuits. At Electrapac, we recommend this diode for engineers and students in Bangladesh who need a reliable 5.1V reference for power supply regulation, sensor protection, and voltage clamping in Arduino or industrial projects.

Unlike standard diodes that only allow current to flow in one direction, the 1N4733A is specifically designed to operate in "reverse-biased" mode. When the voltage across it reaches its "Zener Voltage" of 5.1V, it begins to conduct, effectively "clamping" the voltage at that level. Housed in a rugged DO-41 glass package, it can dissipate up to 1 Watt of power, making it much more durable than smaller 500mW alternatives.

Key Features for Electrapac Customers

• Stable 5.1V Regulation: Ideal for creating a 5.1V reference from a 9V or 12V source, ensuring your microcontrollers receive a steady voltage even if the input fluctuates.

• 1-Watt Power Rating: The robust DO-41 package allows for higher current handling than standard signal Zener diodes, reducing the risk of burnout in high-load scenarios.

• Sharp Knee Characteristics: Provides a very clean "breakdown" at the 5.1V mark, which is essential for precision analog-to-digital (ADC) reference circuits.

• Overvoltage Protection: Can be used as a "safety valve" to protect expensive ICs and sensors from voltage spikes by shunting excess voltage to ground.

• Low Reverse Leakage: Minimizes power waste in battery-operated devices when the voltage is below the 5.1V threshold.

To use the Electrapac 1N4733A correctly as a voltage regulator, you must use it in parallel with your load and always include a Series Resistor ($R_s$):

1. Polarity: In Zener mode, connect the Cathode (side with the black band) to the Positive (+) supply and the Anode to Ground (GND).

2. Calculating the Resistor: You must use a resistor to limit the current. If you are dropping 12V down to 5.1V, the resistor must "soak up" the remaining 6.9V while staying within the diode's 1W power limit.

3. Heat Dissipation: If running the diode near its 178mA limit, ensure the leads are kept slightly longer to help dissipate heat into the air or the PCB.

Pro-Tip: If you are building a DIY battery charger or an Arduino-based solar monitor, the 1N4733A is the perfect way to ensure your analog input pins never see more than 5.1V, preventing permanent damage to your microcontroller.

• Voltage Regulation: Creating a fixed 5.1V rail for low-power control circuits.

• ADC Protection: Clamping input signals to 5V to protect Arduino/ESP32 analog pins.

• Waveform Clipping: Modifying AC signals or creating square waves from sine waves in audio and signal processing.

• Switching Power Supplies: Used in the feedback loop to maintain a constant output voltage.

• Reference Voltage: Providing a stable "yardstick" voltage for op-amp comparators.

We source our 1N4733A Zener Diodes from reputable manufacturers to ensure the 5.1V breakdown voltage is accurate and stable across a wide temperature range. Visit us at www.electrapac.com for the precision semiconductors that keep your circuits safe and steady.
