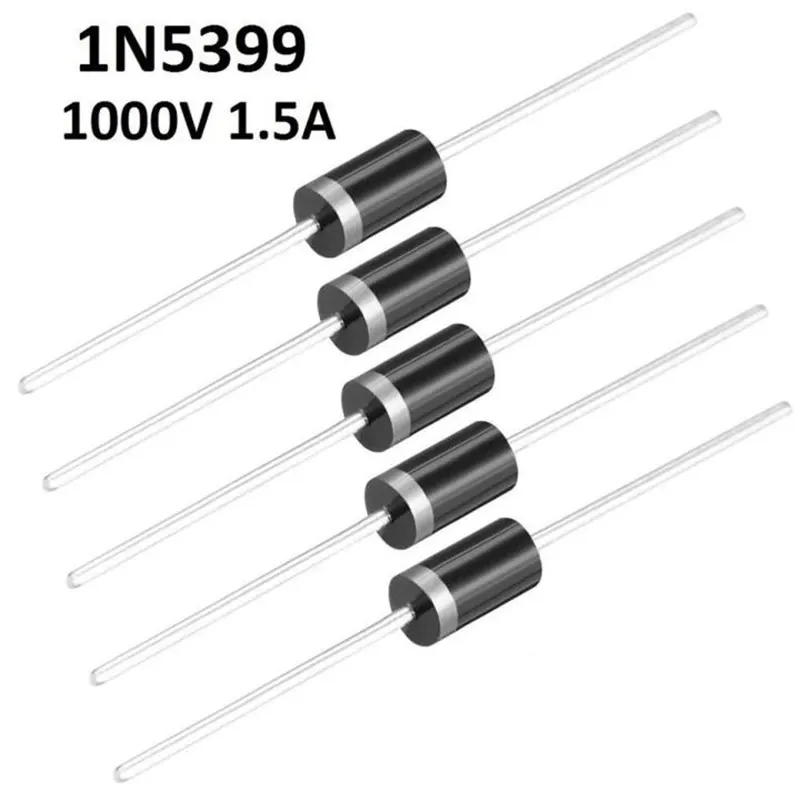

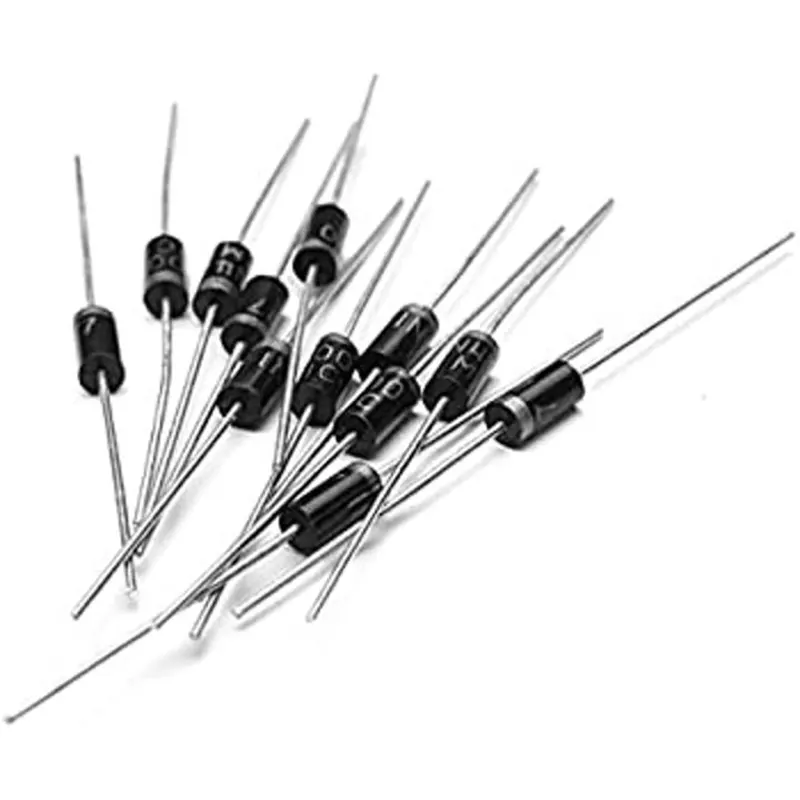

The 1N5399 Rectifier Diode is a rugged, high-voltage semiconductor designed for power conversion and circuit protection. At Electrapac, we recommend this diode for technicians and hobbyists in Bangladesh who need a more powerful alternative to the standard 1N4007, offering a higher current capacity for demanding power supply repairs and DIY projects.

The 1N5399 is a general-purpose silicon rectifier diode capable of handling a peak repetitive reverse voltage of 1000V. While it shares the same high voltage rating as the common 1N4007, the 1N5399 is built to handle 1.5 Amps of continuous current—a 50% increase in power handling. This makes it ideal for bridge rectifiers in medium-power AC-to-DC adapters and industrial control circuits.

Key Features for Electrapac Customers

• High Voltage Tolerance: With a 1000V rating, it safely handles the voltage spikes and back-EMF often found in local power grids and inductive motor circuits.

• Upgraded Current Capacity: The 1.5A rating provides a crucial safety margin for 12V and 24V power supplies that pull more than 1A, preventing the diode from overheating.

• Low Reverse Leakage: Ensures minimal power loss and high efficiency when the diode is in its "blocking" state.

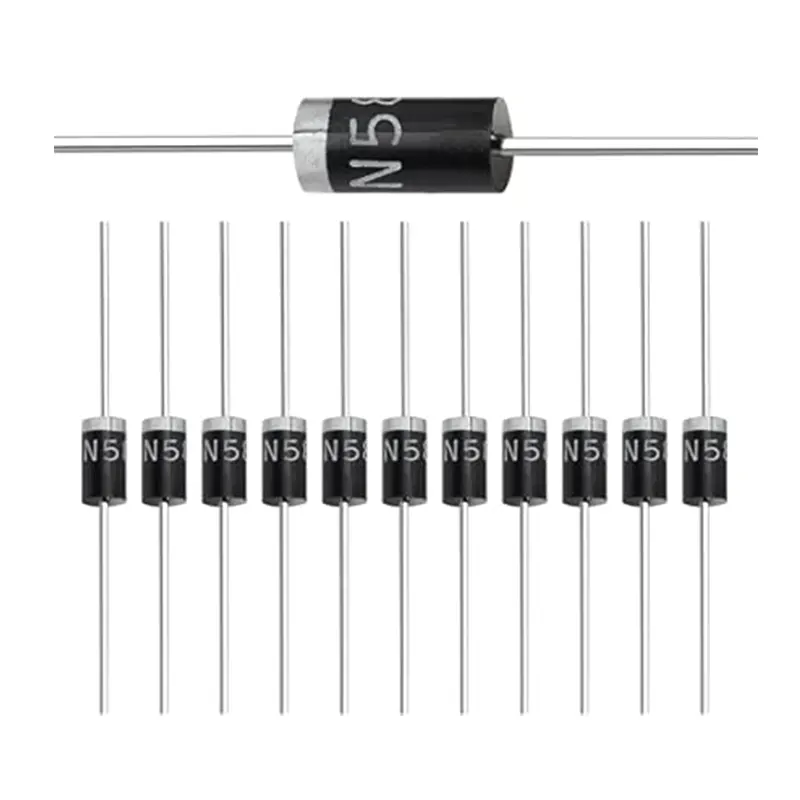

• Robust DO-15 Package: Larger than the standard DO-41, the DO-15 casing allows for better heat dissipation during continuous high-load operation.

• High Surge Capability: Can withstand a momentary surge of up to 50A, protecting your circuit during the initial "power-on" inrush of current.

Using the Electrapac 1N5399 is simple, but correct orientation is essential for rectification:

1. Cathode (Silver Band): This is the negative side. In a standard rectifier circuit, the current flows toward the silver band.

2. Heat Sinking: While the diode is axial, leaving slightly longer leads when soldering to a PCB can help the copper traces act as a natural heat sink for the component.

3. Bridge Rectification: You can use four 1N5399 diodes to create a full-wave bridge rectifier capable of converting 220V AC (stepped down via transformer) into a steady 1.5A DC output.

Pro-Tip: If you are repairing an old battery charger or an IPS system where the original 1N4007 diodes have failed due to heat, upgrading to the 1N5399 is an excellent way to ensure the repair lasts longer under heavy load.

• AC-to-DC Rectification: Converting transformer output into usable DC power for electronics.

• Battery Chargers: Managing the charging current for lead-acid or lithium battery banks.

• Freewheeling Diode: Protecting MOSFETs and Transistors from voltage spikes when driving DC motors or relays.

• Reverse Polarity Protection: Preventing damage to your circuit if a battery or power adapter is plugged in backwards.

• High-Voltage Multipliers: Used in specialized circuits like ionizers or CRT discharge paths.

We source our 1N5399 Diodes with high-quality silicon junctions to ensure they meet their full 1000V/1.5A ratings reliably. Visit us at www.electrapac.com for the discrete components that form the backbone of your power electronics.
