The 1N5408 Rectifier Diode is a heavyweight in the world of power electronics, offering high current capacity and exceptional voltage tolerance. At Electrapac, we recommend this diode for engineers and repair technicians in Bangladesh who are building or fixing high-power AC-to-DC converters, motor controllers, and battery chargers where a standard 1A or 1.5A diode would fail.

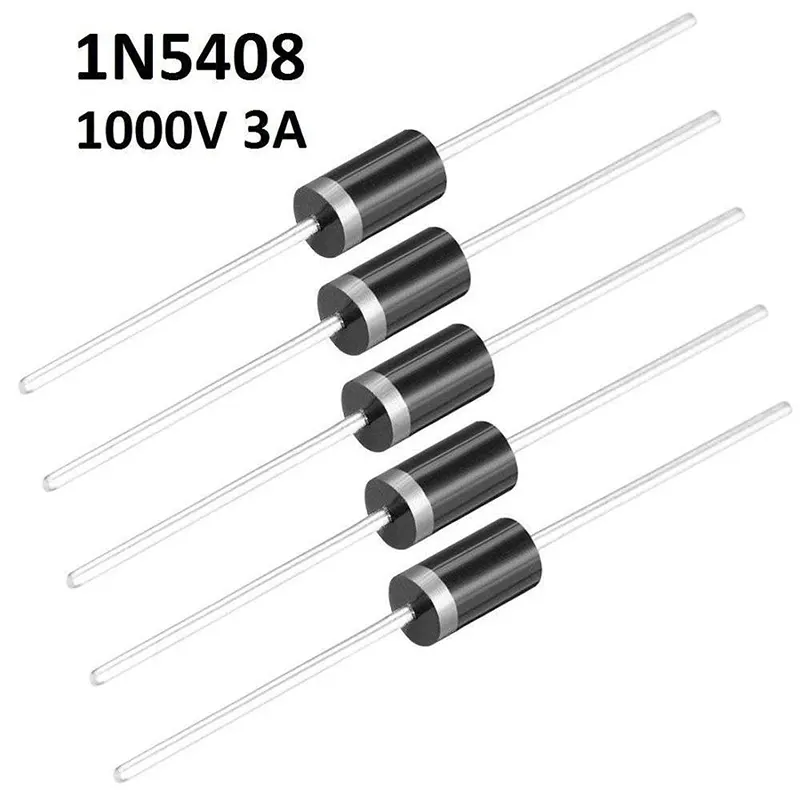

The 1N5408 is a member of the popular 1N540x series, specifically designed for high-voltage rectification. While it shares the same 1000V peak reverse voltage as the smaller 1N4007, it features a much larger silicon junction and a thicker DO-201AD package. This allows it to handle a continuous forward current of 3 Amps, making it the "go-to" diode for medium-to-high power industrial and consumer electronics.

Key Features for Electrapac Customers

• High Current Handling (3A): Perfectly suited for 12V/3A or 24V/3A power supplies, providing double the power capacity of the 1N5399.

• Massive Surge Protection: Capable of withstanding a 200A peak surge, which is essential for circuits with large filter capacitors that draw huge amounts of current at startup.

• Rugged DO-201AD Casing: The larger physical size acts as a built-in heat sink, allowing the diode to stay cooler during continuous operation compared to smaller packages.

• Thick Lead Wires: Designed with thicker copper leads to minimize resistance and efficiently conduct heat away from the silicon core to the PCB.

• Low Reverse Leakage: Maintains high circuit efficiency by preventing current backflow when the diode is in its blocking state.

To ensure the Electrapac 1N5408 performs at its peak, keep these installation tips in mind:

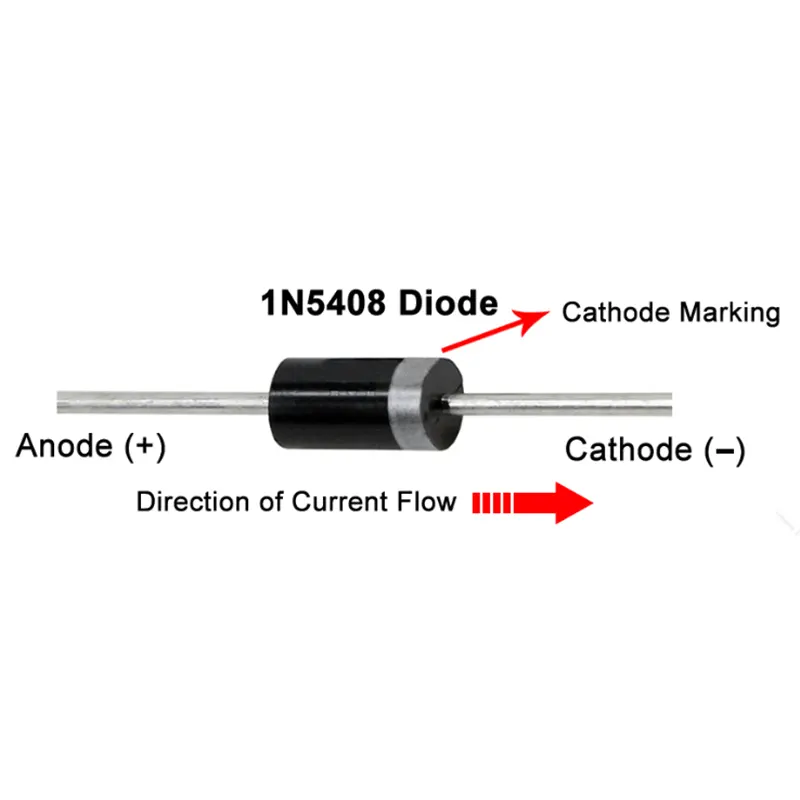

1. Polarity Identification: The end with the Silver Band is the Cathode (Negative). Current flows from the Anode to the Cathode.

2. Lead Management: Because this diode handles 3A, it can get warm. Avoid bending the leads too close to the black body; leave a few millimeters of straight wire to help dissipate heat.

3. Bridge Rectifiers: You can combine four 1N5408 diodes to create a high-performance bridge rectifier for a custom laboratory power supply or an IPS (Instant Power Supply) charger.

Pro-Tip: If you are repairing a 12V lead-acid battery charger and find that the original diodes keep burning out, upgrading to the 1N5408 provides a significant safety margin and much better reliability under heat.

• High-Power Rectification: Converting 220V AC (via transformer) to high-current DC for amplifiers and motors.

• Battery Chargers: Used in 12V/24V chargers for cars, bikes, and emergency backup systems.

• Flyback Protection: Acting as a "snubber" diode for large relays, solenoids, and DC motors to prevent inductive spikes.

• Solar Power Systems: Preventing batteries from discharging back into solar panels at night (Blocking Diode).

• DIY Power Supplies: Building robust benchtop power supplies for testing robotics and RC gear.

We source our 1N5408 Diodes with high-purity silicon to ensure they meet the full 3A/1000V specification without premature breakdown. Visit us at www.electrapac.com for the heavy-duty components that power your most demanding projects.
