The 2N2222 NPN Bipolar Junction Transistor (BJT) is one of the most popular and versatile semiconductors in the world of electronics. At Electrapac, we recommend this "workhorse" transistor for students and engineers in Bangladesh who need a reliable component for fast switching and general-purpose amplification in their Arduino and DIY projects.

Product Overview

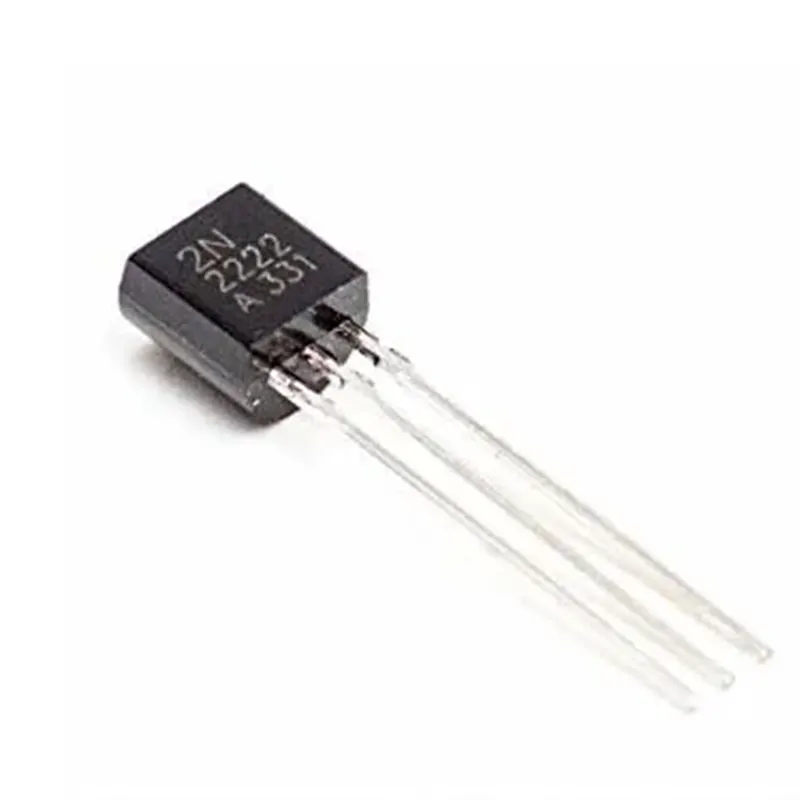

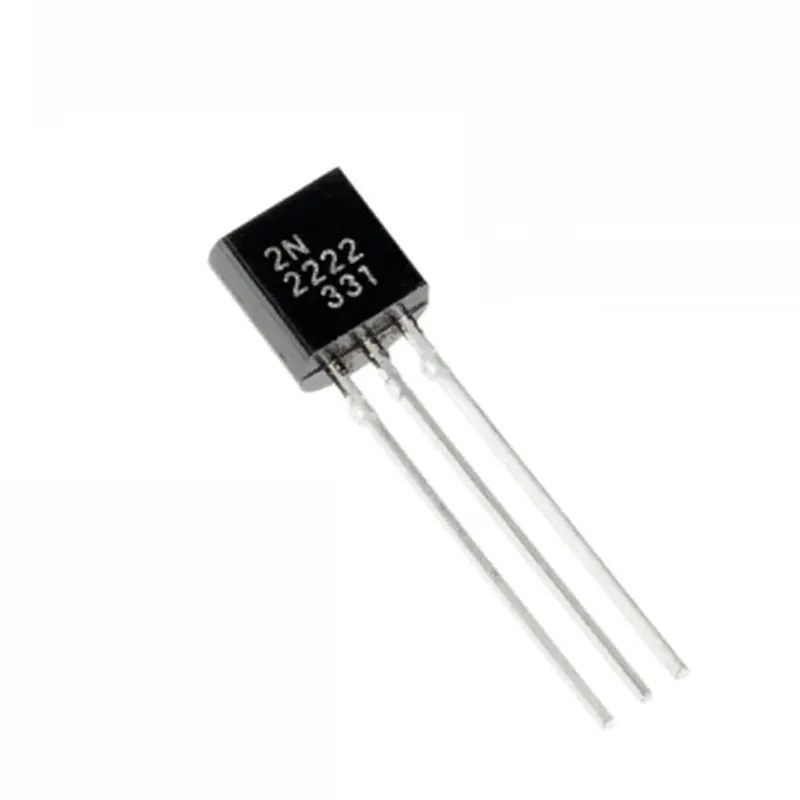

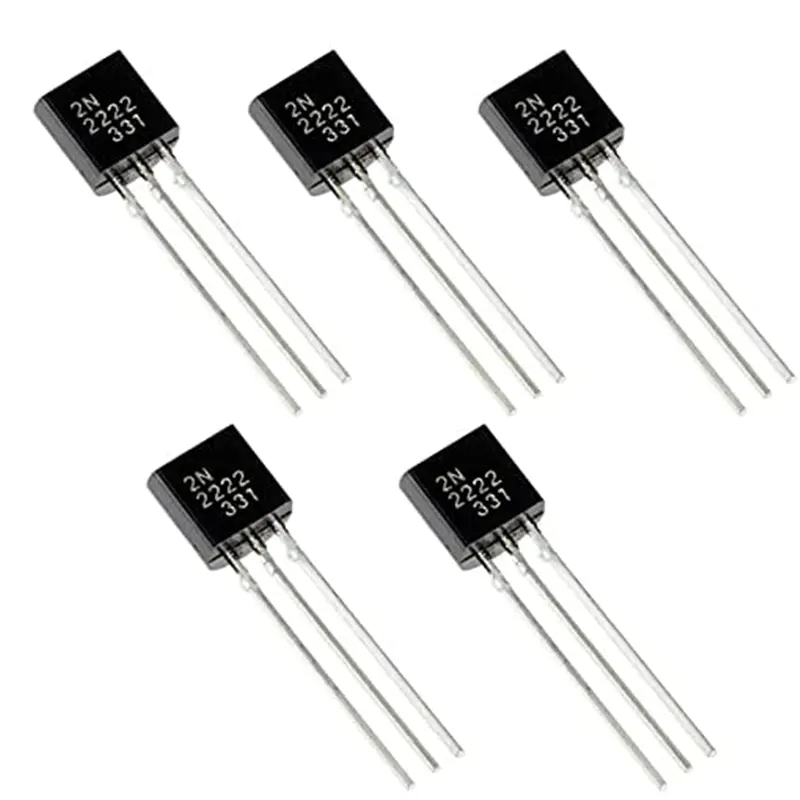

The 2N2222 is an NPN transistor housed in a compact TO-92 plastic package. It is designed for low-to-medium power applications. While many small-signal transistors are limited to 100mA or 200mA, the 2N2222 can handle up to 600mA, making it powerful enough to drive small DC motors, high-brightness LEDs, and electromagnetic relays directly from a microcontroller pin.

Key Features for Electrapac Customers

• High Current Capacity: Its 600mA rating allows it to bridge the gap between sensitive logic signals and "heavy" loads like solenoids or large LED arrays.

• Excellent Switching Speed: With a transition frequency of 300MHz, it is perfect for PWM (Pulse Width Modulation) applications, such as controlling the brightness of a lamp or the speed of a fan.

• High Gain ($h_{fe}$): The high amplification factor means a very small current from an Arduino pin (base) can control a much larger current (collector).

• Standard TO-92 Footprint: Fits perfectly into breadboards and stripboards, making it the ideal choice for prototyping and educational lab experiments.

• Robust Voltage Rating: Safely handles up to 40V, making it compatible with 5V, 12V, and 24V DC systems.

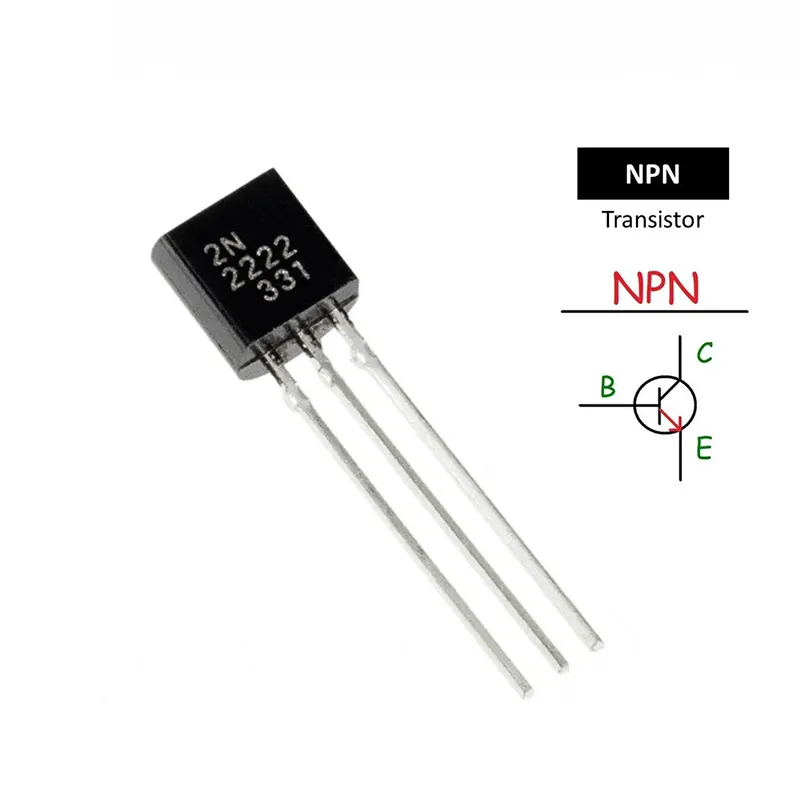

Wiring & Pinout Guide

To use the Electrapac 2N2222 correctly, you must identify the pins. Looking at the flat side of the transistor with the leads pointing down:

1. Pin 1 (Left): Emitter (E) – Usually connected to Ground (GND) for NPN switching.

2. Pin 2 (Middle): Base (B) – The "trigger" pin. Connect this to your Arduino pin through a 1kΩ to 10kΩ resistor.

3. Pin 3 (Right): Collector (C) – Connect this to the "Negative" side of your load (LED, Motor, Relay).

Pro-Tip: Always use a "Base Resistor" when connecting the 2N2222 to a microcontroller. Without a resistor, the transistor will draw too much current from the Arduino pin, potentially damaging both the chip and the transistor.

Primary Applications

• Relay Driving: Using a 5V signal to switch a 12V relay for home automation projects.

• LED Dimming: Controlling the brightness of high-power LED strips via PWM.

• Small Motor Control: Simple ON/OFF or speed control for miniature DC motors.

• Signal Amplification: Boosting weak audio or sensor signals for further processing.

• Logic Inverters: Creating simple "NOT" gates and other basic digital logic circuits.
