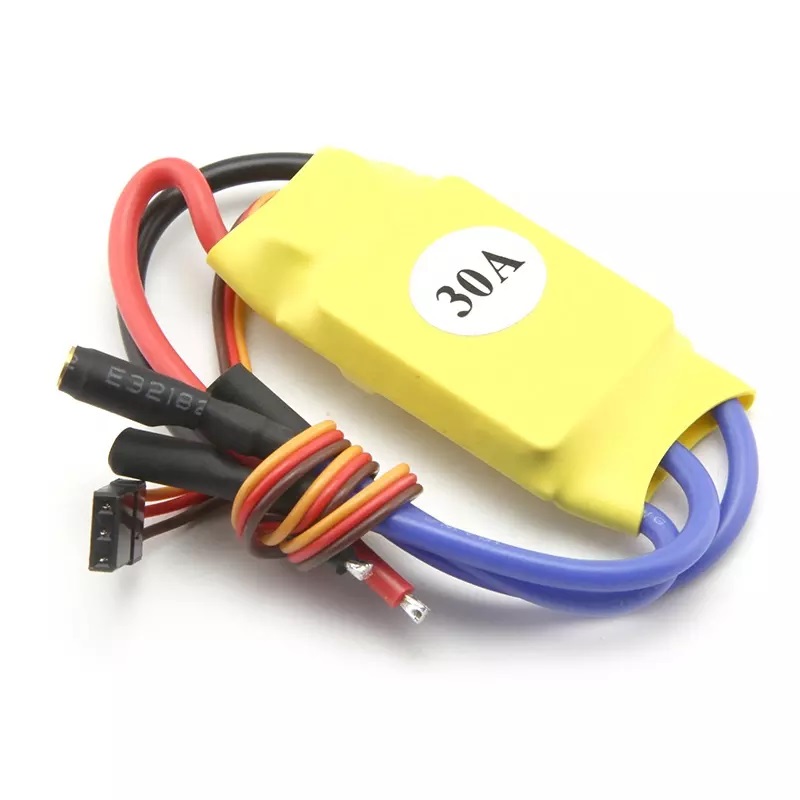

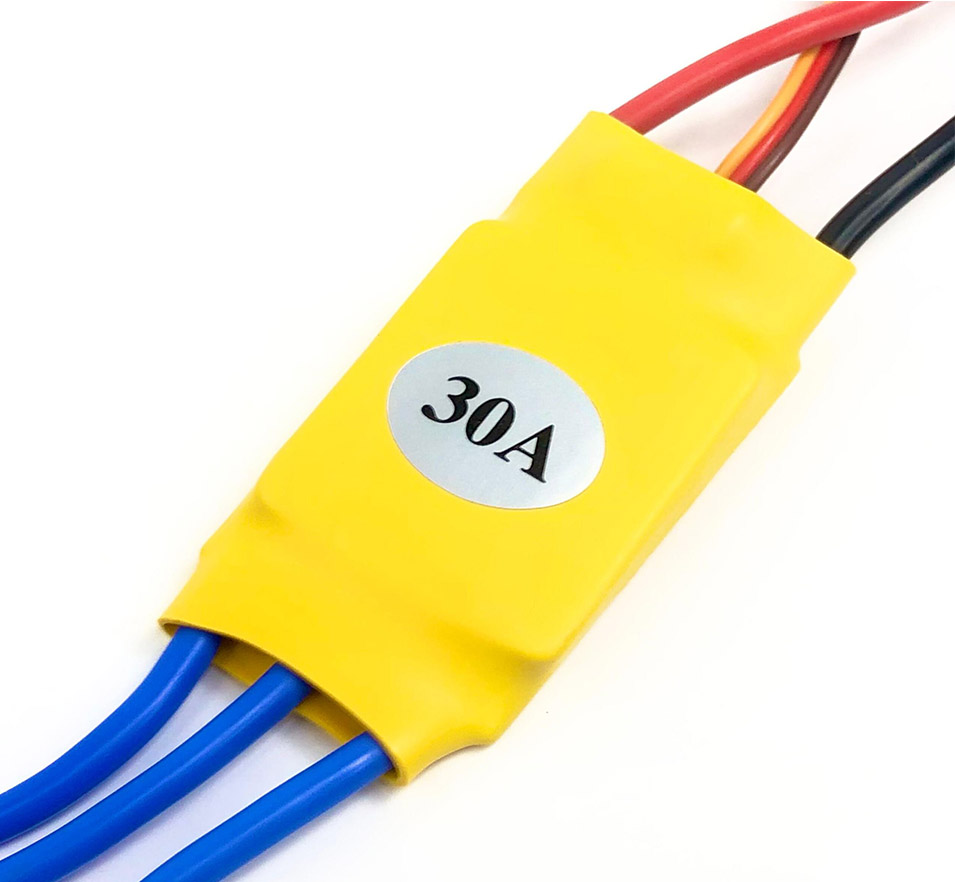

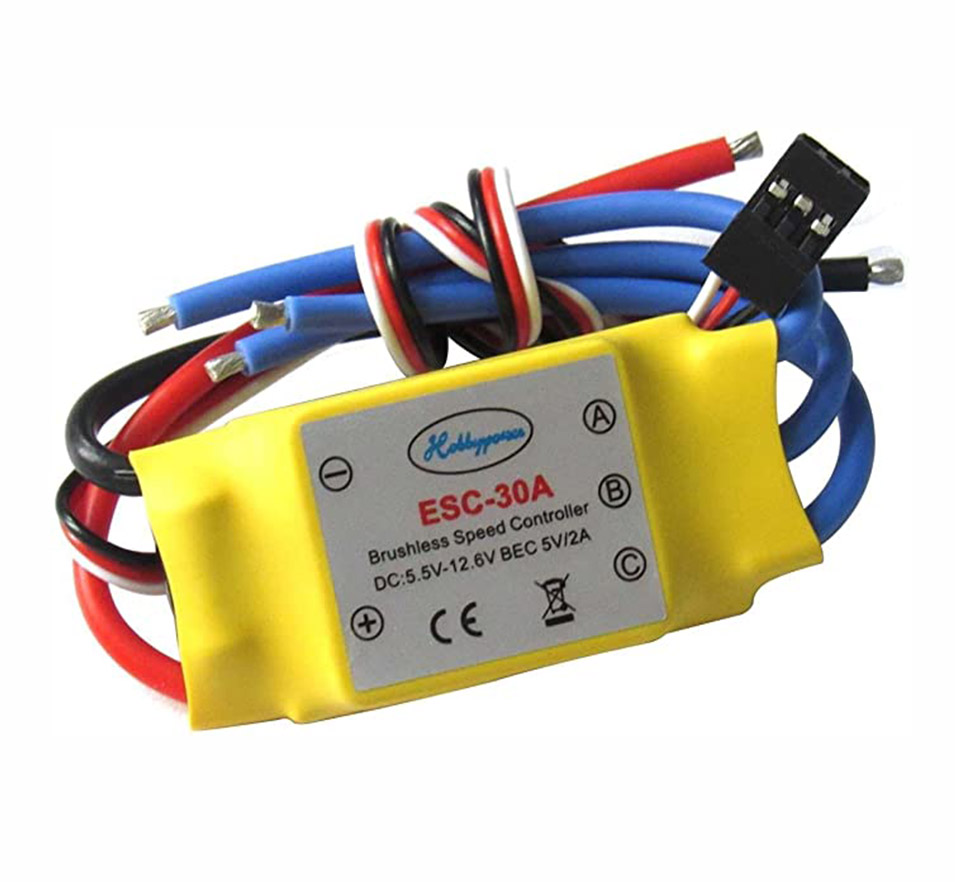

The 30A Brushless ESC (Electronic Speed Controller) is a high-performance power module designed to drive 3-phase BLDC motors with precision and efficiency. At Electrapac, we recommend this 30A controller for hobbyists and engineers building FPV drones, RC planes, and heavy-duty multicopters that require rapid throttle response and reliable thermal management.

Product Overview

This ESC acts as the "brain" for your motor, converting the DC power from your battery into a pulsed 3-phase AC signal. It features high-quality MOSFETs and a dedicated microcontroller to manage motor commutation. Whether you are performing high-speed aerial acrobatics or steady industrial inspections, the Electrapac 30A ESC provides the smooth power delivery needed for stable flight.

Key Features for Electrapac Customers

• Safe Power-On Feature: Regardless of the throttle stick position on your transmitter, the motor will not spin when the battery is connected, preventing accidental injury.

• Throttle Calibration: Easily calibrated to match the range of your specific Radio Controller, ensuring linear and predictable speed control.

• Integrated BEC: The built-in 5V/2A Battery Eliminator Circuit (BEC) provides clean power to your flight controller and radio receiver, simplifying your wiring.

• Programmable Protections: Includes low-voltage cutoff, overheat protection, and throttle signal loss protection to keep your hardware safe during malfunctions.

• Universal Motor Compatibility: Works with a wide range of brushless motors, including many 1400KV, 2200KV, and 2400KV variants.

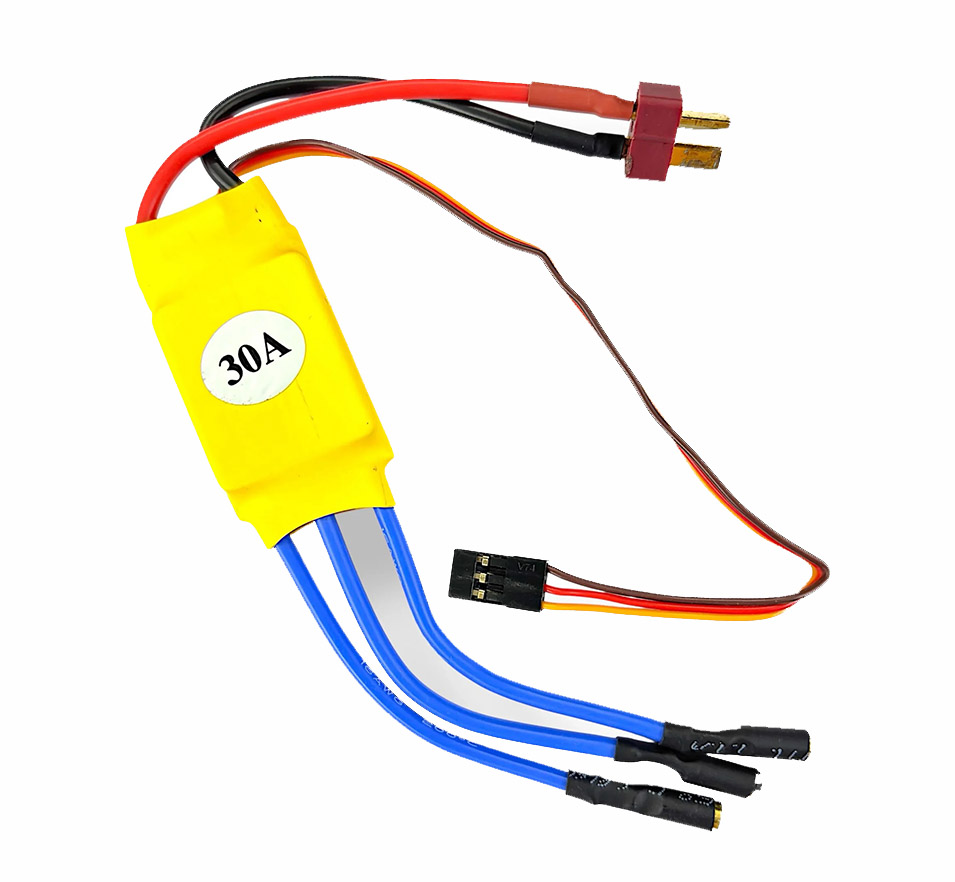

Wiring & Integration Guide

To ensure the best performance for your Electrapac drone build, follow this standard connection guide:

1. Input (Thick Red/Black): Connect to your LiPo battery or Power Distribution Board (PDB).

2. Output (3 Blue/Black Wires): Connect to the three wires of your brushless motor.

   Tip: If the motor spins in the wrong direction, simply swap any two of these three wires.

3. Signal (3-pin Servo Connector): * White/Orange: Throttle Signal

   • Red: +5V Output (BEC)

   • Black/Brown: Ground

Primary Applications

• FPV Racing Drones: Providing the high burst current needed for rapid maneuvers.

• RC Fixed-Wing Planes: Reliable speed control for gliders and sport planes.

• DIY Electric Tools: Adapting for use in small high-speed drills or fans (requires a servo tester).

• Robotics: Driving high-torque brushless motors for combat robots or advanced rovers.

• Underwater ROVs: Powering thrusters in waterproofed enclosures.
