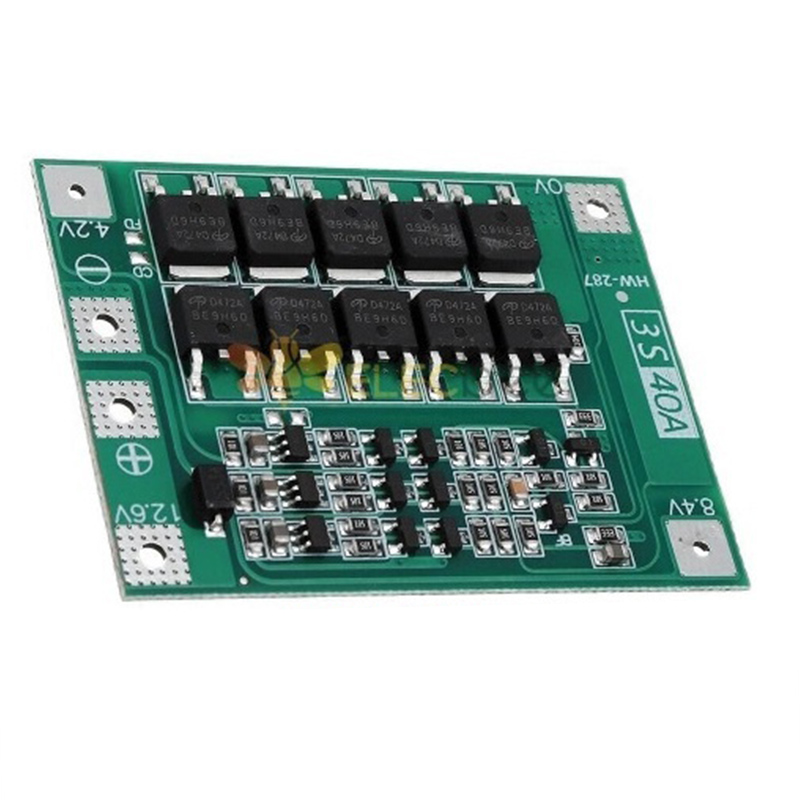

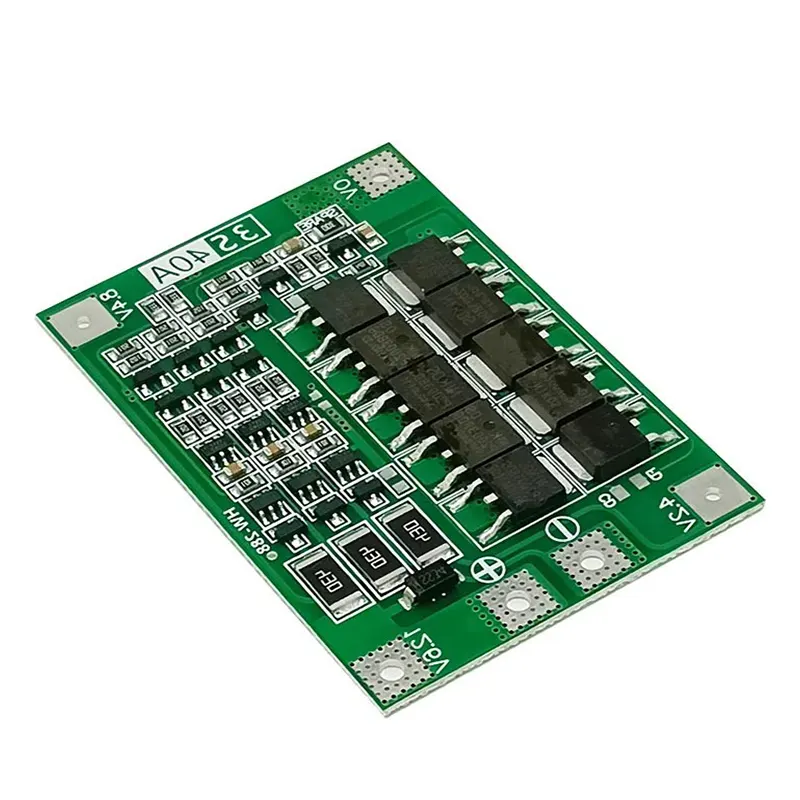

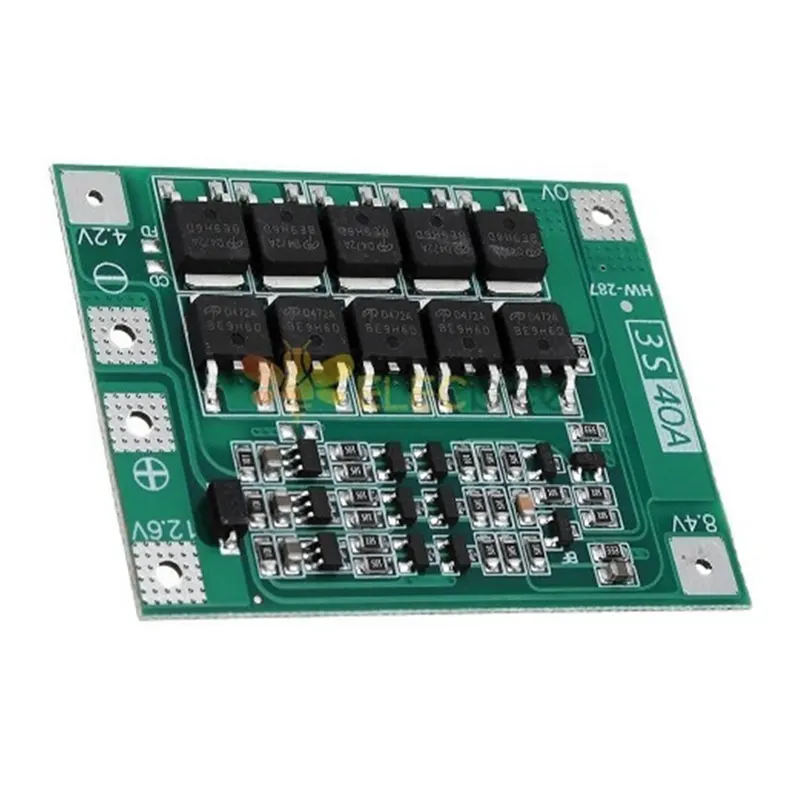

The 3S 40A Li-ion Lithium Battery BMS (Battery Management System) with Balance functionality is a critical safety and performance module for high-power battery packs. At Electrapac, we recommend this board for makers in Bangladesh building DIY power tools, vacuum cleaners, or high-current RC vehicles that utilize a 3-cell (11.1V to 12.6V) lithium-ion battery configuration.

Product Overview

This BMS acts as the "brain" of your battery pack. It monitors each of the three cells individually to prevent common lithium-ion hazards like overcharging, over-discharging, and short circuits. The 40A Enhanced/Balance Version is specifically designed to handle heavy startup currents from DC motors, making it far superior to standard low-current BMS boards.

Key Features for Electrapac Customers

• Integrated Balance Circuit: Unlike cheaper versions, this board features a balance function that bleeds off excess voltage from stronger cells, ensuring all cells reach 4.2V simultaneously for maximum pack longevity.

• High Current Handling: With a 40A rating, this board can easily drive high-torque 775 motors or power-intensive LED arrays without tripping into protection mode.

• Triple Protection Suite: 1. Short Circuit Protection: Instantly cuts power if the output leads touch.

  2. Over-Current Protection: Prevents the battery from being pushed beyond its safe discharge limit.

  3. Temperature Management: Designed with high-quality MOSFETs to manage heat during high-current draw.

• Automatic Recovery: Once the "fault" (like a short circuit) is removed, the BMS automatically restores power to the output terminals.

• Durable Build: Built on a multi-layer PCB with thick copper traces to minimize resistance and heat buildup.

Wiring & Assembly Guide

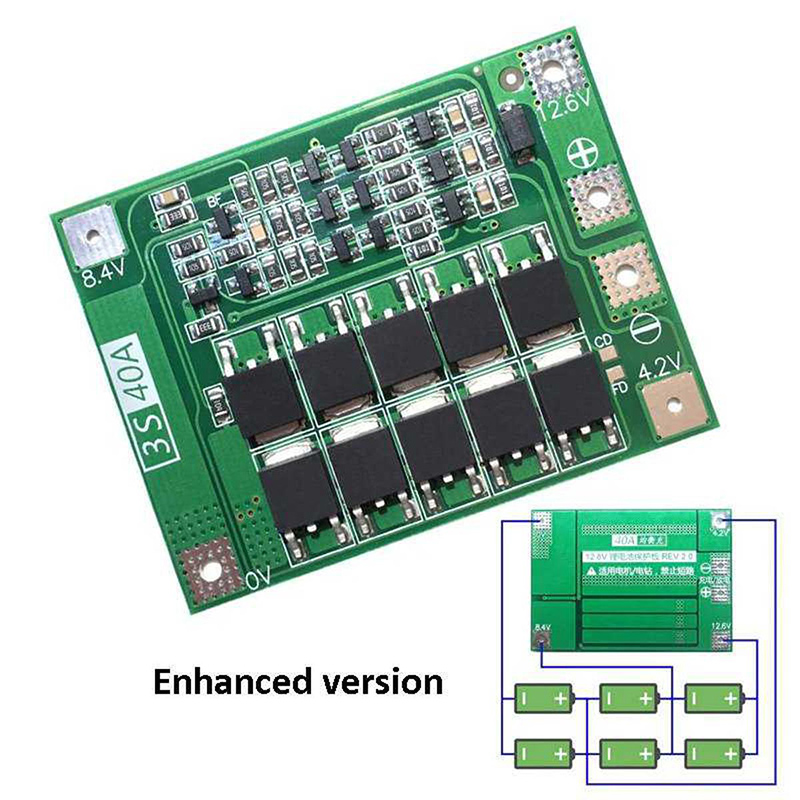

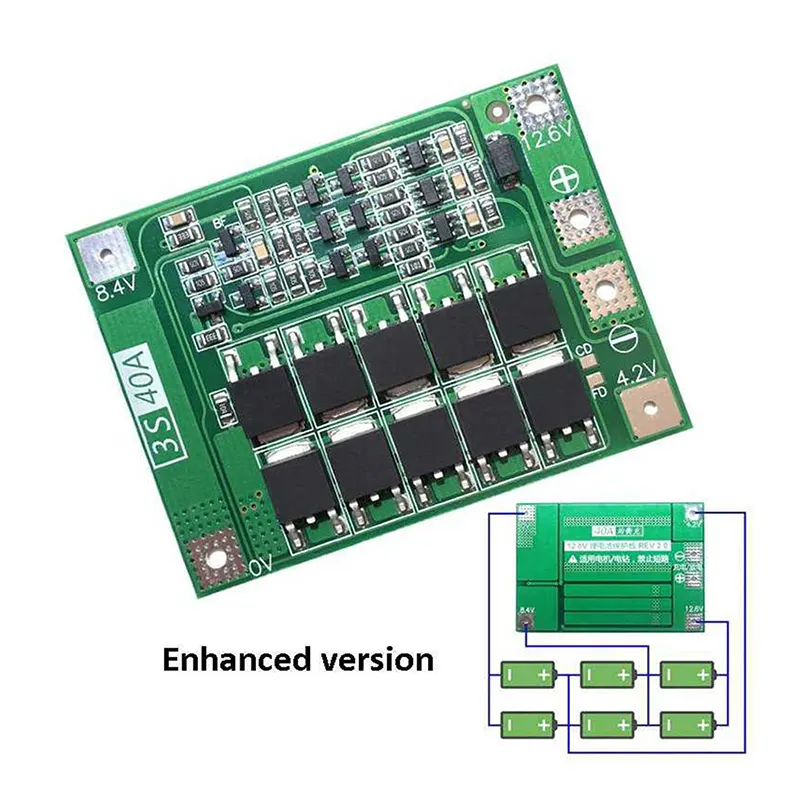

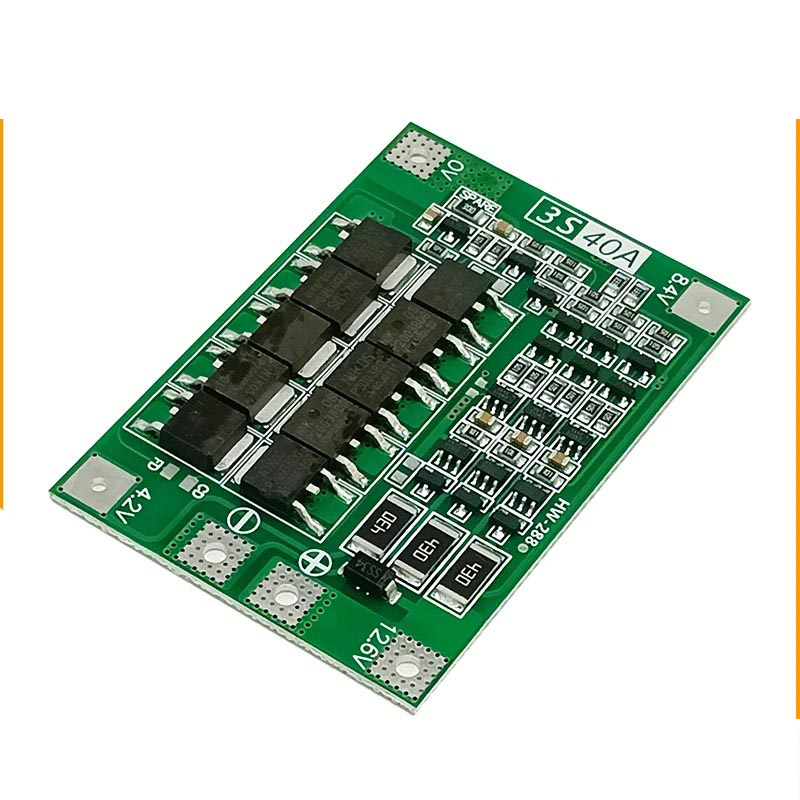

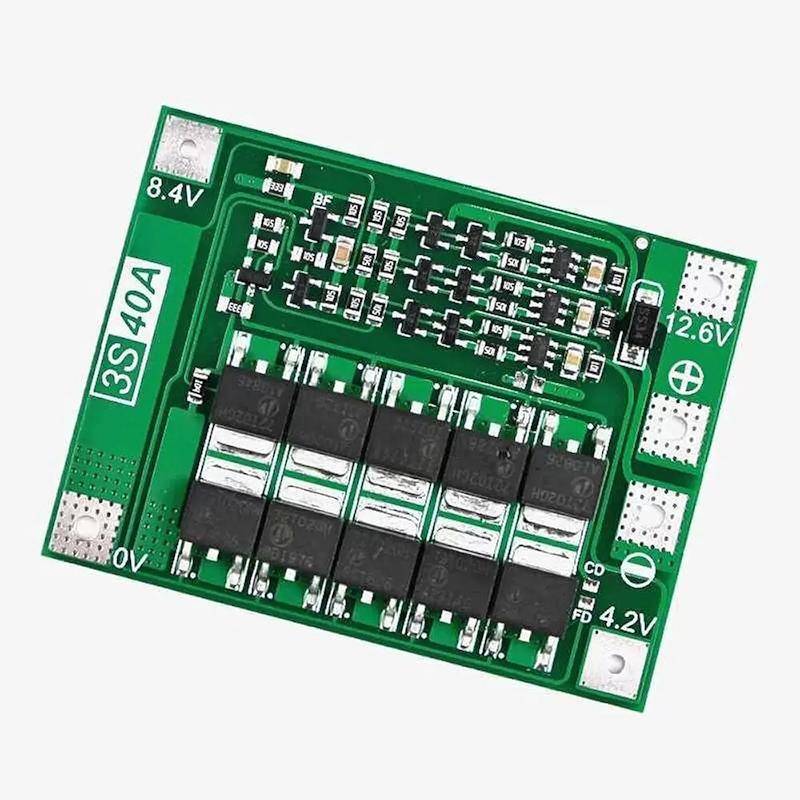

For the Electrapac 3S 40A BMS to function correctly, the wiring must follow a strict sequence (0V to 4.2V to 8.4V to 12.6V):

1. B-: Connect to the Negative terminal of the first battery.

2. B1: Connect to the junction between the 1st and 2nd battery (4.2V point).

3. B2: Connect to the junction between the 2nd and 3rd battery (8.4V point).

4. B+: Connect to the Positive terminal of the 3rd battery (12.6V point).

5. P+ / P-: These are your Common Ports. Connect your charger (+) and (-) here, as well as your Load (+) and (-).

Pro-Tip: If you are using this BMS for a high-power motor (like a 775 motor), we recommend adding a 10uF - 100uF non-polar capacitor across the motor terminals to prevent "back-EMF" noise from confusing the BMS protection logic.

Primary Applications

• Cordless Power Tools: Replacing old Ni-Cd batteries in drills with high-capacity 18650 Li-ion cells.

• Robot Vacuum Cleaners: Building or repairing battery packs for automated cleaning bots.

• Portable Bluetooth Speakers: Creating long-lasting 12V power banks for high-wattage amplifiers.

• RC Vehicles: Powering 1/10 scale cars or medium-sized drones.

• Emergency Lighting: Managing 12V LED backup systems for home or office use.

Why Shop at Electrapac?

We source the Enhanced Balance Version of the 3S 40A BMS to ensure your battery packs remain healthy and safe for years. Visit us at www.electrapac.com for the protection modules that keep your DIY energy projects running efficiently.
