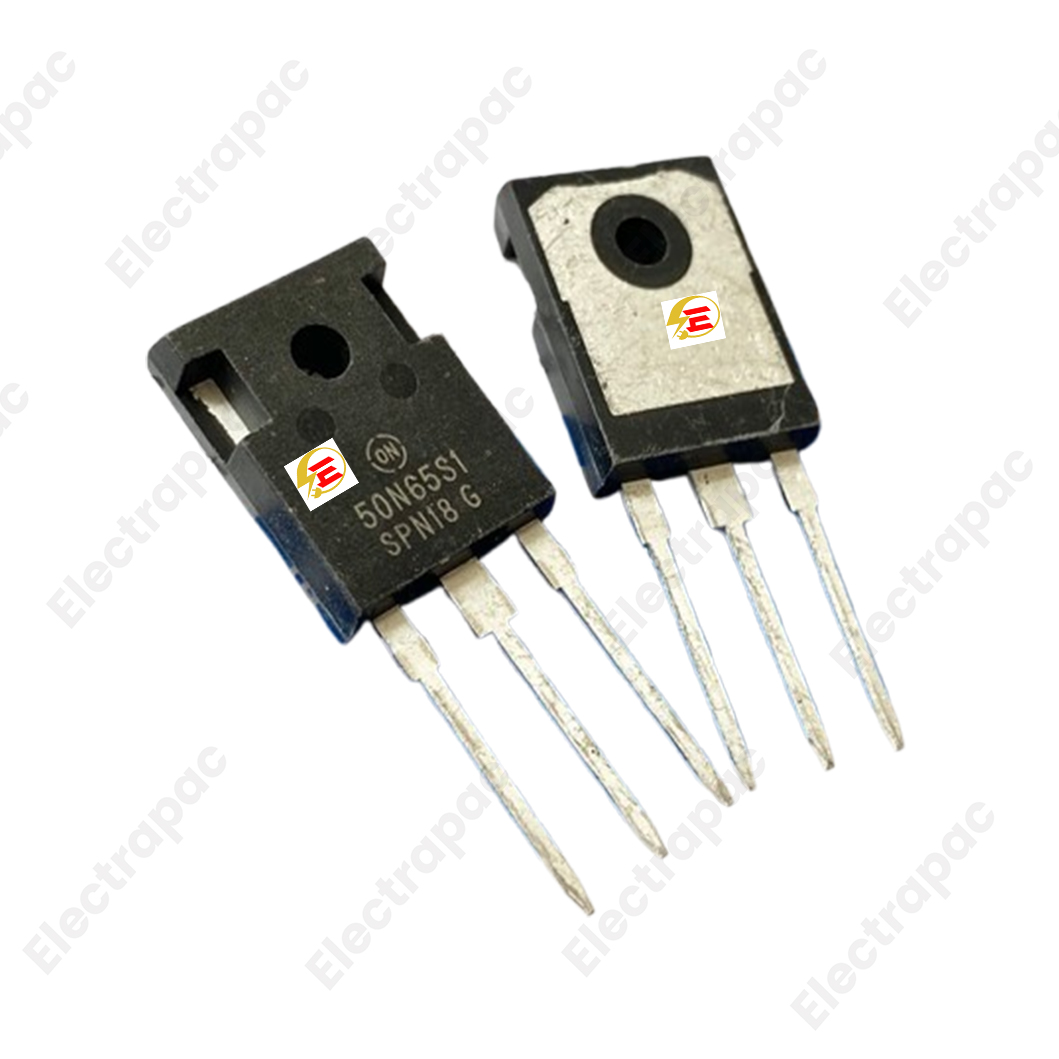

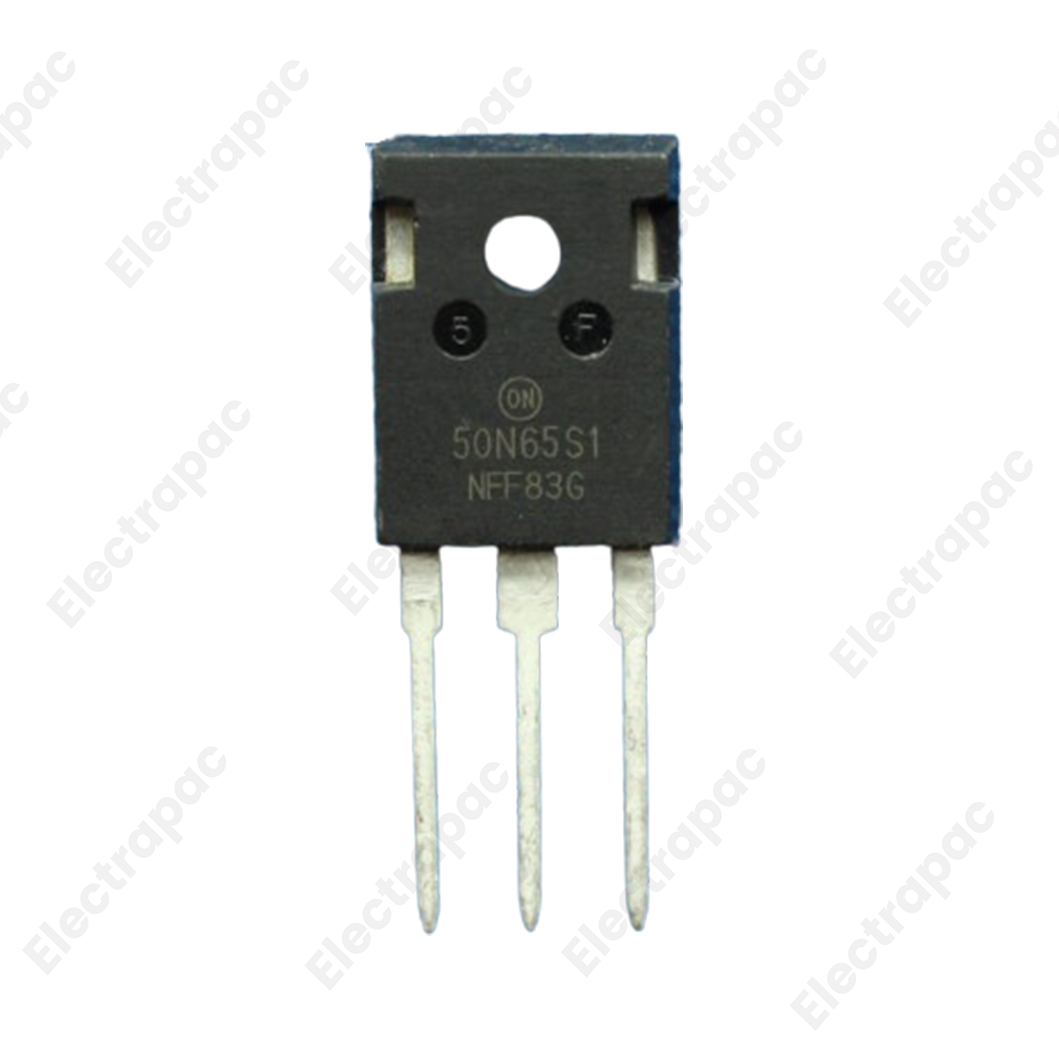

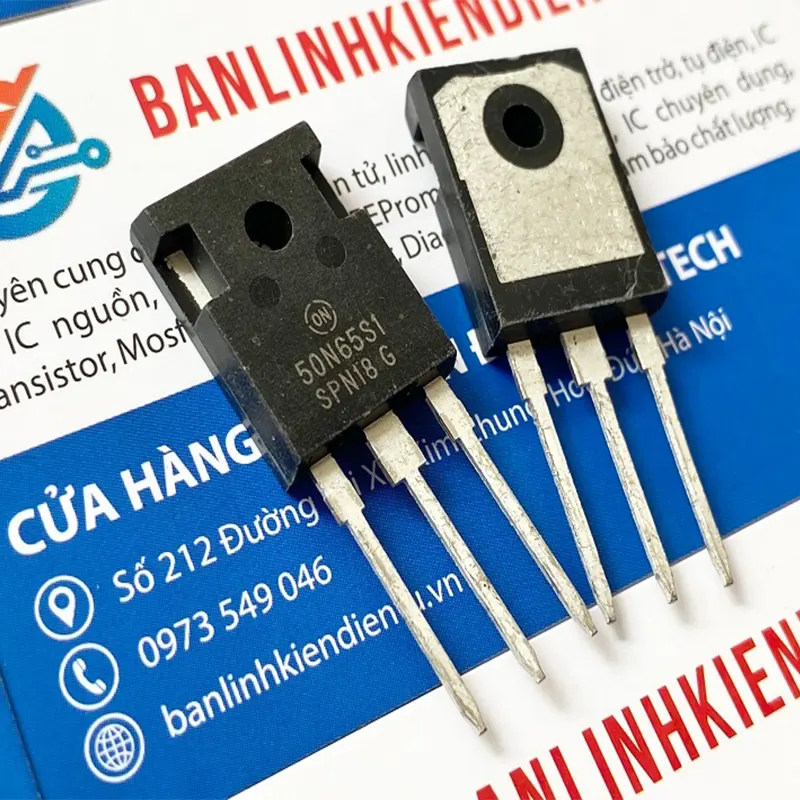

The 50N65S1 (50N65) N-Channel IGBT is a high-performance power transistor engineered for heavy-duty switching applications. At Electrapac, we recommend this Insulated Gate Bipolar Transistor (IGBT) for technicians and engineers working on high-voltage power electronics, as it combines the simple gate drive of a MOSFET with the high-current, low-saturation voltage capability of a bipolar transistor.

Product Overview

The 50N65 is designed for high-speed switching and exceptional thermal durability. Rated at 600V and 50A, this Trenchstop™ technology-based IGBT is built to minimize switching losses, making it the perfect choice for high-frequency inverters and power converters. Whether you are repairing an industrial welding machine or building a custom motor controller, this component provides the ruggedness required for demanding environments.

Key Features for Electrapac Customers

• Low Saturation Voltage: Features a low V_CE(sat), which significantly reduces conduction loss and heat generation during high-current operation.

• Trenchstop™ Technology: Provides a very tight parameter distribution and high robustness, ensuring stable performance even under heavy loads.

• Integrated Fast Recovery Diode: Many variants include a built-in anti-parallel diode to protect the transistor from inductive "kickback" during switching.

• Standard TO-247 Package: The large metal-backed tab ensures maximum heat transfer to your cooling system, essential for high-power builds.

• High Input Impedance: Can be driven by standard gate driver ICs, simplifying your Electrapac circuit designs.

Technical Implementation Guide

To ensure the longevity of your 50N65 in high-power circuits, follow these professional tips:

1. Thermal Management: At 50A, heat is your biggest enemy. You must mount this to a large aluminum heatsink with high-quality thermal grease or a sil-pad.

2. Gate Protection: Always use a gate resistor (typically 5Ω to 20Ω) to prevent oscillations and a 10kΩ pull-down resistor to ensure the IGBT stays OFF when not triggered.

3. Snubber Circuits: For inductive loads like motors or transformers, we recommend adding a snubber (RC circuit) across the Collector and Emitter to absorb high-voltage spikes.

4. Driver Voltage: Ensure your gate driver provides a clean +15V for fully turning the device ON; lower voltages can cause the IGBT to operate in the linear region, leading to rapid overheating.

Primary Applications

• Inverter Welders: The primary switching element for high-current DC welding machines.

• Solar Inverters: Converting DC power from solar arrays into AC power with high efficiency.

• Uninterruptible Power Supplies (UPS): High-speed switching for battery-to-AC conversion.

• Induction Heating: Used in industrial induction furnaces and high-end induction cooktops.

• Motor Drives: Controlling variable speed AC and DC motors in industrial automation.
