The 74HC08 Quad 2-Input AND Gate IC is a staple component in digital electronics, acting as a "gatekeeper" for logical signals. At Electrapac, we supply this high-speed CMOS integrated circuit for hobbyists and students building combinational logic circuits, safety interlocks, and hardware-based decision-making systems.

Product Overview

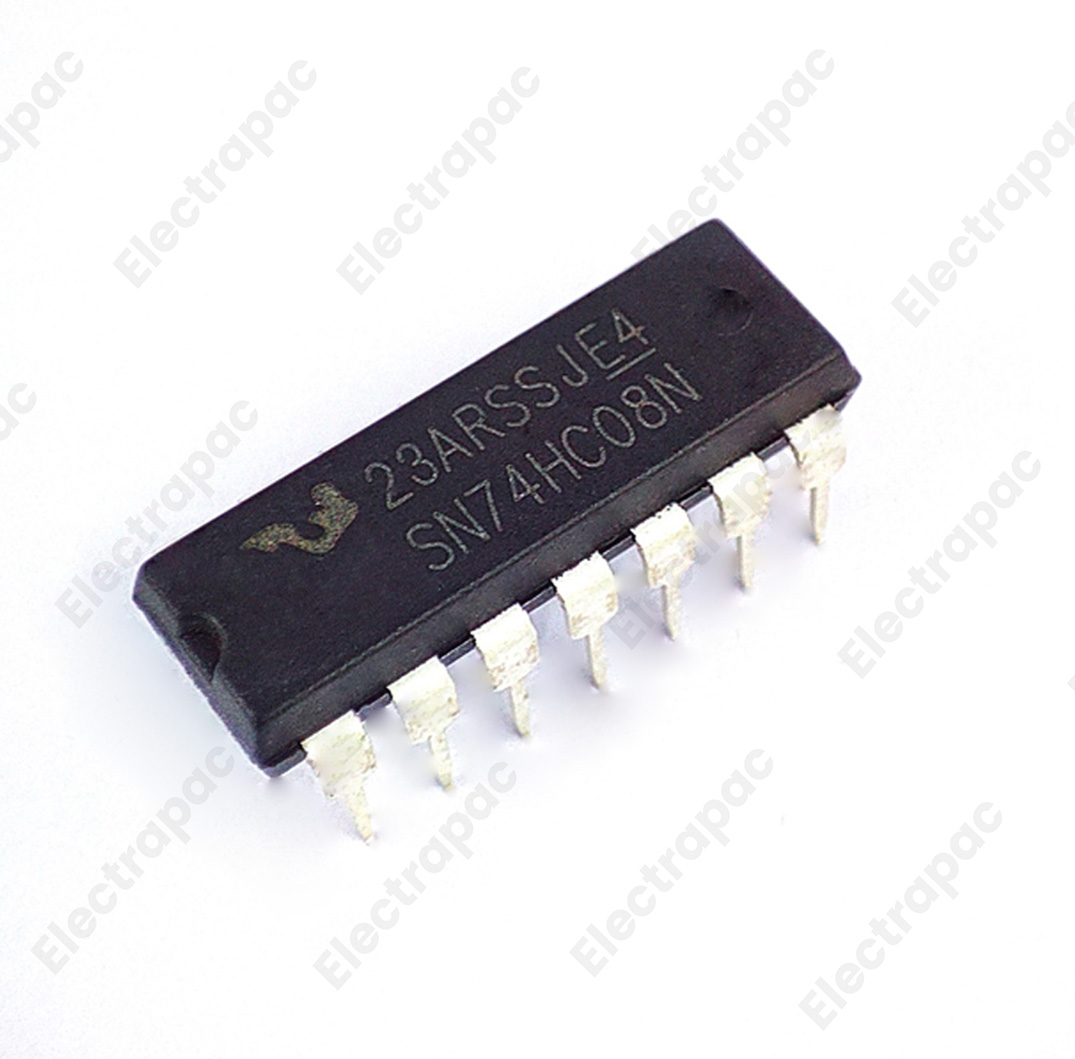

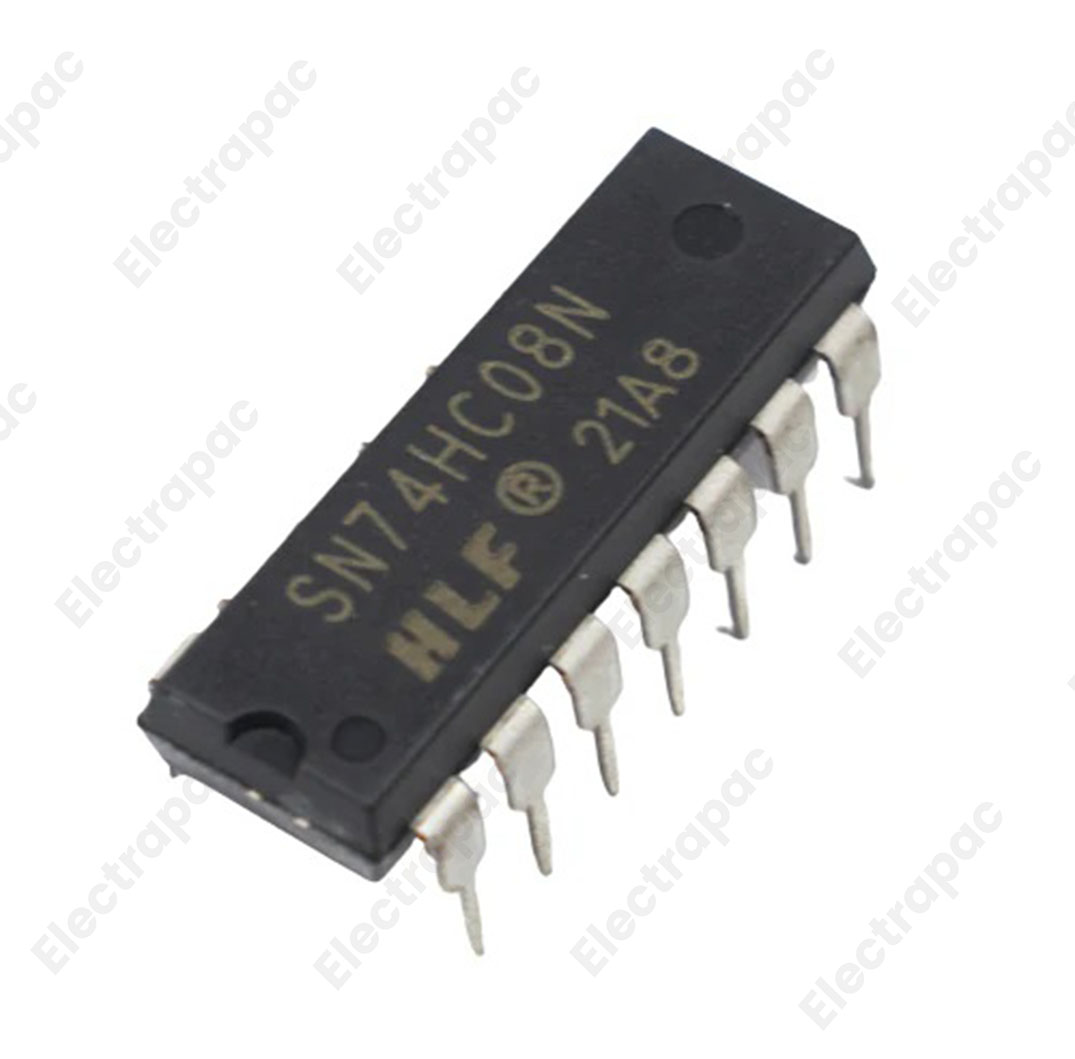

The 74HC08 contains four independent AND gates in a single 14-pin DIP package. In an AND gate, the output is "HIGH" (1) only when both of its inputs are "HIGH." If either or both inputs are "LOW" (0), the output remains "LOW." This IC belongs to the 74HC (High-speed CMOS) family, meaning it combines the low power consumption of the 4000 series with the high-speed performance of the older 74LS series.

Key Features for Electrapac Customers

• Universal Compatibility: Works perfectly with 3.3V microcontrollers (like Raspberry Pi/ESP32) and 5V systems (like Arduino Uno).

• High Noise Immunity: Ensures stable logic switching even in environments with electromagnetic interference.

• Low Power Draw: Draws almost zero current when the outputs are not switching, making it perfect for battery-powered Electrapac kits.

• Prototyping Friendly: The 14-pin DIP format fits standard breadboards and IC sockets, making it ideal for educational labs and rapid prototyping.

• Buffered Outputs: Provides clean, sharp square waves for driving subsequent logic stages or low-power LEDs.

  Primary Applications

  • Enable/Disable Control: Use one input as a "Master Switch" to allow or block a clock signal or data stream.

  • Safety Interlocks: Ensure two conditions are met (e.g., "Door Closed" AND "Start Button Pressed") before a motor activates.

  • Address Decoding: Combining signals in memory-mapped I/O or peripheral selection logic.

  • Signal Gating: Preventing sensitive downstream components from receiving noise during startup.

  • Digital Arithmetic: Building half-adders and full-adders (used to generate the "Carry" bit).

  Why Shop at Electrapac?

  We source our 74HC08 ICs from trusted manufacturers to ensure precise timing and durable lead frames that won't snap after repeated breadboard insertions. At www.electrapac.com, we provide the fundamental building blocks that make complex digital logic possible.
