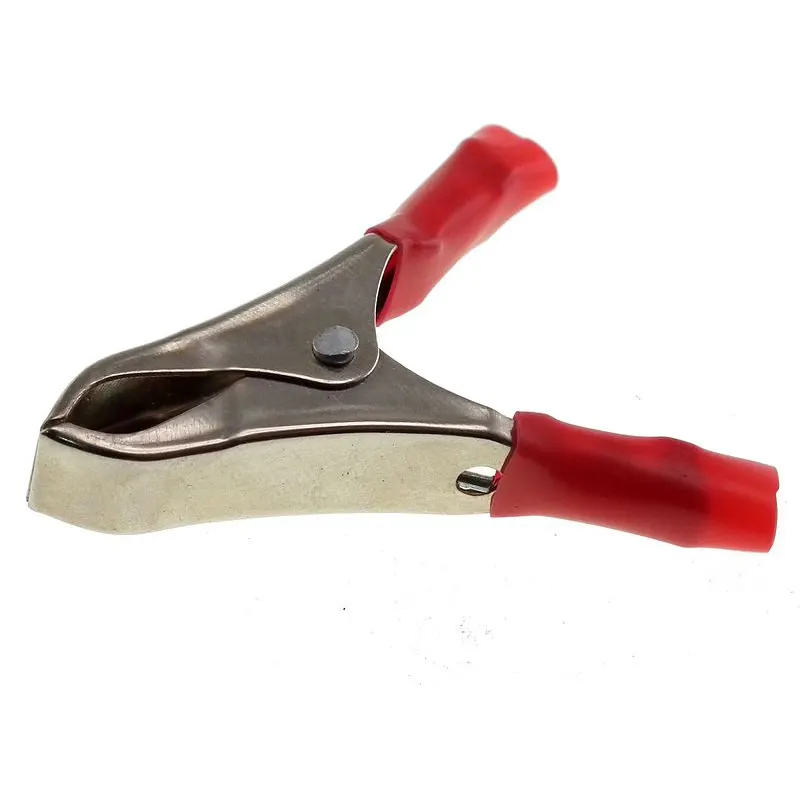

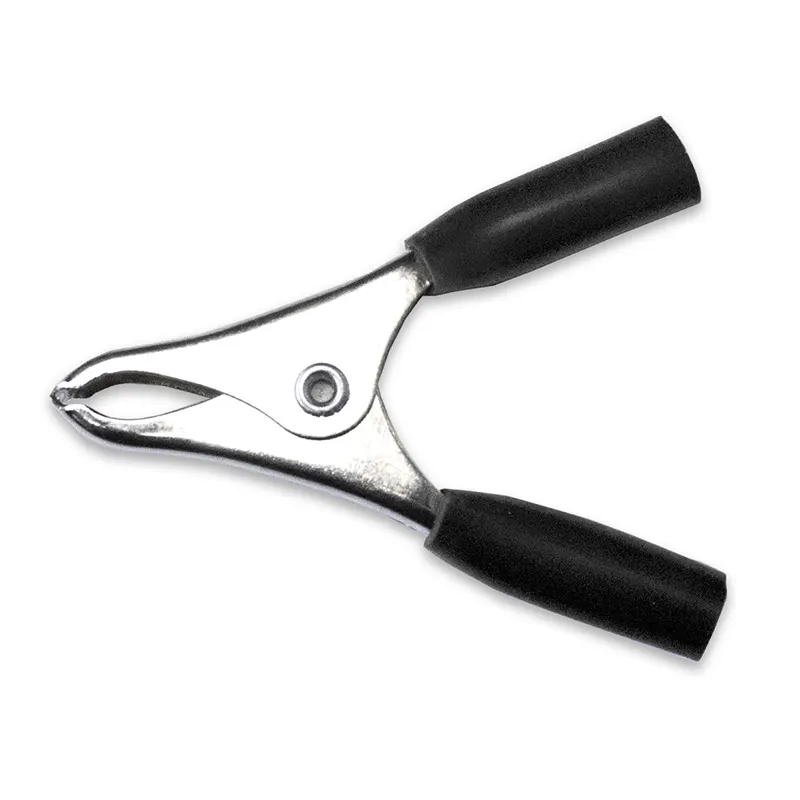

The 75mm 30A Insulated Crocodile Alligator Clips are professional-grade connectors designed for high-current electrical testing and battery maintenance. At Electrapac, we recommend this heavy-duty pair for technicians and vehicle owners in Bangladesh who need a secure, temporary connection for car batteries, solar panels, or high-power laboratory experiments.

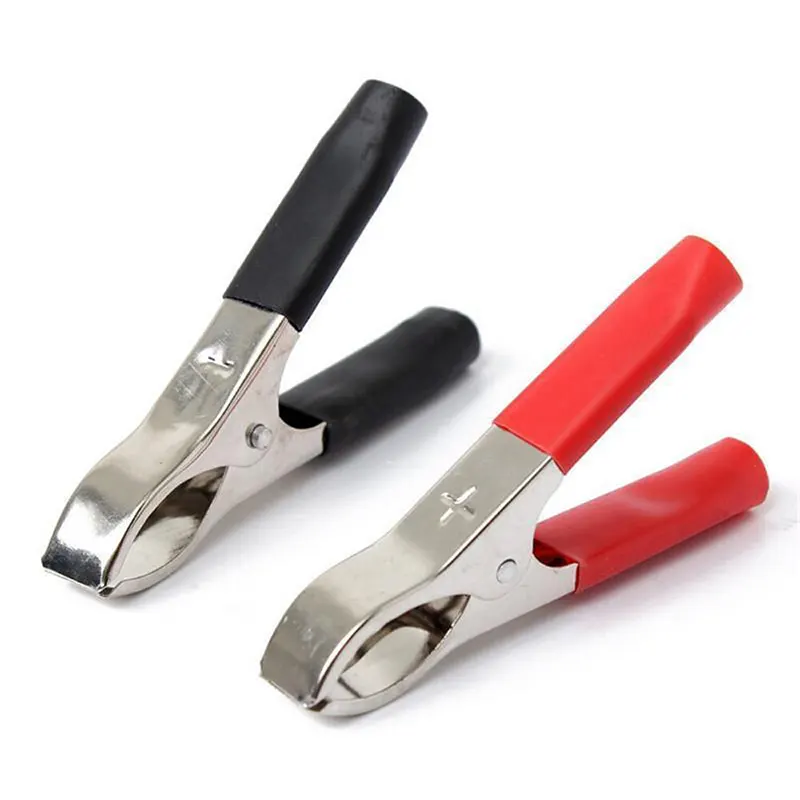

These 75mm clamps are engineered to handle a continuous current of up to 30 Amps, making them significantly more robust than standard electronics test clips. Each pair includes one Red (Positive) and one Black (Negative) clip, both featuring full PVC insulation to prevent accidental short circuits or electrical shocks during use. The strong internal spring ensures a "bite" that won't slip off battery terminals or thick copper cables.

Key Features for Electrapac Customers

• Heavy-Duty Spring Tension: The high-tensile steel spring provides a powerful grip, ensuring low contact resistance and preventing power loss during high-current charging.

• Full PVC Insulation: The soft, flexible handles protect the user from sparks and prevent the clips from touching each other, which is vital when working in cramped engine bays.

• Large Jaw Capacity: With an opening of nearly 30mm, these clips can easily attach to car battery posts, thick busbars, or industrial power terminals.

• Versatile Termination: The rear of the clip allows you to either solder your wire directly for a permanent bond or use a screw-clamp for quick field repairs.

• Corrosion Resistant: The metal body is treated to resist oxidation, ensuring a long life even when used in humid environments or near battery acid.

When using the Electrapac 30A Clamps for battery applications, always follow these safety steps:

1. Identify Polarity: Always connect the Red clip to the Positive (+) terminal first, then the Black clip to the Negative (-) terminal or chassis ground.

2. Secure Connection: Ensure the teeth of the clip are biting into a clean metal surface. Dirt or corrosion on the battery post can cause heat buildup at the clip.

3. Wire Gauge: To utilize the full 30A capacity, ensure you are using a thick enough wire (e.g., 10 AWG or 12 AWG). Using thin wire with these clips will cause the wire to melt before the clip reaches its limit.

4. Avoid Overloading: While rated for 30A, these are not intended for "jump-starting" a car engine (which requires 200A+). They are perfect for charging a battery or running 12V accessories.

• Battery Chargers: Replacing worn-out or thin clips on 12V/24V car and motorcycle chargers.

• Solar Power Testing: Connecting portable solar panels to charge controllers or battery banks.

• DIY Power Banks: Creating temporary 12V power taps from lead-acid or IPS batteries.

• Laboratory Testing: Providing a high-current interface for testing DC motors, inverters, and high-wattage LED arrays.

• Automotive Diagnostics: Powering 12V tire inflators, vacuum cleaners, or diagnostic tools directly from the battery.

We source our 75mm 30A Alligator Clips with premium insulation and reinforced springs to ensure they don't lose their grip over time. Visit us at www.electrapac.com for the reliable connectors that keep your high-power projects safely joined.
