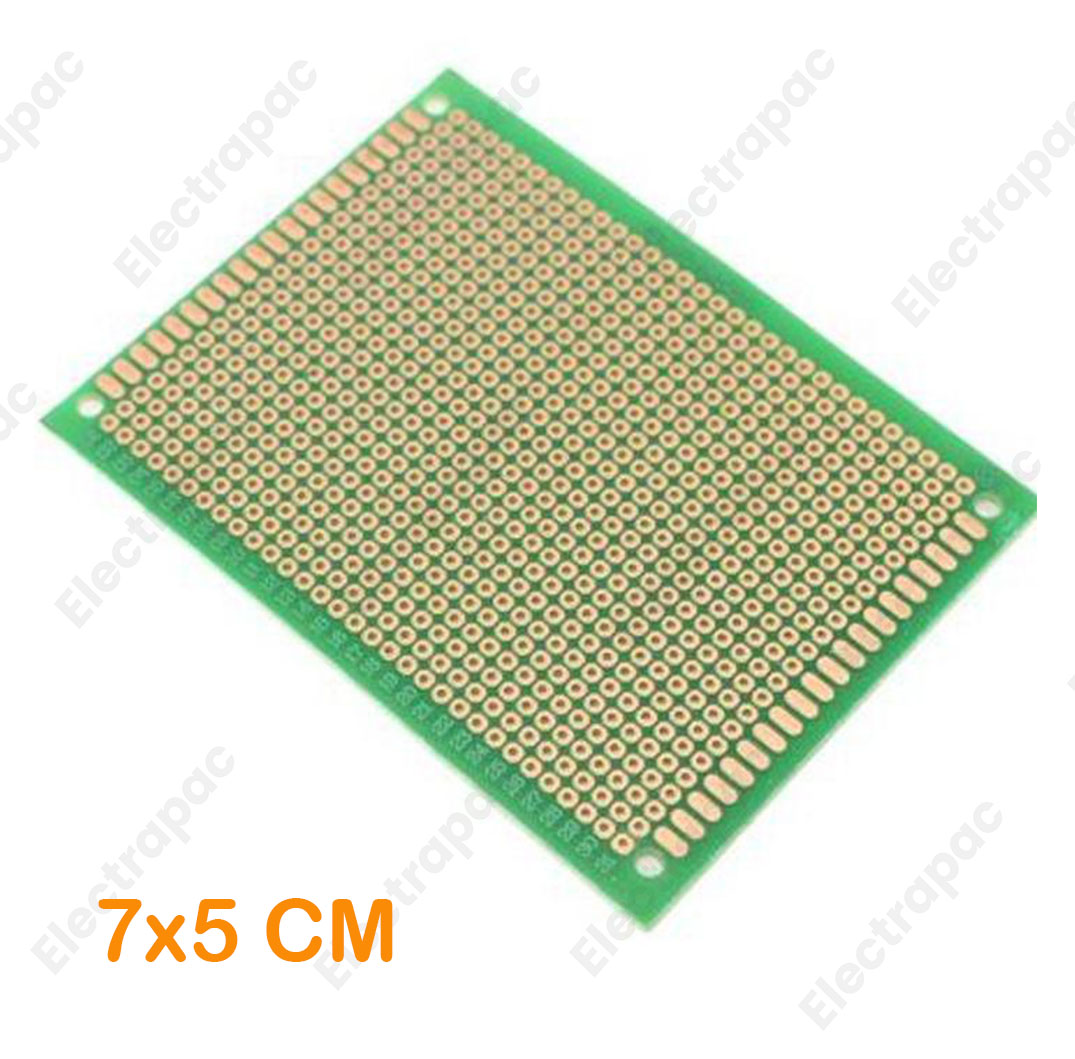

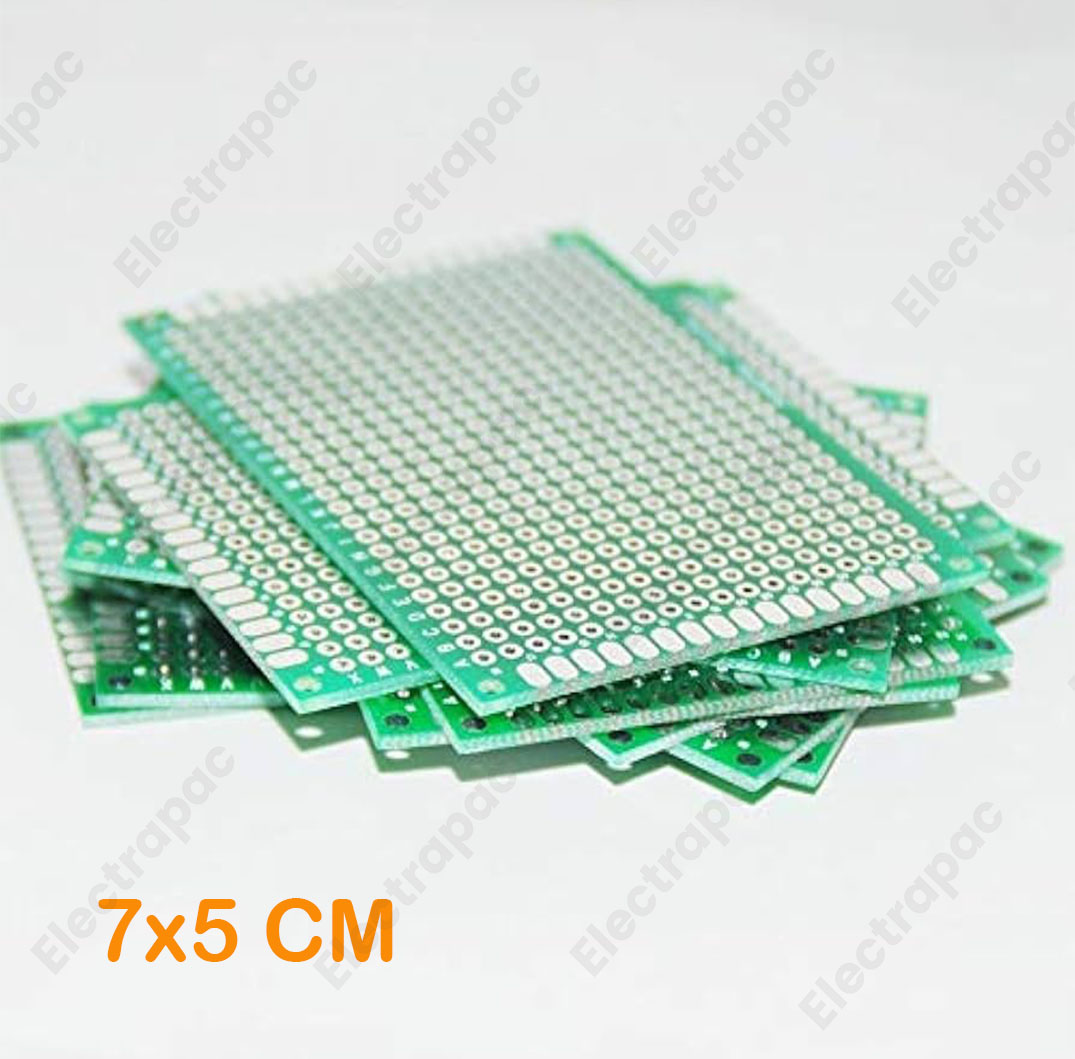

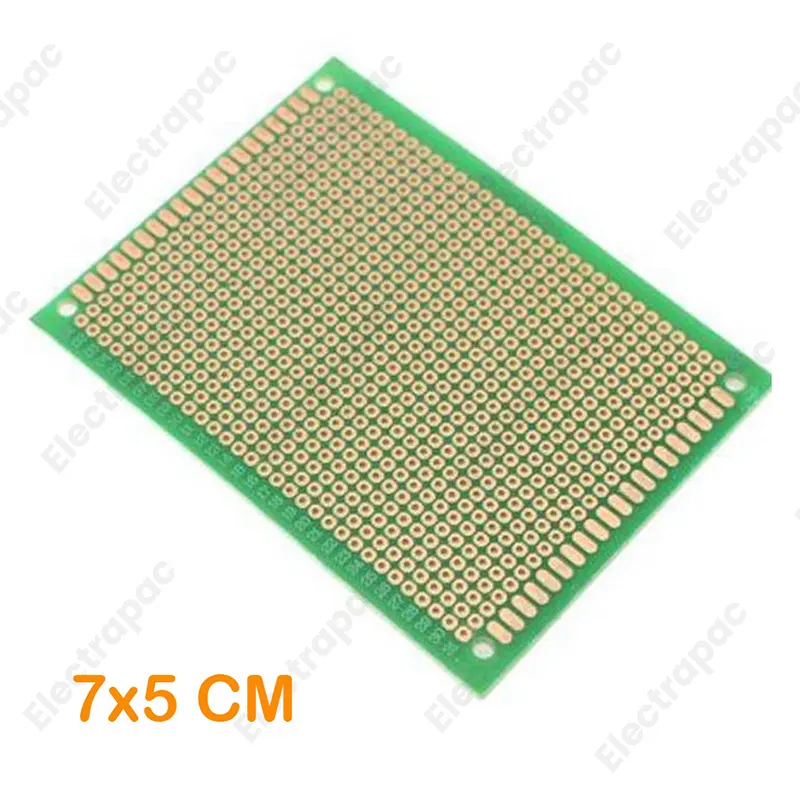

This universal "Veroboard" style PCB is designed for rapid prototyping and permanent circuit assembly. Featuring a standard grid pattern, it allows for easy placement of DIP integrated circuits, resistors, capacitors, and connectors.

Key Features

• Standard Compatibility: The 2.54mm pitch is perfectly spaced for standard headers, Arduino pins, and IC sockets.

• Pre-Drilled & Tinned: Each hole is pre-drilled and surrounded by a copper pad, making it easy for solder to flow and "wet" the joint quickly.

• Corner Mounting Holes: Includes four pre-drilled holes in the corners, allowing you to easily mount the finished board into an enclosure or onto a chassis using M3 screws.

• Easy to Modify: Since it is made of phenolic resin/bakelite, you can easily cut or trim these boards down to a smaller size using a heavy-duty hobby knife or small saw.

Application Tips

Soldering Advice: Because this is a single-sided board, the copper pads can lift if they are overheated for too long. For the best results, use a clean iron tip at approximately 350°C and apply heat for no more than 2-3 seconds per joint.

• Bridging: To create "traces" (connections between holes), you can use excess component leads or small lengths of solid-core wire to bridge the pads.

• Flux is your friend: If the board has been sitting in a drawer for a while, a quick swipe with a flux pen will make the older copper pads take solder like they're brand new.
