Key Features for Electrapac Customers

• 10A High-Power Relay: Unlike smaller 2A sensors, our 10A model can easily handle multiple street lamps, high-wattage floodlights, or a whole string of decorative LED garden lights.

• Smart Delay Circuit: Features a built-in time delay. This ensures the lights don't "strobe" or flicker if a passing car's headlights hit the sensor or if a dark cloud briefly passes by.

• Weatherproof Protection: The translucent white dome is UV-stabilized and rain-resistant, protecting the internal electronics from humidity and rain.

• Energy Saving: Ensures your lights are never accidentally left on during the day, extending the lifespan of your bulbs and lowering your monthly bill.

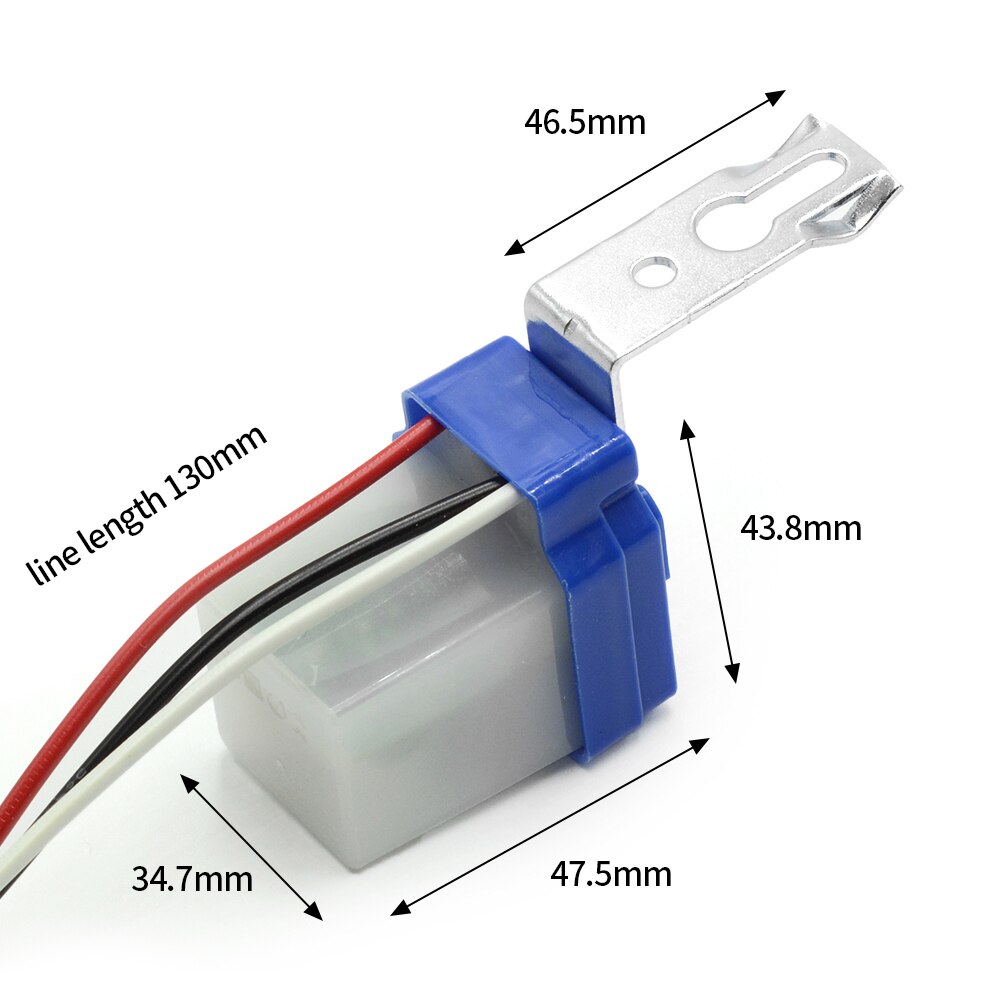

• Easy Mounting: Comes with a sturdy metal bracket for quick installation on walls, poles, or wooden surfaces.

Wiring & Installation Guide

Installing the Electrapac Day/Night Switch is a standard 3-wire process. For your safety, always turn off the mains power before beginning.

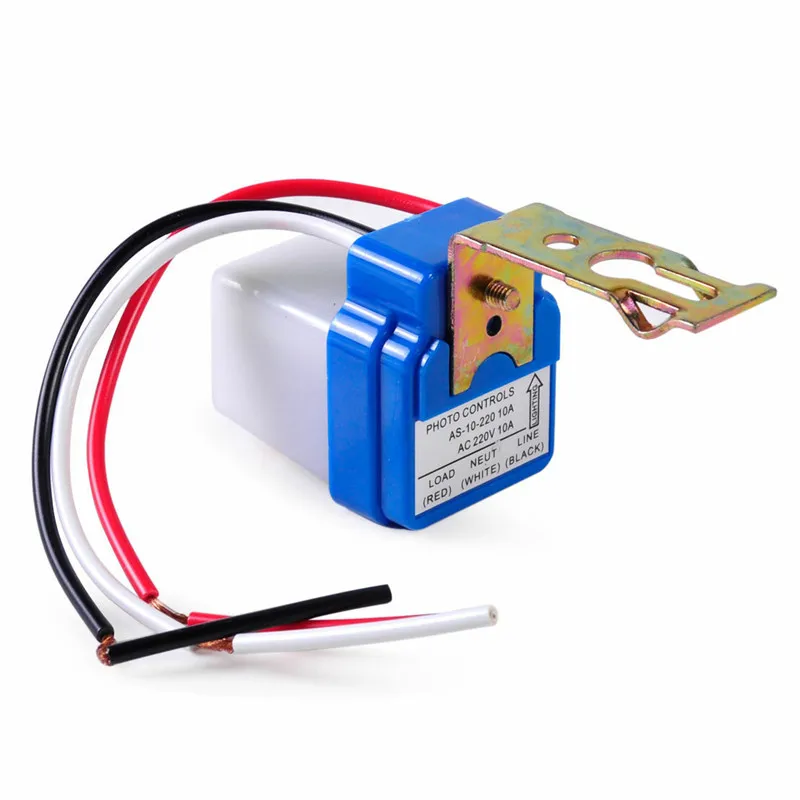

1. Black Wire (Line/Phase): Connect to the incoming 220V Live wire.

2. White Wire (Neutral): Connect to the incoming Neutral wire (Common for both sensor and light).

3. Red Wire (Load): Connect to the Live/Positive terminal of your Light/Lamp.

Pro-Tip: Proper placement is key! Do not install the sensor underneath the light it is controlling. If the sensor "sees" the light it just turned on, it will think it's daytime and turn off immediately, creating a continuous "on-off-on" loop. Mount the sensor above or away from the light source.

Primary Applications

• Street & Perimeter Lighting: Automatic illumination for boundary walls, gates, and driveways.

• Garden & Landscape Lights: Enhance your home’s aesthetic without having to remember the sunset time.

• Signboards & Billboards: Ensure your shop's advertisement is always visible at night.

• Parking Lots: Providing security and visibility in commercial areas from dusk until dawn.

• Rooftop Lights: Perfect for Dhaka's rooftops where manual switching can be inconvenient.

Why Shop at Electrapac?

We supply the Heavy-Duty 10A Photocell Switch featuring a high-quality electromagnetic relay to ensure durability under the local voltage conditions of Bangladesh. Visit us at www.electrapac.com for the automation components that make your life smarter and easier.
