The CA-8469 Bluetooth Audio Amplifier Module is a high-performance, compact circuit board designed to convert passive speakers into a modern wireless sound system. At Electrapac, we recommend this board for desktop speaker builds and DIY "Boombox" projects due to its excellent signal stability and integrated power management.

Product Overview

The CA-8469 is a dual-channel (stereo) digital amplifier that combines a Bluetooth 5.0 receiver with a high-efficiency Class D amplification stage. It is specifically engineered to deliver "Hi-Fi" quality audio while maintaining a small footprint, making it perfect for fitting into tight desktop enclosures or portable speaker cases.

Key Features for Electrapac Customers

• Bluetooth 5.0 Technology: Ensures a faster, more stable connection with your smartphone or laptop, reducing audio lag and increasing wireless range compared to older modules.

• Dual Power Modes: You can power the board via a 5V Micro-USB cable for a permanent desktop setup or connect a 3.7V Lithium Battery for portable use.

• Onboard Volume & Navigation: Many versions of the CA-8469 feature integrated buttons or solder points for Volume Up/Down and Play/Pause, giving you physical control over your music.

• Lossless Audio Quality: Designed with high-quality filter capacitors to minimize background "hiss" or electrical interference, providing a clean listening experience.

• Compact DIY Design: The slim PCB design allows it to be hidden easily inside hollowed-out vintage radios or custom 3D-printed speaker housings.

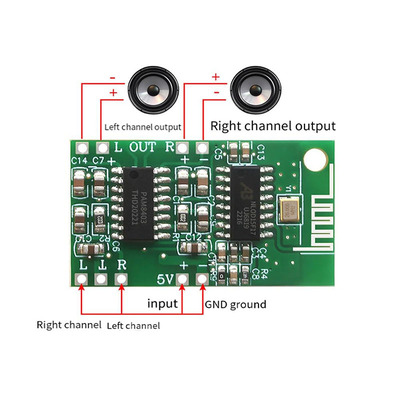

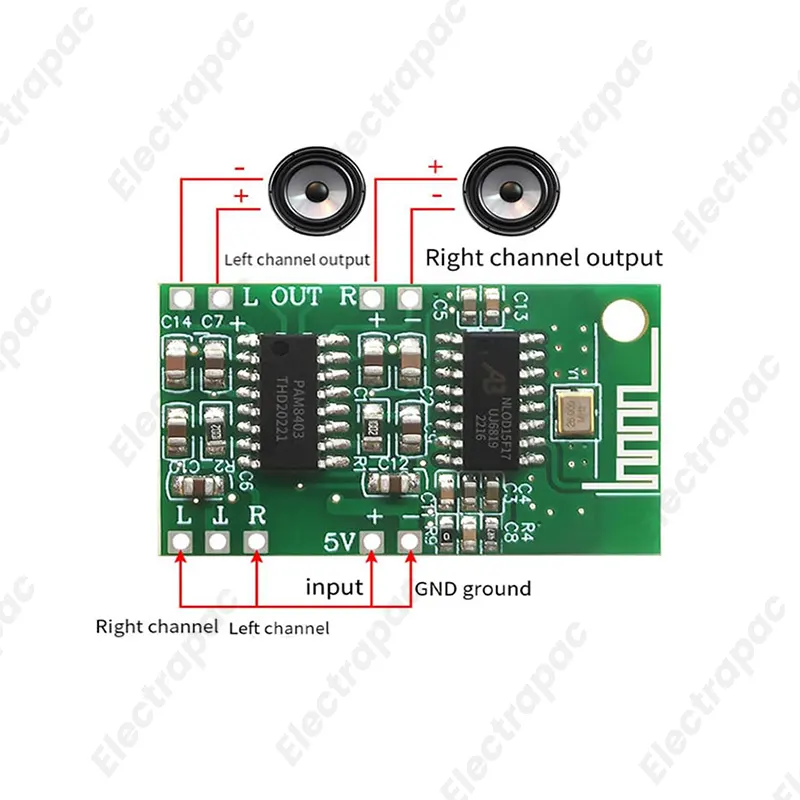

Wiring & Setup Instructions

For the best results from your www.electrapac.com purchase, follow this simple wiring guide:

1. Speakers: Connect your Left (L) and Right (R) speakers to the output terminals. We recommend using 4Ω 5W full-range speakers for maximum volume.

2. Power: * Stationary: Plug in a standard 5V smartphone charger to the Micro-USB port.

   • Portable: Solder a 3.7V Li-ion battery to the dedicated B+ and B- pads.

3. Antenna: The board features a built-in PCB antenna. Keep it away from large metal objects or thick wires to ensure the best wireless range.

4. Pairing: Search for "CA-8469" or "Bluetooth" on your device and connect instantly.

Ideal Applications

• Desktop Speaker DIY: Upgrade your PC setup with custom-made wireless speakers.

• Bluetooth Speaker Repairs: The perfect replacement board for broken commercial Bluetooth speakers.

• Handmade Gifts: Build a personalized Bluetooth speaker in a unique wooden or acrylic box.

• Portable Audio: Use it for outdoor camping speakers or portable "singing machines."

Why Shop at Electrapac?

We test our CA-8469 modules to ensure the Bluetooth pairing is seamless and the audio output is balanced across both channels. Visit us at www.electrapac.com to find this board, 5W mini speakers, and 18650 lithium batteries.
