The Electric Kettle Thermostat Base & Socket Set (1 Pair) is the essential internal component for restoring the safety and functionality of your cordless electric kettle. At Electrapac, we provide this high-quality replacement set to help you fix common kettle issues like failing to turn on or refusing to cut off after boiling.

Product Overview

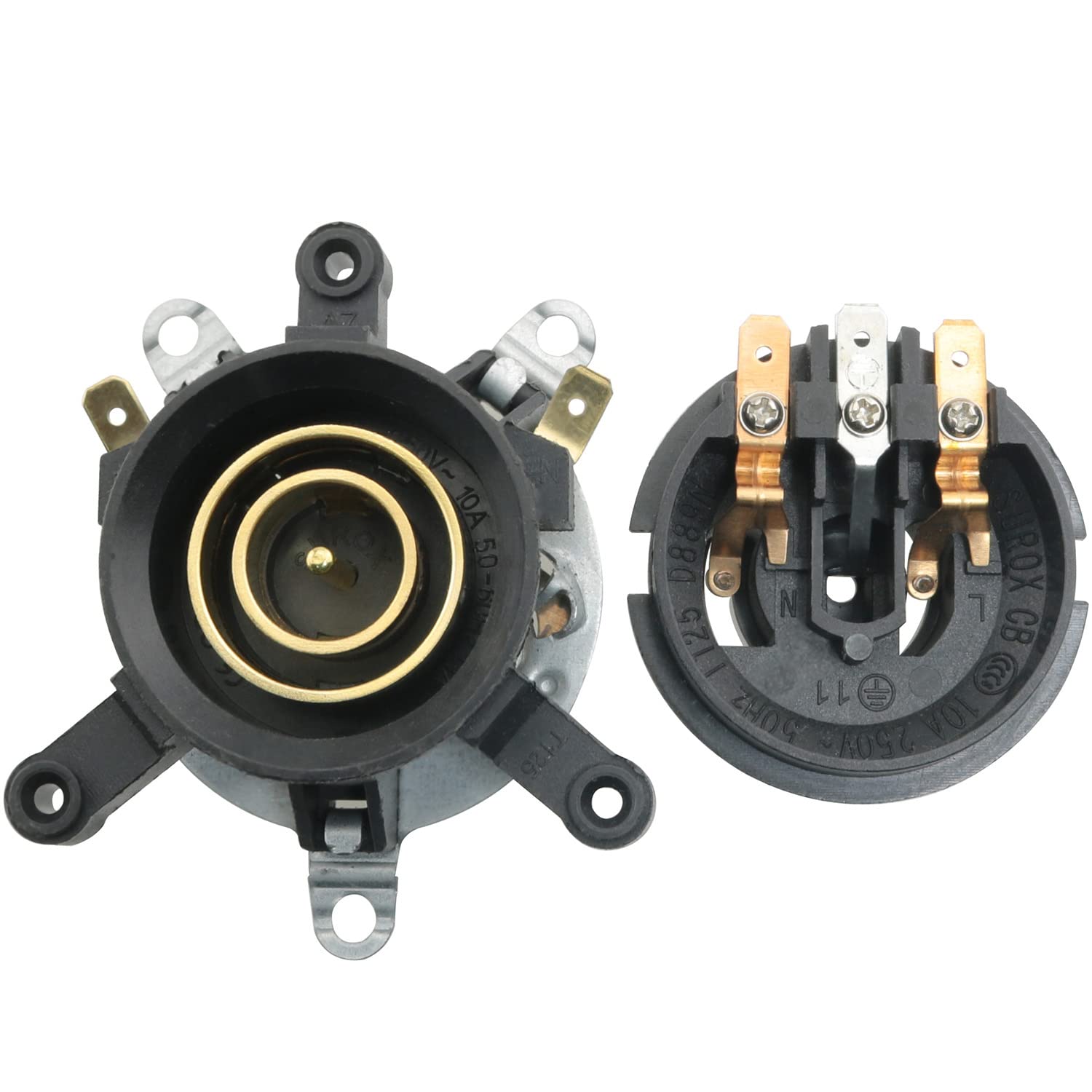

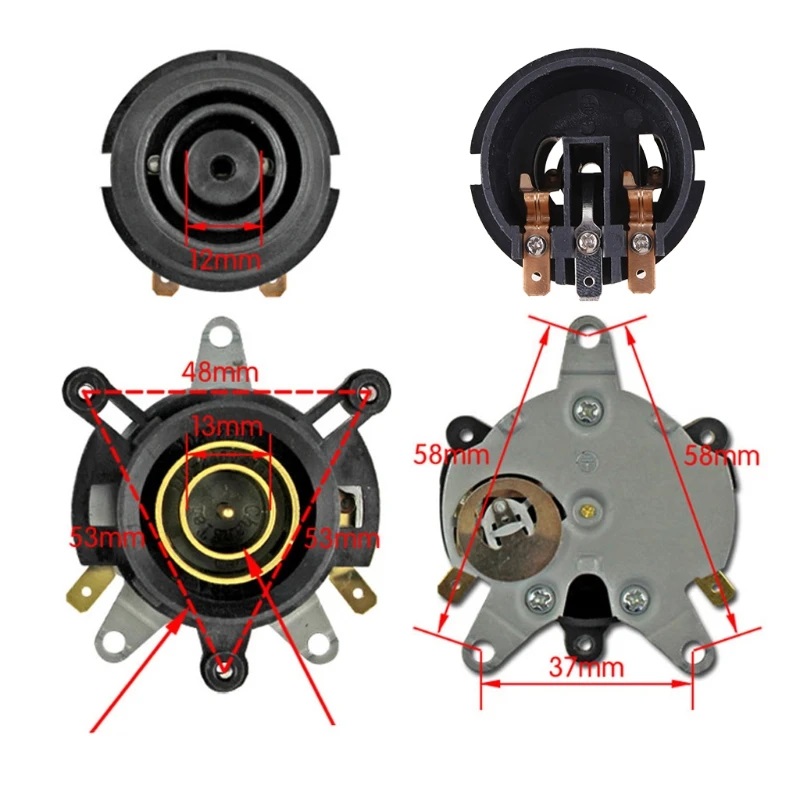

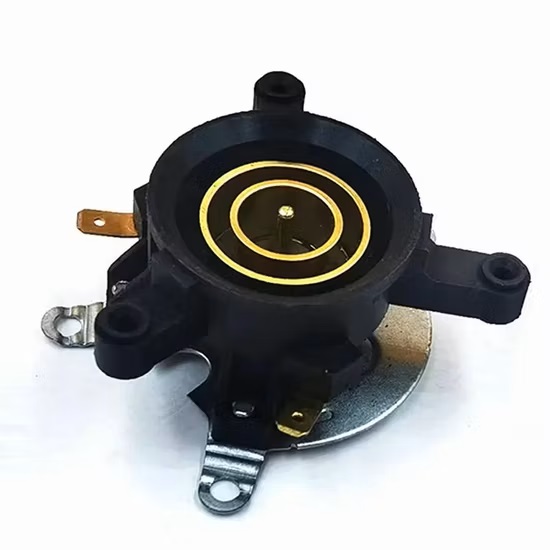

This two-piece kit includes both the Kettle Base Connector (the part in the heating base) and the Kettle Socket Connector (the part attached to the bottom of the kettle). Together, they form a 360-degree rotational interface that transfers power safely while housing the bimetallic thermostat strip responsible for automatic shut-off and boil-dry protection.

Key Features for Electrapac Customers

• Universal "KSD" Style Fit: Designed to match the standard footprint of most modern cordless kettles, making it a reliable drop-in replacement part.

• Triple Safety Protection: Features integrated steam induction and boil-dry sensors that automatically disconnect power if the kettle is empty or the water reaches 100°C.

• High-Conductivity Copper: The internal contact rings are made of high-quality copper alloy to prevent arcing and overheating during high-wattage operation.

• Flame Retardant Housing: The outer casing is made from UL94V-0 rated plastic, ensuring it can withstand high temperatures without melting or emitting fumes.

• Smooth 360° Docking: The precision-engineered grooves ensure the kettle docks smoothly onto the base from any angle without snagging.

Signs You Need This Part

If you are experiencing the following, visit www.electrapac.com for a replacement:

1. Kettle Won't Turn On: Often caused by burnt or oxidized contact points in the base or socket.

2. Continuous Boiling: If your kettle doesn't click off once the water is boiled, the thermostat induction plate is likely worn out.

3. Burning Smell: Overheating at the base connector usually indicates a loose internal connection or carbon buildup.

4. Wobbly Connection: If you have to "wiggle" the kettle on the base to get it to start heating.

Installation Safety Guide

1. Unplug: Always ensure the base is unplugged from the wall before attempting any repair.

2. Check Terminal Sizes: Most connectors use standard 4.8mm or 6.3mm spade terminals. Ensure your wires are securely crimped to the new tabs.

3. Steam Path: When installing the top socket, ensure the steam intake hole is aligned with the kettle's steam tube to ensure the auto-off feature works correctly.

Why Shop at Electrapac?

Don't throw away an expensive kettle just because of a faulty base. At www.electrapac.com, we source Thermostat Sets with reinforced copper contacts to ensure your appliance runs safely for years to come.
