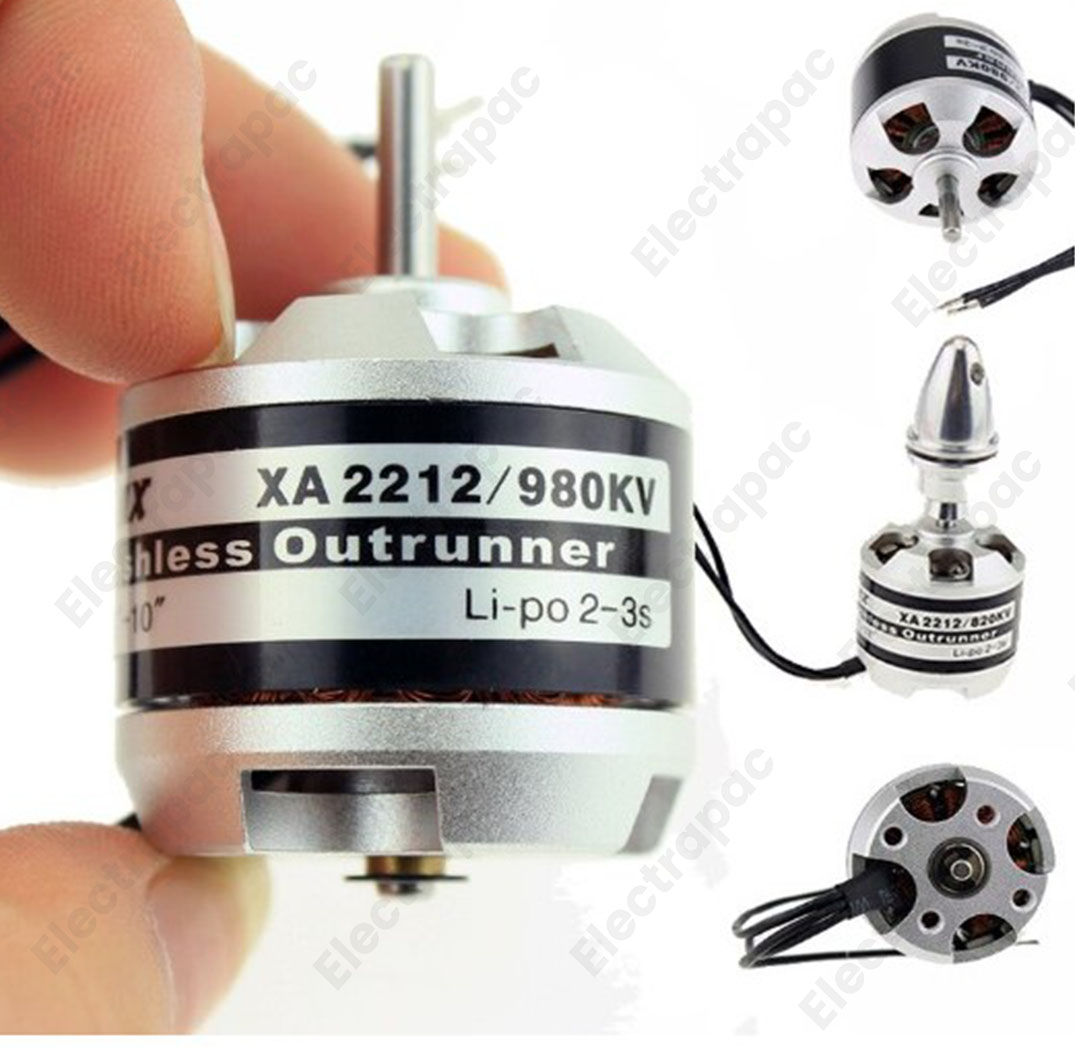

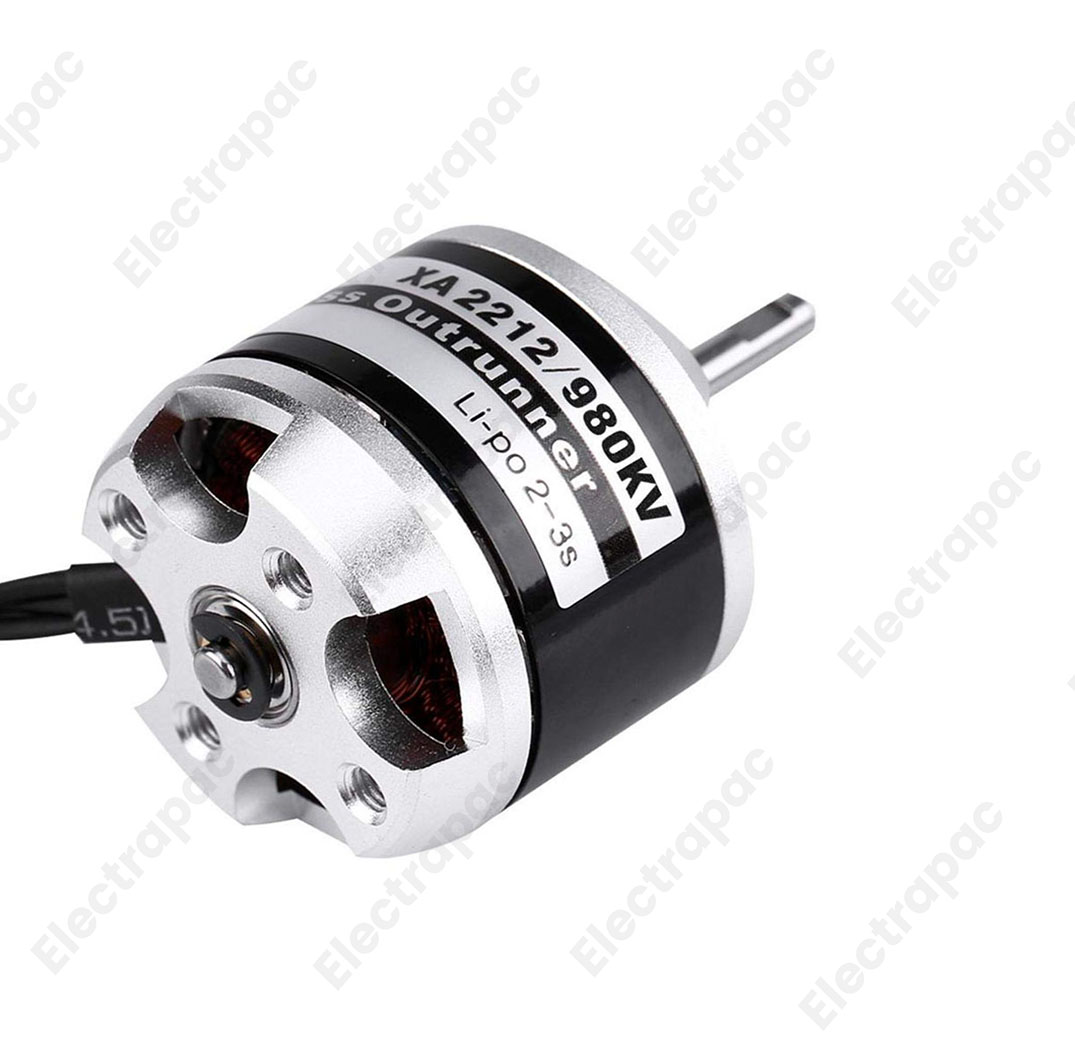

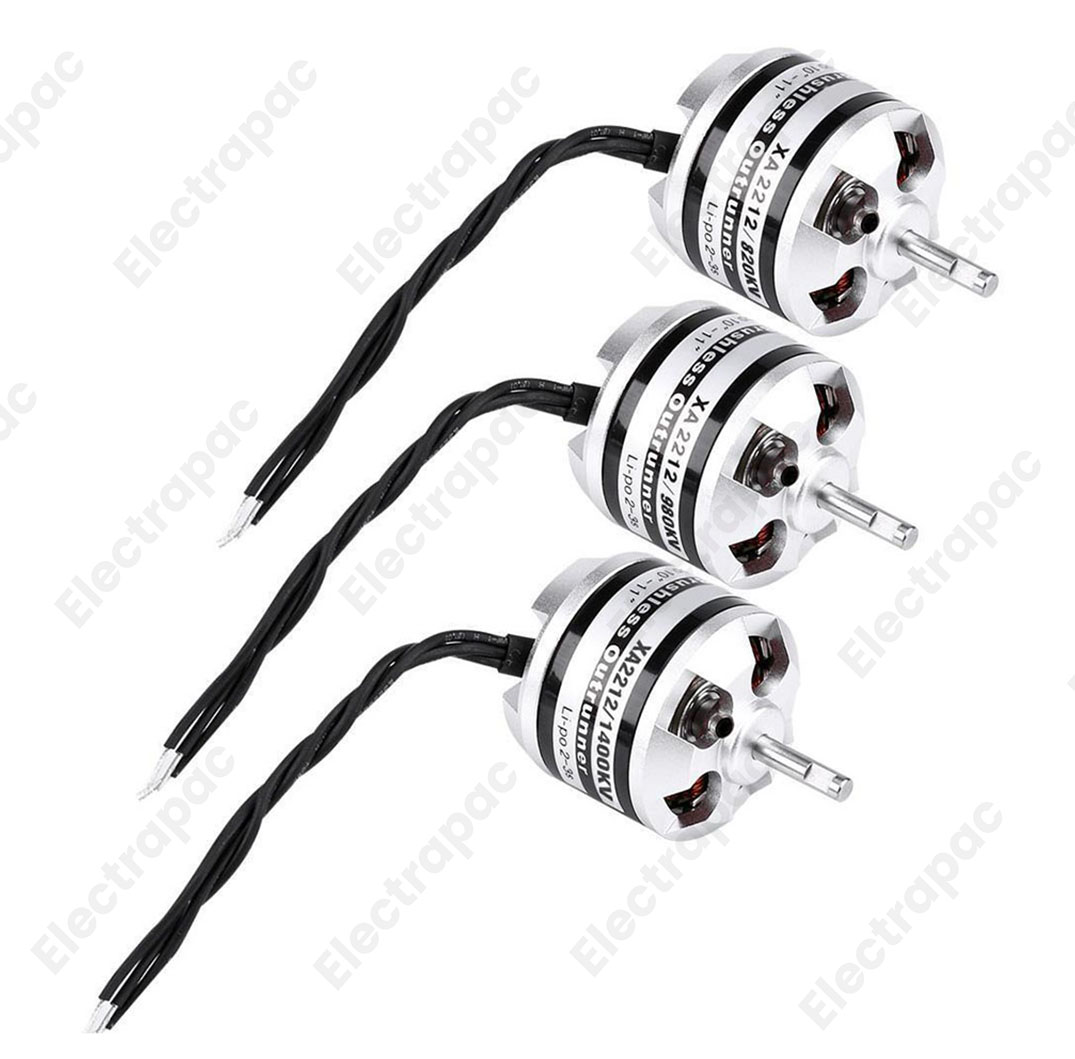

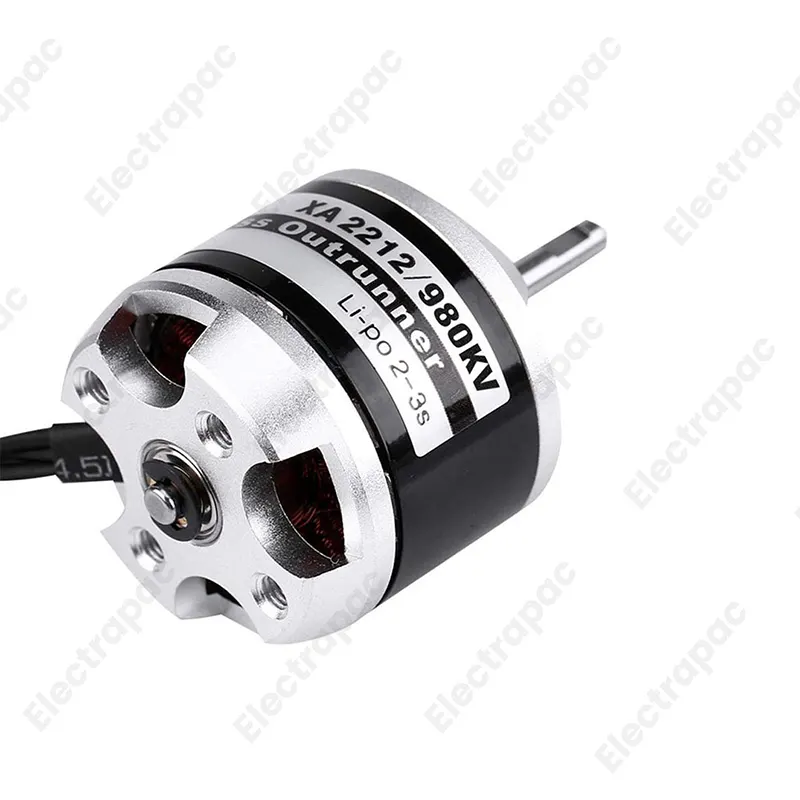

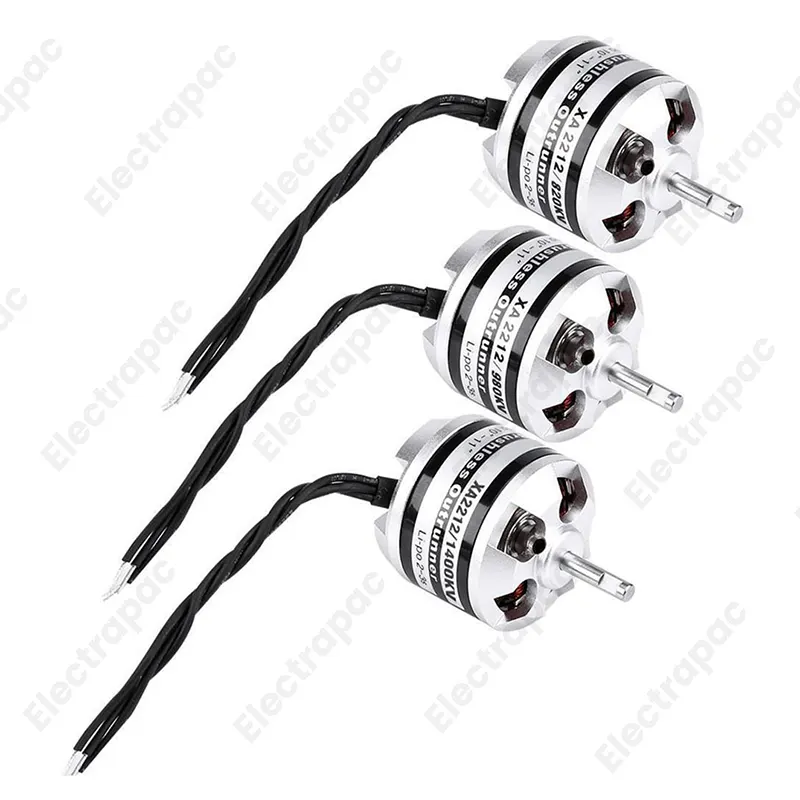

The Emax XA2212 980KV Brushless Outrunner Motor is a legendary workhorse in the RC world, known for its incredible balance of efficiency, torque, and durability. At Electrapac, we recommend this motor as the perfect choice for medium-sized multirotors, trainer planes, and 3D aircraft that require reliable "lift" and steady performance.

Product Overview

The XA2212 is a high-quality "Outrunner" motor, meaning the outer shell spins around the internal coils. This design provides higher torque compared to "Inrunners," making it capable of spinning larger propellers without the need for a gearbox. With a 980KV rating (980 RPM per volt), it is optimized for stability and efficiency, making it a favorite for aerial photography platforms and stable flyers.

Key Features for Electrapac Customers

• Durable Silicon Steel Stator: High-quality laminations ensure low eddy current loss and better heat dissipation during long flights.

• Original NMB Bearings: Equipped with Japanese NMB ball bearings for ultra-smooth rotation, reduced noise, and a longer operational lifespan.

• Strong Neodymium Magnets: High-temperature N45SH magnets maintain their strength even during aggressive maneuvers, ensuring consistent torque.

• Precision Balanced: Every motor is factory-balanced to minimize vibrations, which is critical for clear, jello-free aerial video footage.

• Complete Accessory Pack: Each motor from Electrapac includes a bullet-style prop adapter, motor mount (X-plate), and mounting screws.

Technical Implementation Guide

To get the best performance from your Electrapac brushless motor, follow these setup tips:

1. ESC Pairing: We recommend using a 20A to 30A Brushless ESC. This ensures you have enough overhead to handle burst currents without overheating the controller.

2. Propeller Choice: * For 3S (11.1V): Use a 1045 (10-inch) propeller for maximum lift and stability.

   • For 2S (7.4V): Use an 1147 propeller to compensate for the lower voltage.

3. Rotation Direction: To change the motor's spinning direction, simply swap any two of the three bullet connector wires connecting the motor to the ESC.

Primary Applications

• Multirotors: The standard motor for 450mm-class quadcopters (like the DJI F450 frame).

• RC Airplanes: Perfect for Cessna-style trainers, foamies, and medium-scale gliders.

• 3D Aircraft: Provides a high thrust-to-weight ratio for hovering and vertical climbs.

• Educational Projects: An excellent motor for teaching 3-phase AC theory and PID control loops in university labs.

• DIY Wind Turbines: Can be repurposed as a small-scale generator for science experiments.
