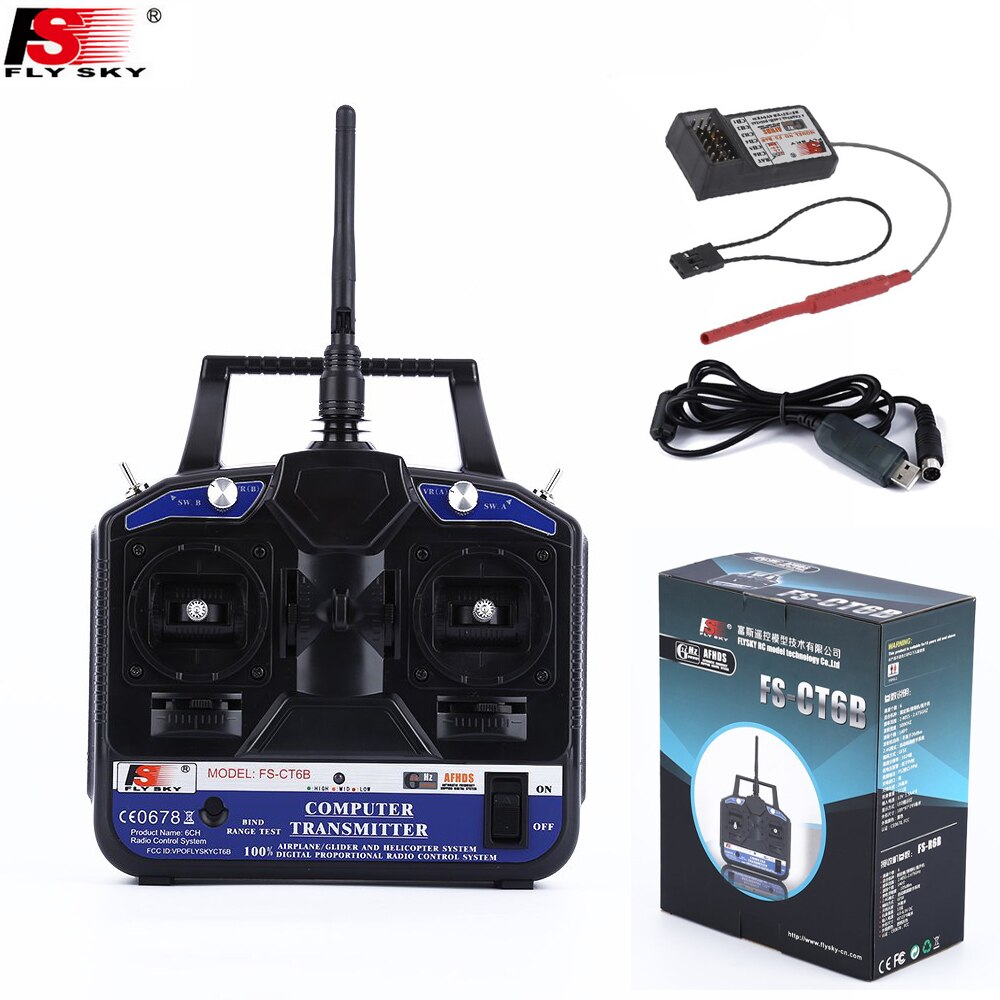

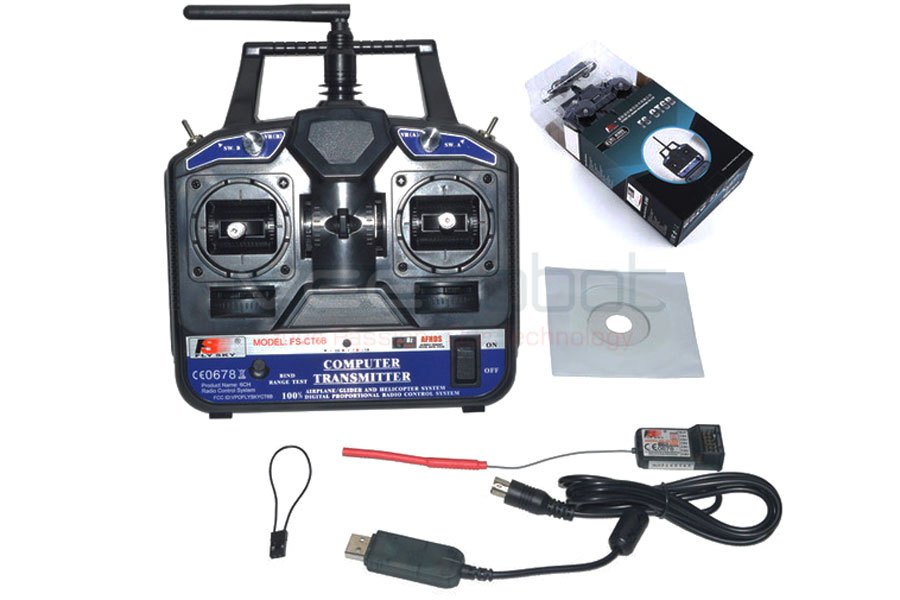

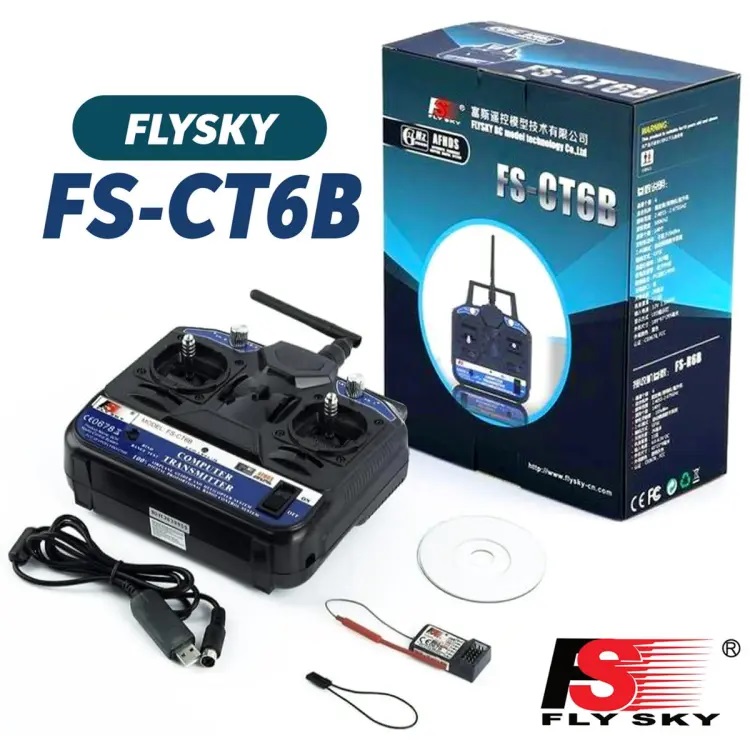

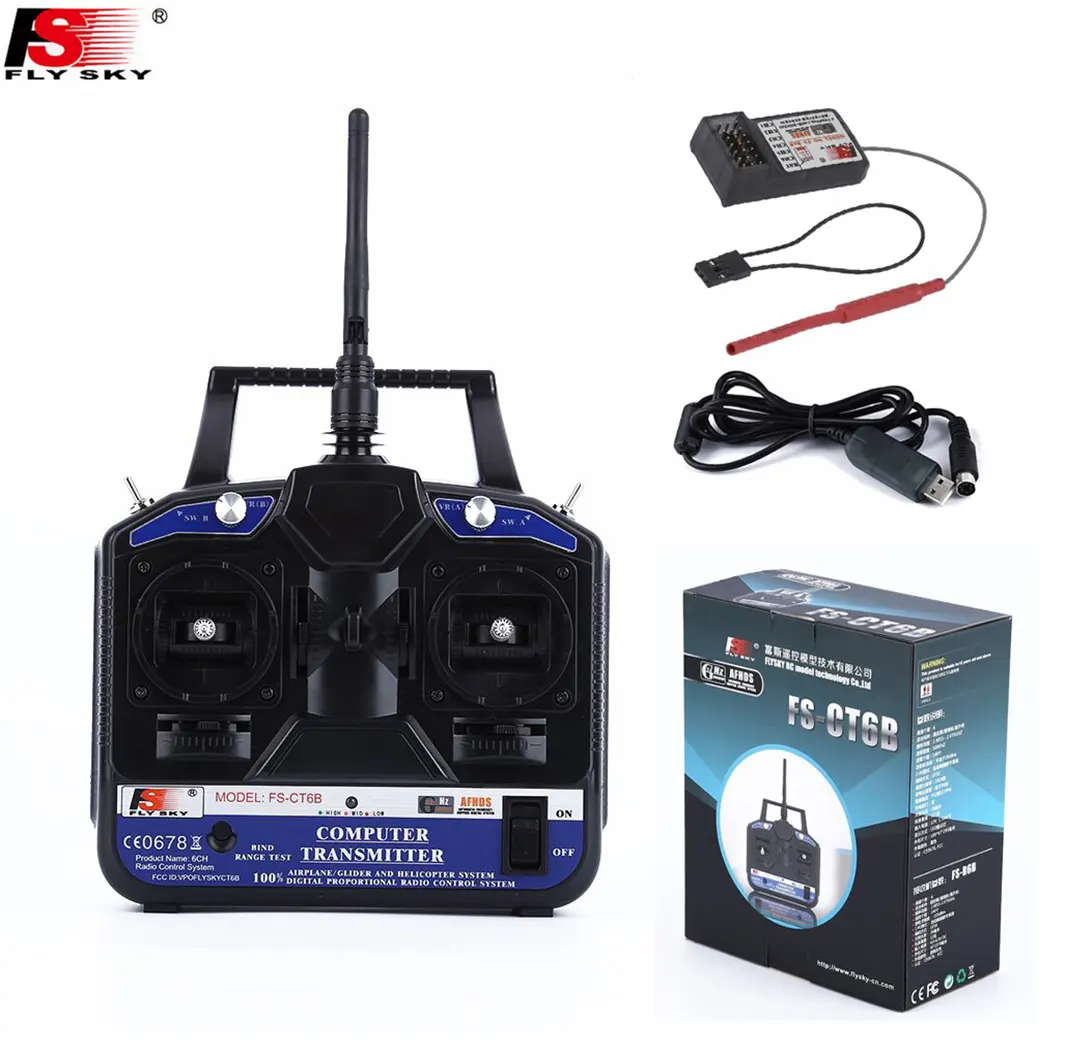

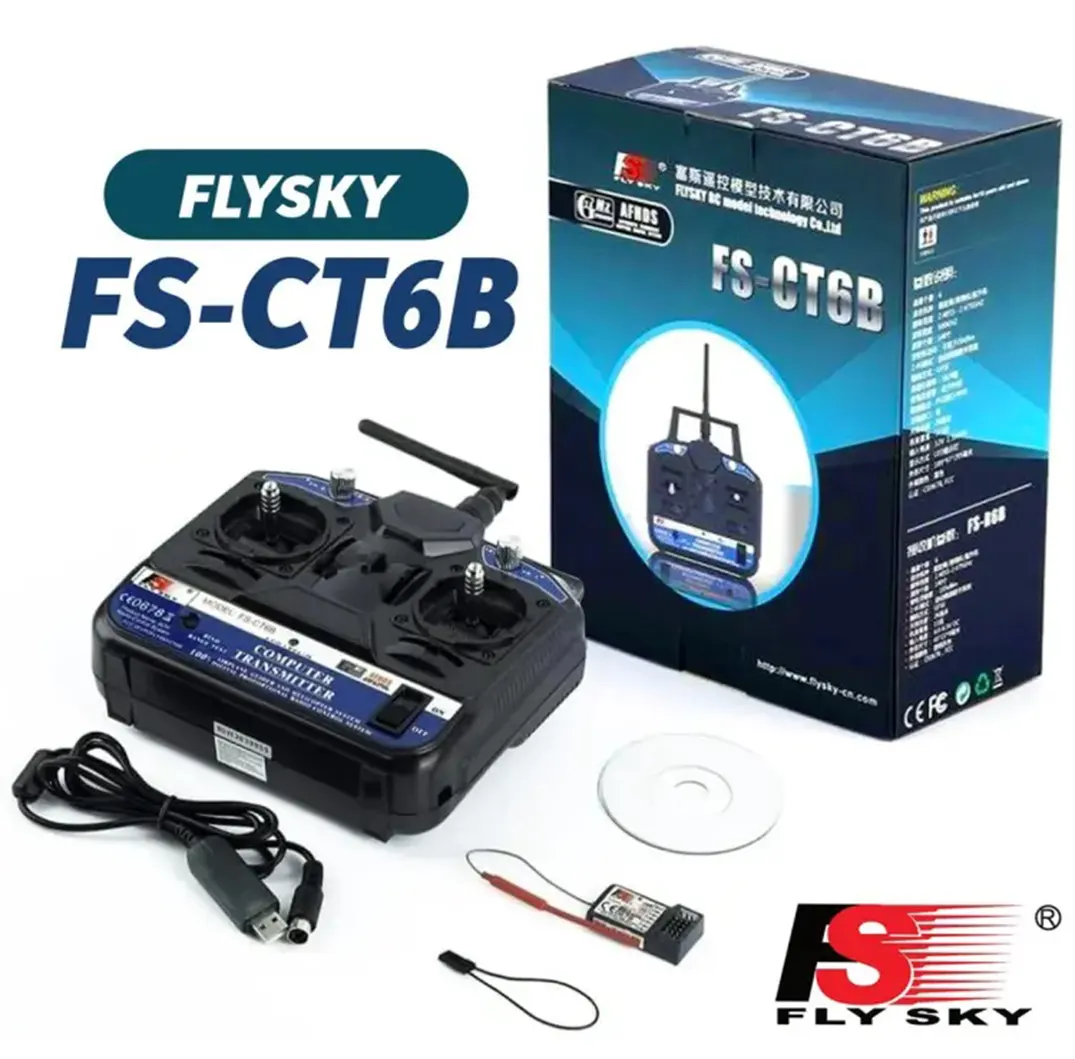

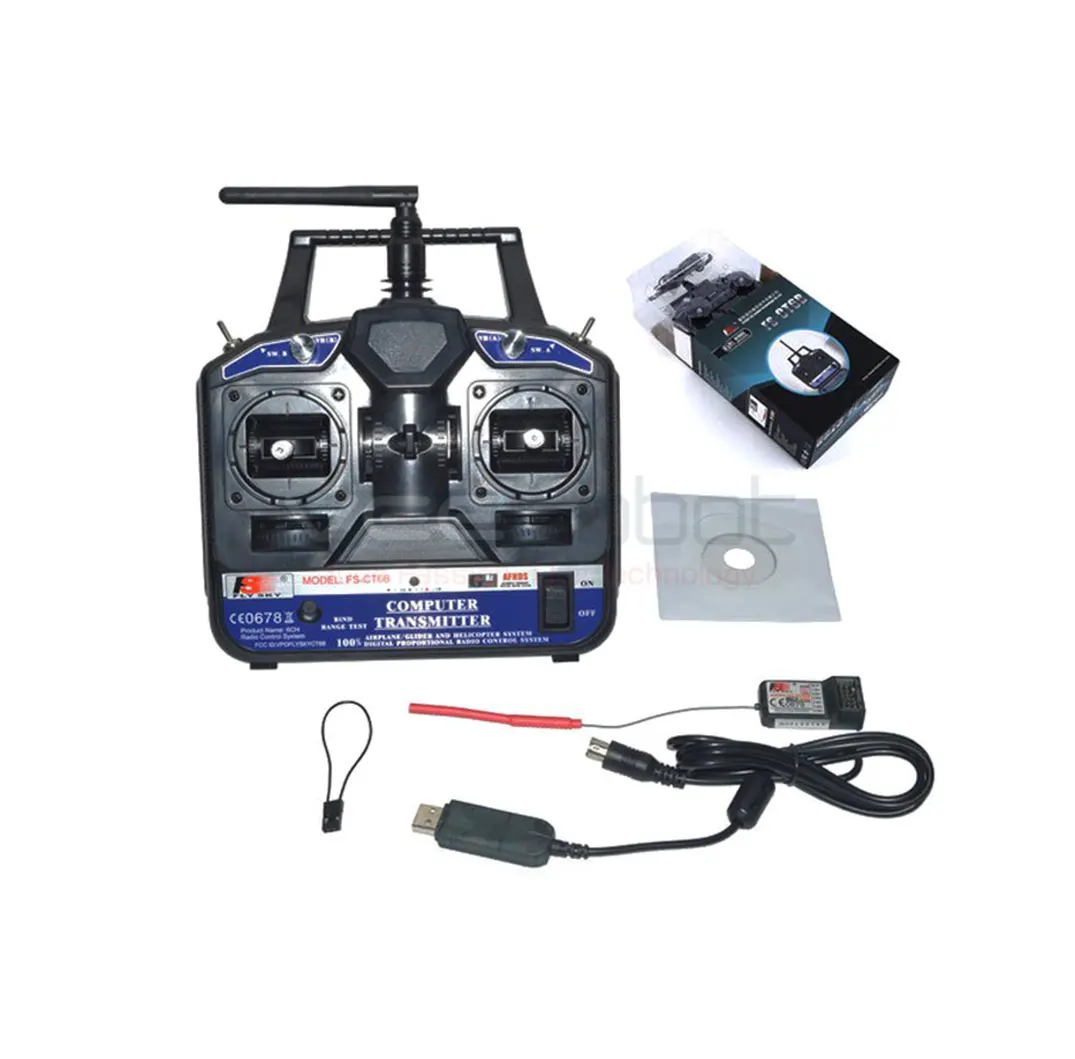

The FlySky FS-CT6B 2.4GHz 6-Channel Radio System is the gold standard for entry-level RC control. At Electrapac, we recommend this system for hobbyists building their first drones, RC planes, or boats who need a reliable, interference-free connection without the high price tag of professional-grade transmitters.

Product Overview

The FS-CT6B utilizes the advanced AFHDS (Automatic Frequency Hopping Digital System) technology. This ensures that your transmitter and receiver stay locked together on a clear signal, even in areas with high radio traffic. While it maintains a classic analog feel, it is a fully programmable digital system that can be fine-tuned via a PC connection to suit your specific aircraft or vehicle.

Key Features for Electrapac Customers

• 6-Channel Versatility: Beyond basic flight (Throttle, Aileron, Elevator, Rudder), you have two extra channels for auxiliary functions like landing gear, flight modes, or camera gimbals.

• Computer Programmable: Unlike basic radios, you can connect the FS-CT6B to your PC via a USB cable to adjust sub-trims, end-points, and dual rates using "T6Config" software.

• Dual-Rate & Mixing: Supports advanced mixing (like Elevon or V-Tail mixing), allowing you to fly complex wing designs with ease.

• Low Power Consumption: Optimized circuitry ensures your AA batteries last through several hours of flight time.

• Ergonomic Design: Features adjustable stick lengths and a lightweight frame, reducing hand fatigue during long sessions at the field.

Receiver & Binding Guide

The included FS-R6B Receiver is compact and lightweight, making it easy to tuck into tight drone frames or small airplane cockpits.

1. Binding: Insert the "Bind Plug" into the BAT port of the receiver, power it up, and hold the "Bind" button on the transmitter while turning it on. The LED will stop flashing once they are paired.

2. Channel Layout:

   • CH1: Aileron (Roll)

   • CH2: Elevator (Pitch)

   • CH3: Throttle

   • CH4: Rudder (Yaw)

   • CH5 & CH6: Auxiliary Switched/Knobs

3. Antenna Placement: For the best range, ensure the receiver antenna is away from carbon fiber frames or large metal components.

Primary Applications

• RC Airplanes: The perfect match for 4-channel trainers and 6-channel gliders.

• Multi-rotor Drones: Pair it with the KK2.1.5 or APM flight controllers for a stable flying experience.

• RC Boats & Cars: Use the auxiliary channels to control lights, winches, or sound modules.

• Flight Simulators: Can be used with a USB adapter to practice flying on your PC before taking to the real skies.

Why Shop at Electrapac?

We supply the Original FlySky FS-CT6B kit, including the matching 6-channel receiver and bind plug. Visit us at www.electrapac.com for the reliable control systems that keep you in command of your RC world.
