The FlySky FS-i6 6-Channel 2.4GHz Radio System is widely considered the best entry-to-intermediate transmitter for modern RC enthusiasts. At Electrapac, we recommend the FS-i6 because it transitions from a simple 6-channel radio into a powerful, telemetry-capable system that grows with your skills—whether you are flying racing drones, scale planes, or helicopters.

Product Overview

The FS-i6 utilizes FlySky's second-generation AFHDS 2A (Automatic Frequency Hopping Digital System). Unlike older systems, AFHDS 2A offers a two-way communication link, allowing the receiver to send data like battery voltage and signal strength back to the transmitter's screen. The slim, lightweight design and high-contrast backlit LCD make it one of the most ergonomic radios in its class.

Key Features for Electrapac Customers

• Dual Antenna System: Both the transmitter and the FS-iA6B receiver feature high-gain omnidirectional antennas, significantly reducing interference and extending your control range to over 500m – 1km in clear conditions.

• i-Bus & PPM Support: The included FS-iA6B receiver is a "powerhouse." It supports i-Bus and PPM output, allowing you to connect to modern flight controllers (like Betaflight or Pixhawk) using just a single wire.

• Telemetry Capable: When paired with optional sensors, you can view real-time data on the transmitter screen, such as your drone's flight battery voltage, motor RPM, or temperature.

• Multi-Model Memory: Store settings for up to 20 different aircraft. Switch between your drone, plane, and helicopter without having to re-bind or manually change trims.

• Programmable Switches: Includes 4 switches (2-position and 3-position) and 2 rotary knobs, which are essential for changing flight modes or controlling camera gimbals.

Receiver Wiring & Binding Guide

The FS-iA6B is a versatile receiver that supports multiple signal protocols. For Electrapac customers using flight controllers, we recommend the i-Bus setup for the lowest latency.

1. Binding: Insert the bind plug into the "B/VCC" port, power the receiver, and hold the "Bind Key" on the FS-i6 while turning it on. The screen will display "RXBinding" and confirm when successful.

2. i-Bus/PPM Connection: Use the top horizontal pins for i-Bus or PPM. This sends all 6 (or more) channels through a single cable to your flight controller.

3. PWM Connection: Use the vertical pins (CH1–CH6) if you are connecting directly to standard servos for an RC plane.

Primary Applications

• FPV Racing Drones: Low latency and i-Bus support make it perfect for Betaflight-based quads.

• RC Airplanes: Advanced mixing for Flaperons, Elevons, and V-tails.

• RC Helicopters: Dedicated heli-menu with Swashplate and Pitch curve settings.

• Robotics: The 6-channel control is ideal for complex rovers with robotic arms or pan-tilt cameras.

Why Shop at Electrapac?

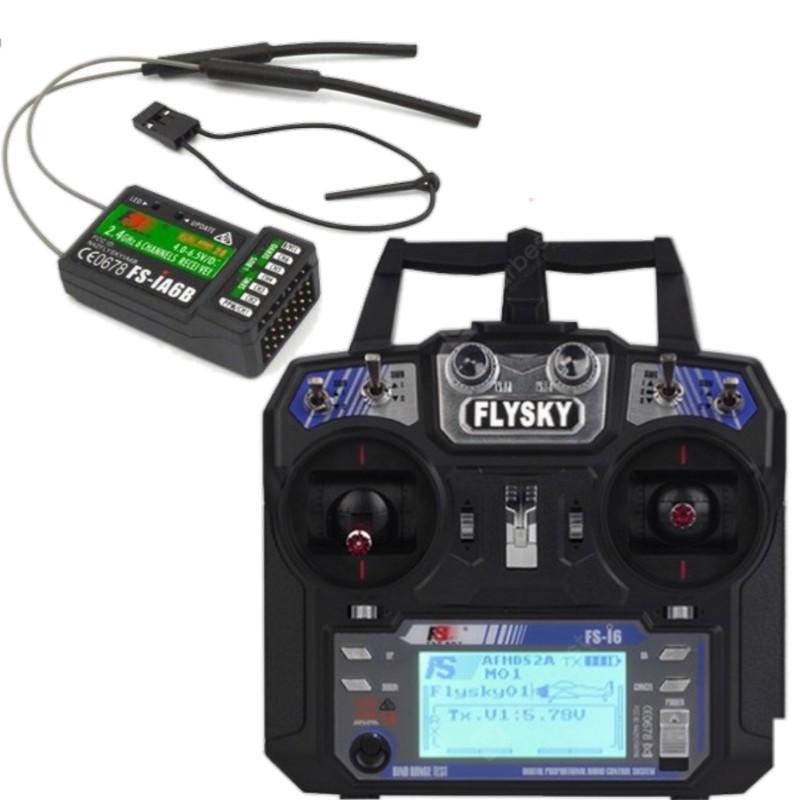

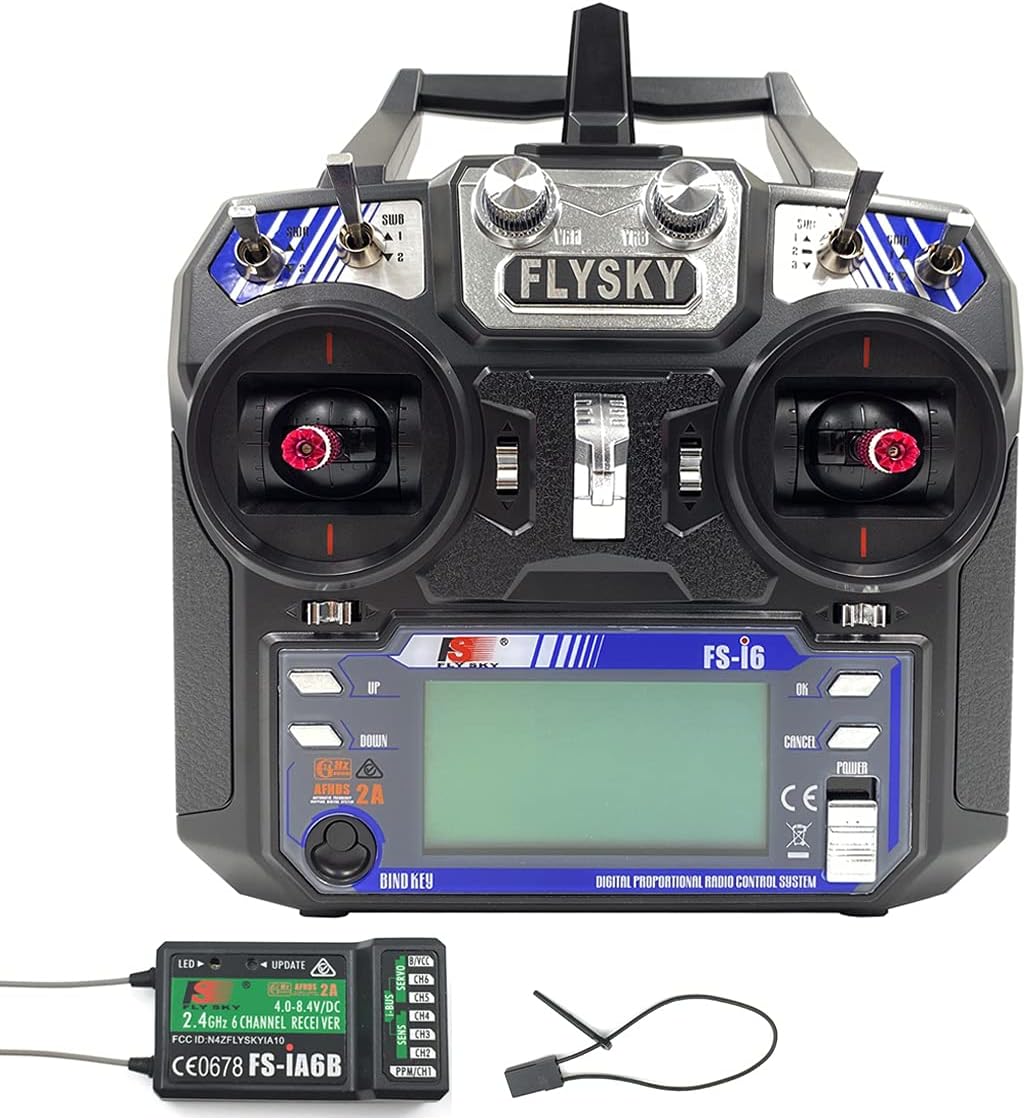

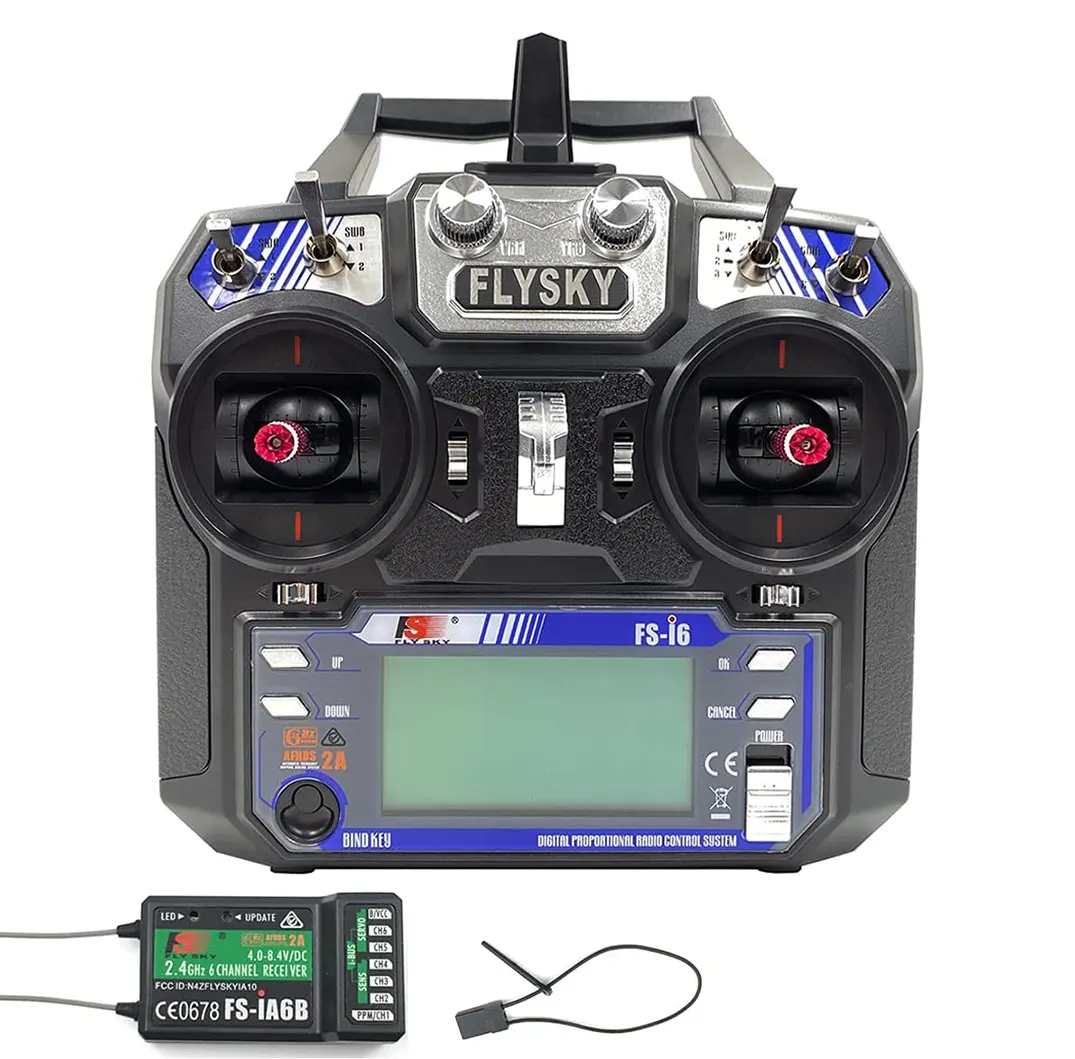

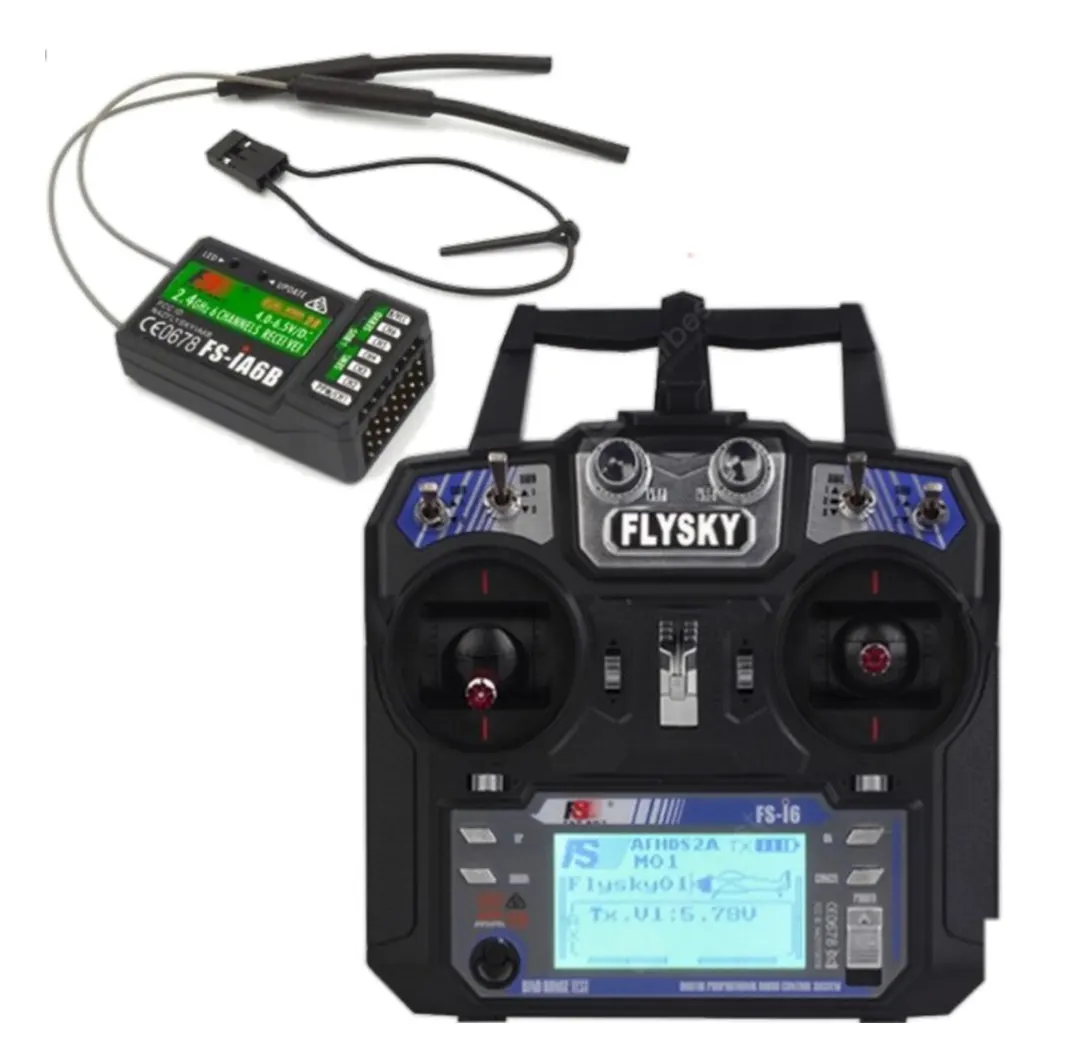

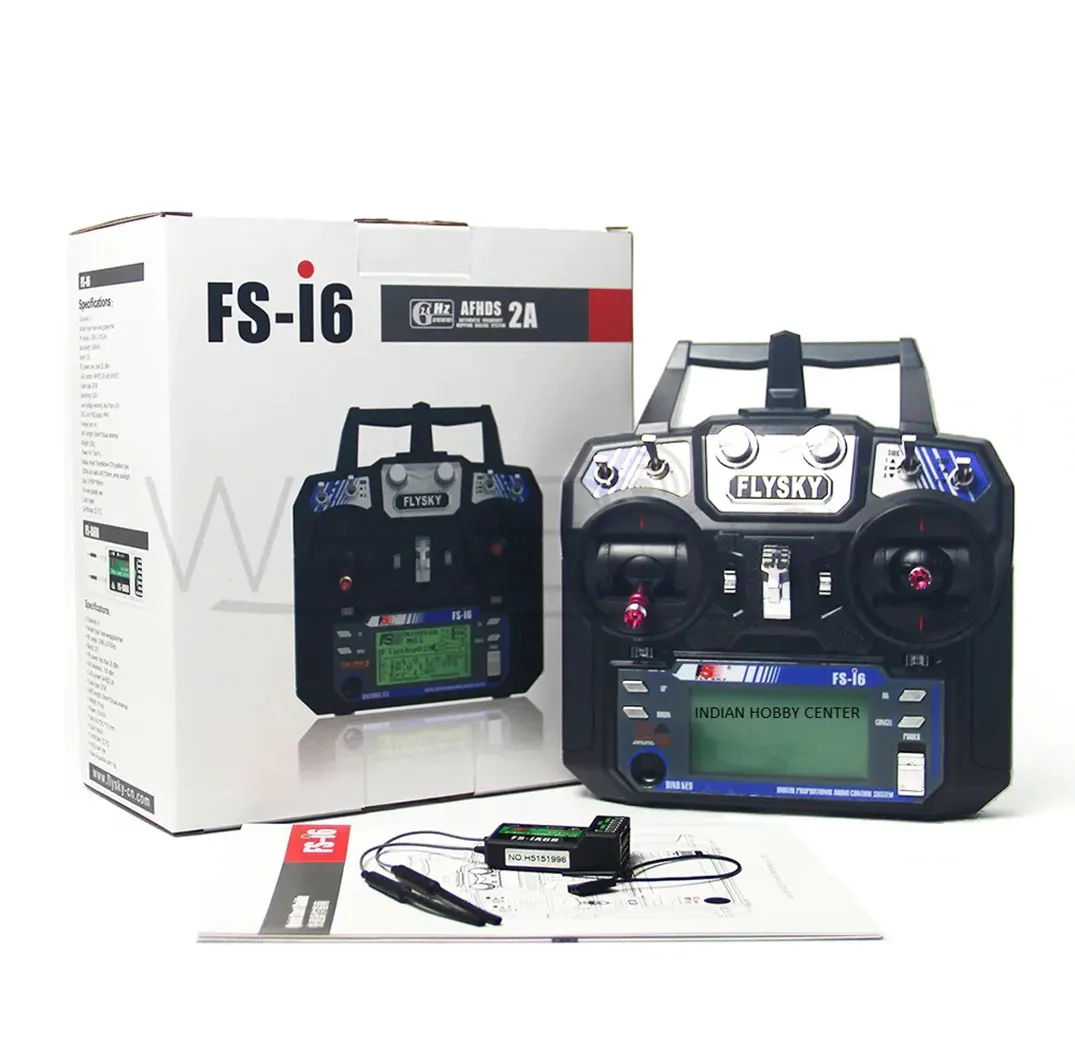

We supply the Original FlySky FS-i6 Kit bundled with the FS-iA6B receiver (which is superior to the standard iA6 receiver). Visit us at www.electrapac.com for the smart radio systems that keep you connected to your aircraft with confidence.
