The 16-Pin DIP IC Socket is a vital protective component for any professional or hobbyist PCB assembly. At Electrapac, we emphasize using these sockets for medium-scale integrated circuits, such as shift registers, motor drivers, and logic gates, to ensure your circuit remains modular and easy to repair.

Product Overview

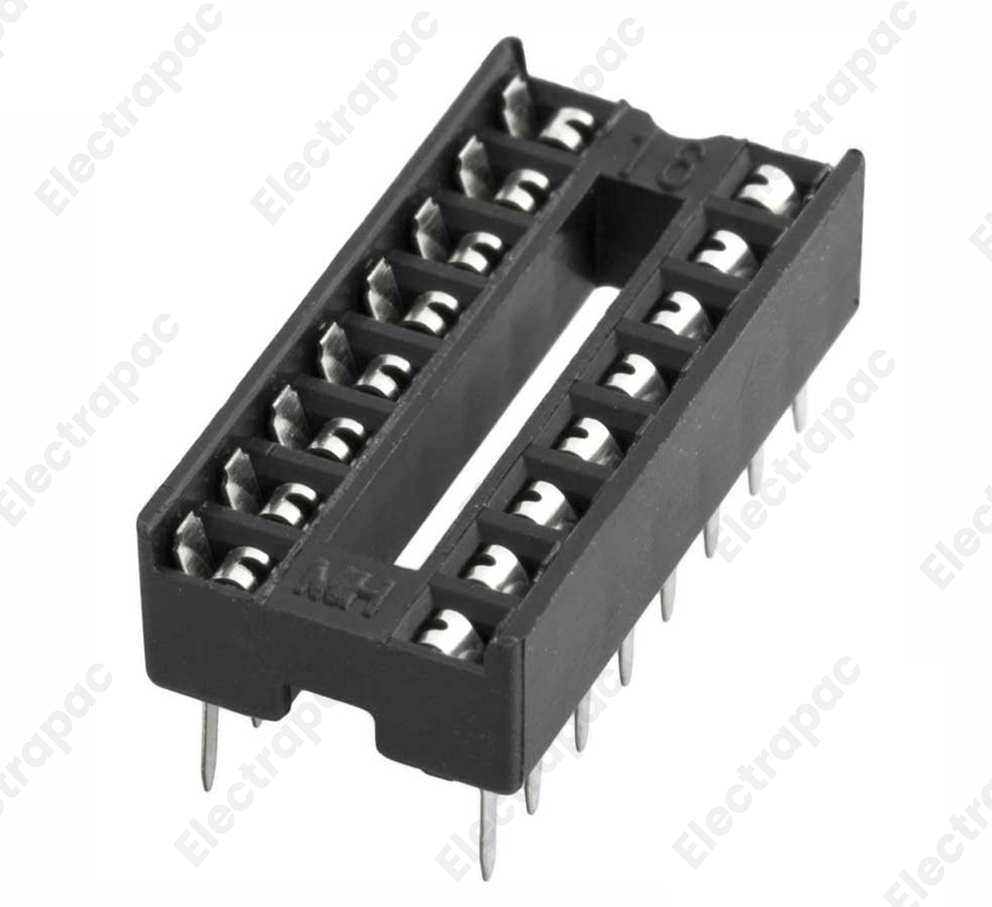

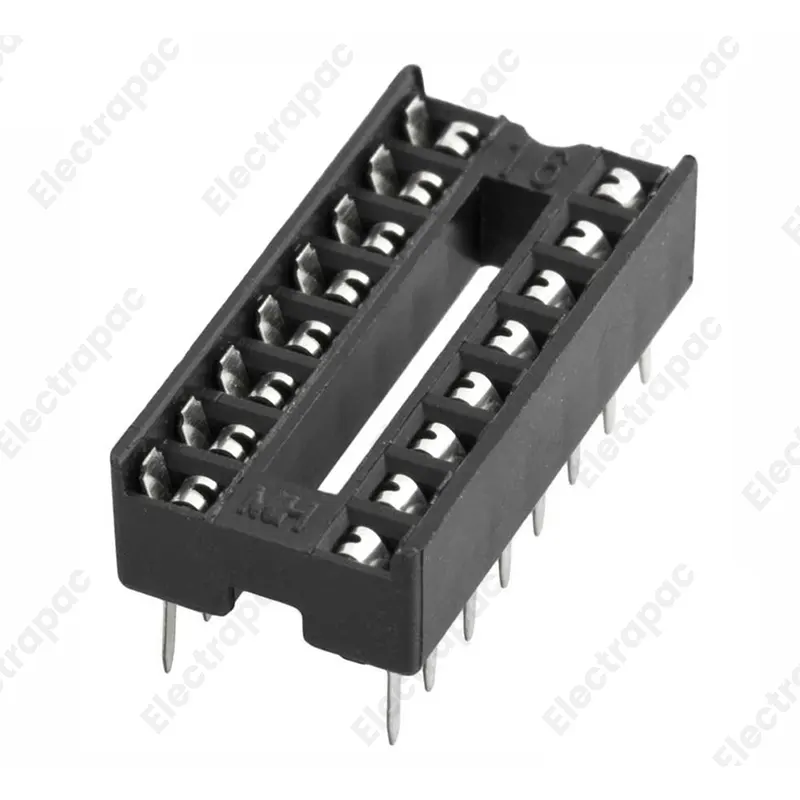

This 16-pin Dual In-line Package (DIP) socket serves as a permanent mounting port for your ICs. By soldering the socket to your board instead of the chip itself, you create a "safe zone" for your electronics. This is particularly important for 16-pin chips, which are more susceptible to heat damage due to the higher number of pins requiring simultaneous soldering.

Key Features for Electrapac Customers

• Heat Isolation: Protects sensitive logic chips (like the 74HC595) from the thermal stress of soldering, preventing internal gate failure.

• Orientation Guide: Features a standard "U" notch on one end, helping you orient the IC correctly to avoid reverse-polarity damage.

• Reliable Contact Grip: Designed with dual-leaf wiping contacts that provide a large surface area for the IC legs, ensuring a low-resistance electrical connection.

• Stackable Design: The slim profile allows multiple sockets to be placed side-by-side or end-to-end on standard $0.1$-inch pitch prototyping boards.

• Easy Debugging: Allows you to remove the IC to test circuit traces or swap in a known-good chip without risking damage to the PCB pads.

Installation Tips from Electrapac

1. Solder First, Insert Later: Always complete the soldering of the socket and clean the board with IPA (Isopropyl Alcohol) before inserting your IC.

2. Pin Alignment: 16-pin ICs can be tricky to insert. Ensure all 16 legs are perfectly straight. If the legs are "sprung" outward, gently roll the IC on its side against a flat surface until the pins are perpendicular (90⁰C).

3. Low Profile: These sockets are "low-profile," meaning they don't add significant height to your project, making them compatible with slim enclosures.

4. Soldering Technique: Solder the diagonal corner pins first (Pin 1 and Pin 9) to hold the socket flat against the board before soldering the remaining 14 pins.

Primary Applications

• Logic Gate Projects: Perfect for 74-series and 4000-series logic ICs.

• LED Matrices: Ideal for mounting MAX7219 drivers or 74HC595 shift registers.

• Motor Control: The standard base for the L293D Push-Pull 4-Channel motor driver.

• Microcontrollers: Used for older 16-pin PIC or specialized AVR microcontrollers.

• Signal Switching: Mounting analog multiplexers like the CD4051.

Why Shop at Electrapac?

We source our 16-Pin IC Bases with high-quality thermoplastic that won't melt or warp during the soldering process. Visit us at for the high-durability components that make your electronic builds cleaner and more professional.
