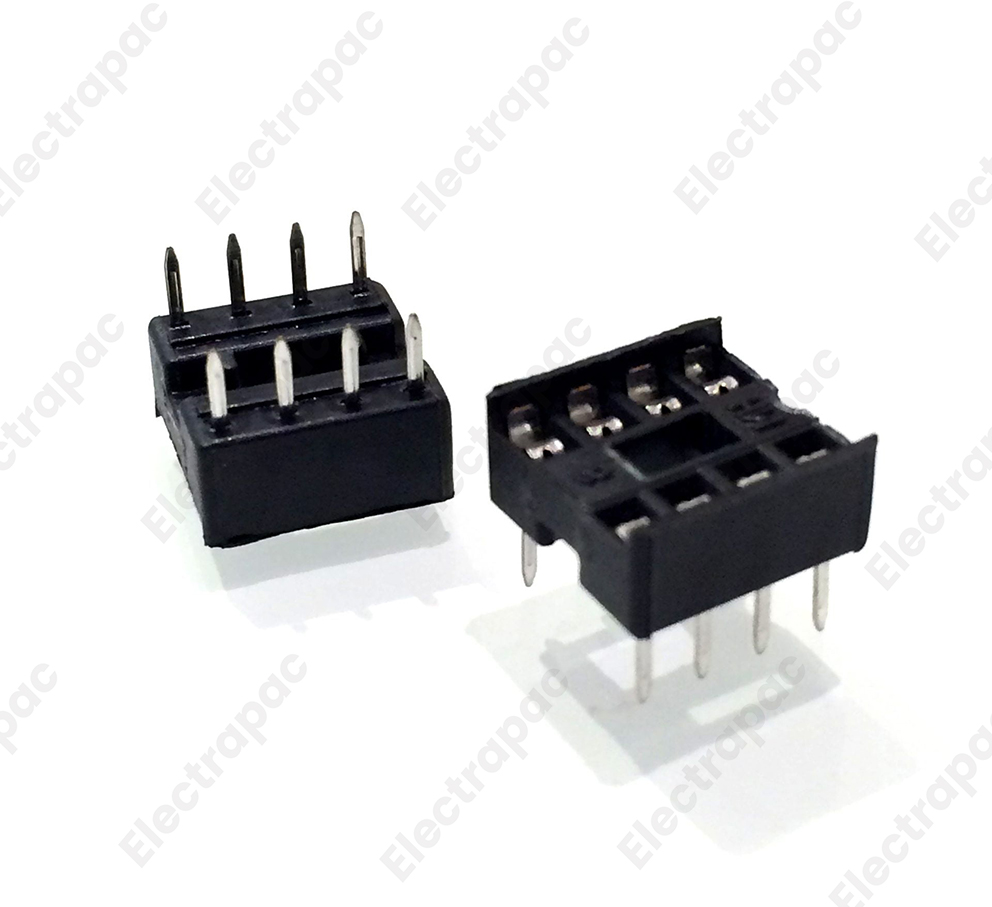

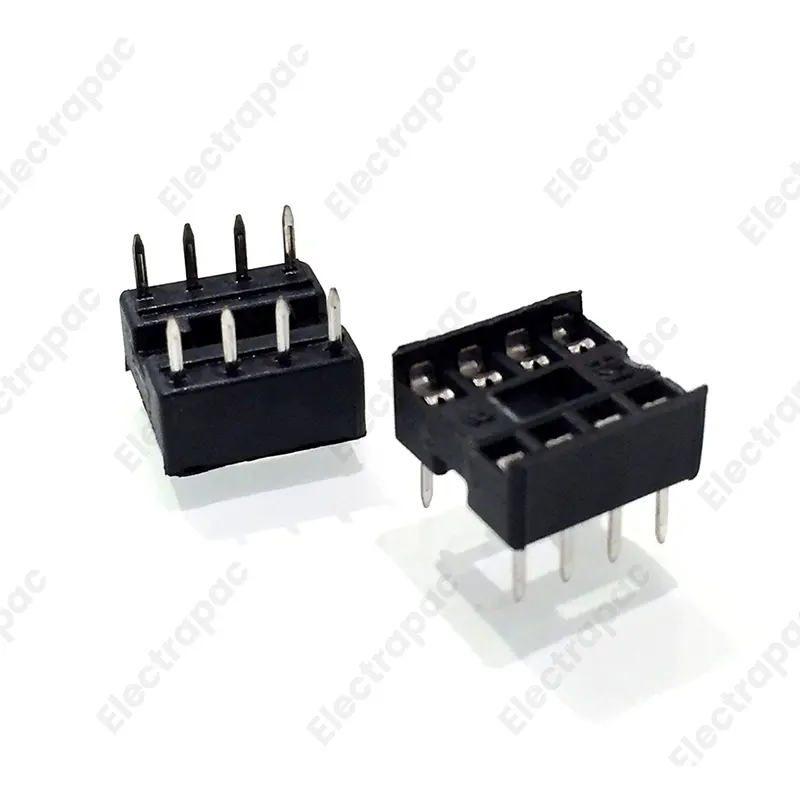

The 8-Pin DIP IC Socket is an essential mounting component for any electronics workshop. At Electrapac, we recommend using these sockets for all your 8-pin integrated circuits (like the NE555 timer or standard Dual Op-Amps) to protect your silicon from the high heat of soldering and to make future upgrades a breeze.

Product Overview

This is a standard Dual In-line Package (DIP) socket designed to be soldered directly onto a PCB or perf-board. It acts as a "bridge" between your board and the IC. Instead of soldering your expensive or delicate chips directly, you solder this base and simply "plug in" the IC. This modular approach is the gold standard for prototyping and high-reliability circuit design.

Key Features for Electrapac Customers

• Thermal Protection: By soldering the socket first and inserting the IC afterward, you eliminate the risk of "frying" a sensitive chip with your soldering iron.

• Easy Maintenance: If an IC fails in the field, you can replace it in seconds without a desoldering pump.

• Molded Notch: Features a clear orientation notch at one end to help you align "Pin 1" correctly every time.

• Open Frame Design: The hollow center allows for better airflow around the IC and makes it easier to inspect PCB traces running underneath the socket.

• Tapered Entry: The pin receptacles are slightly flared, making it easier to guide the IC legs into the holes without bending them.

Pro-Tips for Successful Mounting

To get the most out of your Electrapac components, keep these tips in mind:

1. Alignment: Always match the notch on the plastic socket with the "Pin 1" indicator on your PCB silkscreen.

2. Soldering: Use a fine-tip soldering iron. Since the pins are close together (2.54mm), be careful not to create "solder bridges" between adjacent pins.

3. IC Insertion: If the legs of your new IC are flared too wide, gently press the side of the IC against a flat table to bend the legs inward to a perfect 90⁰C angle before plugging it into the socket.

4. Security: For high-vibration environments (like RC cars or drones), a tiny dab of non-conductive glue on the side can help ensure the IC never vibrates out of the base.

Primary Applications

• Prototyping: Essential for breadboard-to-PCB transitions where you might need to swap ICs during debugging.

• Educational Kits: Protecting components in student projects where soldering skills are still being developed.

• Audio Circuits: Swapping different 8-pin Op-Amps (like the TL072 or LM358) to "tune" the sound of a preamp.

• Timer Projects: The perfect base for the classic NE555 pulse generator.

• Firmware Testing: Mounting 8-pin EEPROMs or microcontrollers that need to be removed for external programming.

Why Shop at Electrapac?

We source our 8-Pin IC Bases with high-retention tin-plated contacts to ensure they don't lose their "grip" over time. Visit us at for the reliable connectors and sockets that form the backbone of professional electronic design.
