The 1N5235B Zener Diode is a precision voltage regulation component designed to maintain a stable 6.8V output. At Electrapac, we recommend this diode for engineers and students in Bangladesh who need a reliable voltage reference or overvoltage protection for 5V and 6V logic circuits.

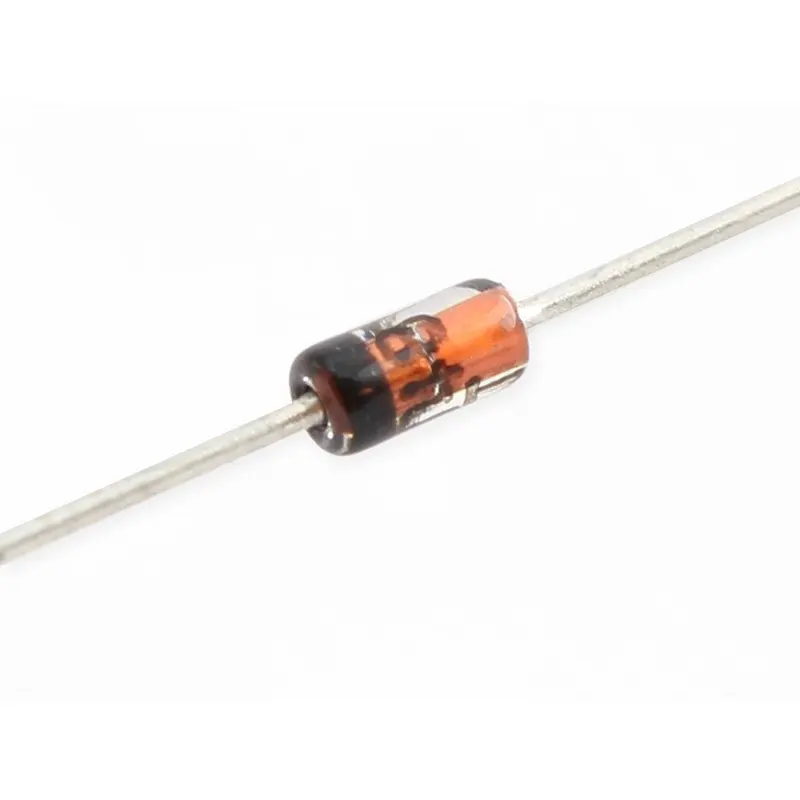

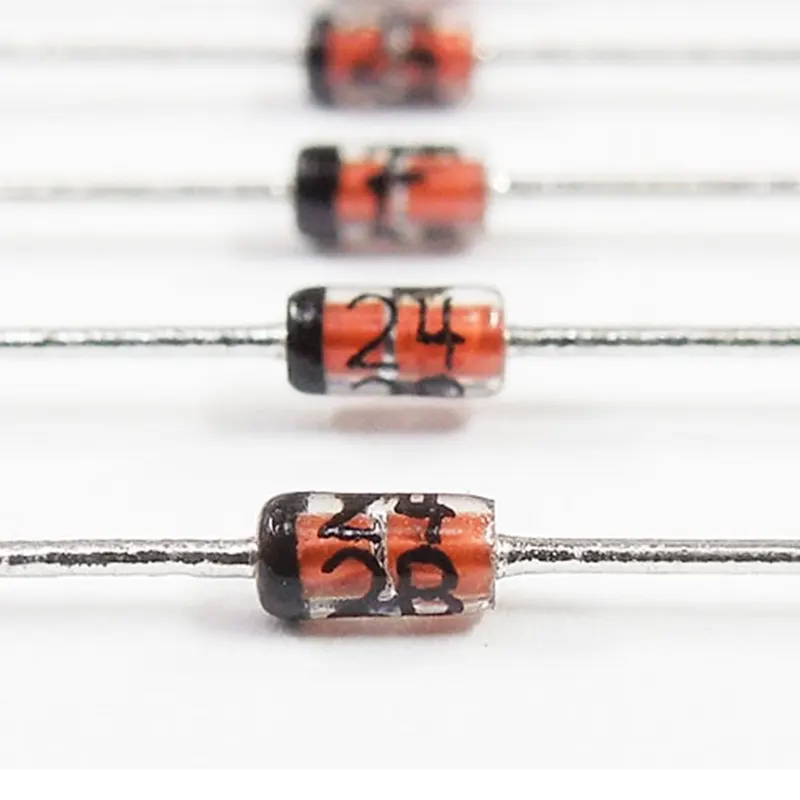

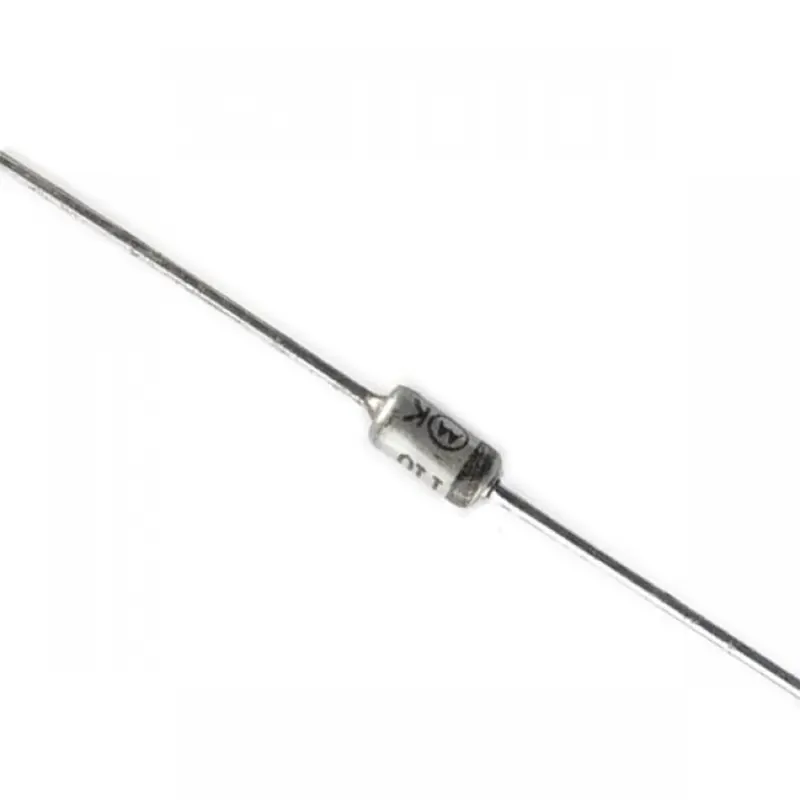

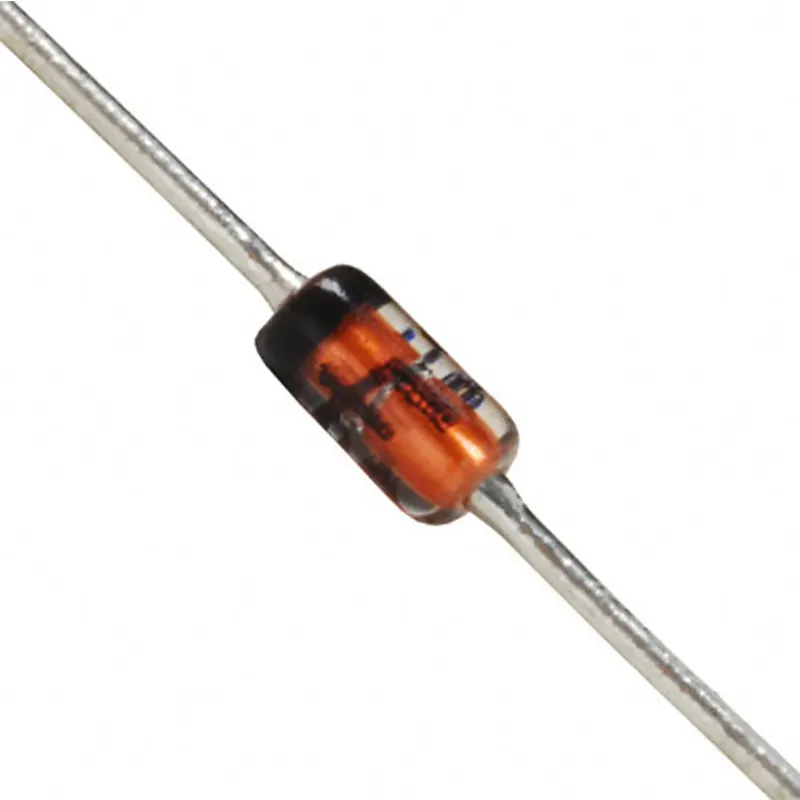

Housed in a compact DO-35 glass package, the 1N5235B is designed to operate in reverse-bias mode. Once the voltage across it hits the "Zener breakdown" point of 6.8V, it allows current to flow, effectively clamping the voltage at that level. While it has a lower power rating (500mW) than the 1-watt 1N47xx series, its smaller size makes it perfect for dense PCB layouts and low-power signal conditioning.

Key Features for Electrapac Customers

• Precision 6.8V Regulation: Perfect for creating a stable reference voltage for Op-Amps or protecting 5V microcontrollers from slightly higher voltage spikes.

• Compact DO-35 Form Factor: The small glass body takes up minimal space on breadboards and PCBs, making it ideal for portable DIY gadgets.

• High Thermal Stability: Maintains a consistent 6.8V threshold even as the ambient temperature changes, which is critical for outdoor sensor nodes.

• Low Leakage Current: Ensures high efficiency in battery-powered projects by preventing power drain when the voltage is below the 6.8V limit.

• Industry Standard: Widely used in professional telecommunications and consumer electronics, ensuring easy replacement and long-term availability.

To use the Electrapac 1N5235B as a regulator, you must connect it in Reverse Bias and always use a Series Current-Limiting Resistor ($R_s$):

1. Polarity: The Black Band indicates the Cathode. In a regulation circuit, connect the Cathode to the positive side of your supply and the Anode to Ground.

2. Resistor Selection: To prevent the diode from overheating, calculate a resistor that keeps the current below 20mA–30mA for most applications.

3. Protection Usage: If you are using this to protect an Arduino pin from a 12V signal, the 6.8V Zener will "clip" the peak, though a 5.1V Zener is usually safer for 5V-only pins.

Pro-Tip: The 1N5235B is excellent for "Level Shifting." If you have a signal that is too high for your circuit to handle, this diode can shift the DC level down by a steady 6.8V.

• Voltage Clamping: Protecting sensitive inputs from voltage surges or "noisy" power lines.

• Reference Voltages: Providing a fixed 6.8V "yardstick" for analog-to-digital converters (ADCs).

• Waveform Shapping: Clipping the peaks of AC signals to create specialized waveforms in audio processing.

• Relay Suppression: Protecting transistors from inductive "kickback" when a relay or motor is turned off.

• Battery Monitoring: Creating a threshold detector to light an LED when a battery voltage drops or rises.

We source our 1N5235B Zener Diodes with high-clarity glass encapsulation to ensure the internal junction is protected from moisture and oxidation. Visit us at www.electrapac.com for the precision semiconductors that keep your electronics running at the perfect voltage.
