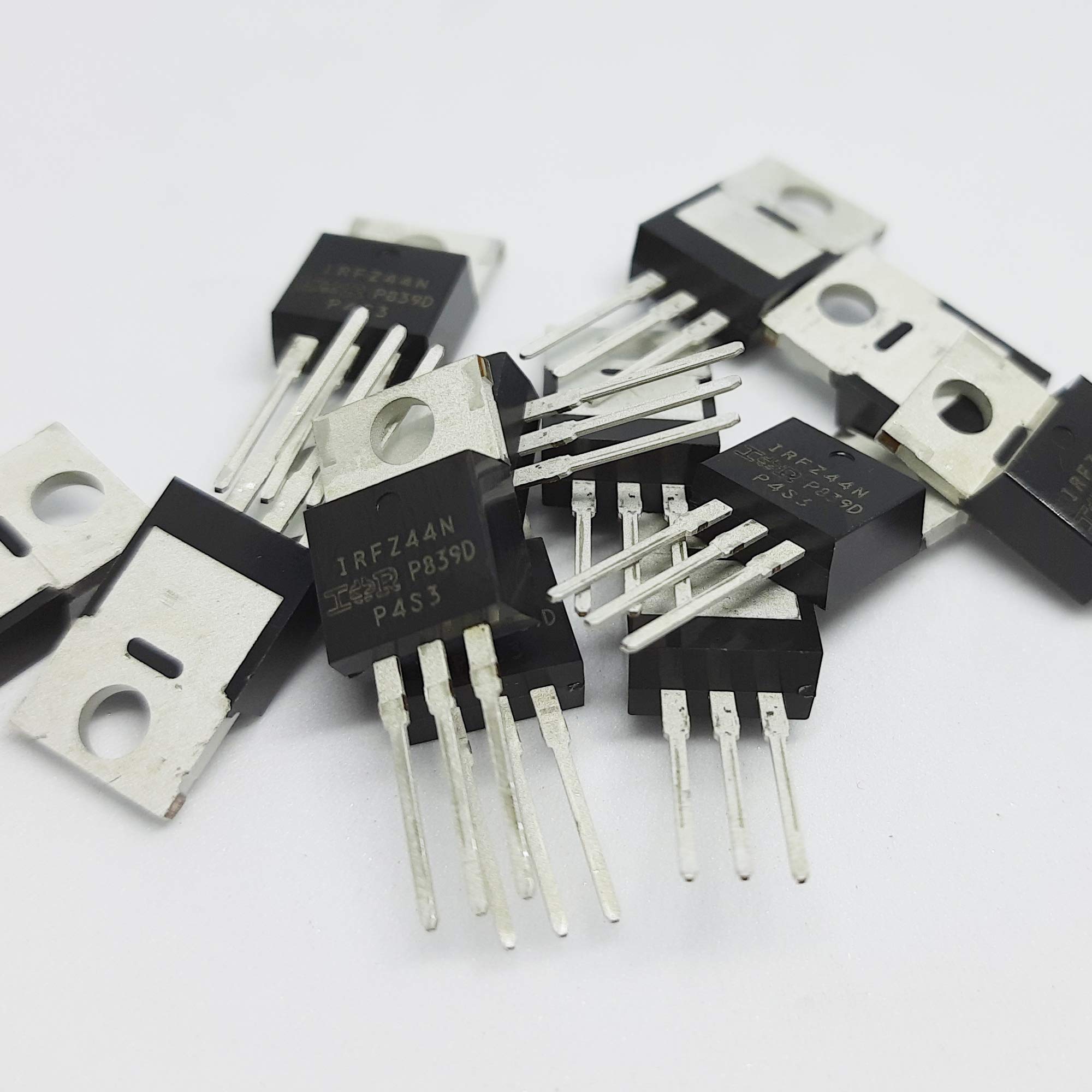

The IRFZ44NPBF (Z44N) N-Channel Power MOSFET is one of the most popular and versatile components in the electronics world. At Electrapac, we consider this a "bench staple"—it is the go-to choice for high-speed switching and pulse-width modulation (PWM) tasks due to its exceptionally low "on-resistance" and high current handling.

Overview

The IRFZ44N utilizes advanced processing technology to achieve extremely low resistance per silicon area. This means it generates very little heat while switching large loads. Rated at 55V and 41A, this N-Channel MOSFET is ideal for low-voltage, high-current applications where efficiency is the top priority.

Key Features for Electrapac Customers

• Ultra-Low On-Resistance: At only 17.5mΩ, this MOSFET wastes very little power as heat, allowing for smaller heatsinks and more efficient designs.

• Fast Switching: Optimized for high-frequency PWM applications, such as motor speed controllers and DC-DC converters.

• Ruggedness: The "N" series is designed for "Advanced Process Technology," providing high dv/dt ruggedness (the ability to handle rapid voltage changes without failing).

• Easy to Drive: Compatible with most standard 10V–12V gate driver circuits and microcontrollers (when used with a driver or transistor stage).

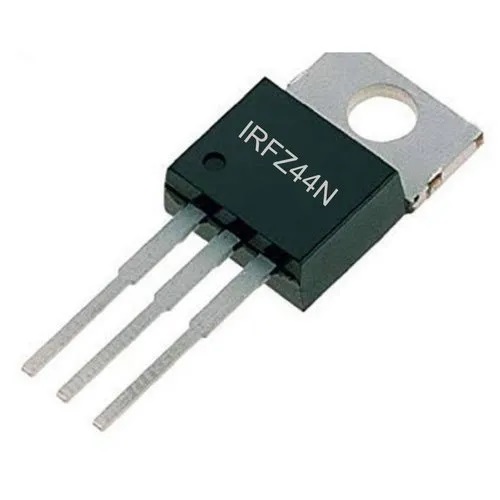

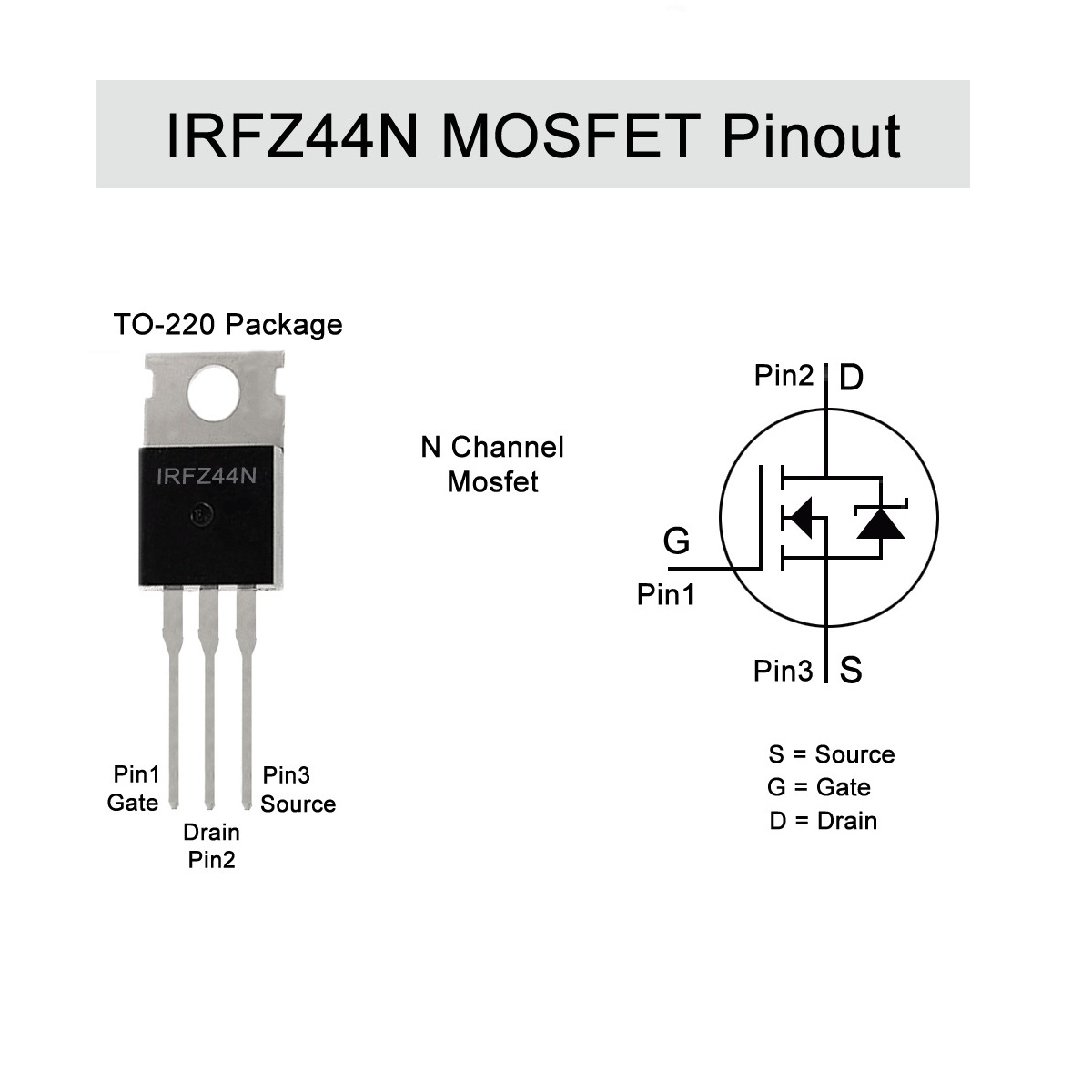

• Industry Standard TO-220: Fits perfectly into breadboards, perf-boards, and standard heatsinks.

Technical Implementation Guide

To get the best performance for your Electrapac project, keep these tips in mind:

1. Gate Drive Voltage: While the threshold is 2V–4V, you should provide 10V to 12V to the Gate to fully "open" the MOSFET. Driving it directly from a 5V Arduino pin may cause it to stay in the linear region and overheat if the current is high.

2. Heat Dissipation: Even though it is efficient, switching 41A will generate heat. Always use an aluminum heatsink for loads exceeding 5A.

3. Flyback Protection: If you are controlling an inductive load (like a motor or solenoid), always place a Flyback Diode (like an 1N4007 or 1N5819) across the load to protect the MOSFET from voltage spikes.

4. Static Safety: MOSFETs are sensitive to static electricity. Handle the IRFZ44N by its plastic body rather than its pins to avoid ESD damage.

Primary Applications

• DC Motor Speed Controllers: Perfect for PWM control in RC cars, robotics, and e-scooters.

• Solonoid & Relay Drivers: Switching high-current mechanical parts from a low-power microcontroller.

• LED Dimming: Controlling high-power LED strips and arrays.

• Inverters: A core component in DIY DC-to-AC power inverters.

• Battery Protection Circuits: Acting as a high-speed electronic switch for battery management systems.
