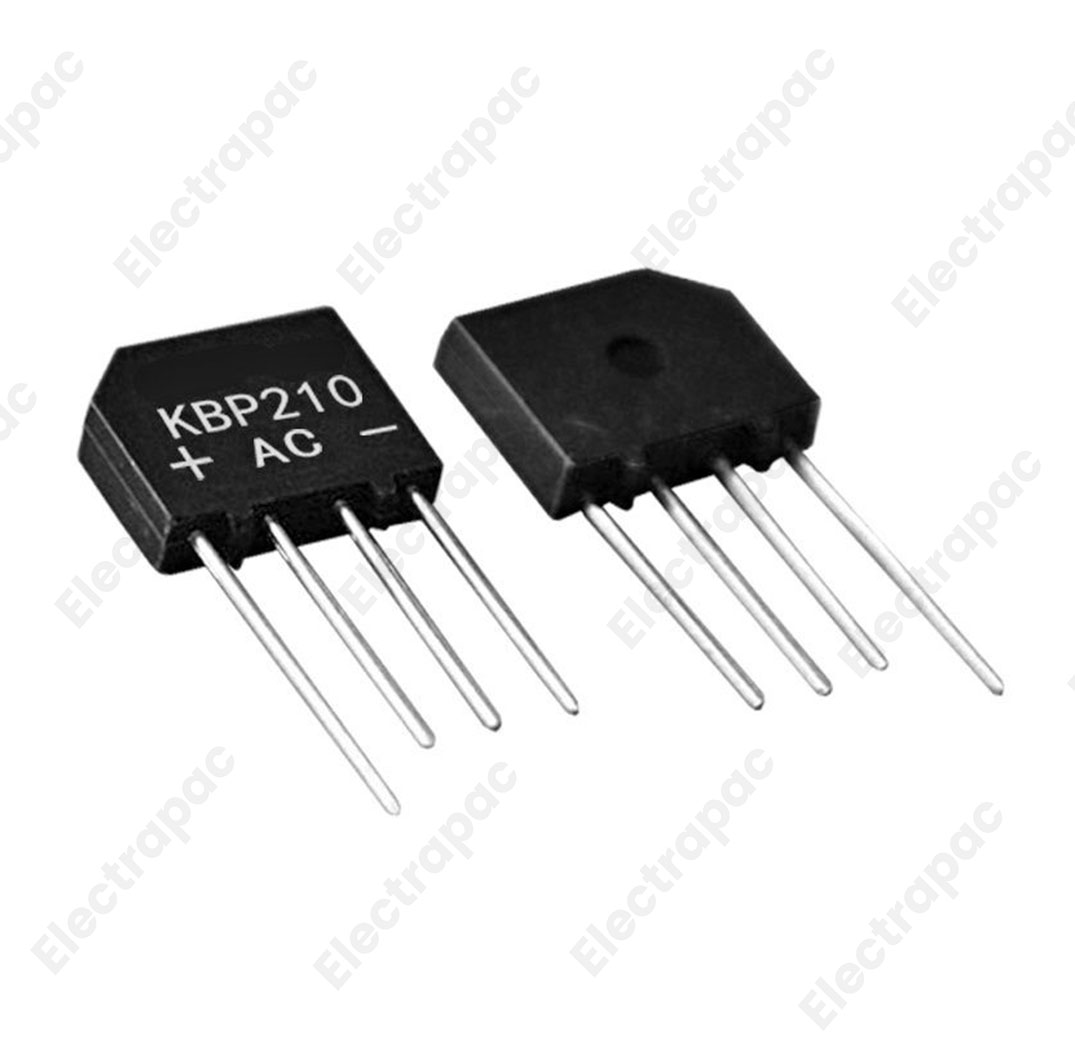

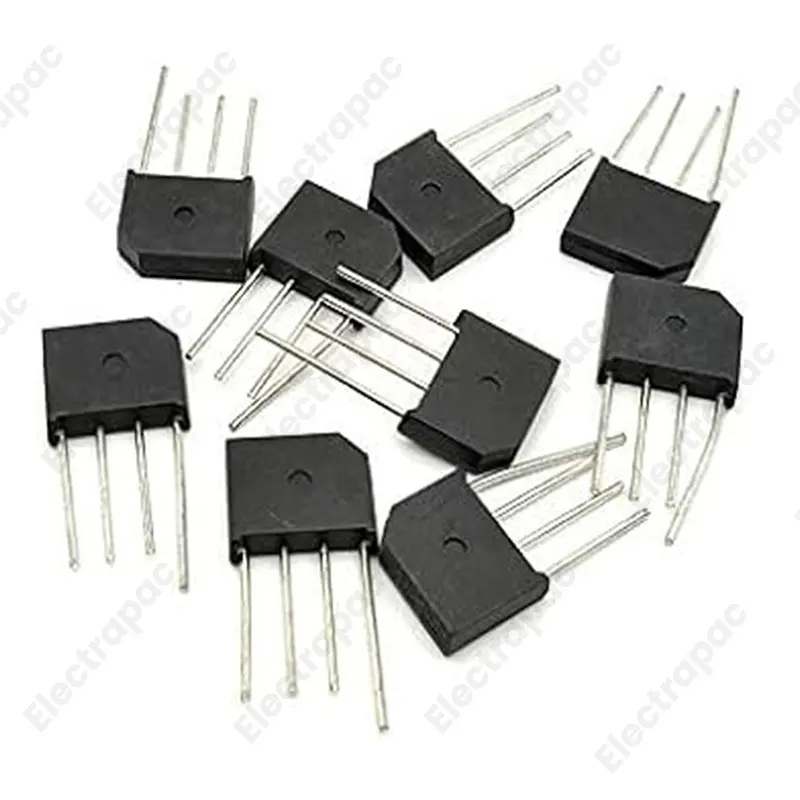

KBP210 Bridge Rectifier: High-Efficiency AC to DC Conversion

The KBP210 is a versatile, single-phase silicon bridge rectifier designed for converting alternating current (AC) into a stable direct current (DC) output. Rated at 1000V and 2A, it is an essential component for power adapters, battery chargers, and various consumer electronic power supplies.

Key Features

• High Voltage Rating: Capable of handling peak reverse voltages up to 1000V, making it suitable for mains-powered applications.

• Reliable Current Output: Supports a continuous forward current of 2A, ideal for medium-power electronics.

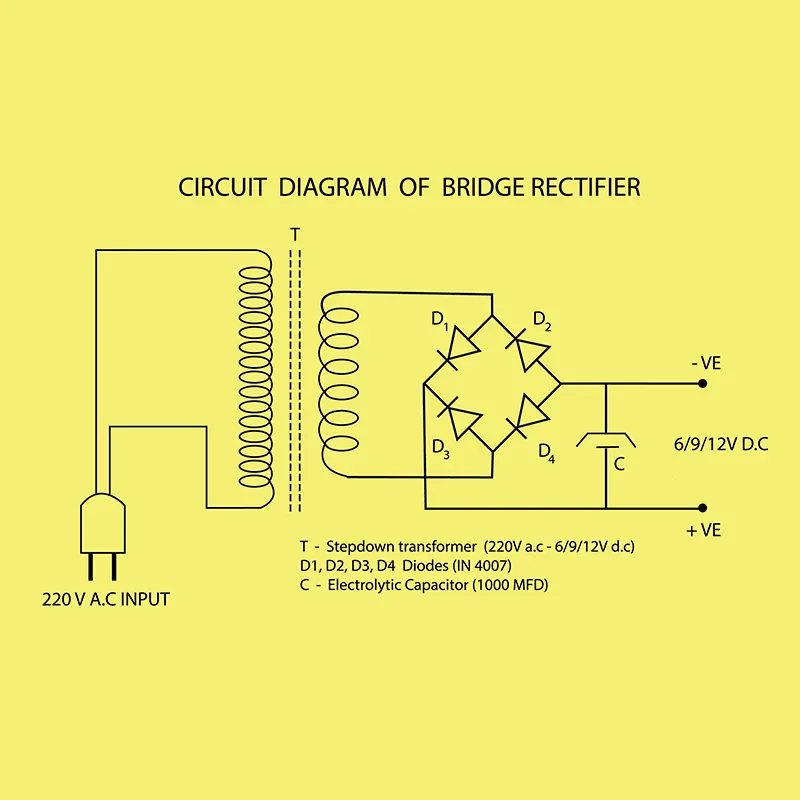

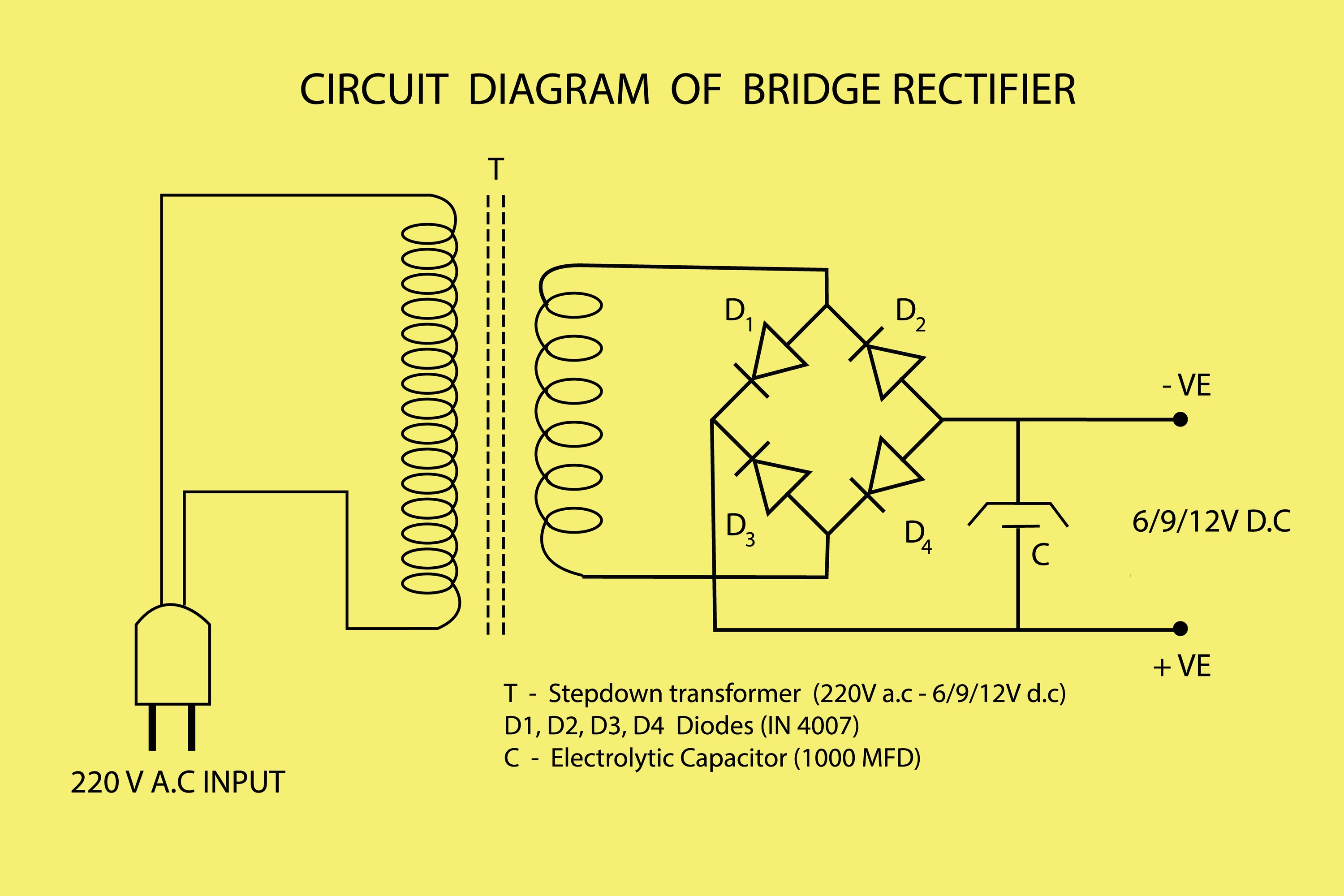

• Integrated Design: Consists of four diodes connected in a bridge configuration within a single, compact KBP package.

• High Surge Capacity: Designed to handle high-current surges during power-on without damage.

• Through-Hole Mounting: Features standard lead spacing for easy soldering onto PCBs (Printed Circuit Boards).

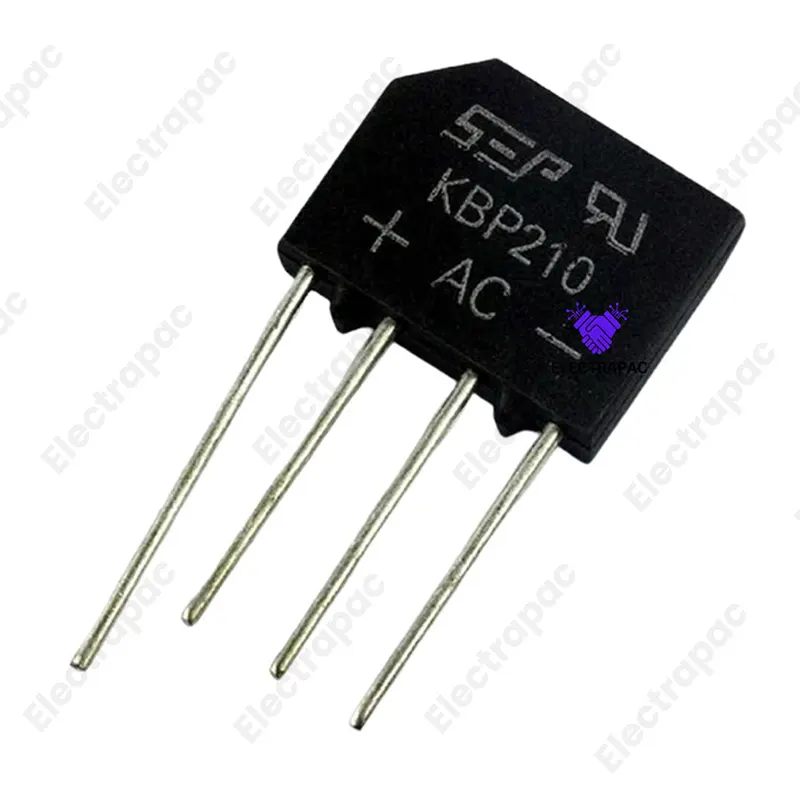

Pin Configuration

The KBP210 features four clearly marked pins to ensure correct installation:

• AC (~): AC Input (connect to transformer or mains).

• AC (~): AC Input (connect to transformer or mains).

• Positive (+): Rectified DC Positive Output.

• Negative (-): Rectified DC Negative Output.

Common Applications

• Power Adapters: Converting wall socket AC to DC for laptops, routers, and monitors.

• Battery Chargers: Standard component in charging circuits for lead-acid or Li-ion systems.

• Home Appliances: Used in LED lighting drivers, small fans, and power tools.

• DIY Electronics: A staple for hobbyists building custom DC power supplies.

Technical Tip: While this rectifier is rated for 2A, it is recommended to use it within 70-80% of its maximum capacity for long-term reliability. If your circuit draws close to 2A continuously, ensure adequate ventilation or PCB copper area for heat dissipation.
