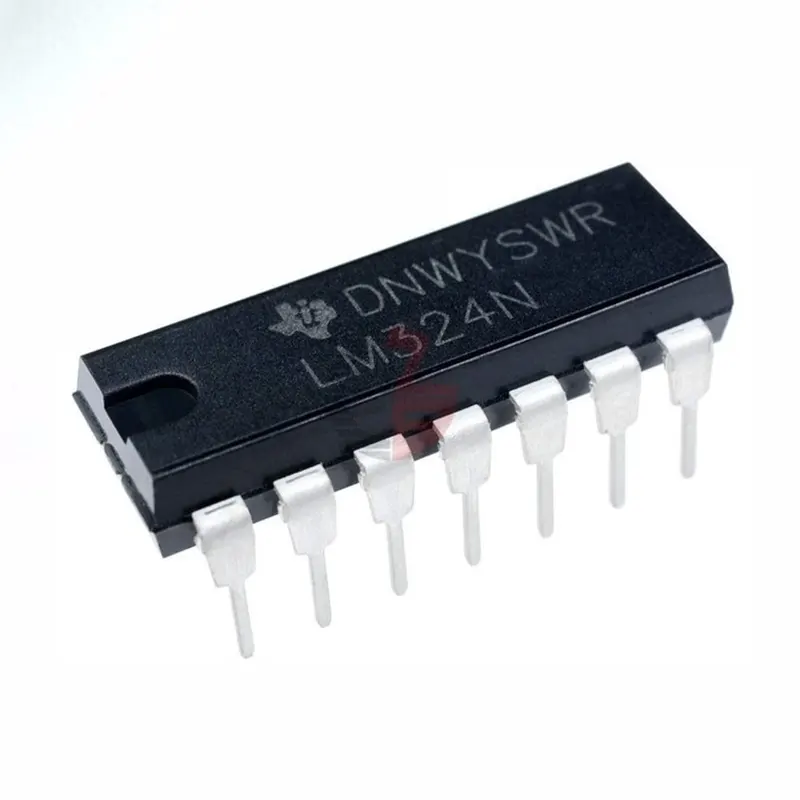

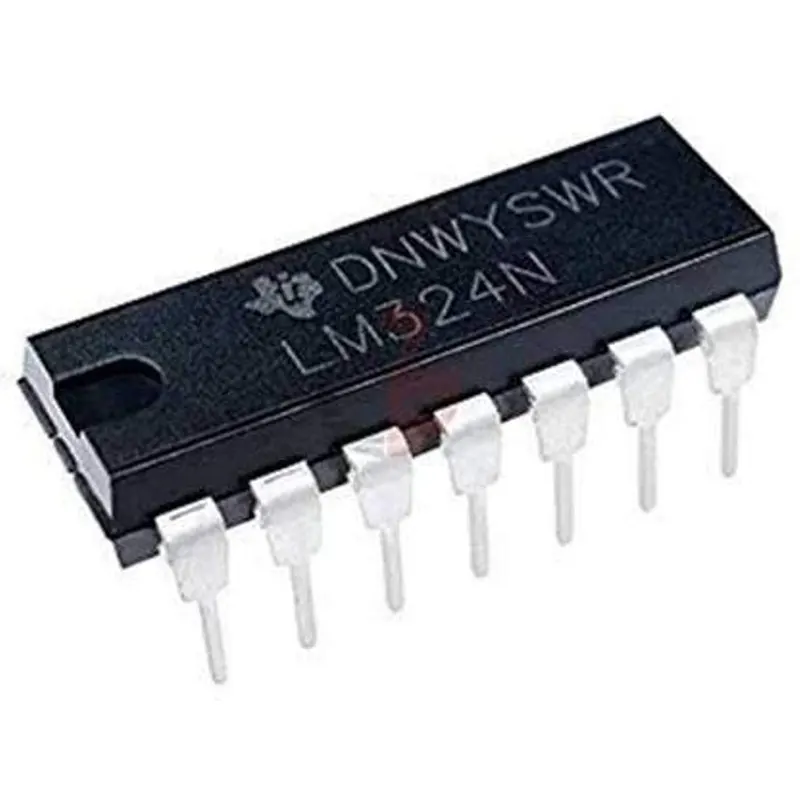

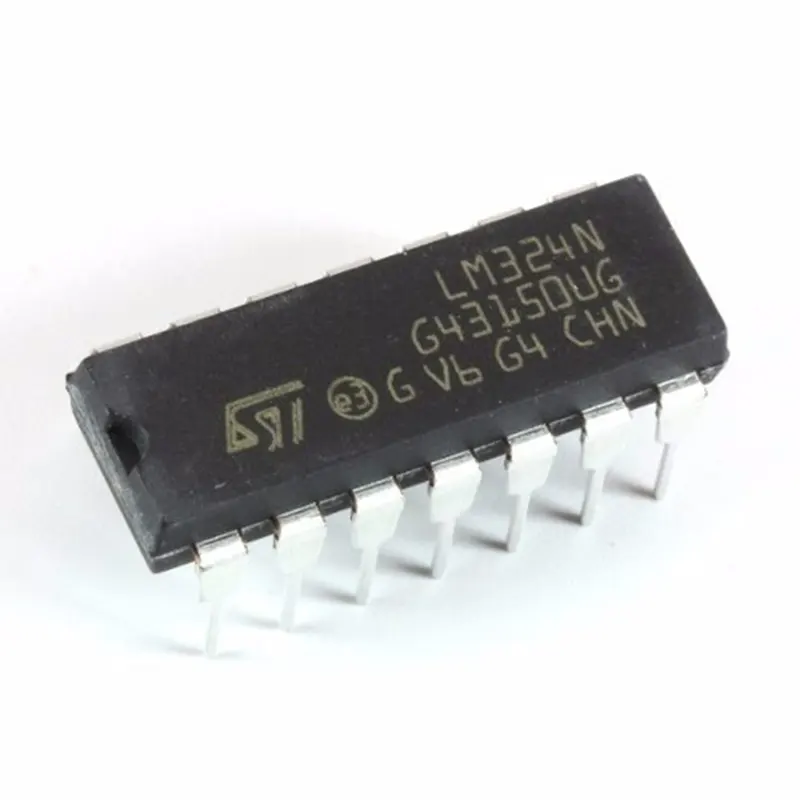

The LM324 Quad Operational Amplifier IC is a versatile, industry-standard component that packs four independent, high-gain op-amps into a single 14-pin package. At Electrapac, we recommend this "analog powerhouse" for students and engineers in Bangladesh who need to process multiple sensor signals simultaneously while using a single power supply.

The LM324 is unique because it is designed specifically to operate from a single power supply (like a 5V Arduino pin or a 9V battery) across a wide range of voltages. This eliminates the need for the complex dual-voltage ($+V$ and $-V$) power supplies required by older op-amps. Whether you are building an active filter, a signal generator, or a sensor pre-amplifier, the LM324 provides four separate channels to handle all your analog processing needs in one go.

Key Features for Electrapac Customers

• Four-in-One Efficiency: With four op-amps in one chip, you save significant space on your breadboard or PCB compared to using four separate 741 or 358 ICs.

• True Single-Supply Operation: The common-mode input voltage range includes the negative rail (Ground), allowing you to sense signals very close to 0V without distortion.

• Low Power Consumption: Designed for battery-powered portability, the LM324 draws very little current even when all four amplifiers are active.

• Internal Frequency Compensation: You don't need external capacitors to keep the amplifier stable, making your circuit design simpler and more reliable.

• Wide Voltage Range: Works perfectly at 5V for Arduino projects, 12V for Automotive electronics, and up to 30V for Industrial control systems.

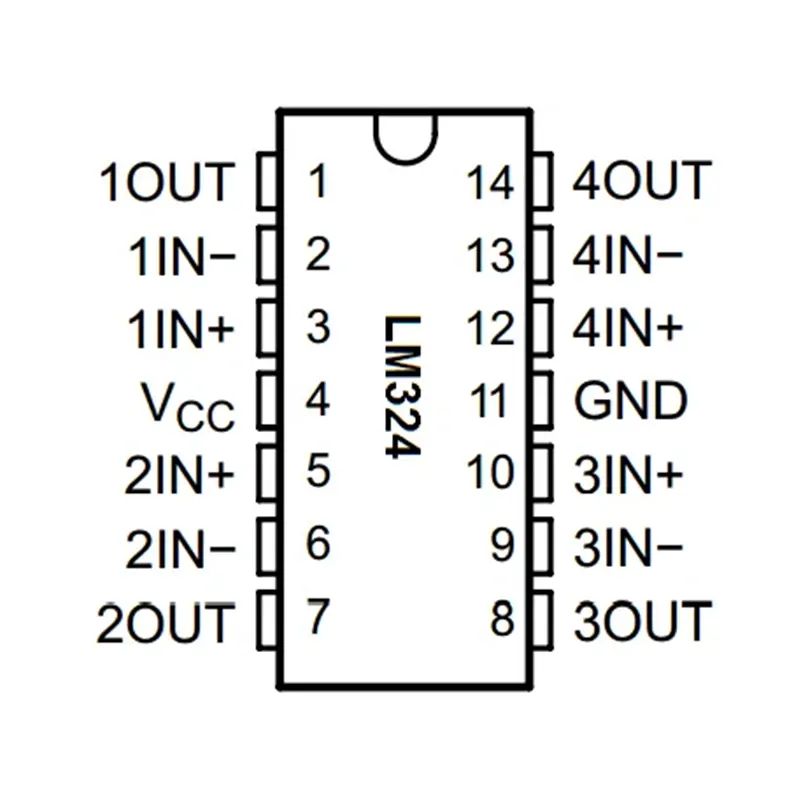

To get the most out of your Electrapac LM324, keep these pinout and design rules in mind:

1. Powering the IC: Connect Pin 4 to your positive supply (VCC) and Pin 11 to Ground.

2. Unused Amps: If you only use 2 or 3 of the four op-amps, do not leave the inputs of the unused ones "floating." Connect the output to the inverting input and the non-inverting input to Ground to prevent electrical noise.

3. Gain Calculation: In a standard non-inverting setup, your gain is $1+(Rf/Rin)$. The LM324 is excellent for boosting weak signals from LDRs, thermistors, or microphones before they reach your Arduino's Analog-to-Digital Converter (ADC).

Pro-Tip: The LM324 is a "General Purpose" op-amp. If you are building a high-fidelity audio system, it may have slight crossover distortion; however, for sensor logic, robotics, and timing circuits, it is the most cost-effective and reliable choice available.

• Sensor Signal Conditioning: Scaling and filtering signals from temperature, light, and pressure sensors.

• Comparators: Comparing two voltages to trigger an alarm, an LED, or a relay.

• Active Filters: Building low-pass or high-pass filters for audio and signal processing.

• Voltage Followers: Acting as a "buffer" to prevent a high-impedance sensor from being "loaded down" by a microcontroller.

• Oscillators: Creating square, triangle, or sine wave generators for testing and signaling.

We source our LM324 Quad Op-Amps with high-quality internal silicon to ensure low offset voltage and consistent performance across all four channels. Visit us at www.electrapac.com for the analog components that give your digital projects real-world precision.
