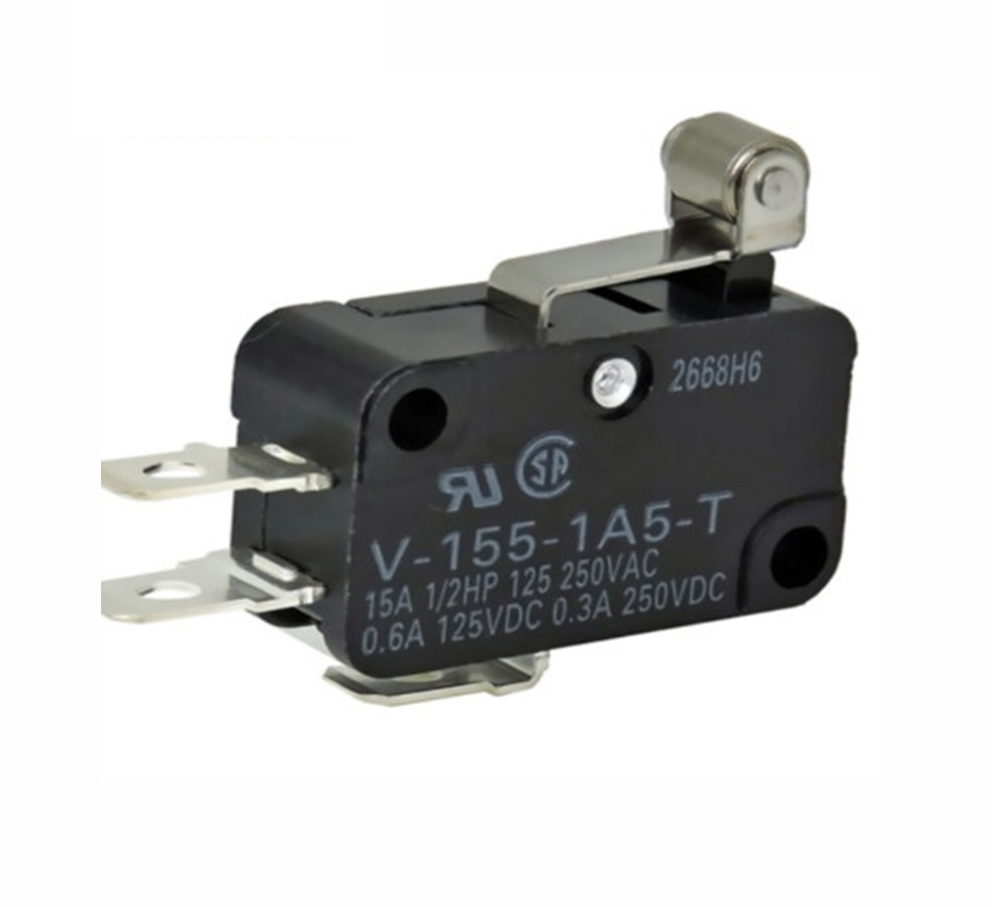

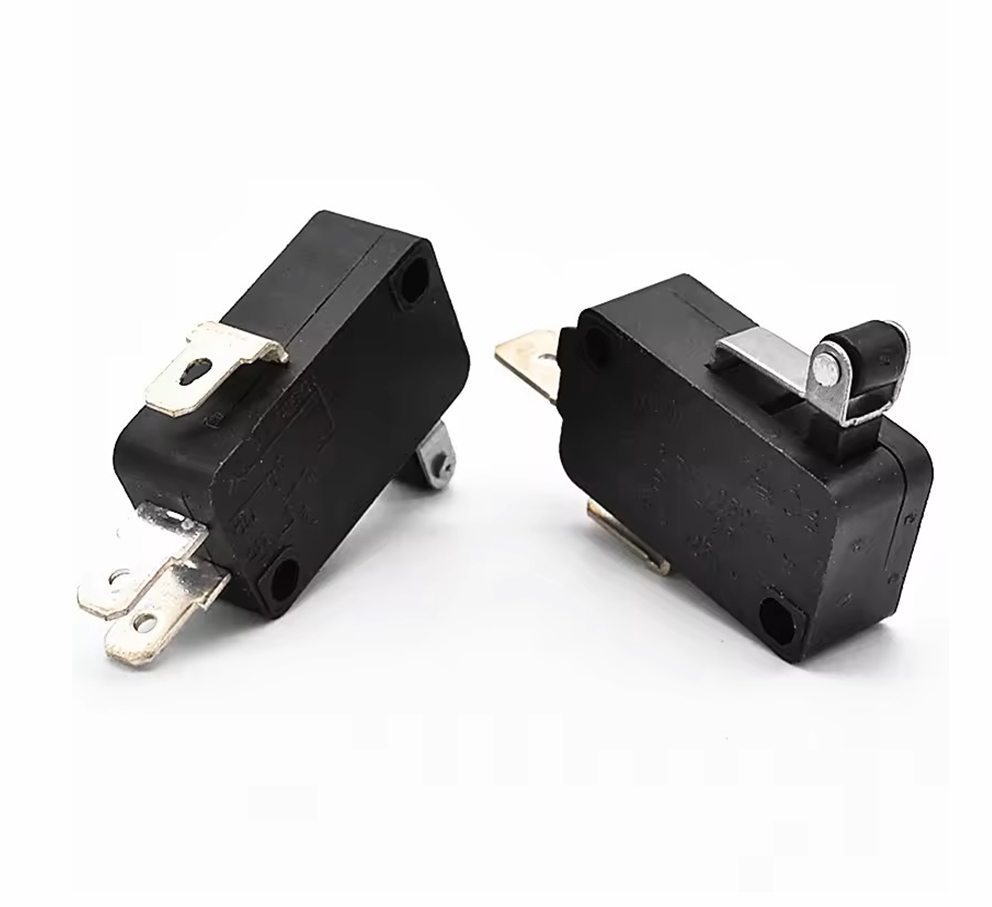

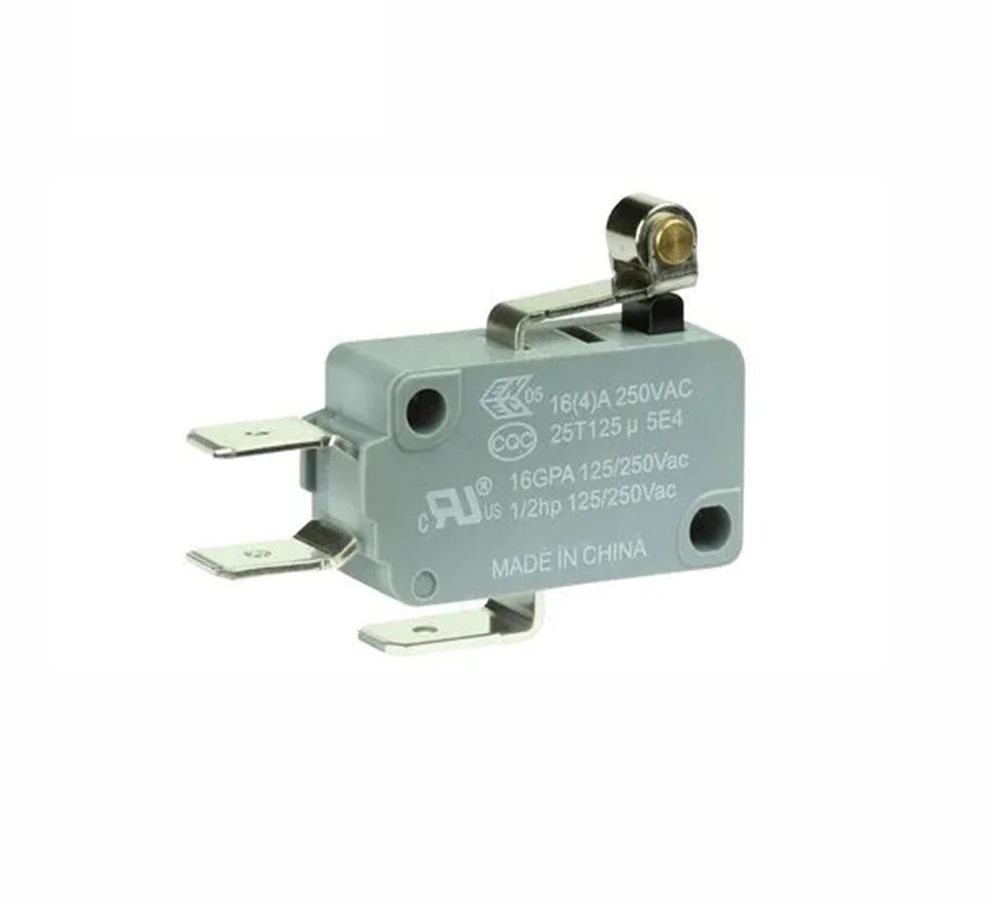

Micro Limit Switch with Roller Leve Description

The micro limit switch with roller is high quality because it not only has the global safety certification but also the material can meet the requirement of ROHS and REACH. Meanwhile, the shell material is UL 94V-0 thermoplastic, which is the highest fireproofing grade of UL 94V-1, UL 94V-2, and UL 94 HB.  Besides, this model is not only a limit switch but a microswitch as well. This E42 switch rating is “16(4) A 125/250VAC, 1/2HP 125VAC, 3/4HP 250VAC” with the 40T85 working temperature, and its circuit SPDT with faston terminals.

All in all, it is available to buy from us, with free samples, datasheets, and project design support! Welcome to contact us to get more details.

Micro Switch with Roller Leve Specification

• Name Micro Limit switch
• Material: Plastic
• Rating Load: 16A 125/250VAC
• Operation speed: 0.1 mm-1m/s
• Contact resistance: 15m Ohm max. (initial)
• Insulation resistance: 100m Ohm min. (at DC500V)
• Dielectric strength: 1, 000 VAC 50/60 Hz for 1minute
• Life: 100, 000 operations min. full load (Electrical); 10, 000, 000 operations min. (Mechanical)
• Operating temperature: -25~+80°C
• Contact Form: SPDT NO+NC
• Pin number: 3
• Overall size: 40x28x10mm/ 1.57 x 1.1 x 0.39 inch (L*W*H)

Features: Adopt thermosetting plastic or thermoplastic; Offers long service and operations life. Small contact gap, snap section, high sensitivity and small operating travel Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.
