The Micro USB Female Socket Panel Mount is a rugged and convenient solution for adding a professional power or data port to your custom enclosures. At Electrapac, we recommend this specific "B-Type" cable assembly for makers who want to move their project's connection point from a delicate internal circuit board to a sturdy external panel.

Product Overview

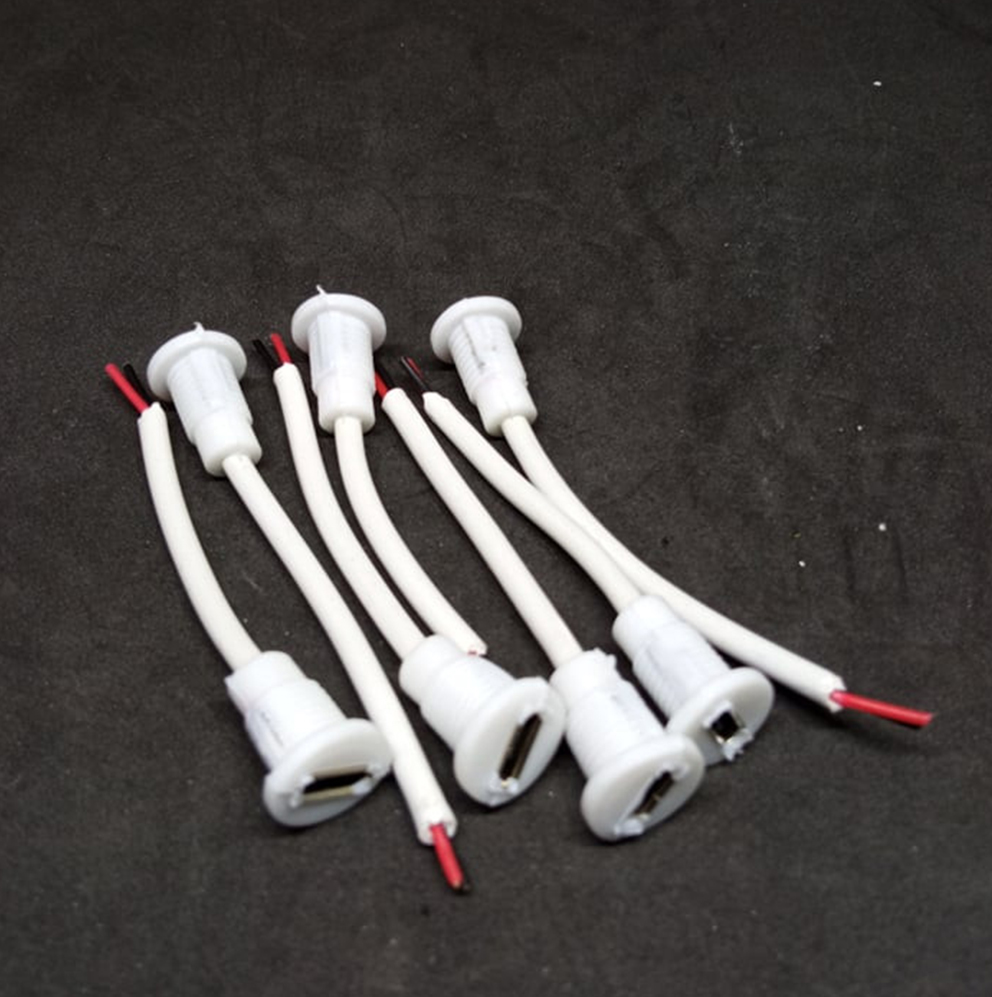

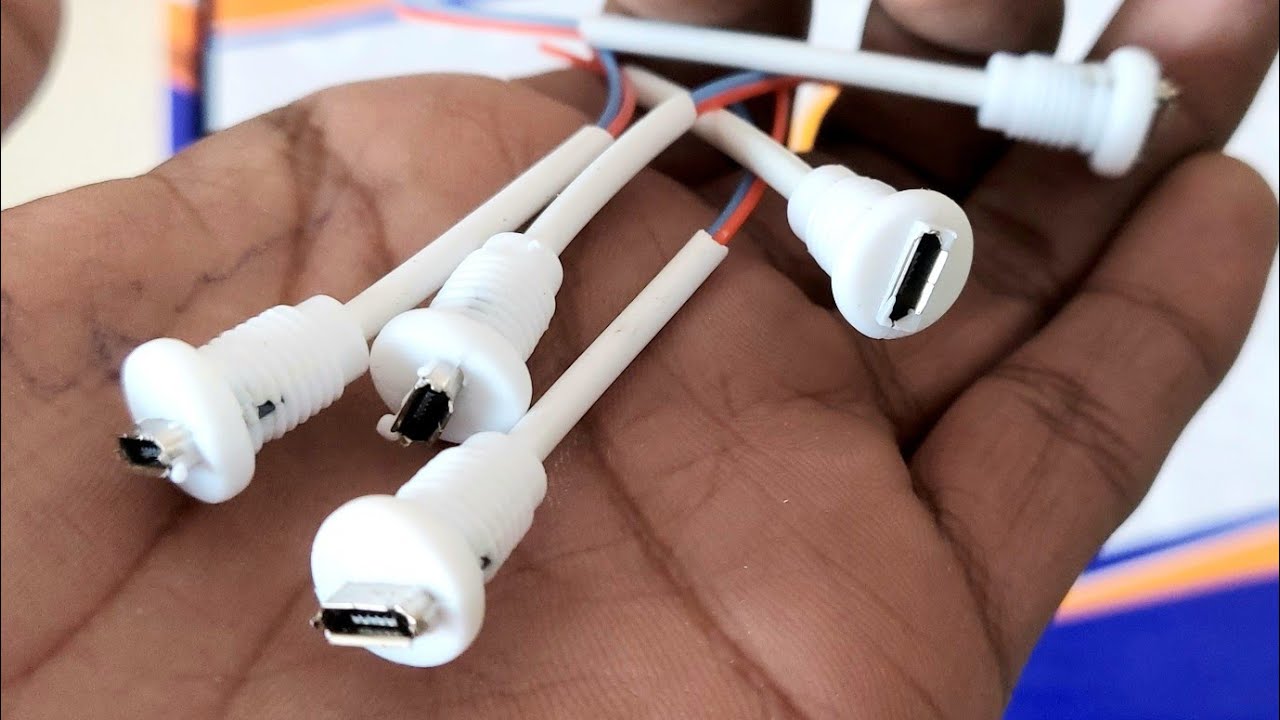

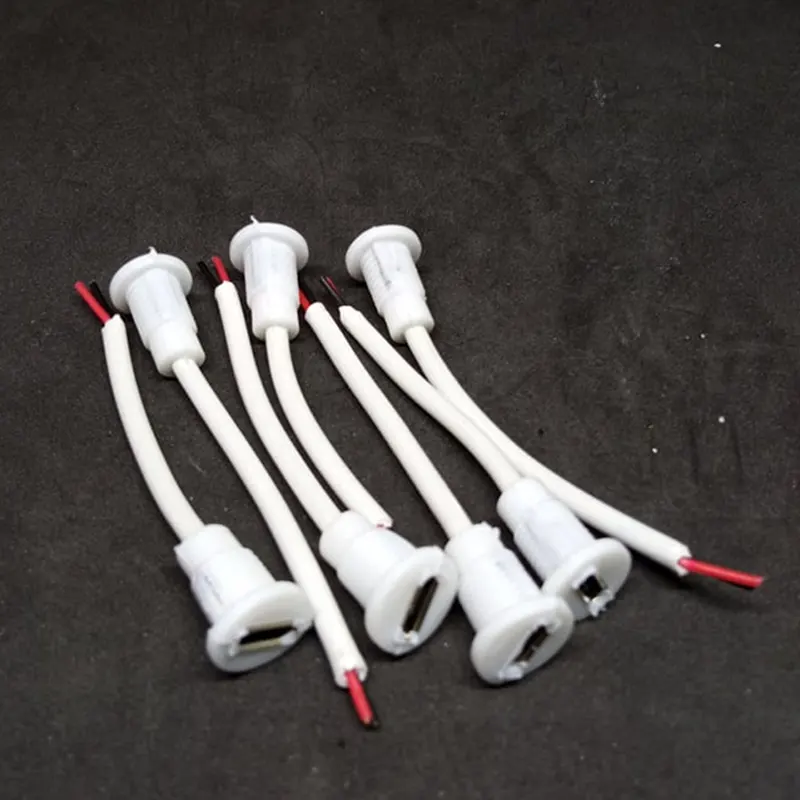

This assembly features a high-quality Micro USB Female port housed in a molded "ears" bracket for easy screw-mounting. The port is connected to a flexible lead wire, allowing you to position the input anywhere on your device's casing. Whether you are building a custom power bank, a 3D-printed lamp, or a protected housing for an Arduino, this cable ensures your internal connections stay safe from the "wear and tear" of frequent plugging and unplugging.

Key Features for Electrapac Customers

• Panel-Ready Design: The integrated mounting ears allow you to secure the port to plastic, wood, or metal panels using standard M3 screws.

• Full Data & Power Sync: Unlike simple 2-wire "power only" jacks, this 4-wire version supports both high-speed charging and data transfer (USB 2.0).

• Protects Internal Components: By using a panel mount, you prevent the mechanical stress of plugging in a cable from snapping the Micro USB port off your internal development board.

• Flexible Installation: The high-quality copper lead cable allows for easy routing around internal components in tight cases.

• Standard Compatibility: Fits all standard Micro USB "Type B" cables used by older smartphones, power banks, and microcontrollers from www.electrapac.com.

Installation Guide

To give your Electrapac project a factory-finished look:

1. Create a Cutout: Measure the rectangular head of the socket (approx. $15\text{mm} \times 8\text{mm}$) and cut a hole in your project box.

2. Mark Screw Holes: Place the socket in the hole and mark the two side screw positions.

3. Secure the Port: Use M3 screws to tighten the socket against the panel.

4. Connect Internally: Plug the other end of the cable into your internal board (if it has a male end) or strip and solder the wires directly to your circuit.

Primary Applications

• 3D Printed Enclosures: Adding a neat power input port to custom-designed cases.

• DIY Power Banks: Creating a professional charging interface for 18650 battery projects.

• Industrial Control Boxes: Providing an external data access port for internal PLCs or microcontrollers.

• Restoration Projects: Replacing broken power jacks in older electronics with a more durable panel-mounted version.

• Custom Game Controllers: Adding a detachable cable port to DIY arcade sticks or gamepads.

Why Shop at Electrapac?

We source our Micro USB Panel Mount Cables with reinforced molding at the connector base to prevent the internal wires from fraying over time. At www.electrapac.com, we provide the finishing touches that turn a "project" into a "product."
