Type: Momentary Push Button (Tactile Switch), Pins: 2-Pin (Simple input/output configuration), Action: Momentary (Stays ON only while pressed), Size: Ultra-compact and lightweight. Read more

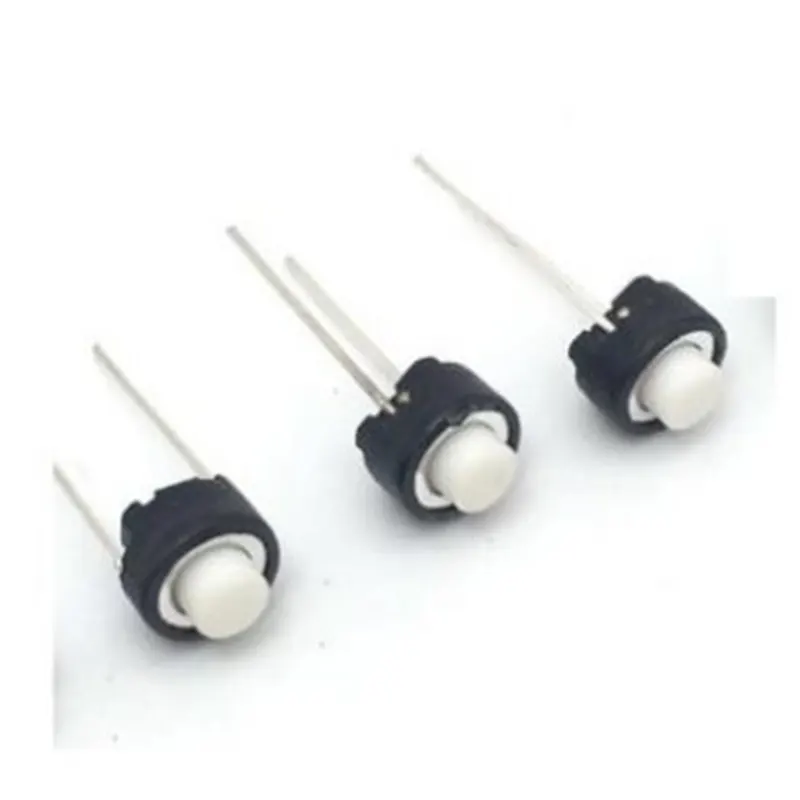

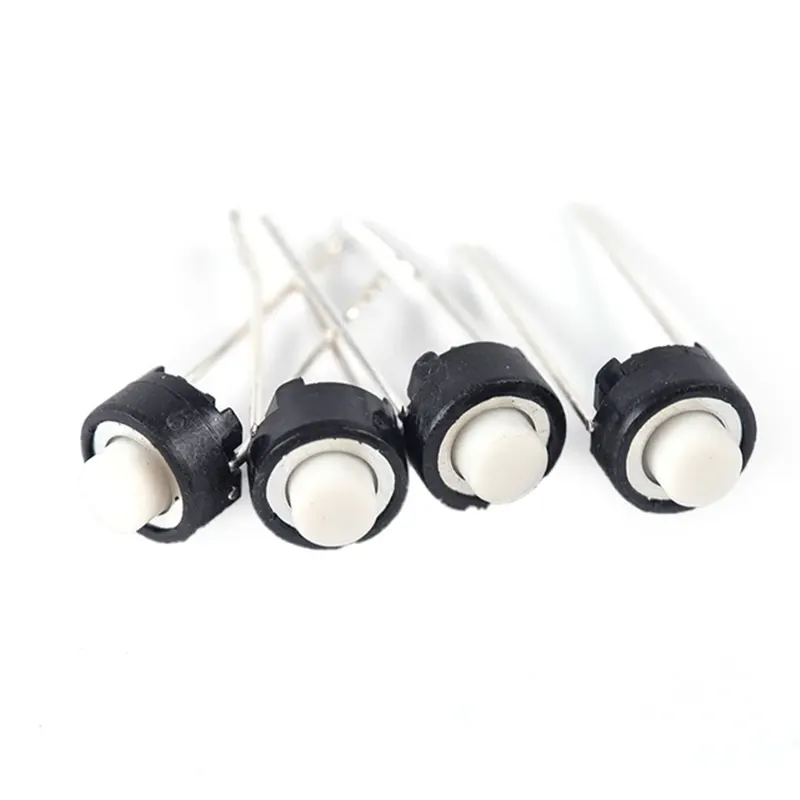

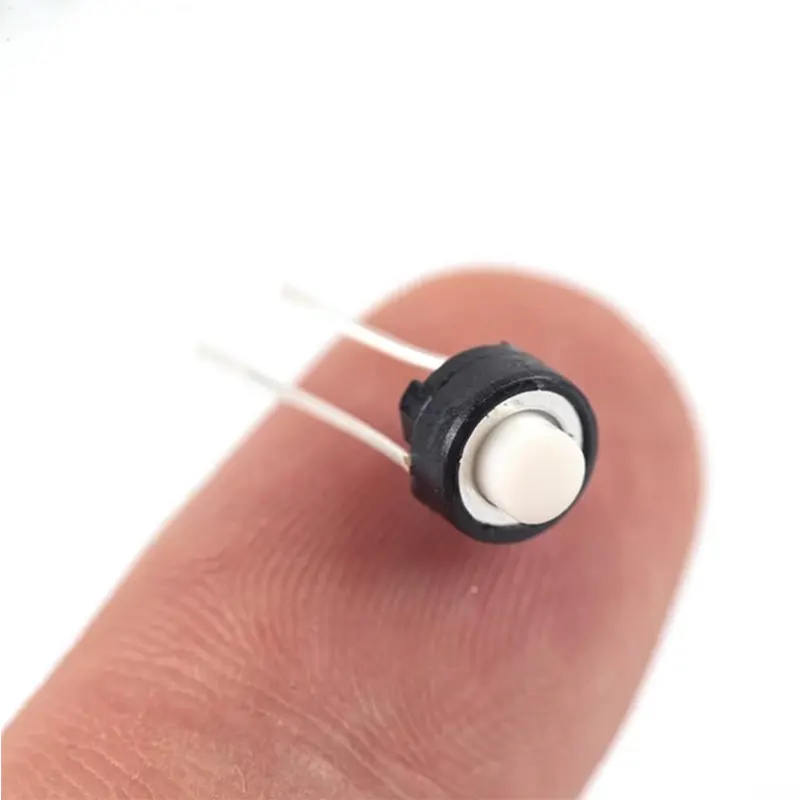

Miniature 2-PIN Single Pull Single Throw Push Button Switch. These are high-quality momentary switches. Perfect as a tactile reset switch. Mounts perfectly into standard breadboards. Rated up to 50mA.
Applications of 2 Pin DC Push Button Switch:
| Specifications | Descriptions |
|---|---|
| Switch Type | Momentary (Tactile) |
| Circuit Type | Single Pole Single Throw (SPST) |
| Terminal Count | 2-Pin (Straight or Curved) |
| Voltage Rating | 12V DC (standard) to 24V DC |
| Current Rating | 50mA |
| Contact Resistance | $\le 100m\Omega$ |
| Insulation Resistance | $\ge 100M\Omega$ |
| Dielectric Strength | 250V AC for 1 minute |
| Operating Force | 100 ~ 300gf (grams force) |
| Life Cycle | 100,000+ Cycles |
| Operating Temperature | -25°C to +85°C |
