Key Features for Electrapac Customers

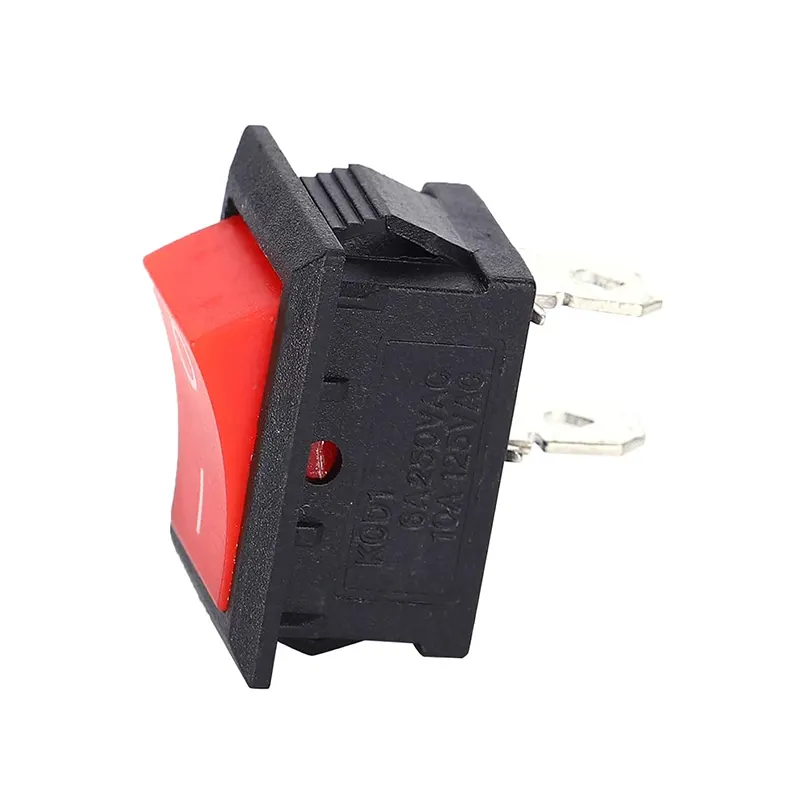

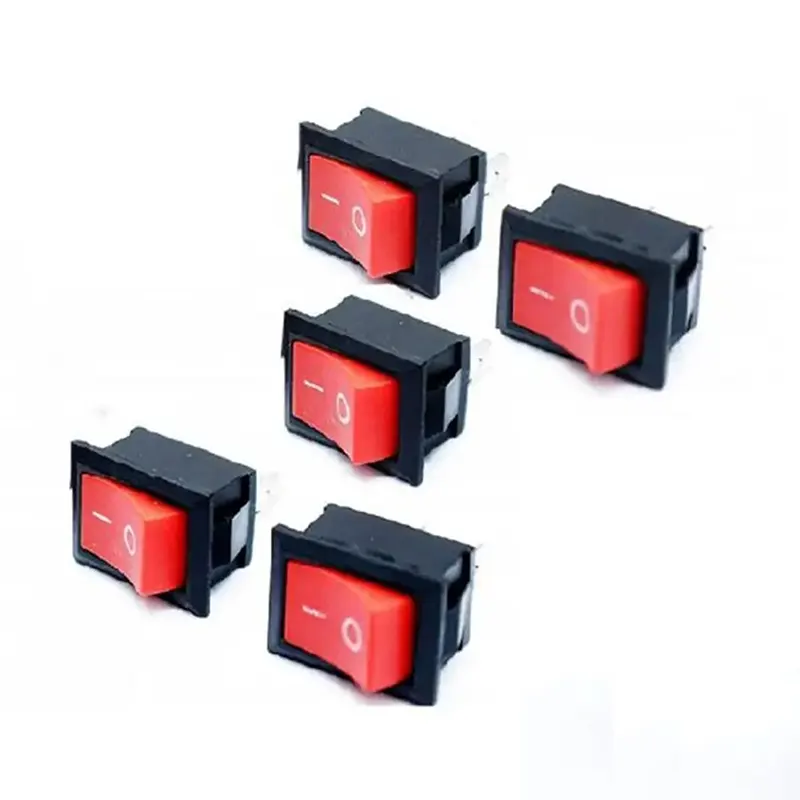

• Compact "Snap-In" Design: Fits perfectly into small enclosures, saving valuable space on your project board or dashboard. No screws or nuts are required for mounting.

• High-Visibility Red Toggle: The bright red rocker ensures that the user can quickly locate the switch, even in low-light environments.

• Durable Internal Contacts: Built with silver-plated copper alloy contacts to ensure low electrical resistance and a mechanical life of over 10,000 cycles.

• Heat-Resistant Body: The outer shell is made from high-temperature flame-retardant nylon, preventing the switch from melting during soldering or heavy use.

• Universal Compatibility: While rated for AC, it is perfectly safe and effective for DC applications (3V to 24V), making it a staple for Arduino and robotics power circuits.

Wiring & Installation Guide

Integrating the Electrapac KCD11 switch is a simple process. Since it is a 2-pin SPST switch, it acts just like a break in your wire:

1. Preparation: Cut a rectangular hole (approx. 13.5mm X 8.5mm) in your panel.

2. Mounting: Press the switch into the hole until the side clips click into place.

3. Connection: Solder one end of your Positive (+) power wire to the first pin and the other end (leading to your load) to the second pin.

Pro-Tip: When soldering to the lugs, use a Heat Sink (like a pair of tweezers) on the terminal to prevent the heat from traveling upward and softening the plastic housing of the switch. Always finish your connection with Heat Shrink Tubing to prevent short circuits against the metal chassis.

Primary Applications

• DIY Power Supplies: A perfect master power switch for bench power units or battery chargers.

• Desktop Appliances: Repairing small fans, desk lamps, or kitchen gadgets.

• Robotics & Toys: Adding a main ON-OFF switch to battery-operated cars or RC drones.

• Car Audio/Electronics: Controlling 12V LED strips or internal dash lights in vehicles.

• Instrument Panels: Creating a clean interface for home-built test equipment.

Why Shop at Electrapac?

We source our KCD11 Mini Rocker Switches with reinforced internal springs to ensure a firm, tactile "click" and long-term reliability. Visit us at www.electrapac.com for the switching components that put you in total control of your hardware.
