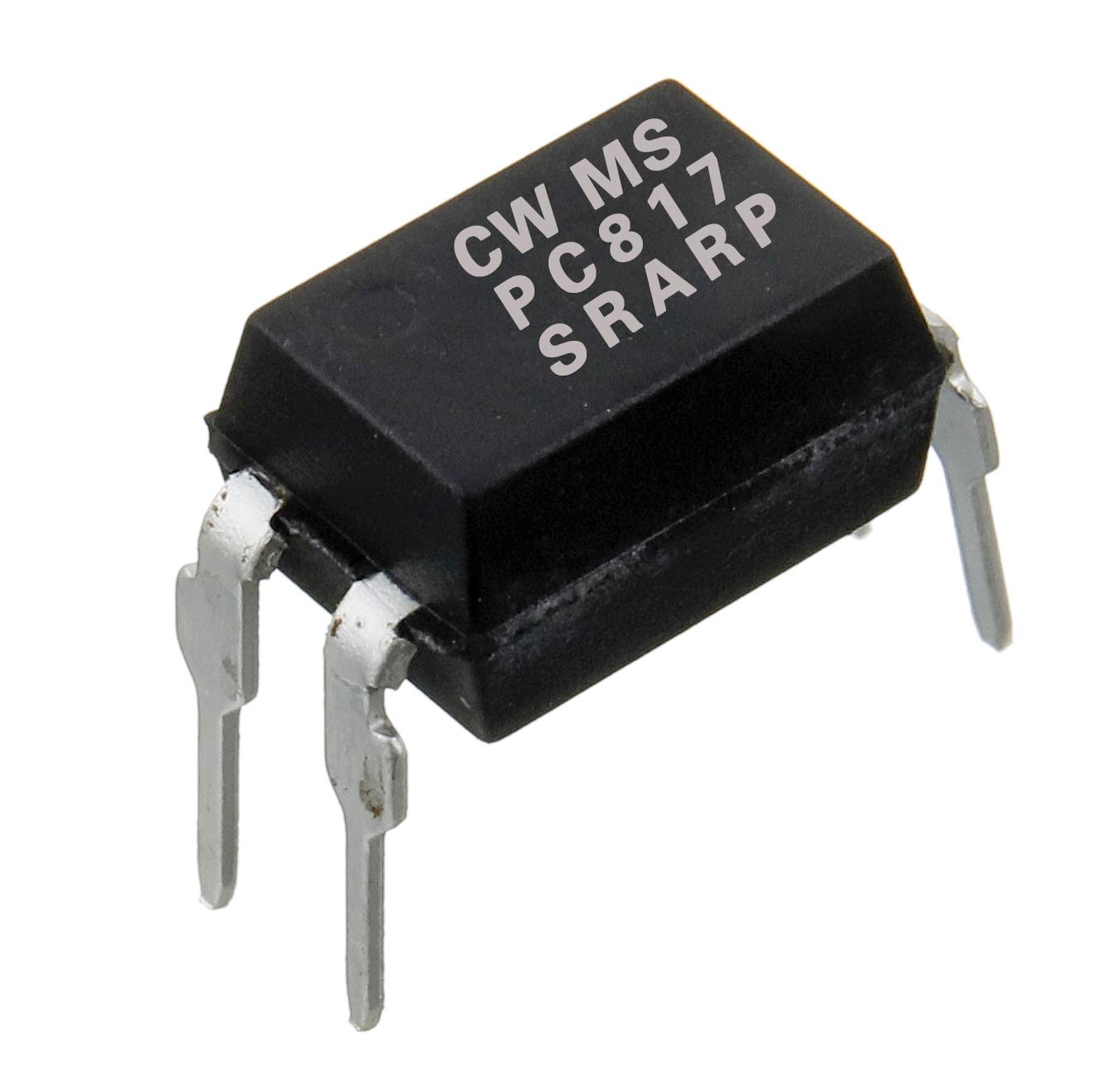

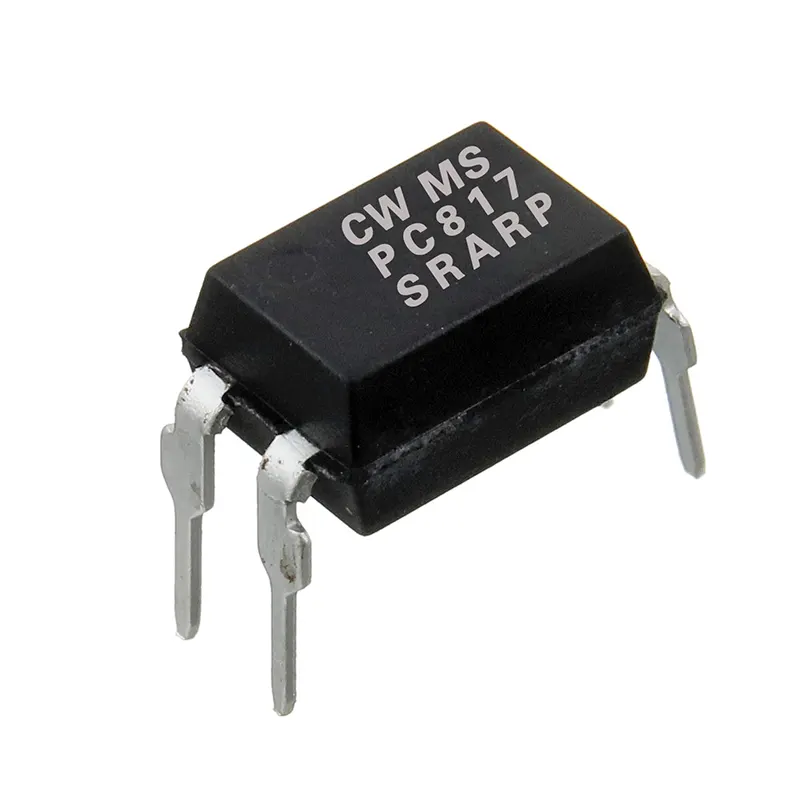

the PC817 Phototransistor Optocoupler is an essential component for protecting sensitive control circuitry from high-voltage spikes and electrical noise. At Electrapac, we recommend this 4-pin IC for any project where an Arduino, ESP32, or PIC microcontroller needs to switch a load that operates on a different power supply.

Product Overview

The PC817 consists of an Infrared Emitting Diode (IRED) optically coupled to a Phototransistor. It provides complete electrical isolation between the input and output sides. Because there is no physical wire connection between the two sides—only a beam of light—voltage surges on the output side cannot travel back to destroy your expensive microcontroller.

Key Features for Electrapac Customers

• Total Galvanic Isolation: With a 5000V isolation rating, it acts as an "electrical firewall," keeping your logic circuits safe from motor noise and AC power surges.

• Signal Level Shifting: Easily bridge the gap between a 3.3V logic signal and a 12V or 24V industrial control system.

• Compact DIP-4 Design: Occupies very little space on a PCB or breadboard, making it more efficient than using bulky mechanical relays for low-current switching.

• Noise Suppression: Effectively filters out electromagnetic interference (EMI) that can cause "false triggers" in digital inputs.

• Versatile Switching: Can be used to drive transistors, MOSFETs, or small relays available at www.electrapac.com.

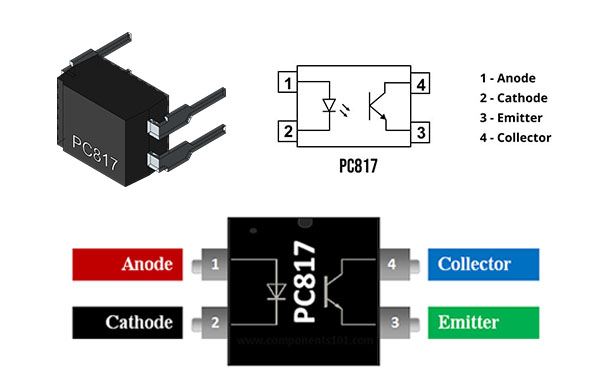

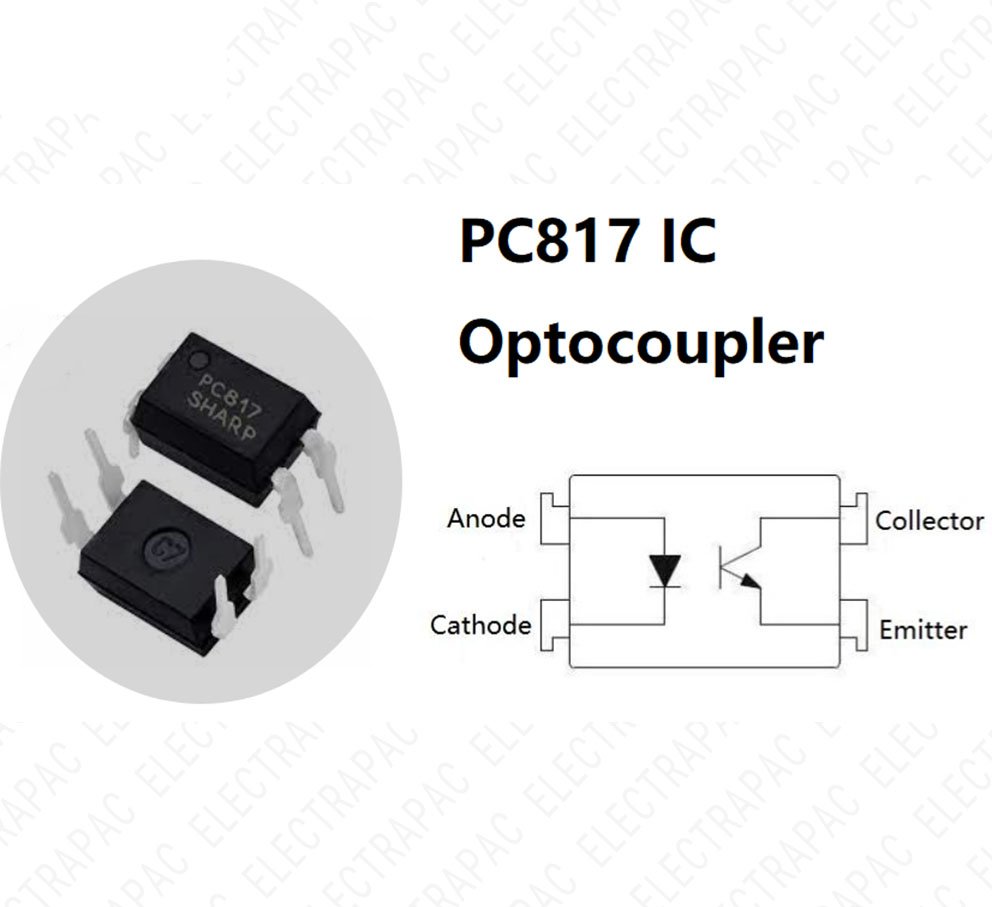

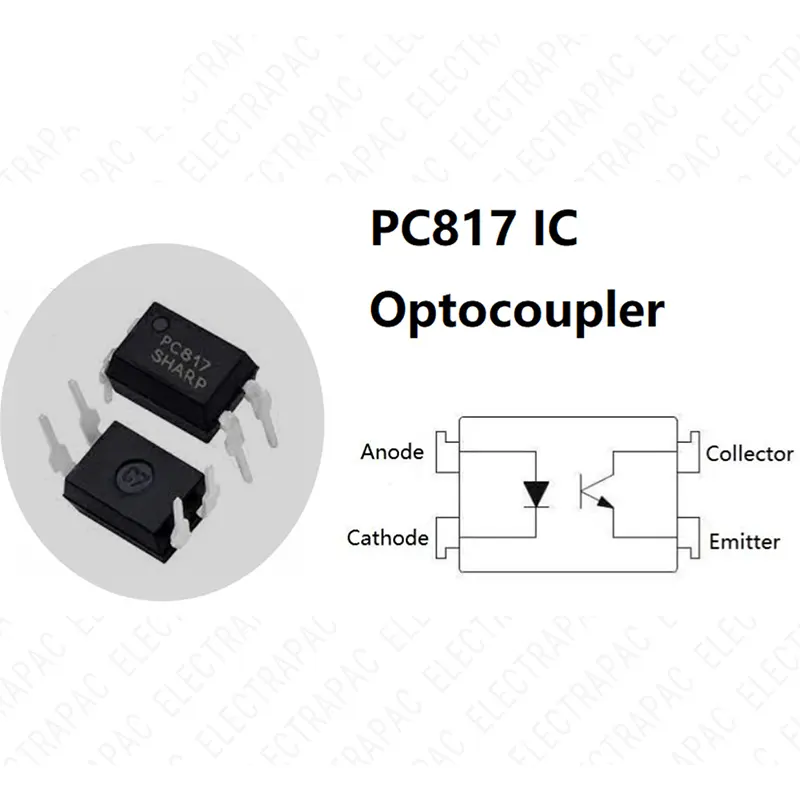

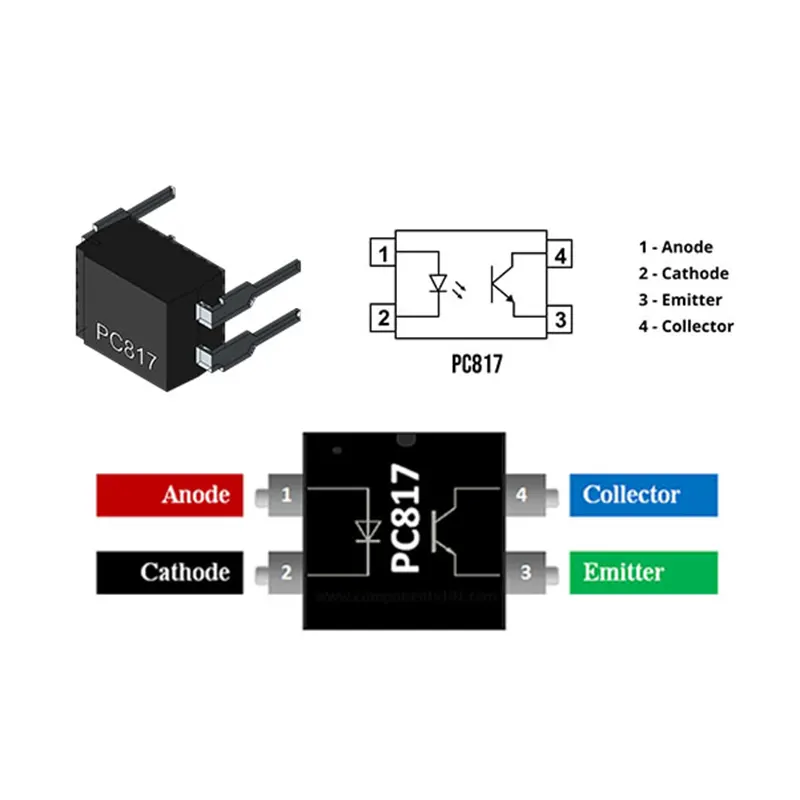

Standard Wiring Logic

To use the PC817 correctly in your Electrapac builds, follow this 4-pin configuration:

1. Anode (Pin 1): Connect to your Microcontroller output pin through a current-limiting resistor (typically 220Ω to 470Ω)

2. Cathode (Pin 2): Connect to the Microcontroller Ground.

3. Emitter (Pin 3): Connect to the Ground of the external/high-voltage load.

4. Collector (Pin 4): Connect to the positive side of the high-voltage load or a pull-up

   Primary Applications

   • Microcontroller I/O Protection: Shielding Raspberry Pi or Arduino pins from inductive kickback.

   • Switch Mode Power Supplies (SMPS): Providing feedback from the output side to the controller while maintaining safety isolation.

   • Industrial PLC Interfacing: Converting 24V factory signals into 5V logic for data logging.

   • Ground Loop Elimination: Solving "hum" or data corruption issues in long-distance communication lines.

   • Relay Driving: Acting as the "pre-stage" to trigger high-power relays safely.
