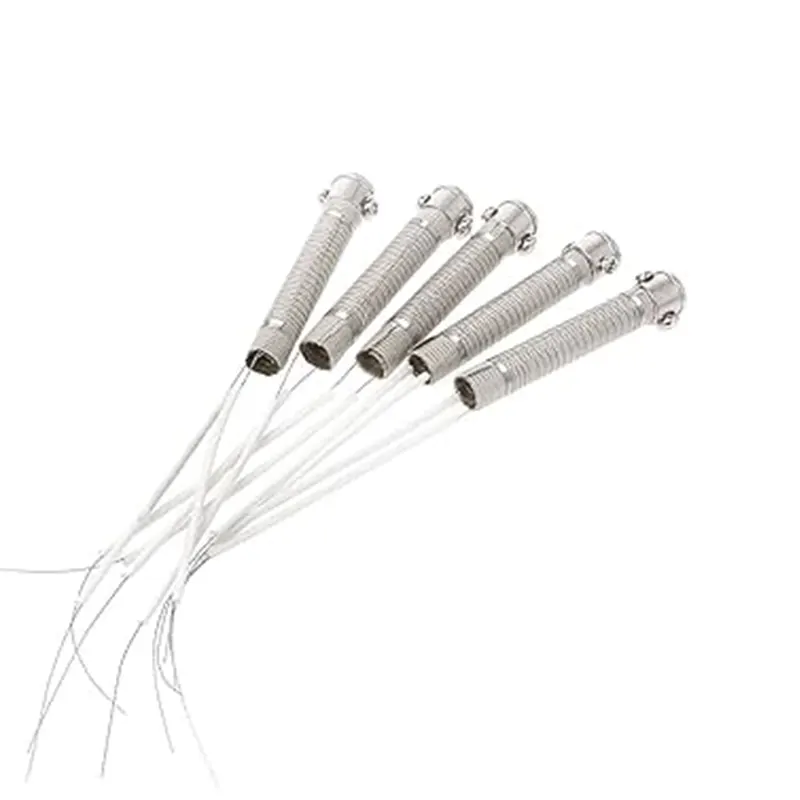

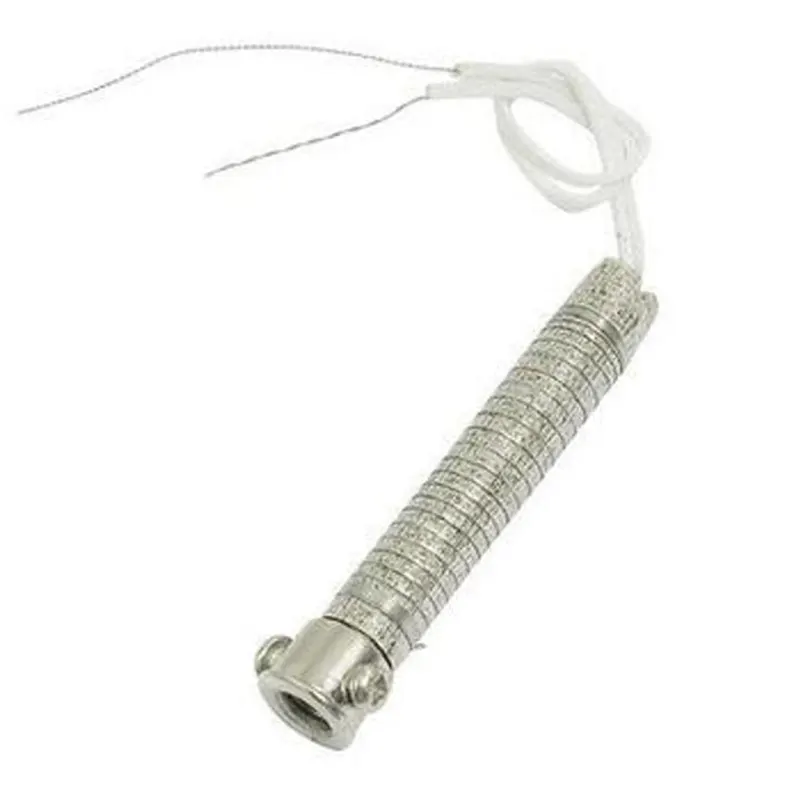

The 60W Soldering Iron Heating Element (Replacement Coil) is a vital spare part for maintaining the performance of your workshop tools. At Electrapac, we recommend this high-quality mica-insulated heating core for technicians and hobbyists in Bangladesh who want to restore their favorite 60W soldering iron rather than replacing the entire tool.

Product Overview

This 60W heating element is designed to provide rapid heat-up times and stable thermal conductivity. It features a high-grade nickel-chromium (NiCr) wire wound around a heat-resistant mica core. The outer layer is insulated to prevent electrical leakage to the soldering tip, ensuring user safety during delicate PCB repairs or heavy-duty wire tinning.

Key Features for Electrapac Customers

• Quick Thermal Recovery: Engineered to reach operating temperature within minutes, allowing you to get back to work quickly.

• Stable High Temperature: Capable of maintaining the consistent heat required for lead-free soldering and high-gauge wire connections.

• Mica Insulation: The high-quality mica sheets provide excellent electrical insulation while withstanding extreme heat without degrading.

• Universal Fit: Designed to fit most generic and branded 60W "pencil" style soldering irons common in the local market.

• Cost-Effective Maintenance: Extending the life of your soldering iron by simply replacing the element is both eco-friendly and budget-conscious.

Installation Guide

Replacing the element in your Electrapac soldering iron is a straightforward process:

1. Safety First: Ensure the soldering iron is completely unplugged and cool to the touch.

2. Disassembly: Unscrew the plastic handle and the metal barrel (sheath).

3. Removal: Carefully disconnect the wires of the old, burnt-out element from the power cord terminals.

4. Insertion: Slide the new 60W element into the metal barrel. Ensure the mica sleeve is intact and not crushed.

5. Wiring: Connect the two leads to the power cord. Since it is AC, there is no polarity, but ensure the connections are secure and insulated.

6. Testing: Reassemble the handle and plug it in. The element may emit a small amount of smoke during the first "burn-in"—this is normal as factory residues evaporate.

Pro-Tip: To maximize the life of your new heating element, avoid leaving your soldering iron "ON" for long periods of time when not in use. Using a Soldering Iron Stand helps dissipate excess heat and prevents the core from overheating.

Signs You Need a New Element

• The soldering iron takes a very long time to get hot.

• The tip does not melt solder even after 10 minutes.

• You feel a slight "tingle" or electrical shock from the metal tip (indicates insulation failure).

• The iron has no heat at all despite the power light being on.

Why Shop at Electrapac?

We source our Soldering Iron Coils with reinforced internal wiring to handle the voltage variations often found in local power grids. Visit us at www.electrapac.com for the reliable spare parts that keep your tools in top working condition.
