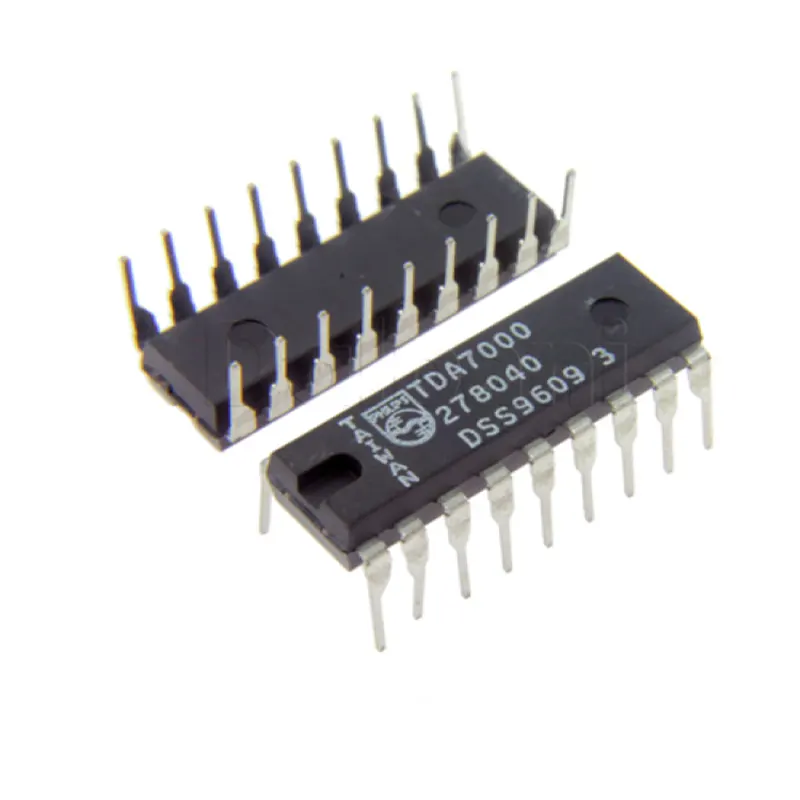

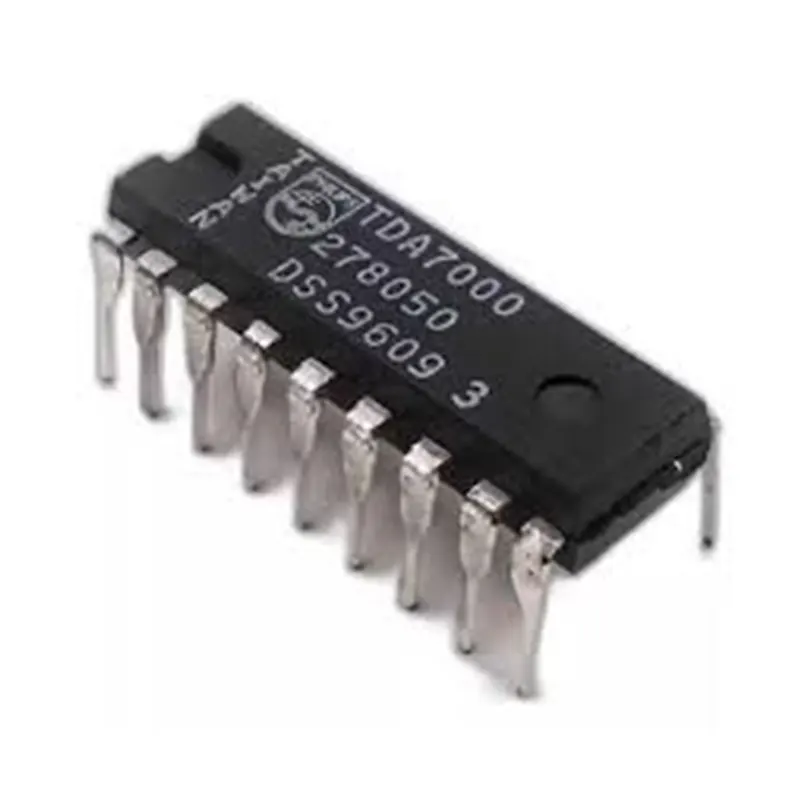

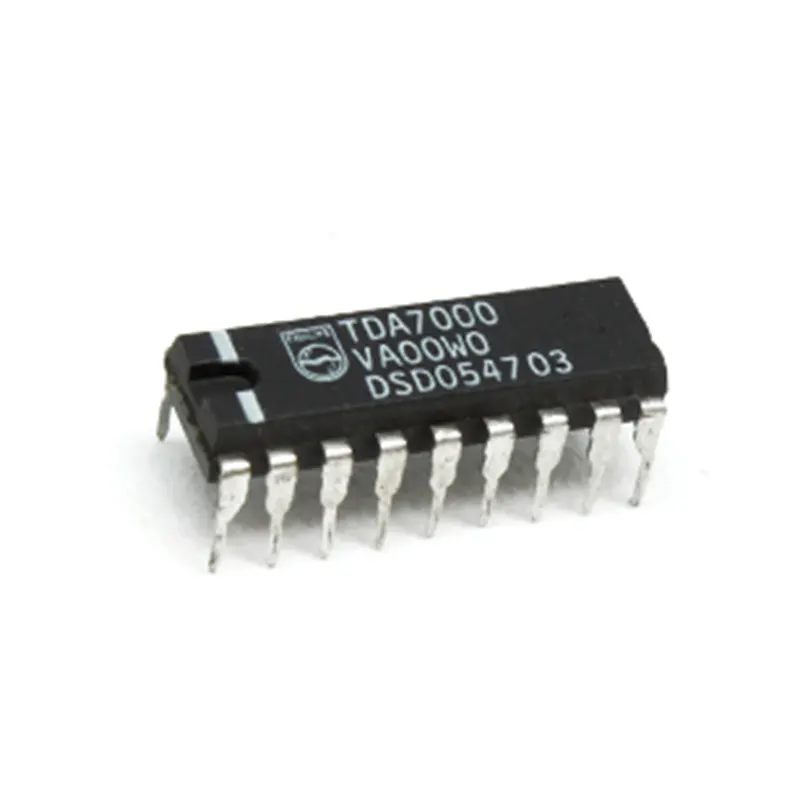

Build a complete radio with just a few components using the TDA7000 FM Radio Receiver IC, available now at the best price in Bangladesh from ElectraPac. The TDA7000 is a revolutionary "Single-Chip Radio" that handles everything from the RF input to the audio output. It is the go-to component for Dhaka’s electronics enthusiasts building pocket FM radios, portable TV tuners, and even specialized aircraft band receivers (118-136 MHz). Read more
The TDA7000 IC is a revolutionary monolithic integrated circuit for mono FM portable radios. It features a frequency-locked loop (FLL) system, which significantly reduces the need for external components like IF transformers and complex tuning coils. Whether you are an electronics hobbyist, an engineering student, or a professional developer, this IC is the perfect choice for building compact, high-performance FM receivers.
At Electrapac, we ensure you get 100% genuine and high-quality components for your DIY projects and industrial needs.
Minimal External Components: Simplifies circuit design and reduces PCB size.
Frequency Locked Loop (FLL): Provides stable reception and eliminates the need for expensive ceramic filters.
Wide Operating Range: Operates efficiently from 4.5V to 10V, making it ideal for battery-powered devices.
High Sensitivity: Capable of picking up weak FM signals with clear audio output.
Internal Muting Circuit: Reduces noise during tuning for a smoother user experience.
The TDA7000 IC is a revolutionary monolithic integrated circuit for mono FM portable radios. It features a frequency-locked loop (FLL) system, which significantly reduces the need for external components like IF transformers and complex tuning coils. Whether you are an electronics hobbyist, an engineering student, or a professional developer, this IC is the perfect choice for building compact, high-performance FM receivers.
At Electrapac, we ensure you get 100% genuine and high-quality components for your DIY projects and industrial needs.
Minimal External Components: Simplifies circuit design and reduces PCB size.
Frequency Locked Loop (FLL): Provides stable reception and eliminates the need for expensive ceramic filters.
Wide Operating Range: Operates efficiently from 4.5V to 10V, making it ideal for battery-powered devices.
High Sensitivity: Capable of picking up weak FM signals with clear audio output.
Internal Muting Circuit: Reduces noise during tuning for a smoother user experience.
DIY FM Radio Projects
Portable Audio Systems
Wireless Audio Receivers
Educational Electronics Kits
Electrapac (www.electrapac.com) is your trusted destination in Bangladesh for authentic microcontrollers, sensors, and electronic components. We provide:
Genuine Products: No clones, only original chips.
Fast Delivery: Reliable shipping across the country.
Technical Support: Helping you bring your electronics projects to life.
| Specifications | Descriptions |
|---|---|
| IC Model | TDA7000 (DIP-18) |
| Supply Voltage (Vp) | 2.7V to 10V (6V Recommended) |
| Supply Current | ~8 mA |
| RF Input Range | 1.5 MHz to 110 MHz (Typical) |
| Sensitivity | 1.5 µV (for -3dB limiting) |
| Intermediate Frequency | 70 kHz |
| Audio Output | ~75 mV |
| Package | 1 x 1 TDA7000 (DIP-18) IC |
