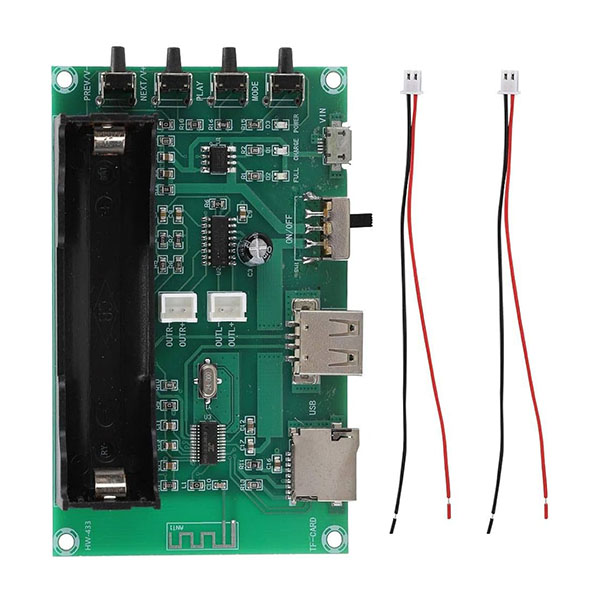

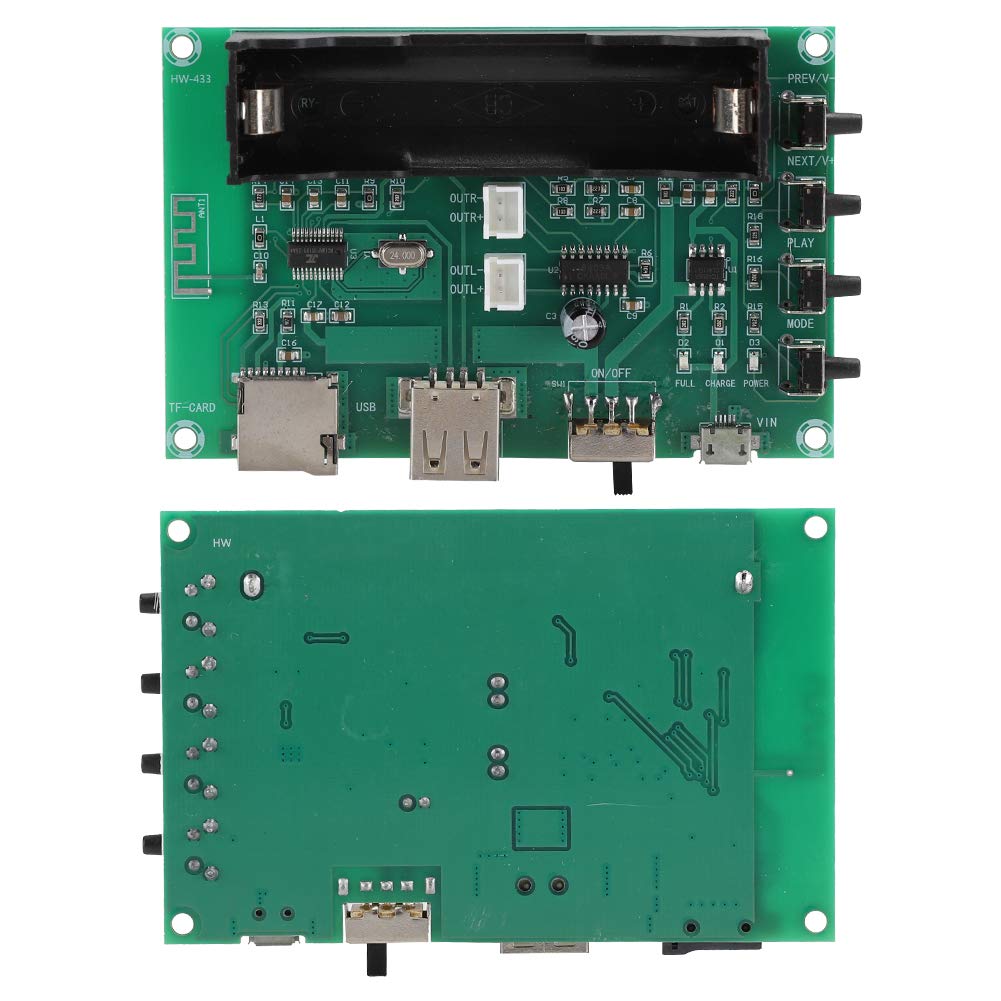

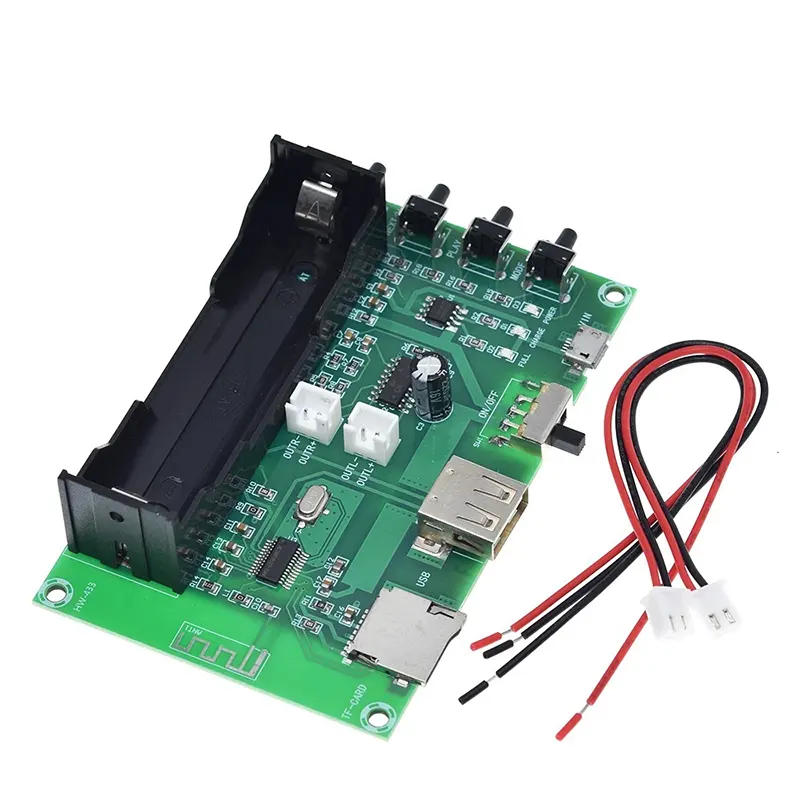

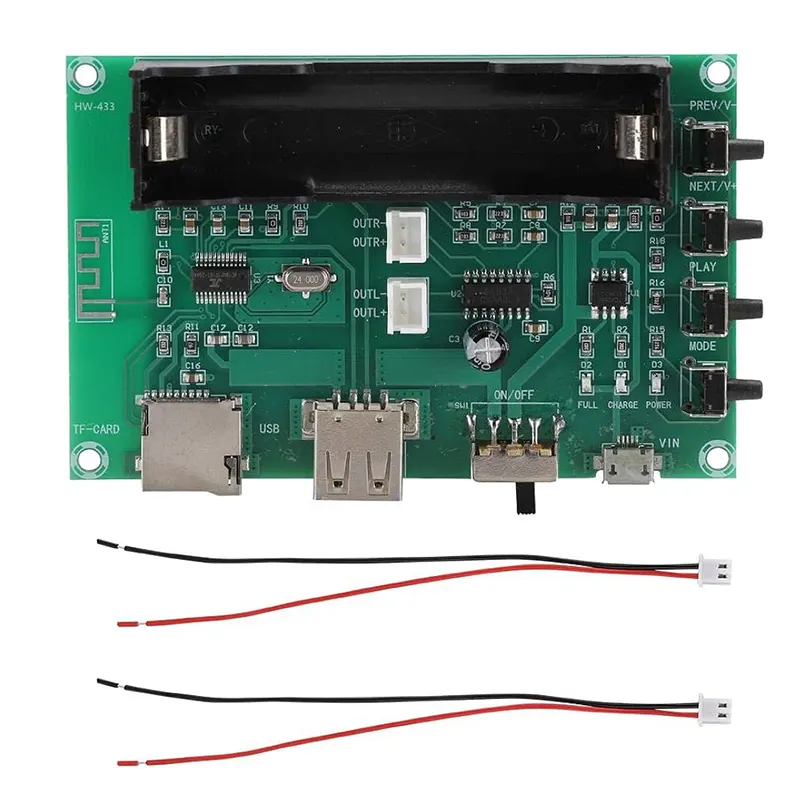

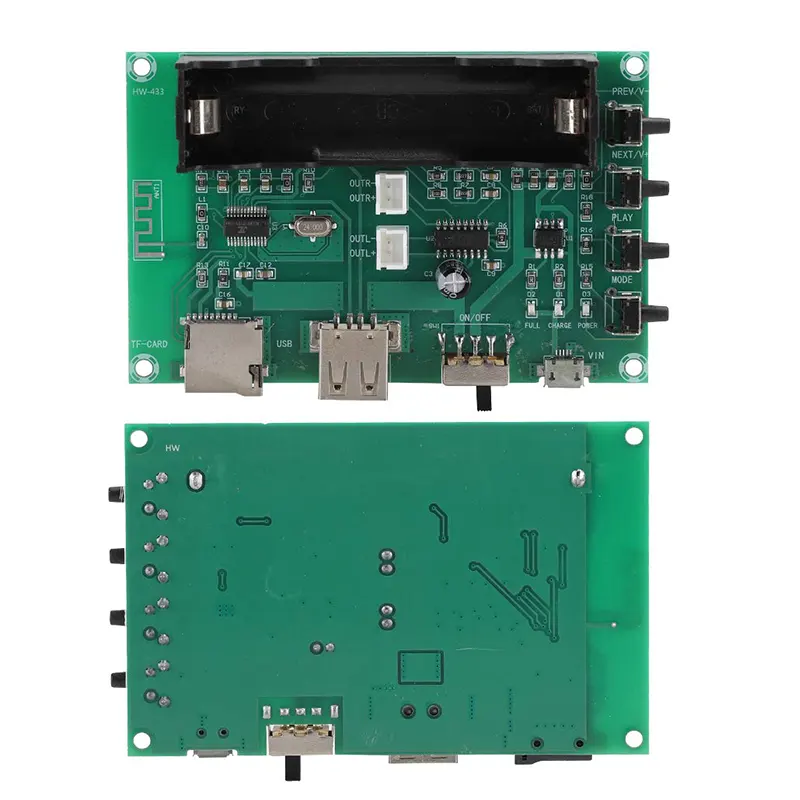

The XH-A150 PAM8403 Bluetooth Amplifier Board is the ultimate "all-in-one" solution for creating ultra-portable wireless speakers. At Electrapac, we recommend this board because it combines a Bluetooth receiver, a dual-channel amplifier, and an integrated 18650 battery holder on a single compact PCB.

Product Overview

The XH-A150 is designed for simplicity. It utilizes the highly efficient PAM8403 digital amplifier chip to deliver 5W + 5W of stereo sound. Because it features a built-in battery slot and a micro-USB charging port, you can build a fully functional Bluetooth speaker without any external charging modules or complex wiring.

Key Features for Electrapac Customers

• Truly Wireless Design: The onboard 18650 battery holder means your project can be 100% portable. No need for messy external battery packs.

• Plug-and-Play Charging: Features a standard Micro-USB port to charge your 18650 battery directly on the board using any 5V smartphone charger.

• Dual-Channel High Fidelity: Despite its small size, it produces a crisp 10W total output, perfect for small rooms, desktops, or "singing machine" toy builds.

• Switchable Control: Includes an onboard power switch to preserve battery life when the speaker is not in use.

• Universal Bluetooth Pairing: Compatible with all modern smartphones, tablets, and laptops.

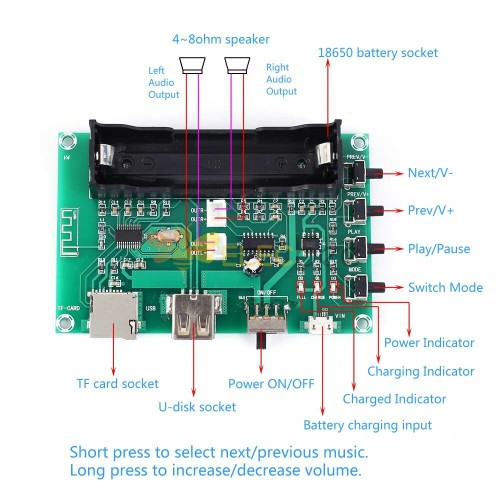

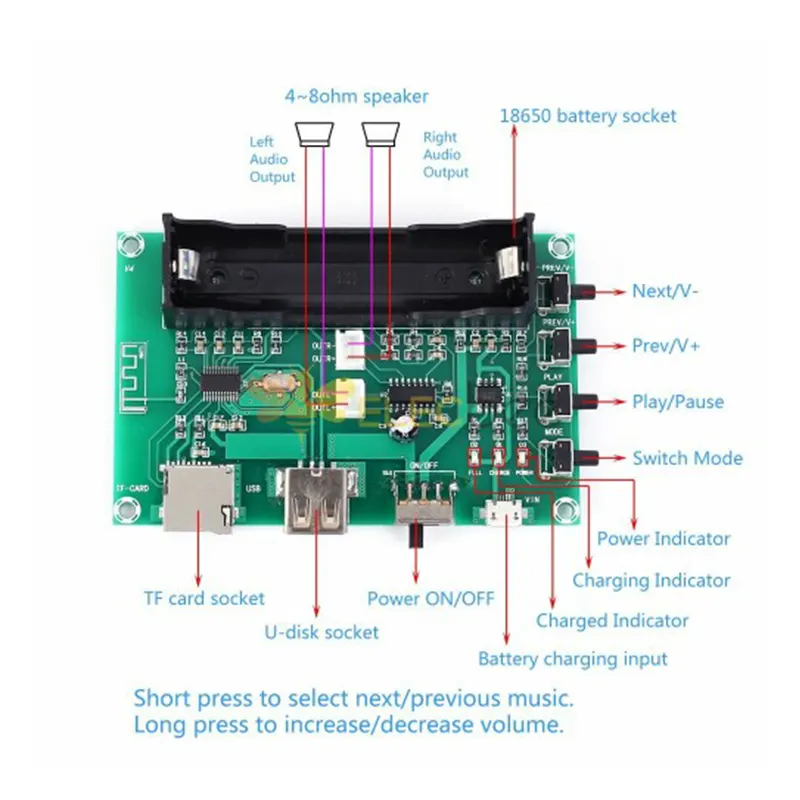

Installation & Wiring Guide

To get your DIY speaker project running from www.electrapac.com, follow these simple steps:

1. Battery Installation: Insert a single 18650 Lithium Battery into the slot. Warning: Ensure the polarity (+ and -) is correct as per the markings on the board to avoid damage.

2. Speaker Connection: Connect two 4Ω or 8Ω speakers (up to 5W each) to the white 2-pin JST headers labeled for the Left and Right channels.

3. Power On: Flip the onboard switch. You will hear a prompt or see an LED flash, indicating it is ready to pair.

4. Pairing: Open Bluetooth settings on your phone and select the device (usually named "Bluetooth" or "XH-A150").

Primary Applications

• DIY Bluetooth Boombox: Create a custom wooden or 3D-printed enclosure for a portable sound system.

• Desktop Speakers: A great way to add wireless audio to your workspace without using a bulky AC adapter.

• Kids' Singing Machines: Lightweight and safe (low voltage), making it ideal for educational or hobbyist toy projects.

• Retro Radio Conversion: Fit this board inside old vintage radios to give them modern wireless capabilities.

Why Shop at Electrapac?

We source the XH-A150 with high-quality battery contacts and stable Bluetooth chips to ensure your music never skips. Visit us at www.electrapac.com to find this board, 18650 batteries, and a wide selection of 3-inch 5W speakers.
