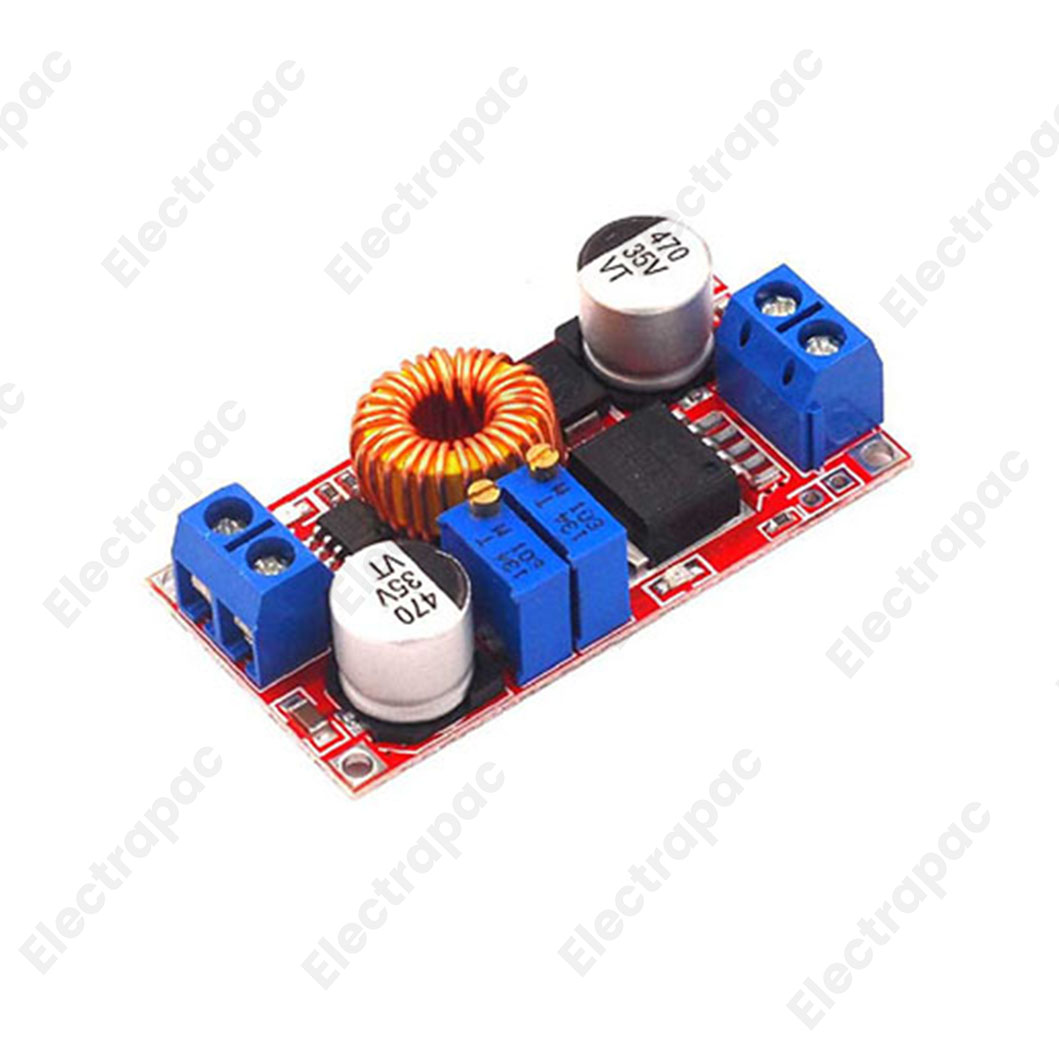

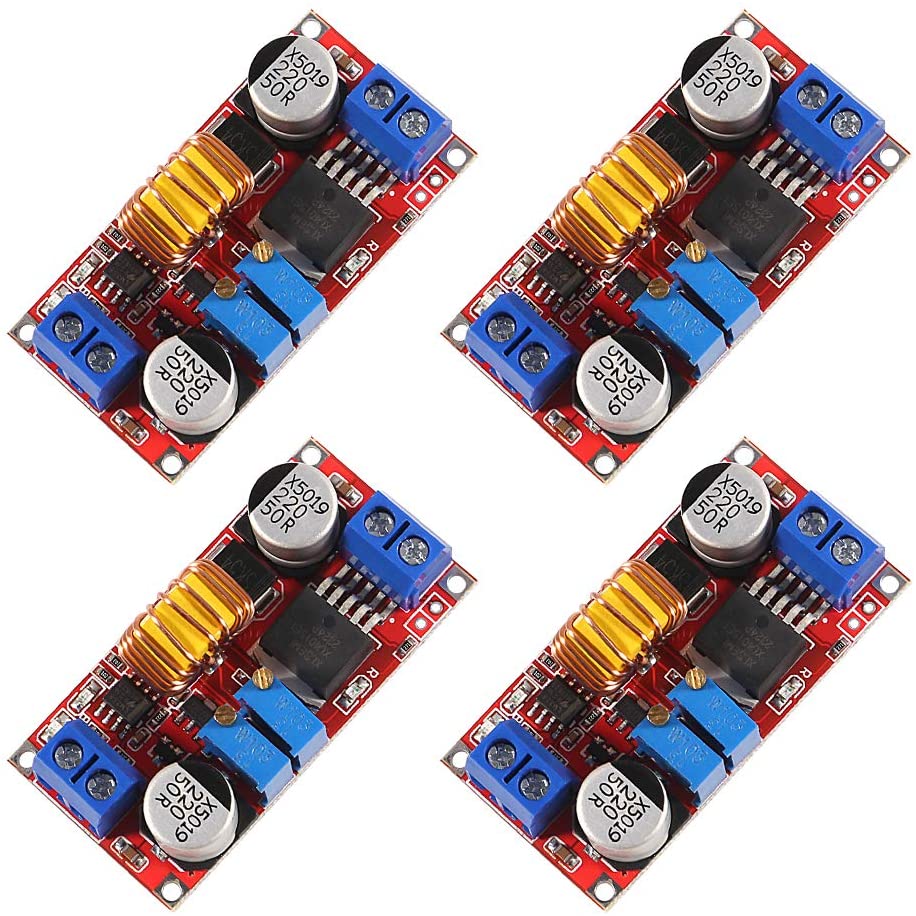

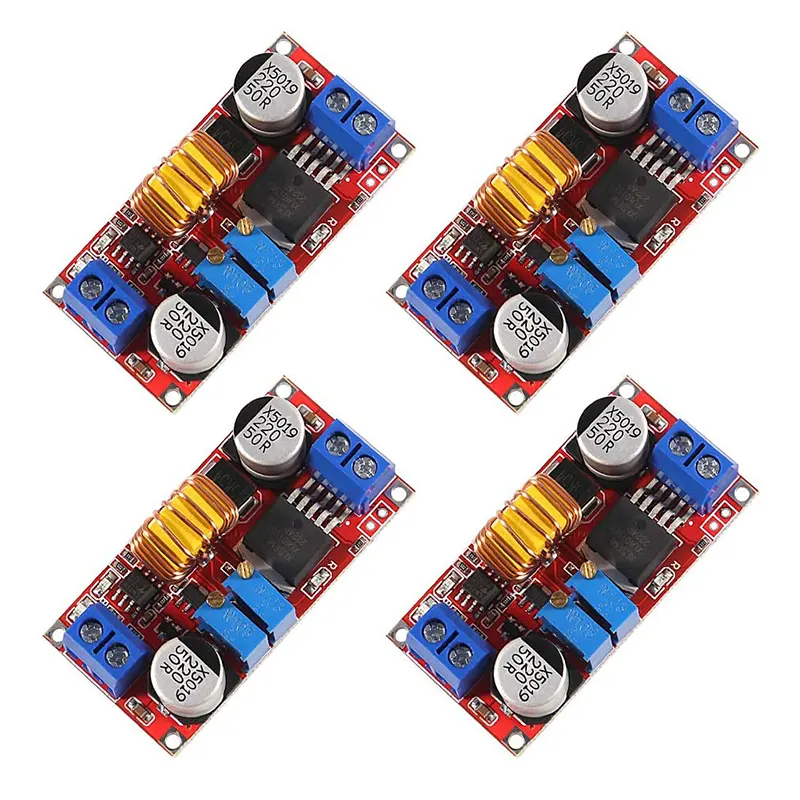

The XL4015 5A DC-DC Step-Down Buck Converter is a high-power, high-efficiency adjustable voltage regulator. At Electrapac, we recommend this module for projects that outgrow the common LM2596, as the XL4015 offers a significantly higher current capacity (5A) and better thermal stability for demanding electronic loads.

Product Overview

This Buck Converter is a non-isolated step-down module that uses a fixed 180kHz switching frequency. It is designed to take a higher DC input and "buck" it down to a lower, stable DC output. Its standout feature is the 5A output capability, which allows it to power high-torque motors, large LED arrays, and battery-hungry devices that standard 2A or 3A modules cannot handle.

Key Features for Electrapac Customers

• High Efficiency (96%): Minimizes energy loss as heat, allowing for a smaller footprint and longer battery life in portable Electrapac setups.

• Precision Multi-turn Trimpot: The blue potentiometer allows for fine-tuning the voltage to 0.1V accuracy.

• Low Output Ripple: Provides "clean" power (<50mV ripple), making it safe for sensitive microcontrollers like the ESP32 or Raspberry Pi.

• Large Power MOSFET: Unlike smaller regulators, the XL4015 chip features an integrated power MOSFET that runs cooler under moderate loads.

• Built-in Protection: If the module gets too hot or a short circuit occurs, it will automatically reduce its frequency or shut down to prevent damage to your equipment.

Setup & Calibration Guide

To get the most out of your Electrapac buck module, follow these steps:

1. Wiring: Connect your power source to IN+ and IN-. Connect your device to OUT+ and OUT-.

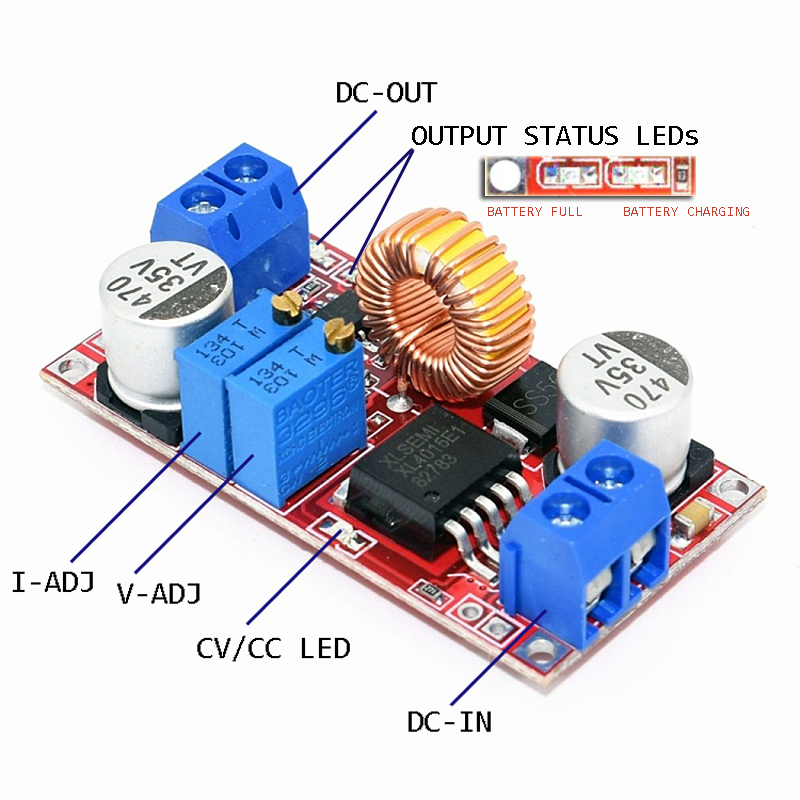

2. Calibration: Connect a multimeter to the output terminals. Turn the brass screw on the blue potentiometer:

   • Clockwise: Increases the output voltage.

   • Counter-clockwise: Decreases the output voltage.

3. Voltage Gap: Remember that the input voltage must be at least 1.5V to 2V higher than your desired output.

4. Heat Management: If you plan to draw more than 3A or 50W continuously, stick the included aluminum heatsink onto the main XL4015 chip.

Primary Applications

• Automotive Electronics: Stepping down a 24V truck battery or 12V car battery to 5V for USB dash cams and chargers.

• High-Power LED Drivers: Providing a constant voltage for 10W–50W LED chips.

• Battery Charging: Use it as a regulated source to charge lead-acid or lithium battery banks (with external monitoring).

• DIY Bench Power Supply: A cheap and effective way to build an adjustable power station for your workbench.

• Solar Systems: Regulating fluctuating voltage from solar panels to a stable 12V or 24V rail.

Why Shop at Electrapac?

We test our XL4015 Buck Modules to ensure they meet the full 5A peak current specification without premature failure. At , we provide the heavy-duty power modules that keep your high-wattage projects running smoothly.
