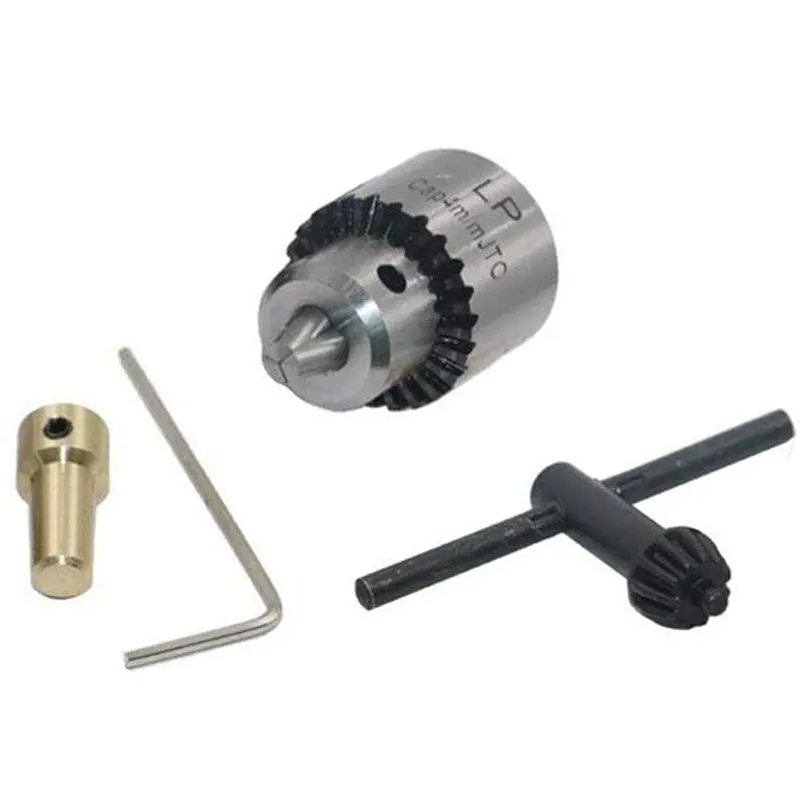

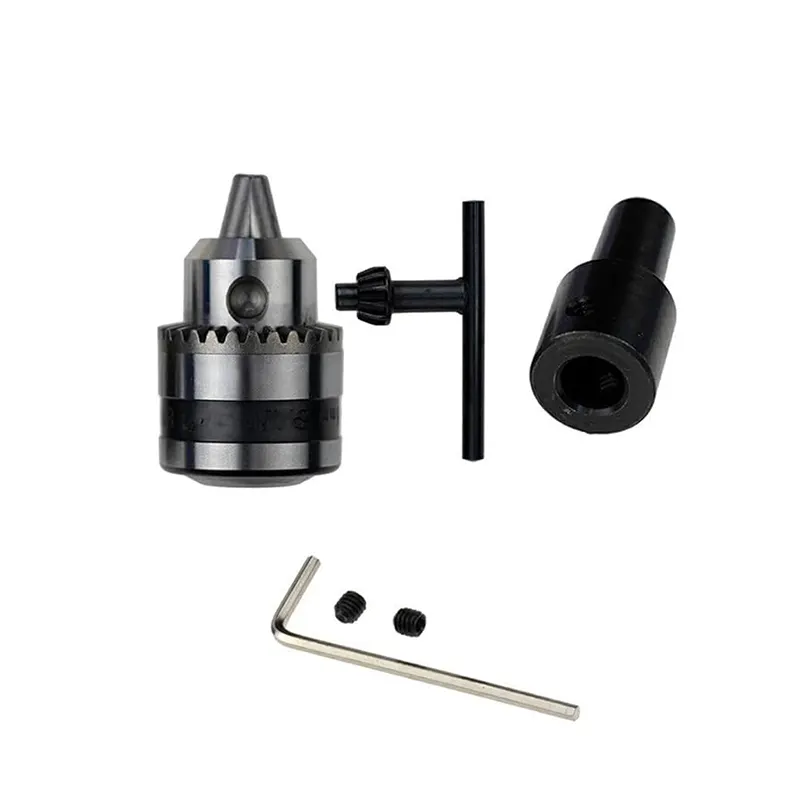

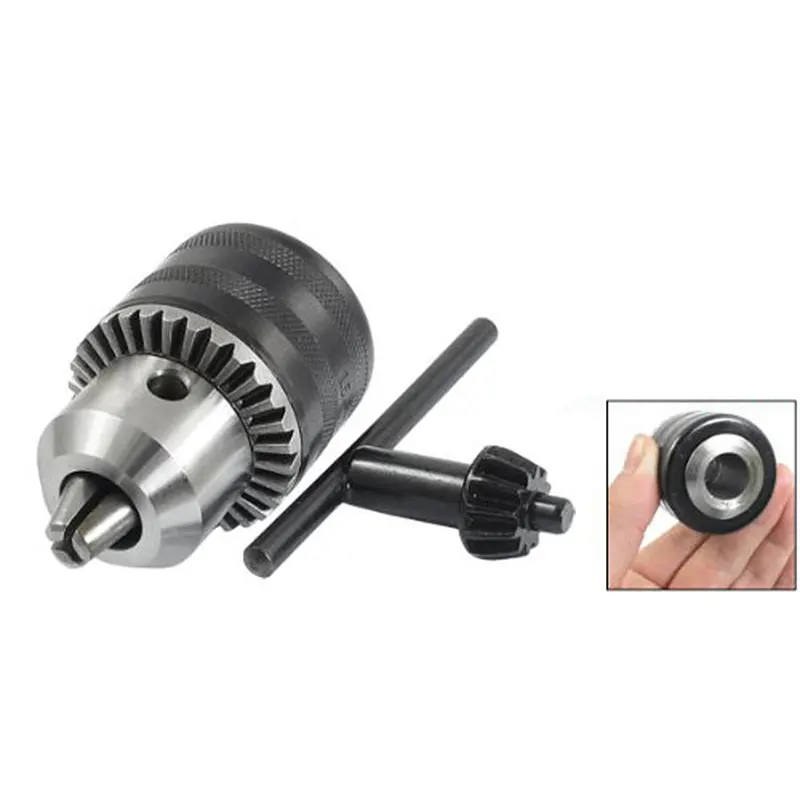

The B12 Mini Electric Drill Chuck with 5mm Steel Shaft Mount is an industrial-grade conversion kit designed to transform high-torque DC motors into powerful DIY drilling machines. At Electrapac, we recommend this specific B12 set for users who need more "bite" than standard brass collets can provide—offering the strength and capacity of a real drill press in a miniature form factor.

Product Overview

This set features a heavy-duty B12 Tapered Chuck and a precision-matched 5mm Steel Connecting Rod. Unlike cheap friction-fit adapters, the B12 system uses a professional taper-fit design that becomes more secure the more torque you apply. With a wide clamping range of 0.6mm to 6.0mm, it is capable of holding everything from hair-thin PCB bits to standard woodworking and metal bits.

Key Features for Electrapac Customers

• Industrial Carbon Steel: The chuck body is forged from hardened steel, ensuring the "jaws" won't wear down even when drilling into aluminum or thin steel plates.

• Taper-Fit Accuracy: The B12 taper ensures near-perfect concentricity, meaning your drill bits won't "wobble," significantly reducing the risk of breaking expensive bits.

• High Clamping Force: The included chuck key allows you to tighten the jaws far beyond what hand-tightened collets can achieve, preventing bits from spinning inside the chuck during heavy loads.

• Heavy-Duty 5mm Adapter: The included steel sleeve is specifically designed for the 775 series DC motors, providing a rock-solid link between the motor and the chuck.

• Dual Set-Screws: The connecting rod features two side-mounted grub screws to lock onto the motor shaft, preventing the entire assembly from flying off at high RPMs.

Assembly & Installation Guide

To get the best performance from your www.electrapac.com hardware:

1. Clean the Taper: Wipe the inside of the chuck and the tapered end of the sleeve with a clean cloth to remove any oil. A clean taper is essential for a secure fit.

2. Joining: Place the chuck on a flat surface and tap the sleeve into the B12 hole using a rubber mallet (or a block of wood). The friction of the taper is what holds them together.

3. Motor Mounting: Slide the 5mm hole onto your motor shaft and tighten both grub screws firmly with a hex key.

4. Bit Insertion: Open the jaws, insert your bit, and use the Chuck Key in all three holes of the chuck to ensure even pressure.

Primary Applications

• Heavy-Duty DIY Drills: Building a custom tabletop drill press using a 12V-24V 775 motor.

• PCB Manufacturing: Drilling large batches of holes in thick FR4 or fiberglass boards.

• Lathe Attachments: Using the chuck as a tailstock holder for mini-lathes.

• Workshop Prototyping: Drilling through wood, plastic, acrylic, and non-ferrous metals like copper and aluminum.

Why Shop at Electrapac?

We source the B12 Steel Chuck specifically because it offers a significant upgrade in durability over aluminum or brass alternatives. At www.electrapac.com, we provide the components that turn simple motors into professional-grade workshop machinery.
