The WLXY DIY001 Electric Drill Center Shaft with Chuck Set is a precision-engineered micro-tool adapter designed for DIY enthusiasts and electronic hobbyists. At Electrapac, we recommend this copper-alloy chuck set for those looking to convert a standard DC motor into a high-precision micro-drill for PCB work, model making, or jewelry repair.

Product Overview

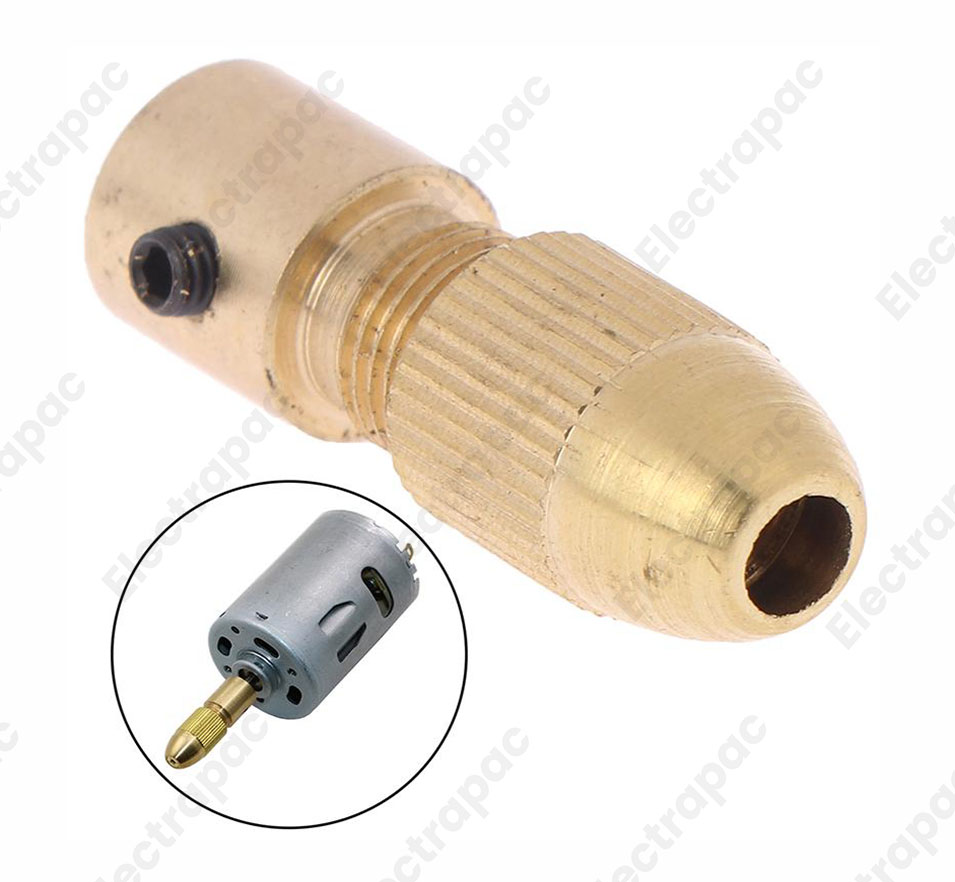

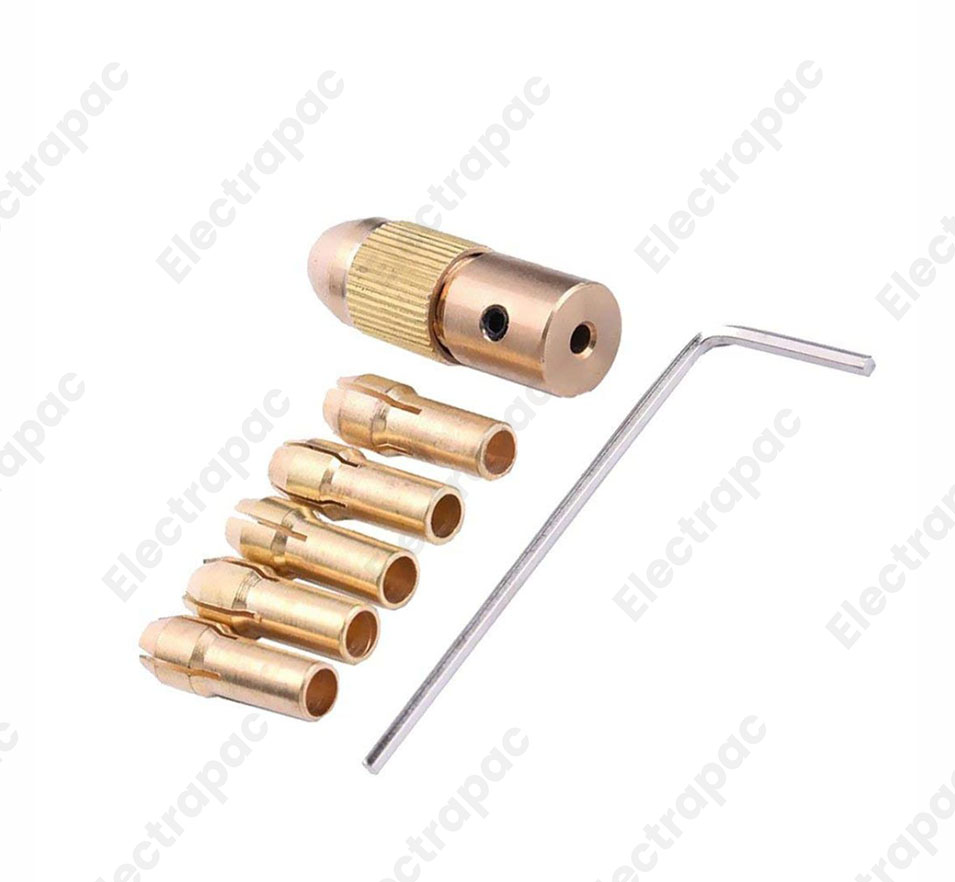

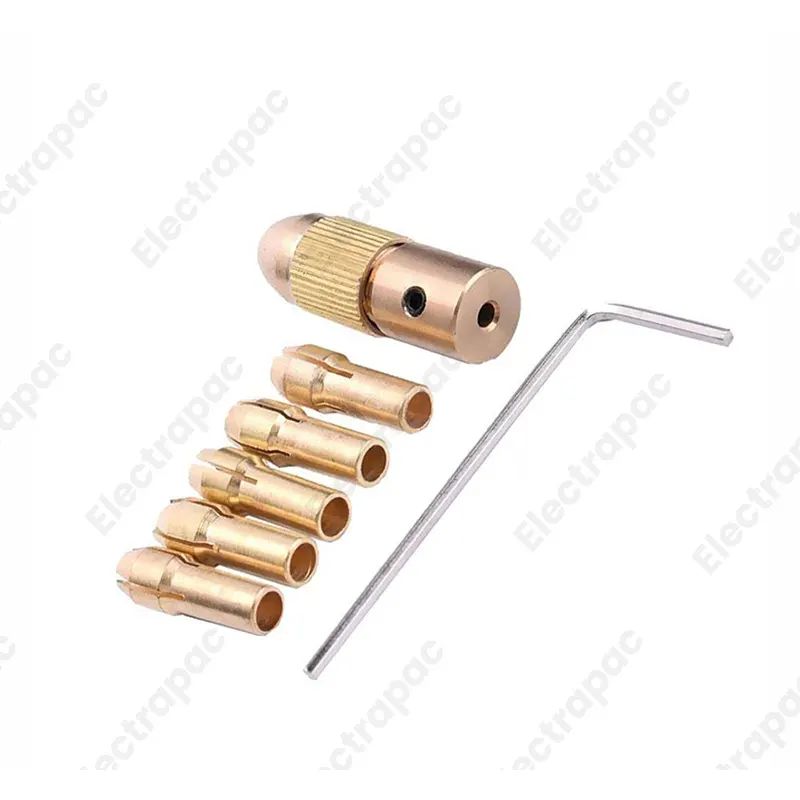

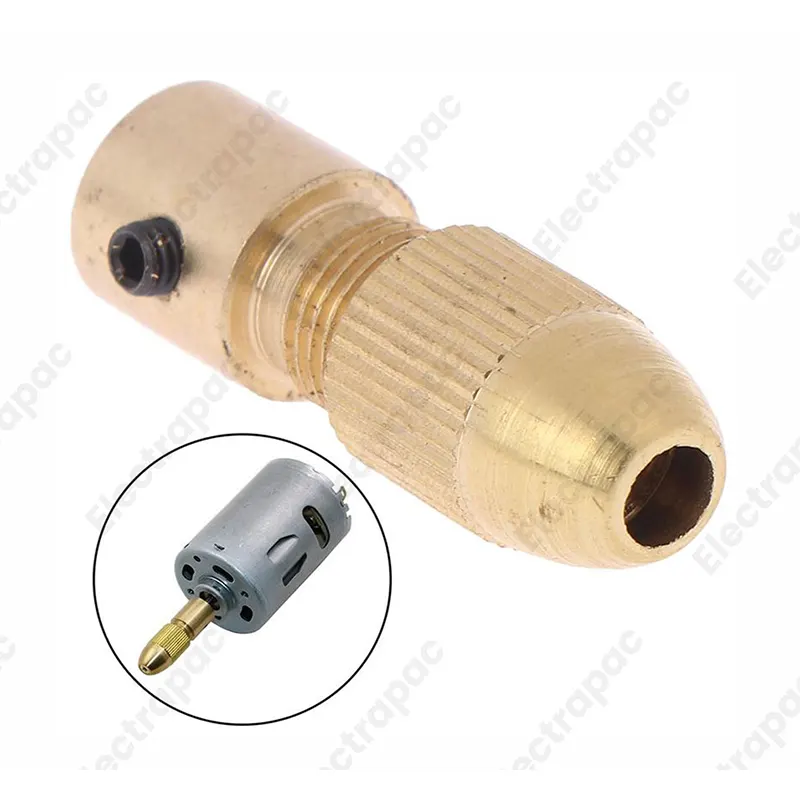

The WLXY DIY001 is a high-quality motor coupling system that transforms a simple motor shaft into a functional drill press. The set includes a heavy-duty copper center shaft and five interchangeable brass collets (chucks). This modular design allows you to securely hold tiny drill bits ranging from 0.5mm to 3.0mm, making it the perfect companion for drilling through copper-clad boards, plastic enclosures, and thin wood.

Key Features for Electrapac Customers

• High Concentricity: The copper shaft is precision-machined to ensure minimal "wobble" (run-out), allowing you to drill perfectly vertical holes without snapping delicate 0.5mm drill bits.

• Dual-Screw Security: Features two side-mounted grub screws that lock the adapter onto your motor shaft, ensuring it doesn't slip even under high-torque drilling.

• Corrosion Resistant: Made from high-grade copper and brass, this set resists oxidation and rust, maintaining its smooth thread action and clamping force over time.

• Wide Compatibility: Designed to fit the standard shafts found on RS-360, 365, 380, and 385 motors, which are commonly used in DIY power tools.

• Quick-Change Collets: The screw-on cap design allows you to swap between different collet sizes in seconds without needing a specialized chuck key.

Installation & Setup Guide

To build your DIY micro-drill with parts from www.electrapac.com:

1. Mounting: Slide the center copper shaft onto your DC motor axle. Tighten the two small grub screws using a 1.5mm Allen key.

2. Choosing the Collet: Select the brass collet that matches your drill bit size. Insert the collet into the center shaft.

3. Tightening: Insert your drill bit into the collet, then screw on the outer copper cap. Tighten it firmly by hand to lock the bit in place.

4. Testing: Run the motor at a low voltage first to ensure the bit is centered and balanced.

Primary Applications

• PCB Fabrication: The gold standard for drilling component holes in custom-etched circuit boards.

• Model Making: Precise drilling in ABS, PLA, and balsa wood for architectural or RC models.

• Jewelry & Crafts: Delicate work on resin, silver, and soft stones where a full-sized power drill is too heavy.

• Repair Work: Clearing out small plastic obstructions or modifying project enclosures.

Why Shop at Electrapac?

We source the WLXY DIY001 with reinforced threads to prevent stripping during tightening. At www.electrapac.com, we provide the precision components that bridge the gap between a simple motor and a professional-grade workshop tool.
