The 8-Channel Line Follower Sensor Array is the gold standard for high-speed, precision robotic racing. At Electrapac, we recommend this 8-way sensor over smaller 3 or 5-channel versions for enthusiasts who want their robots to navigate sharp turns and complex tracks with professional-grade smoothness.

Product Overview

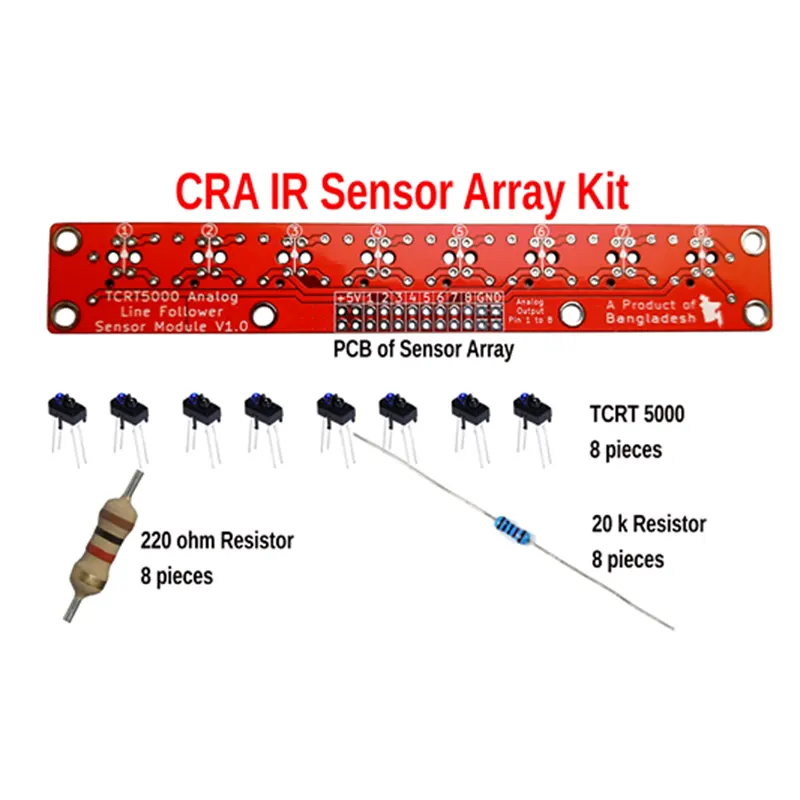

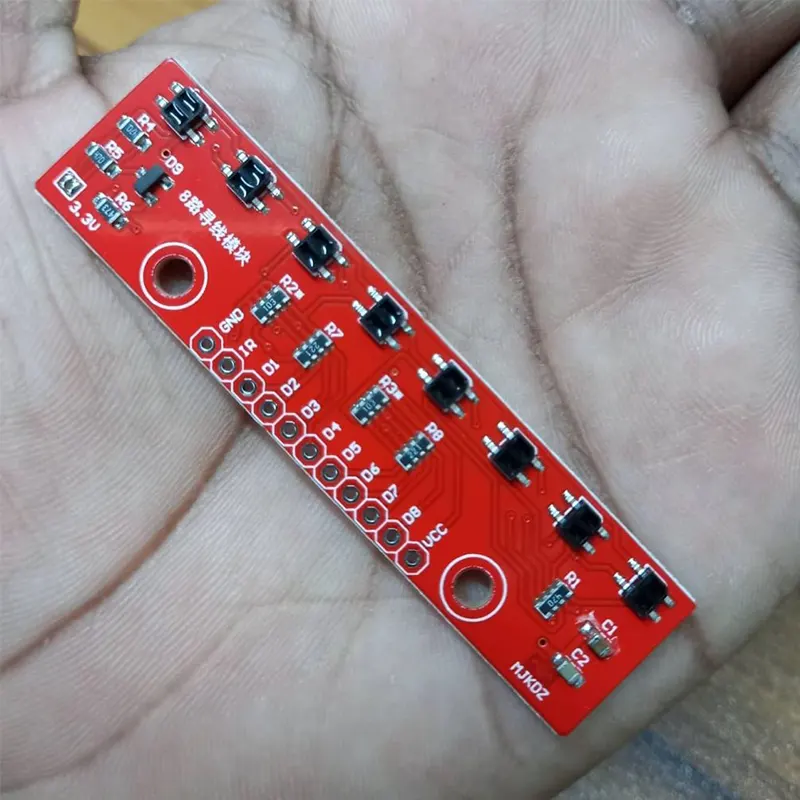

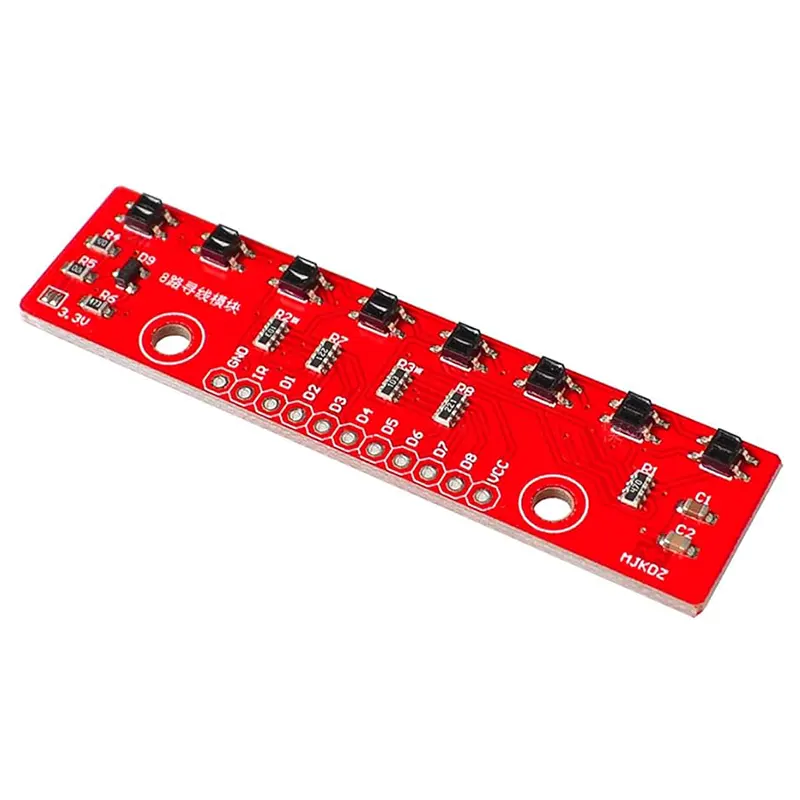

This module features eight infrared (IR) transmitter-receiver pairs mounted in a precise linear row. By detecting the contrast between a dark line (low reflection) and a light surface (high reflection), the array provides your microcontroller with a high-resolution "map" of where the line is. The 8-channel density allows for advanced algorithms like PID (Proportional-Integral-Derivative) control, ensuring your robot doesn't "wobble" but glides perfectly along the track.

Key Features for Electrapac Customers

• High-Resolution Tracking: With 8 points of data, your robot can "see" the line even if it starts to drift, allowing for much faster corrective steering than a standard 3-sensor setup.

• On-Board Sensitivity Adjustment: Includes a precision potentiometer to calibrate the sensors for different floor surfaces and lighting conditions.

• Real-Time Visual Feedback: Each of the 8 sensors has its own dedicated LED. This makes debugging incredibly easy—you can physically see which sensors are "on the line" without looking at a computer screen.

• I/O Efficient: Despite having 8 sensors, the board is designed for easy wiring to the digital pins of an Arduino Uno or Mega.

• Rigid PCB Design: The elongated, sturdy board prevents the sensors from vibrating or shifting during high-speed maneuvers.

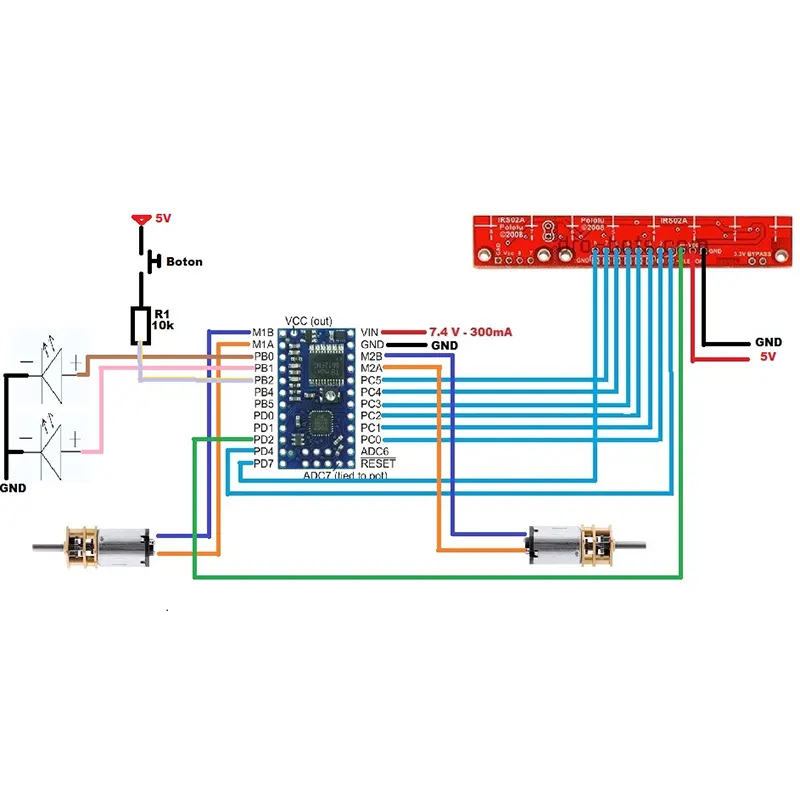

Wiring & PID Tip

To get the most out of your www.electrapac.com sensor array:

1. VCC/GND: Connect to your 5V supply and Ground.

2. Digital Pins: Connect the pins (labeled S1 through S8 or L1-L8) to your Arduino's digital inputs.

3. The PID Secret: Don't just program "If Left, Turn Left." Use the 8 channels to calculate an Error Value. For example, if the line is under the far-right sensor, your error is +4; if it's under the center-right, the error is +1. This allows for proportional steering!

Primary Applications

• Speed Drag Racing: Building high-speed line followers for "Robo-Race" competitions.

• Grid Navigators: Robots that need to detect intersections and cross-lines in a warehouse-style grid.

• Industrial AGVs: Prototyping Automated Guided Vehicles that follow paths in a controlled environment.

• Complex Maze Solving: Assisting robots in identifying T-junctions and 90-degree turns accurately.

Why Shop at Electrapac?

We source the 8-Array Line Sensors with high-quality IR filters to minimize interference from overhead sunlight or indoor fluorescent lights. At www.electrapac.com, we provide the "vision" components that keep your robots on the right track.
