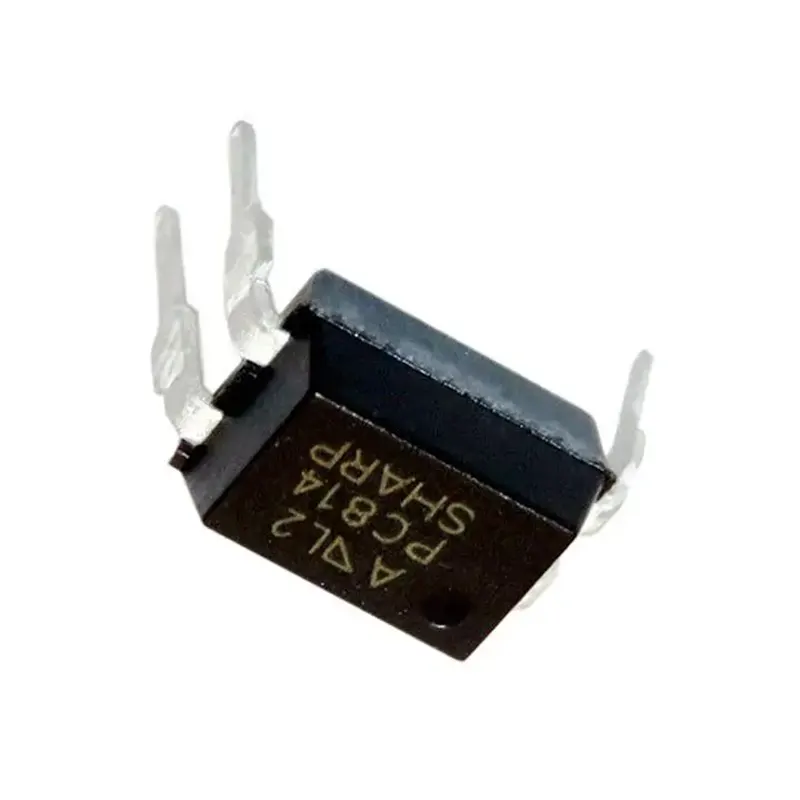

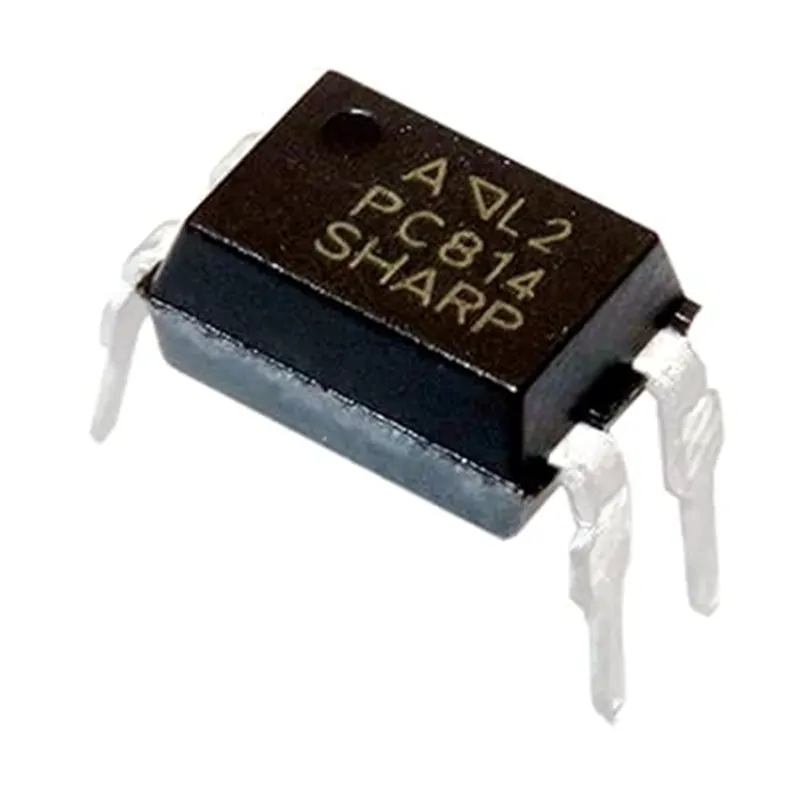

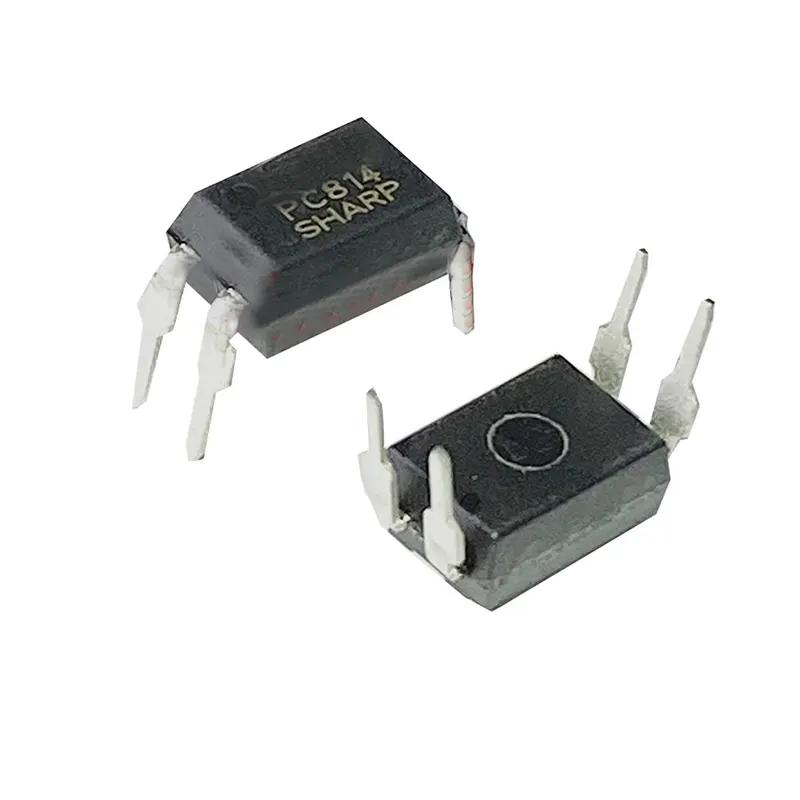

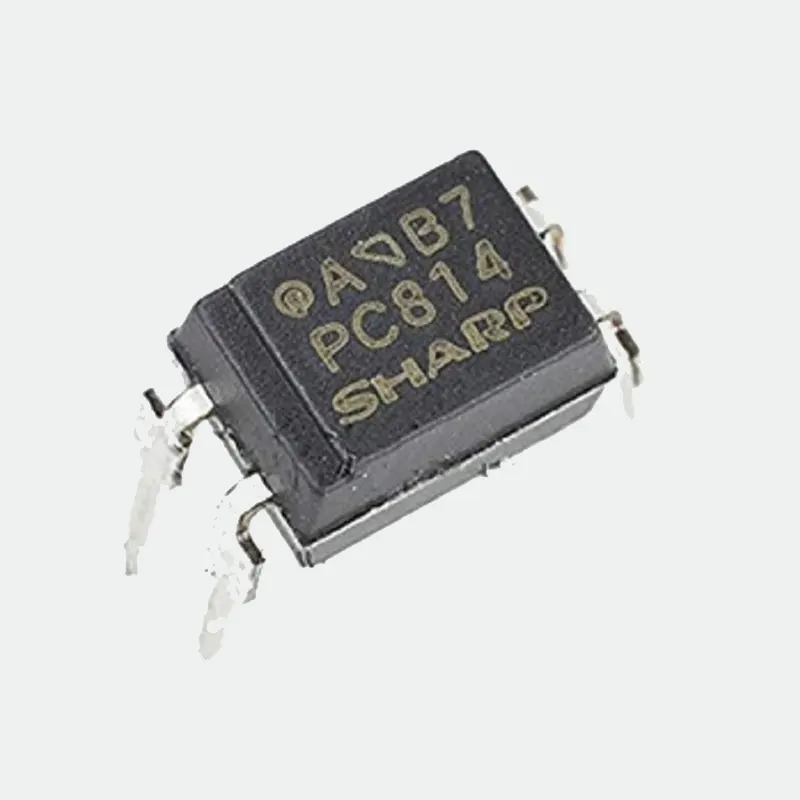

PC814 AC Input Optocoupler – High-Density Photocoupler with AC Input Capability

The PC814 is a high-performance photocoupler (optocoupler) designed specifically for AC input applications. It contains two back-to-back connected Gallium Arsenide (GaAs) infrared emitting diodes coupled to a silicon phototransistor. This unique bidirectional input design allows it to sense AC signals directly without the need for external rectification. It provides a high isolation voltage between input and output, ensuring the safety of your microcontrollers and low-voltage circuits from high-voltage spikes.

At Electrapac (www.electrapac.com), we offer original and high-quality PC814 Optocouplers to ensure maximum safety and reliability for your power electronics and automation projects in Bangladesh.

Key Features & Benefits:

• Bidirectional AC Input: No need to worry about polarity; perfect for sensing AC mains status.

• High Isolation Voltage: Provides up to 5,000 Vrms of isolation, protecting your Arduino, ESP32, or PLC from high voltage.

• Compact DIP-4 Package: Easy to integrate into space-constrained PCB designs.

• Stable Performance: Features a high Current Transfer Ratio (CTR) and low power consumption.

• Fast Response Time: Suitable for zero-crossing detection and high-speed signal switching.

Common Applications:

• AC Line / Mains Monitoring and Sensing.

• Zero-Crossing Detection for Light Dimmers and Fan Controllers.

• Isolation between High-Voltage Power Supplies and Low-Voltage Control Circuits.

• Programmable Logic Controllers (PLC) Input Interfaces.

• Telephone Line Interfaces and Signal Transmission.
