The u-blox NEO-6M GPS Module is a high-performance satellite positioning engine designed for precision tracking. At Electrapac, we recommend this module for drone pilots, robotics engineers, and IoT developers who require fast lock times and high-accuracy location data in a compact, low-power package.

Product Overview

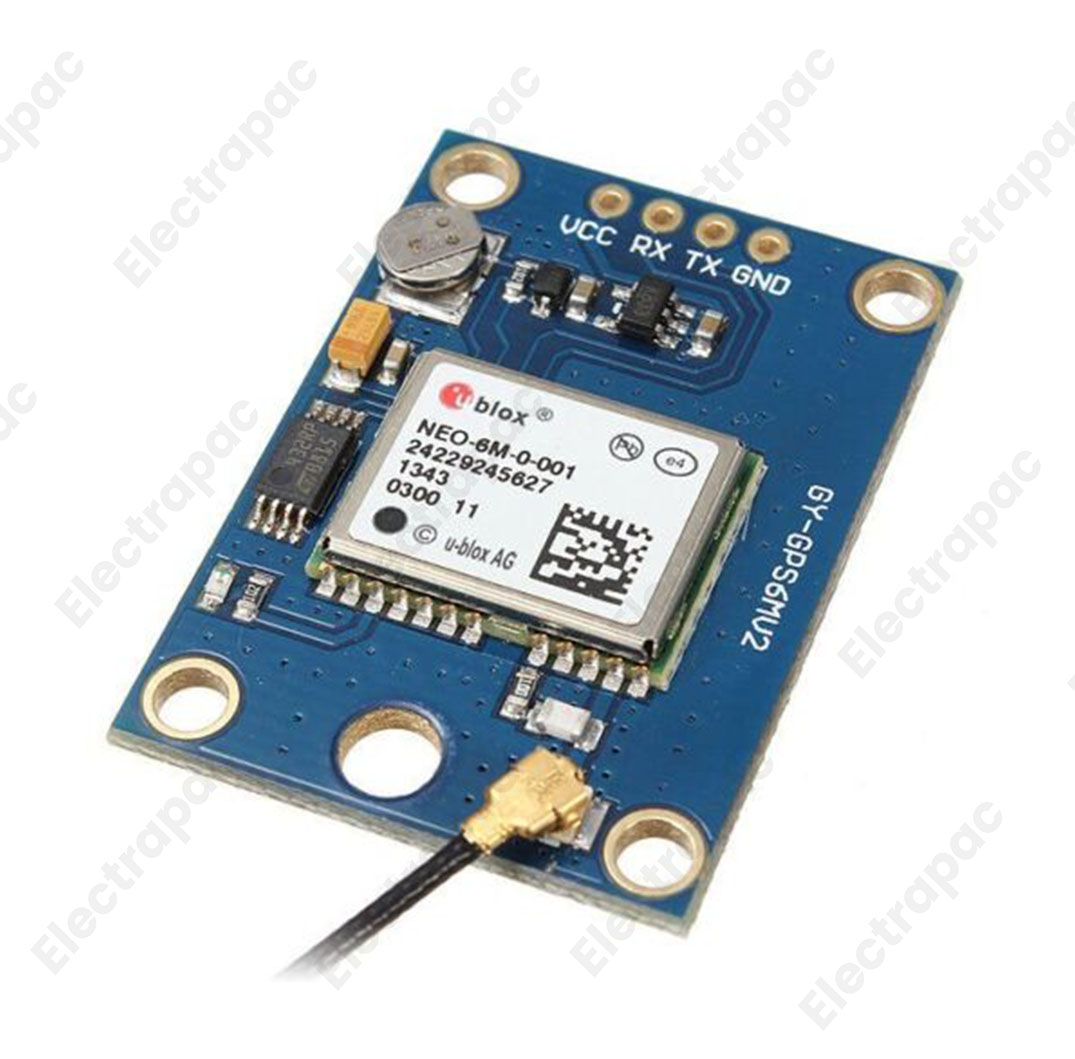

The NEO-6M is a standalone GPS receiver featuring a high-performance u-blox 6 positioning engine. It comes integrated on a development board with a built-in EEPROM for saving configuration data and a rechargeable backup battery for fast "hot starts." The module communicates via a simple TTL serial interface, making it compatible with Arduino, Raspberry Pi, ESP32, and Pixhawk flight controllers.

Key Features for Electrapac Customers

• High-Sensitivity Engine: Capable of tracking even in "urban canyons" or under dense foliage with a tracking sensitivity of -161 dBm.

• Onboard EEPROM & Battery: Stores system configuration and satellite data. This allows the module to achieve a "Hot Start" fix in just 1 second after a power cycle.

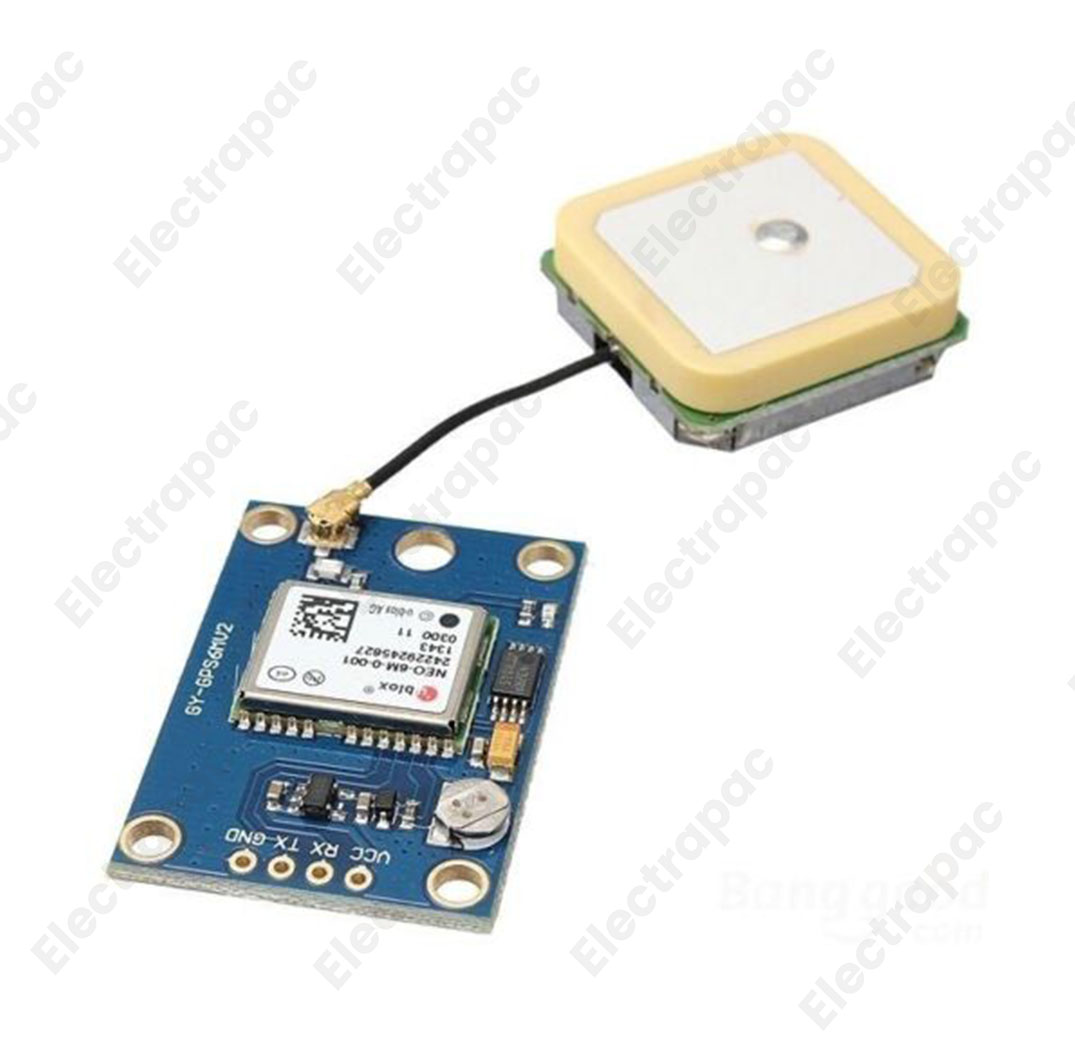

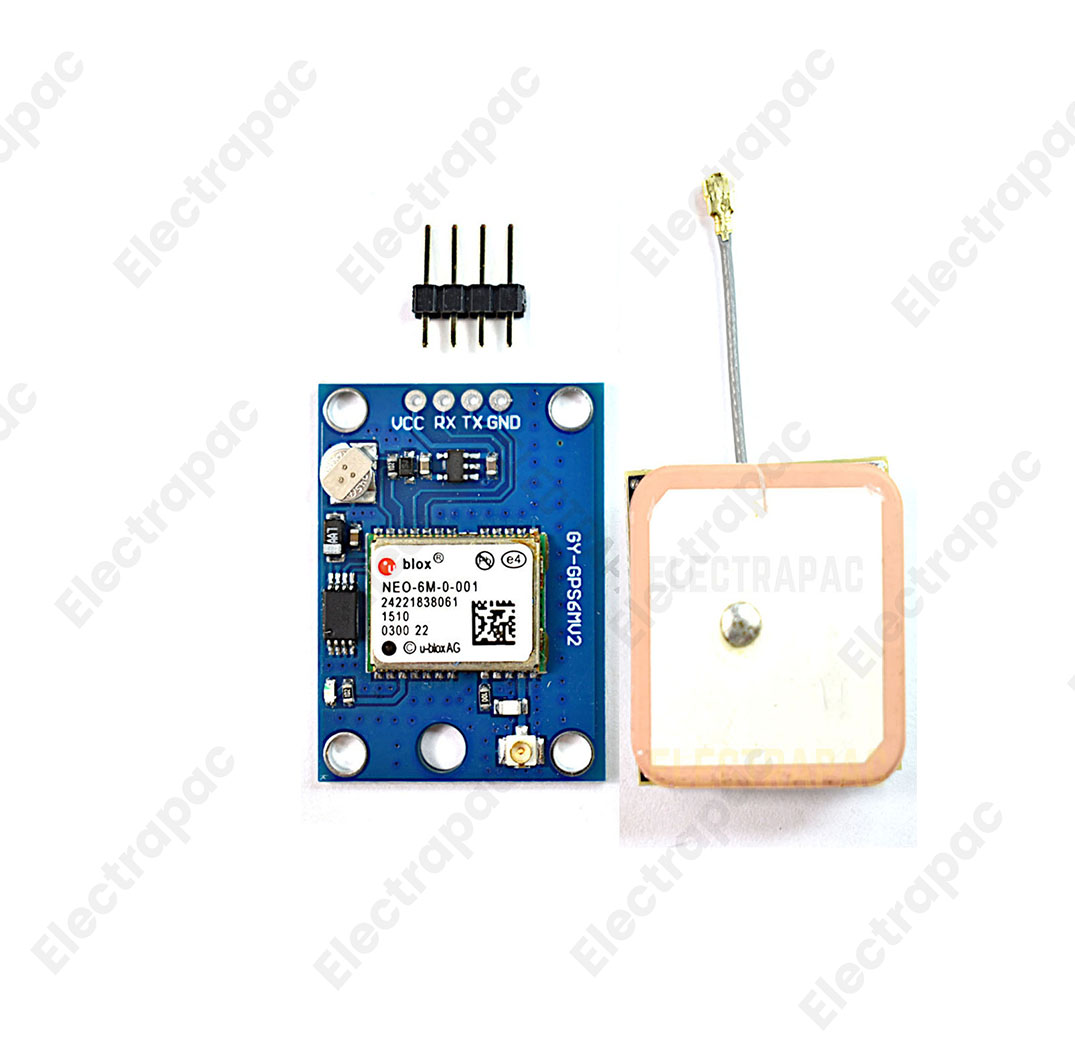

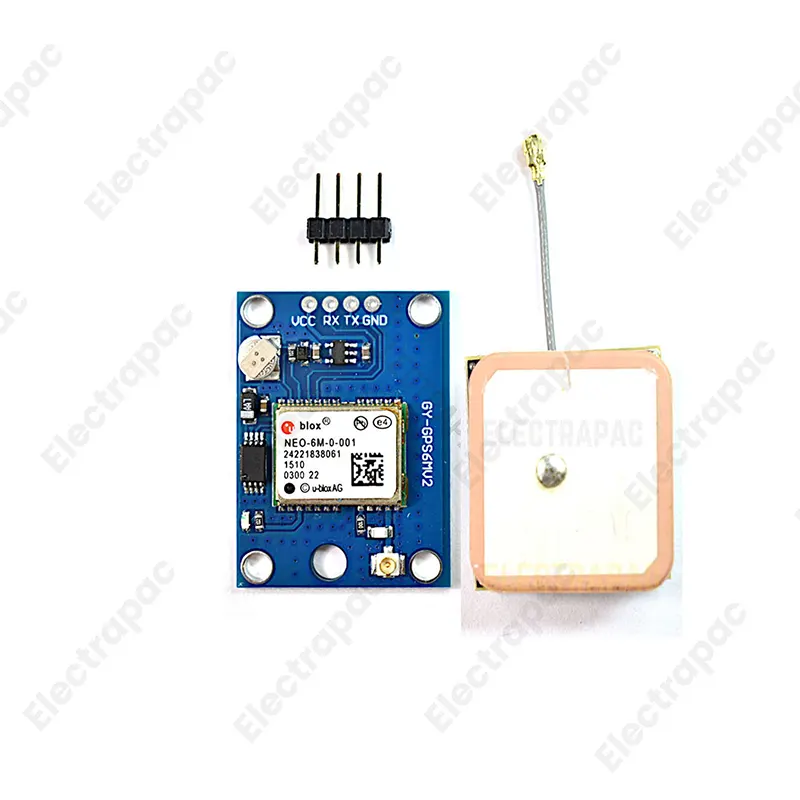

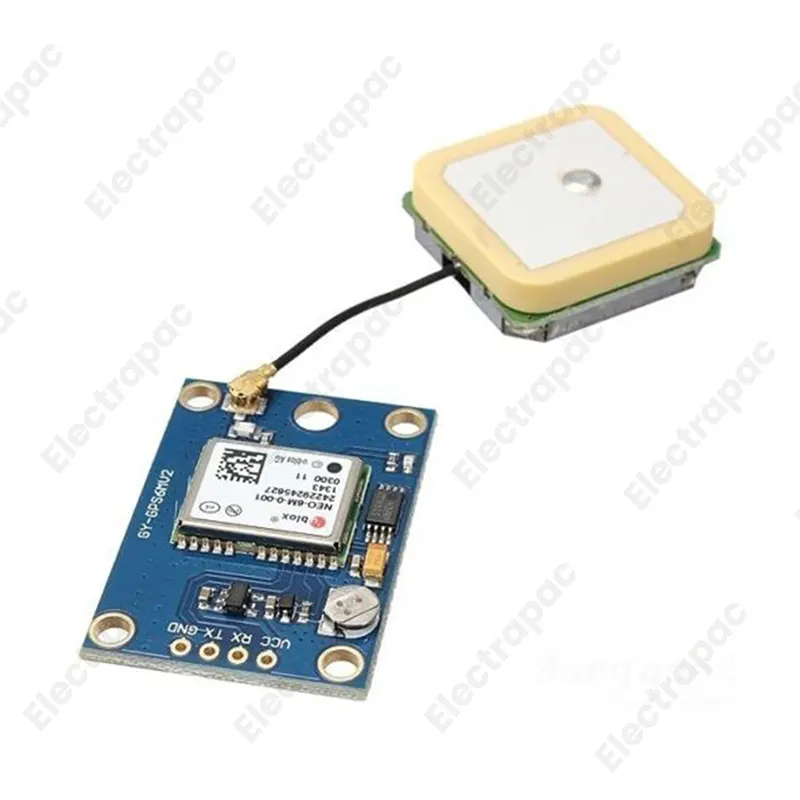

• Included Ceramic Antenna: Ships with a high-gain passive ceramic antenna that connects via a standard u.FL (IPX) connector for excellent reception.

• LED Status Indicator: Features an onboard LED that blinks when a successful satellite lock is achieved, making troubleshooting simple.

• Global Compatibility: Supports standard NEMA protocols, allowing it to work with almost all GPS-based software and libraries globally.

Wiring & Setup Guide

To get your coordinates quickly using a module from www.electrapac.com, follow these steps:

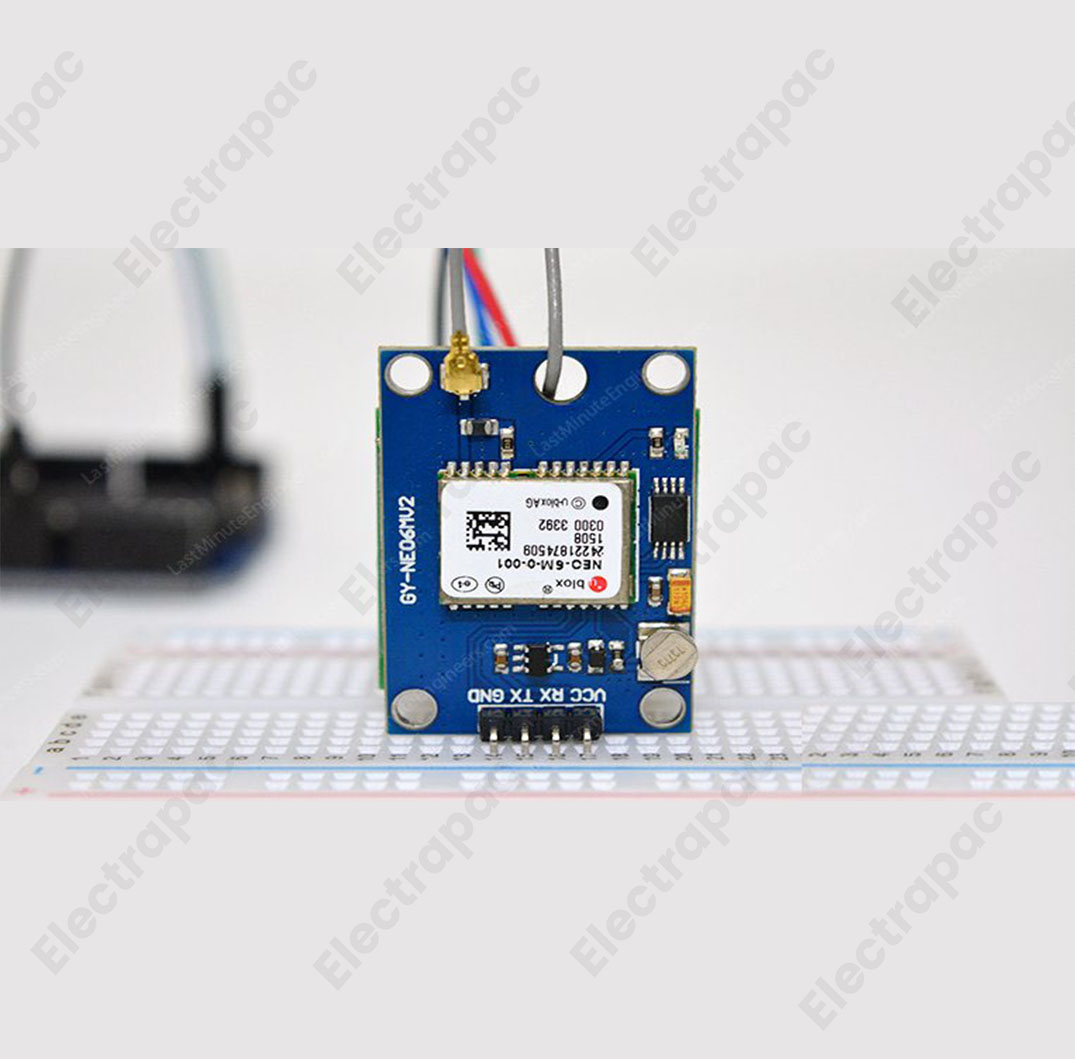

1. Pin Connections: * VCC: 3.3V – 5V

   • GND: Ground

   • TX: Connect to Microcontroller RX

   • RX: Connect to Microcontroller TX (3.3V Logic)

2. Outdoor Advantage: For the first "Cold Start," the module must be placed outdoors with a clear view of the sky. It may take up to 2 minutes to acquire its first lock.

3. Level Shifting: While the module accepts 5V power, the data pins are 3.3V. For 5V microcontrollers like the Arduino Uno, use a logic level shifter or resistors for the RX pin.

Primary Applications

• Drone Navigation: Provides essential location and altitude data for APM or Pixhawk flight controllers.

• Vehicle Tracking: Build a DIY GPS tracker that sends location data via GSM.

• High-Altitude Ballooning: Reliable tracking at altitudes up to 50,000 meters.

• Time Synchronization: Uses precise satellite atomic clock signals to sync local clocks.

Why Shop at Electrapac?

We source our NEO-6M Modules with genuine u-blox chips to ensure stability and accuracy. At www.electrapac.com, every module is inspected for antenna connector quality, ensuring you get a reliable signal right out of the box.
