The Universal Stainless Steel PCB Holder Stand is an indispensable workstation accessory for precision electronics repair. At Electrapac, we recommend this heavy-duty fixture for technicians who specialize in mobile phone logic boards, micro-soldering, and intricate component desoldering where stability is paramount.

Product Overview

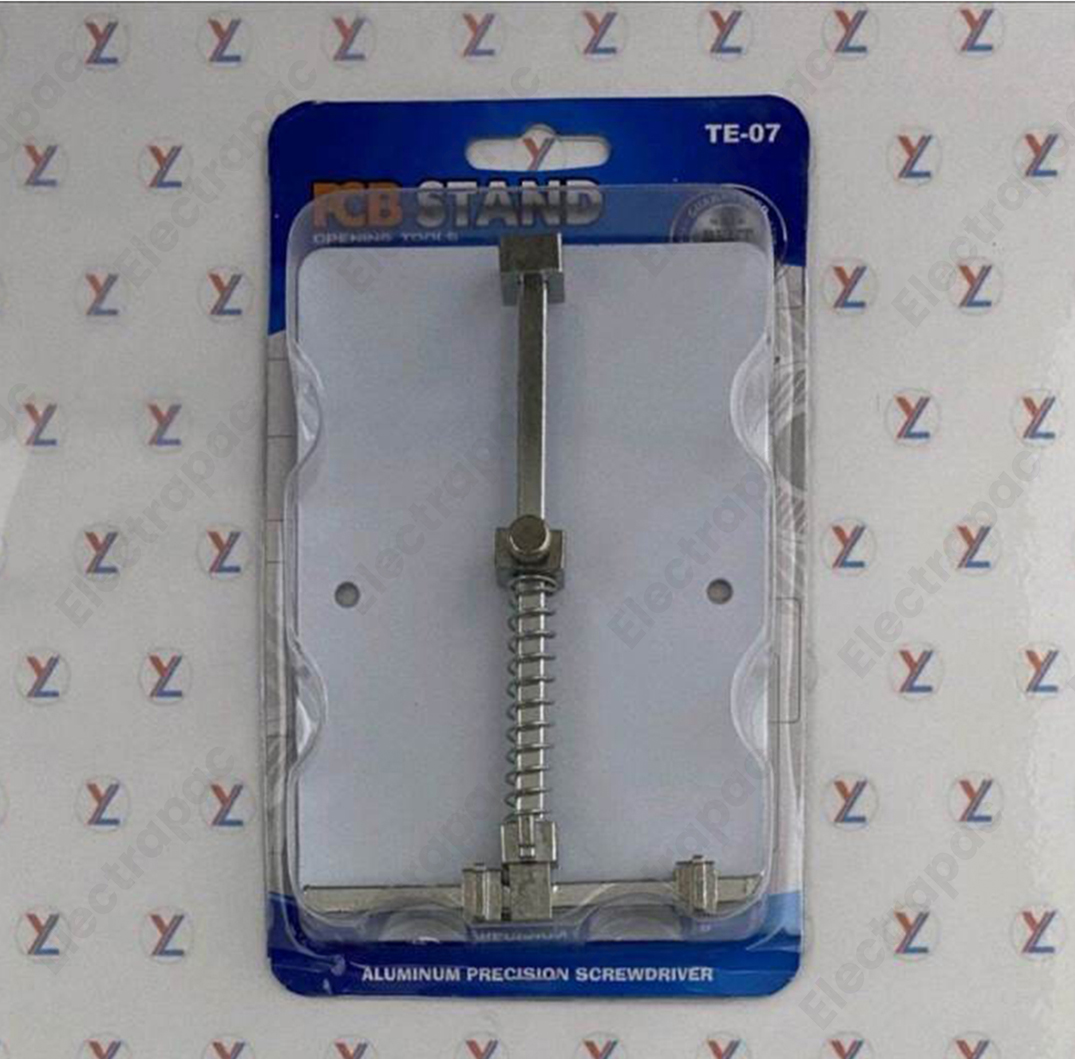

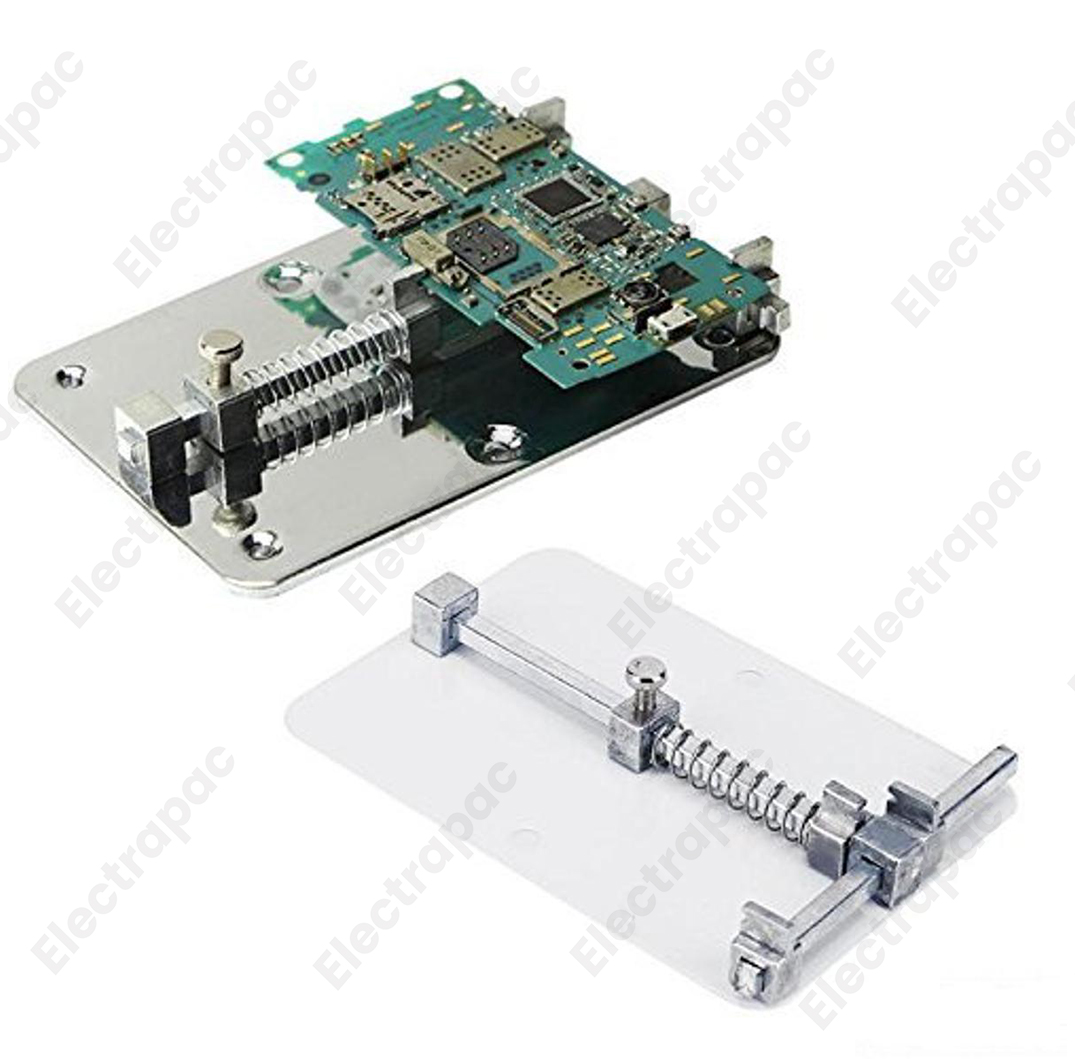

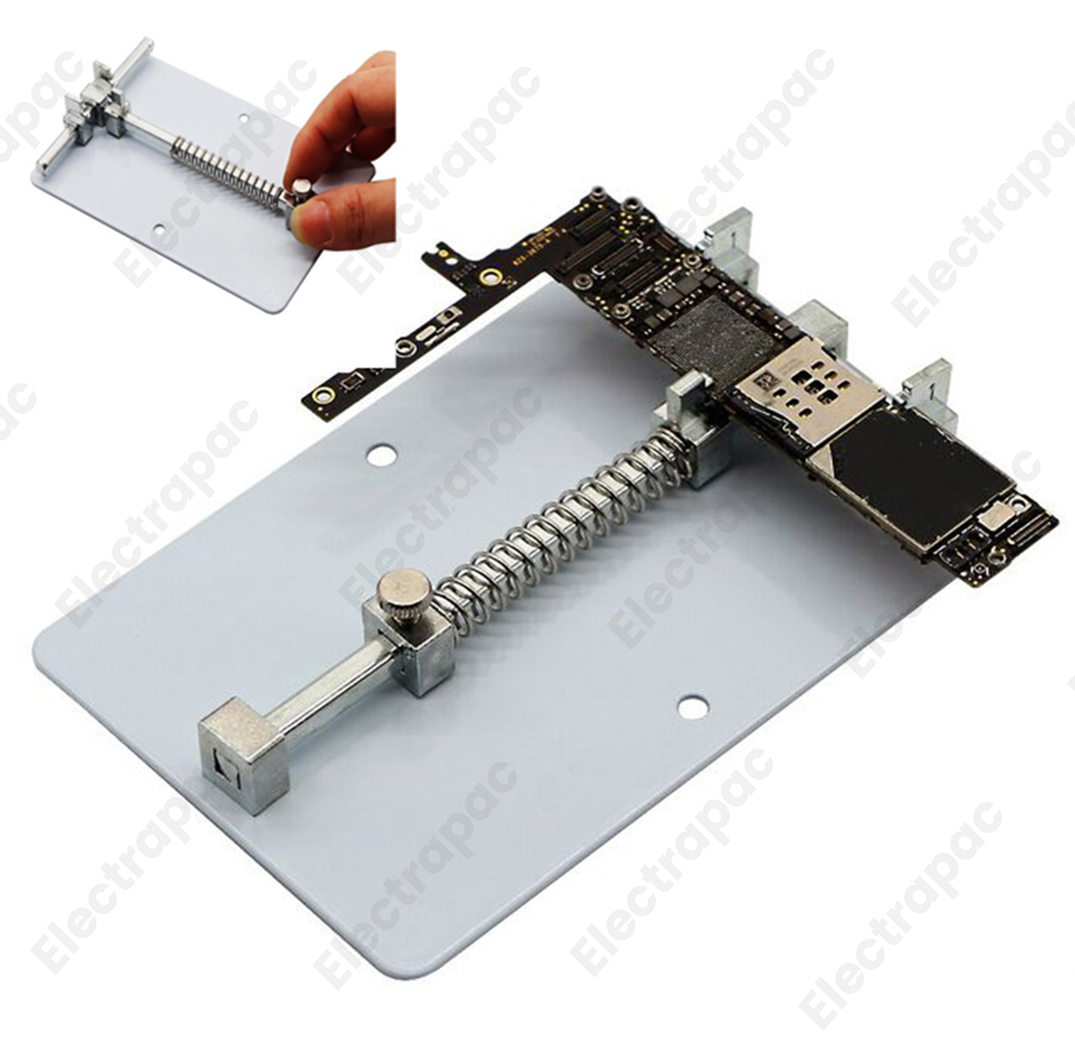

Crafted from high-grade stainless steel, this 120x80x20mm jig provides a stable, weighted base that prevents your circuit board from sliding or vibrating during delicate work. The adjustable sliding bracket and spring-loaded tensioning system allow you to securely "lock" boards of various shapes and sizes in place. Its heat-resistant construction makes it the perfect companion for hot-air rework stations, as it will not warp or melt under high temperatures.

Key Features for Electrapac Customers

• Rock-Solid Stability: The heavy stainless steel frame ensures that even when applying pressure with a soldering iron or tweezers, the board remains perfectly still.

• Universal Compatibility: Designed with a versatile "step-down" groove system to hold standard green PCBs, mobile phone logic boards (iPhone/Android), and small hobbyist modules.

• High Heat Tolerance: Unlike plastic holders, this all-metal jig is designed to withstand direct exposure to hot air guns ($350$°C+) without transferring damaging heat to your workbench.

• Precision Tensioning: The knurled adjustment knob allows you to fine-tune the clamping force, ensuring a tight grip without crushing delicate multi-layered boards.

• Easy Access: The low-profile 20mm height provides an ergonomic working angle, allowing your hands to rest comfortably on the bench while you work under a microscope or magnifying glass.

Pro-Tips for Your Workbench

To get the most out of your purchase from www.electrapac.com:

1. Placement: Align the board so that the area you are working on is centered between the clamps. This provides the most rigid support for desoldering.

2. Cleaning: Solder splatter and flux can be easily wiped off the stainless steel surface using Isopropyl Alcohol (IPA) without staining or corroding the tool.

3. Grounding: Since the holder is metal, ensure your workstation is ESD-safe to prevent static discharge from traveling through the fixture to sensitive ICs.

Primary Applications

• Smartphone Repair: Holding small, irregularly shaped logic boards for IC replacement or charging port repair.

• SMD/BGA Rework: Securing boards for hands-free operation with a hot air station.

• Micro-Soldering: Providing the steady base needed for jumper wire repairs under a microscope.

• Hobbyist Prototyping: A great "third hand" for soldering headers onto ESP32, Arduino Nano, or Raspberry Pi Pico boards.

Why Shop at Electrapac?

We source the Universal PCB Holder specifically for its build weight and smooth sliding mechanism. At www.electrapac.com, we provide the professional-grade tools that turn a cluttered desk into a high-efficiency repair lab.
