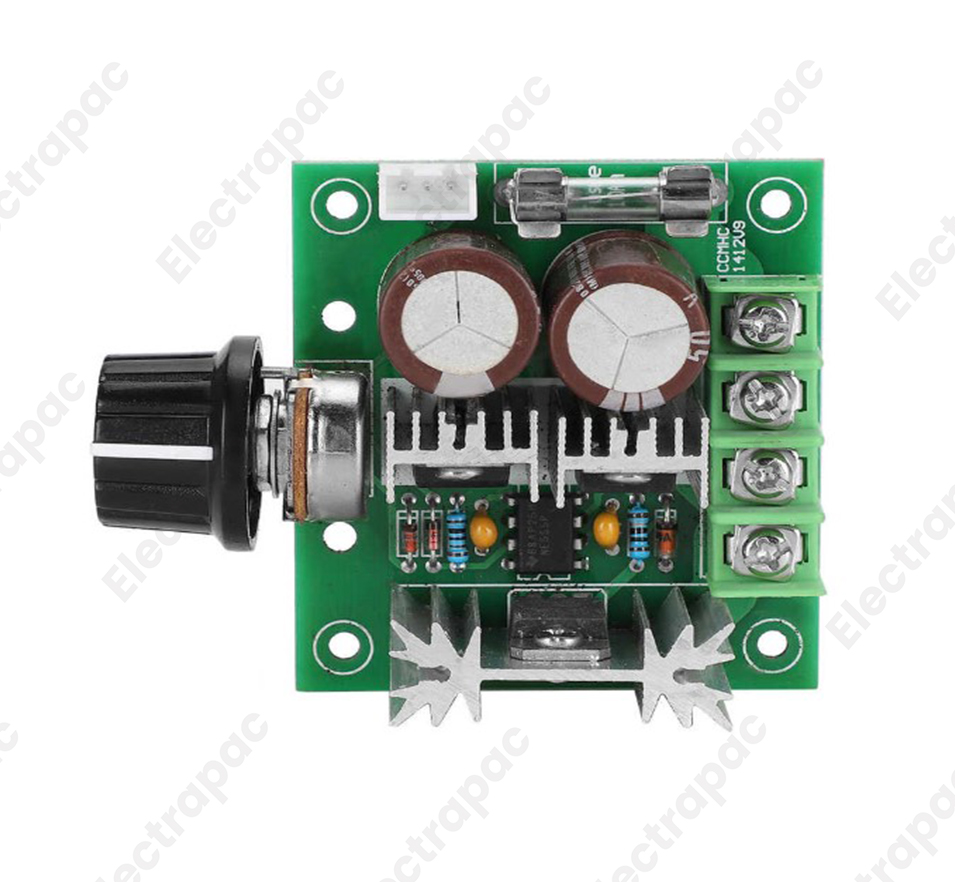

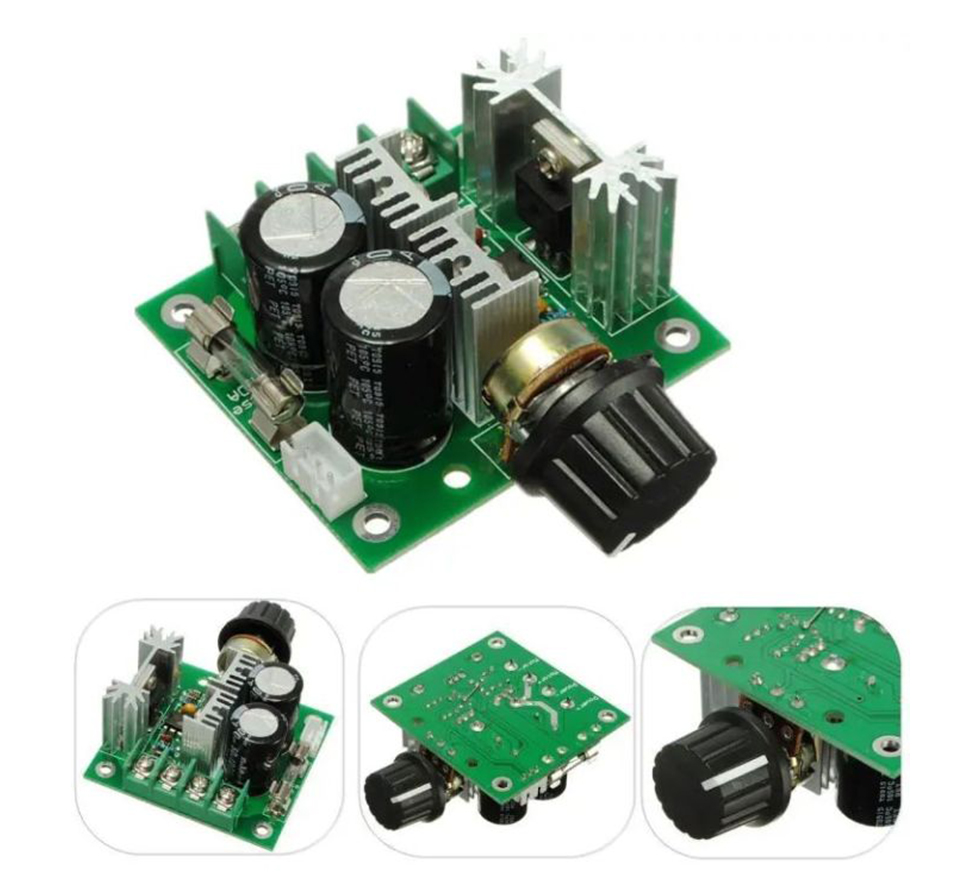

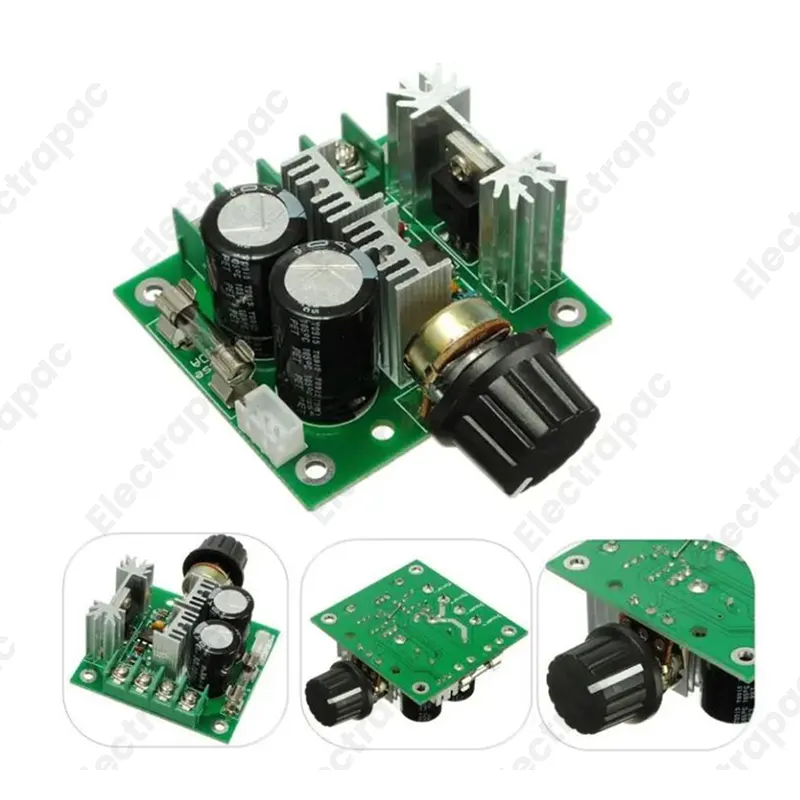

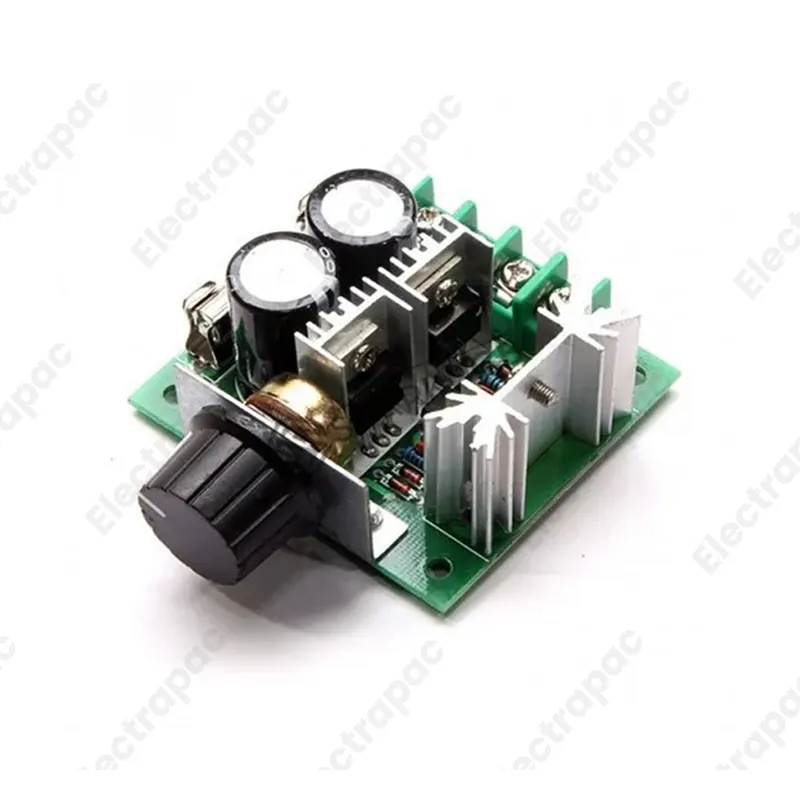

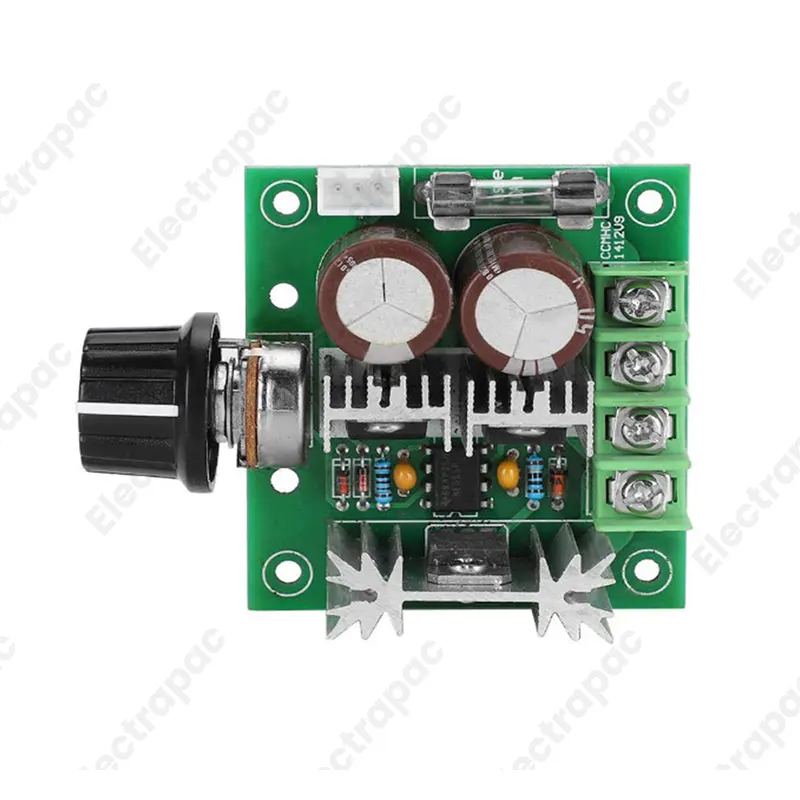

The PWM 12V-40V 10A DC Motor Speed Controller is a high-power, industrial-grade regulator designed for smooth and precise motor control. At Electrapac, we recommend this module for heavy-duty DIY projects, machinery, and automotive applications where high torque and reliable power delivery are essential.

Product Overview

This controller features an Extra Heavy Duty design capable of handling up to 400W of power. It uses Pulse Width Modulation (PWM) to vary the speed of brushed DC motors from 10% to 100% of their maximum RPM without sacrificing torque

Key Features for Electrapac Customers

• High-Power FETs: Equipped with imported high-power Field Effect Transistors (FETs), allowing it to drive large DC motors or high-current heating elements with ease.
• Superior Power Stability: Features an original 63V / 1000uF large capacitor, ensuring a stable DC output and protecting the module against voltage spikes.
• Dual Protection System: * 10A Fuse: Built-in fuse protects the board and your motor from short circuits and overcurrent scenarios.
• Reverse Polarity Protection: Safeguards the module against damage if the input power wires are connected incorrectly.
• Stepless CVT Adjustment: The high-quality potentiometer provides "Continuously Variable Transmission" (CVT) style control, allowing for ultra-fine speed adjustments.
• Low Heat Generation: Advanced circuit design ensures high efficiency, meaning the module stays cool even when running at 8A for extended periods.

Wiring & Safety Instructions

For the best results from your www.electrapac.com purchase, please follow these guidelines:

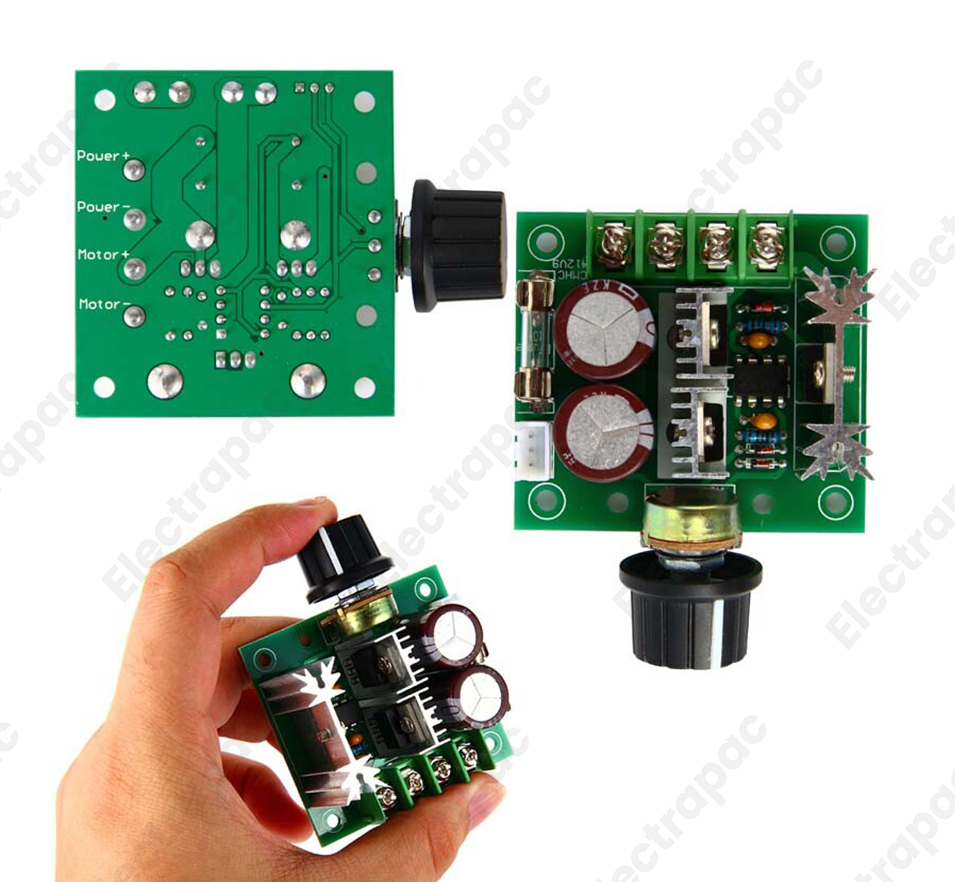

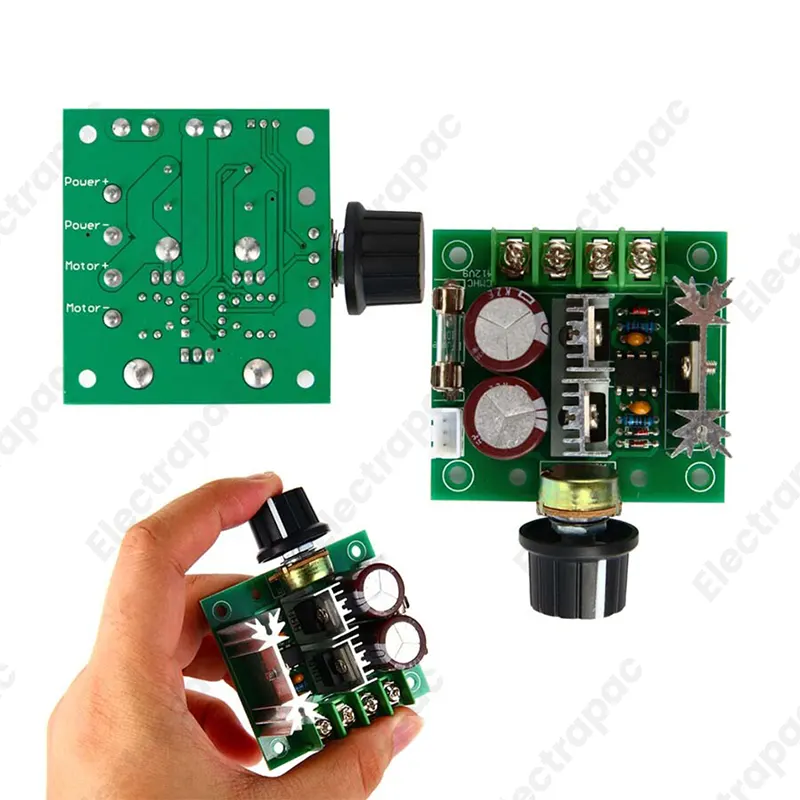

1. Terminal Connections: * Power+ / Power-: Connect to your DC 12V-40V power source.
• Motor+ / Motor-: Connect to your DC motor leads.
2. Brushed Motors Only: This module is designed for Brushed DC Motors. Do not use it for brushless motors or as an AC dimmer.
3. No AC Input: Never connect to 220V AC. This is a DC-only device.

Primary Applications

• Industrial Equipment: Speed control for small conveyors, lathes, or motorized workbenches.
• Automotive: Regulating high-power radiator fans or cabin blowers.
• DIY Power Tools: Building custom drill presses or sanders.
• Renewable Energy: Controlling DC water pumps in solar-powered irrigation systems.
