The Dual Shaft DC Gear Motor (Yellow) is a staple of hobbyist robotics and DIY electronics. At Electrapac, we recommend this motor as the perfect starting point for building student robot projects, obstacle-avoiding cars, and smart RC vehicles due to its high torque and ease of assembly.

Product Overview

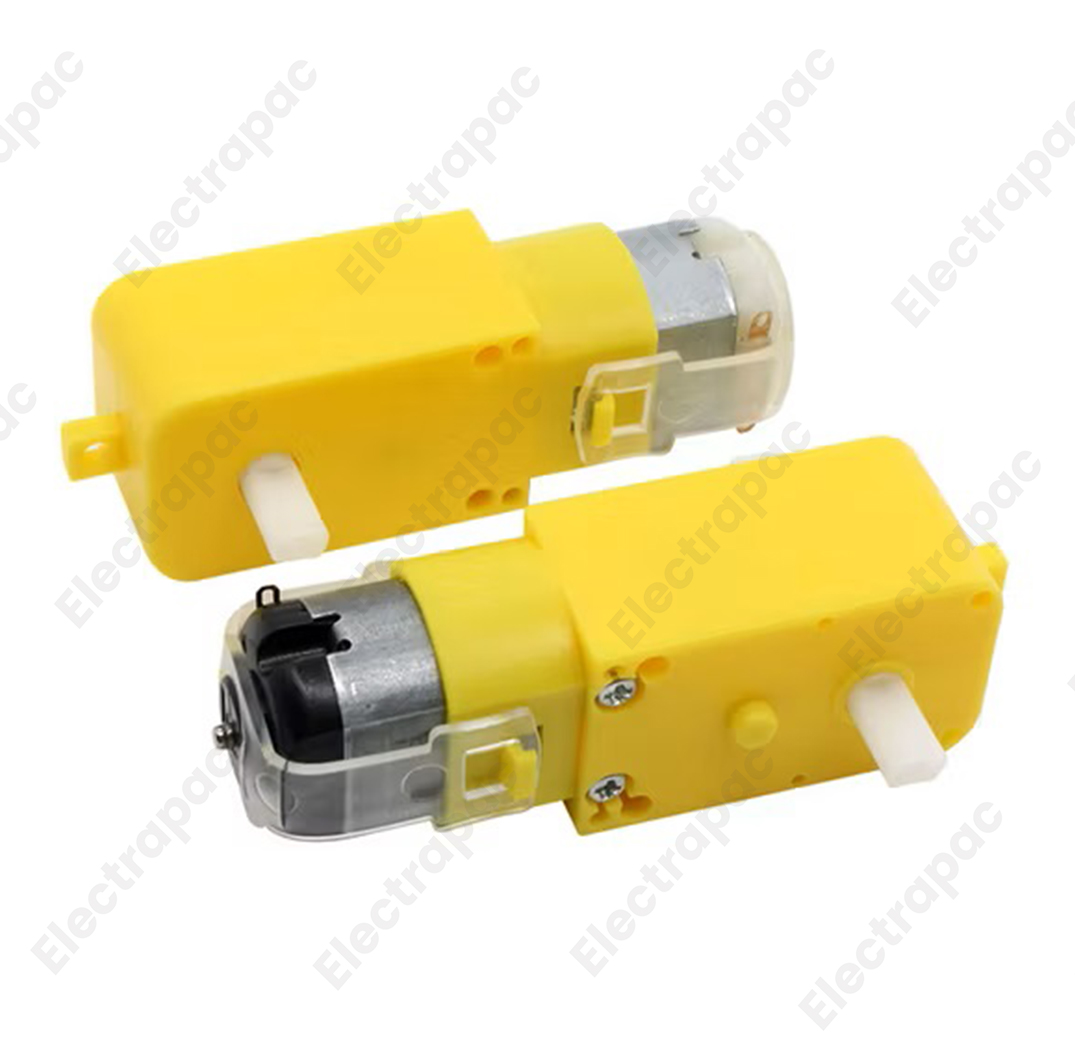

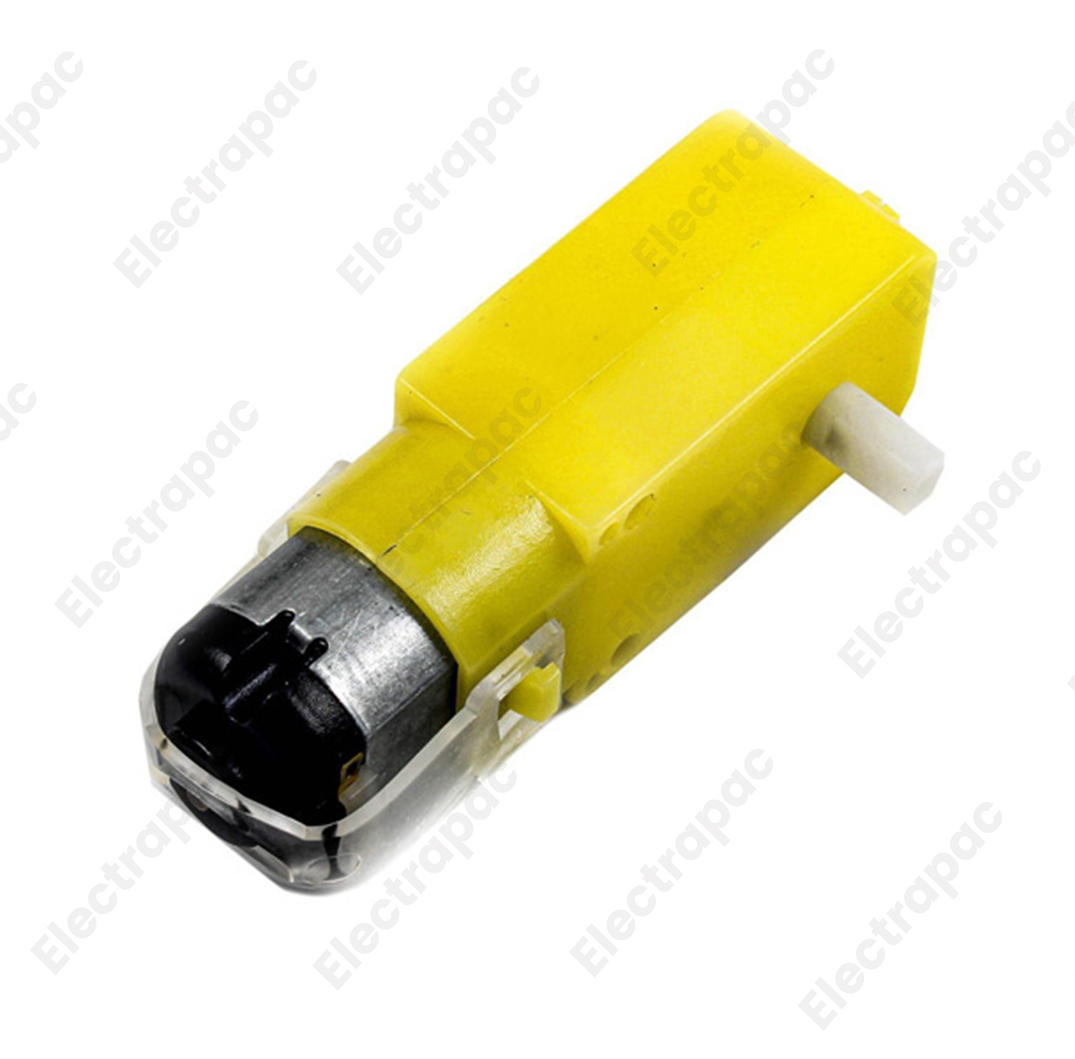

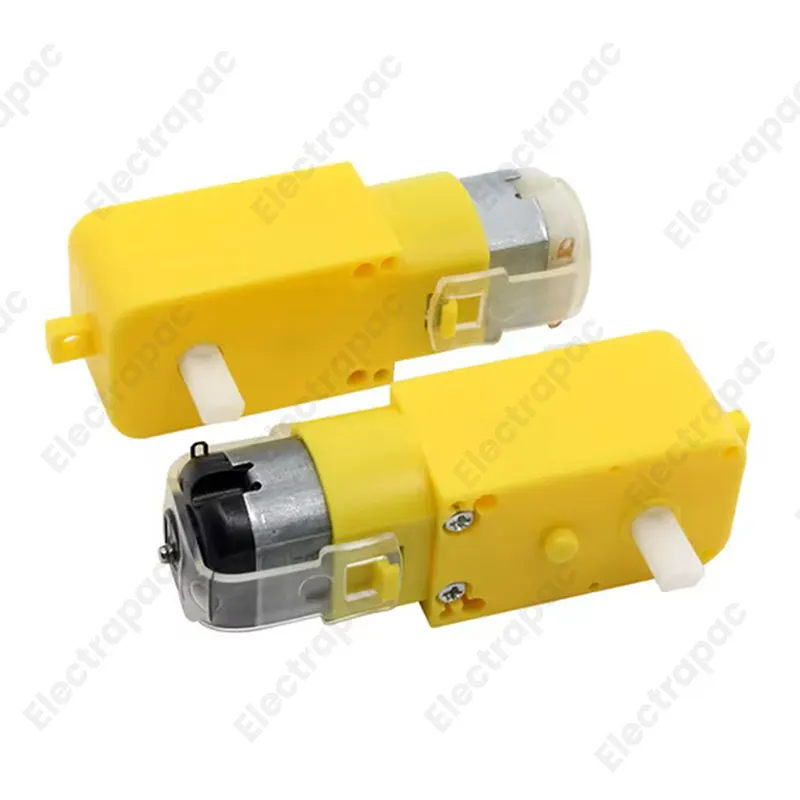

This is a BO (Battery Operated) Motor that features a high-quality plastic gearbox with a 1:48 reduction ratio. The "Dual Shaft" design is particularly useful because it allows you to attach a wheel to one side and a rotary encoder to the other for precise speed and distance tracking.

Key Features for Electrapac Customers

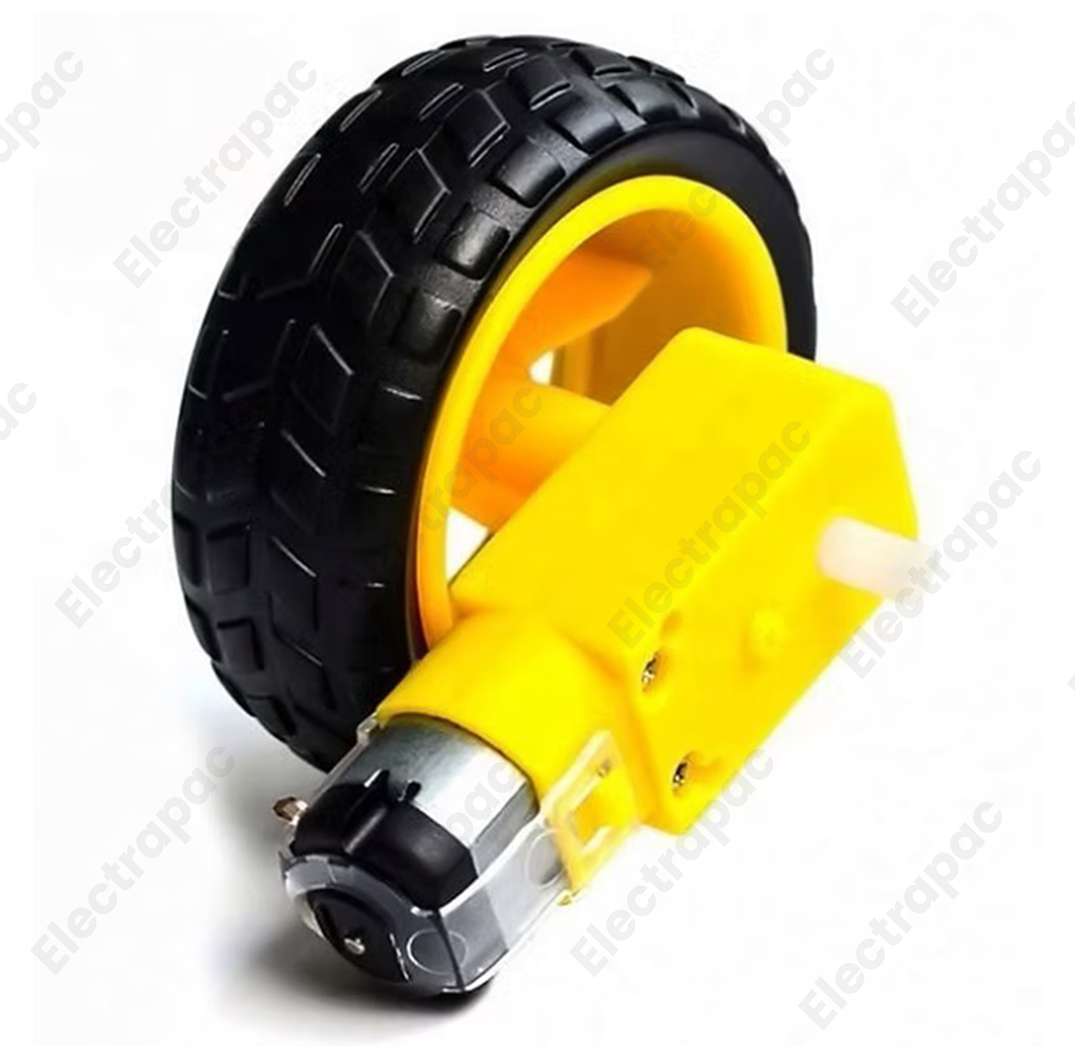

• Dual Output Shafts: Provides versatility for mounting wheels on both sides or adding feedback sensors (encoders) for autonomous navigation.

• Integrated Gearbox: The 1:48 reduction ratio converts the high speed of the internal 130 motor into high torque, allowing the motor to easily carry the weight of a chassis, batteries, and sensors.

• EMC Internal Design: Features integrated anti-interference circuitry to prevent electromagnetic noise from affecting your microcontroller (like Arduino or ESP32).

• Lightweight & Durable: The reinforced plastic housing is lightweight enough for small robots but tough enough to handle collisions during testing.

• Easy Mounting: Includes standard mounting holes that are compatible with almost all "Smart Car" chassis kits sold at www.electrapac.com.

Wiring & Connection Guide

1. Direct Power: You can test the motor by connecting it directly to a 2x AA battery pack (3V) or a 4x AA pack (6V).

2. Direction Control: To change the direction of rotation, simply swap the positive and negative wires connected to the motor terminals.

3. Speed Control: To vary the speed or control the motor via code, we recommend using a motor driver module like the L298N or L293D.

Note: These motors come with bare metal terminals. For a secure connection, we recommend soldering flexible wires (22-24 AWG) to the terminals.

Primary Applications

• DIY Smart Cars: The standard motor for 2WD and 4WD robotic platforms.

• Obstacle Avoidance Robots: Pairs perfectly with Ultrasonic sensors.

• Line Follower Robots: Reliable speed for following tracks accurately.

• Science Projects: Ideal for school demonstrations of gears and simple machines.

Why Shop at Electrapac?

We ensure our motors have the correct gear alignment to prevent "stalling" or grinding. Find this yellow gear motor, compatible wheels, and motor drivers at www.electrapac.com.
