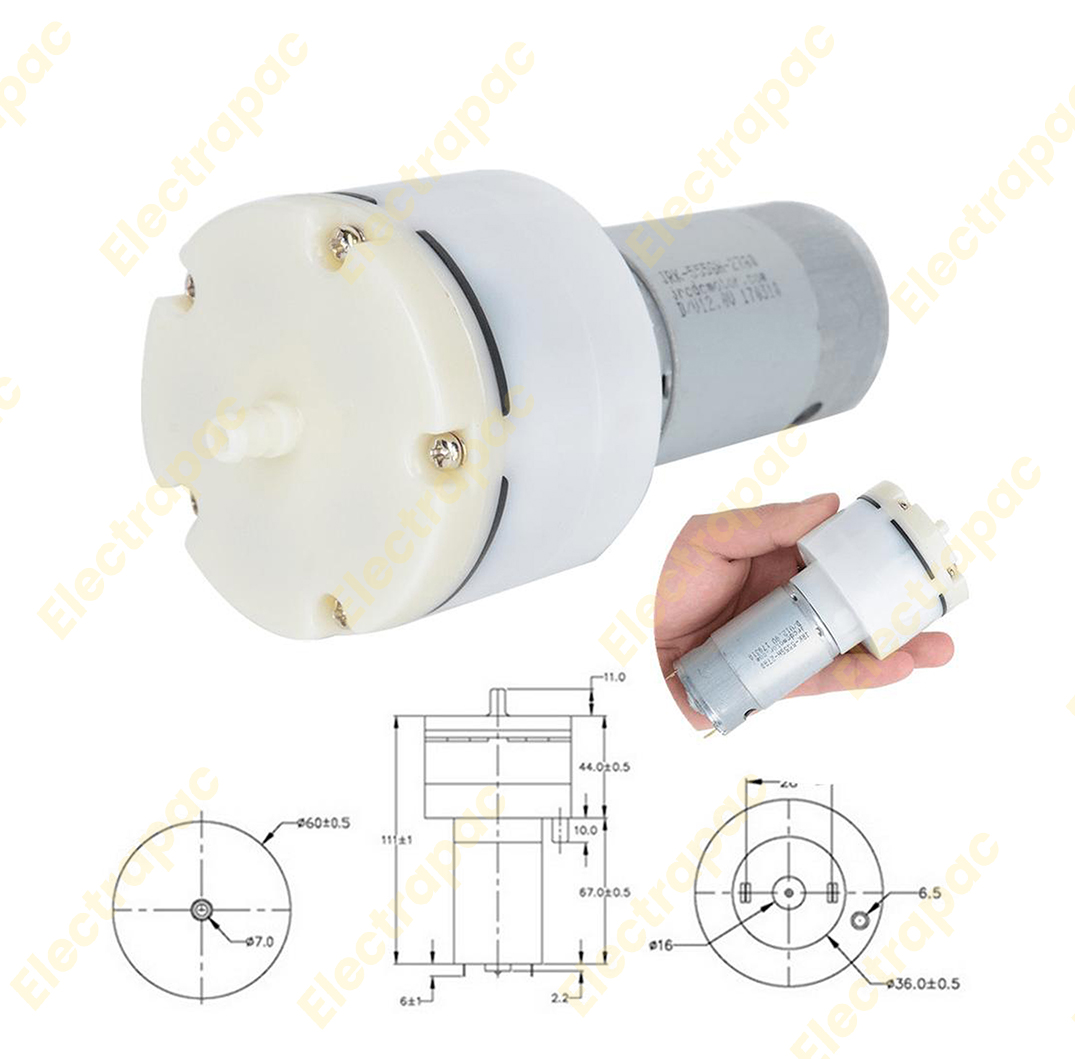

The High-Quality 12V DC Diaphragm Vacuum/Air Pump is a dual-purpose powerhouse designed for both suction (vacuum) and pressure (inflation). At Electrapac, we recommend this specific micro pump for high-demand applications like high-pressure aquarium aeration, medical instruments, and vacuum packaging, where a standard hobby pump isn't enough.

Product Overview

This pump uses a high-torque 555-series DC motor to drive a reinforced diaphragm. It can deliver a significant airflow of up to 15 Liters Per Minute (LPM) and reach pressures over 100kPa, making it far more capable than the smaller 370 models. Its oil-free design ensures that the air pumped out is clean and safe for sensitive environments like fish tanks or food sealers.

Key Features for Electrapac Customers

• Dual Port Functionality: Features two distinct nozzles. One creates a strong Vacuum (Suction) while the other provides High Pressure (Output). You can use it as an air compressor or a suction pump simultaneously.

• Aquarium & Hydroponics Ready: Ideal for deep-water aeration. Its high pressure can easily push air through large stones or deep water columns where smaller pumps fail.

• Self-Priming & Oil-Free: Does not require lubrication, meaning zero maintenance and no oil contamination in your air or water lines.

• Industrial Build Quality: Encased in a durable metal and high-density plastic shell with a heavy-duty motor designed for hundreds of hours of operation.

• Versatile Mounting: Often features an "L" shaped bracket or mounting holes for secure installation inside professional enclosures.

Critical Installation Notes

To ensure the best performance from your www.electrapac.com purchase, please follow these guidelines:

1. Power Requirement: This motor is a 555 class; it draws significant current. Do not power it directly from an Arduino. Use a 12V DC adapter with at least 2A capacity or a 3S Li-ion battery.

2. Heat Management: While the pump can run for extended periods, it is recommended to provide airflow around the metal motor body during heavy-duty use (e.g., 24/7 aquarium aeration).

3. Tubing: Use 6mm ID (Inner Diameter) silicone or PVC tubing. Ensure the connections are tight to prevent pressure loss.

Primary Applications

• Professional Aquariums: High-volume oxygen supply for large tanks or multi-tank setups.

• Medical Devices: Used in blood pressure monitors, nebulizers, and suction units.

• Food & Packaging: DIY vacuum sealers for preserving dry goods.

• Electronics Repair: Used in vacuum-suction pens for lifting delicate SMD components.

• Lab Experiments: Ideal for gas sampling and negative pressure experiments.

Why Shop at Electrapac?

We curate professional-grade micro-pumps that bridge the gap between hobby toys and industrial machinery. Find this 12V High-Pressure Pump and all compatible 12V power supplies at www.electrapac.com.
