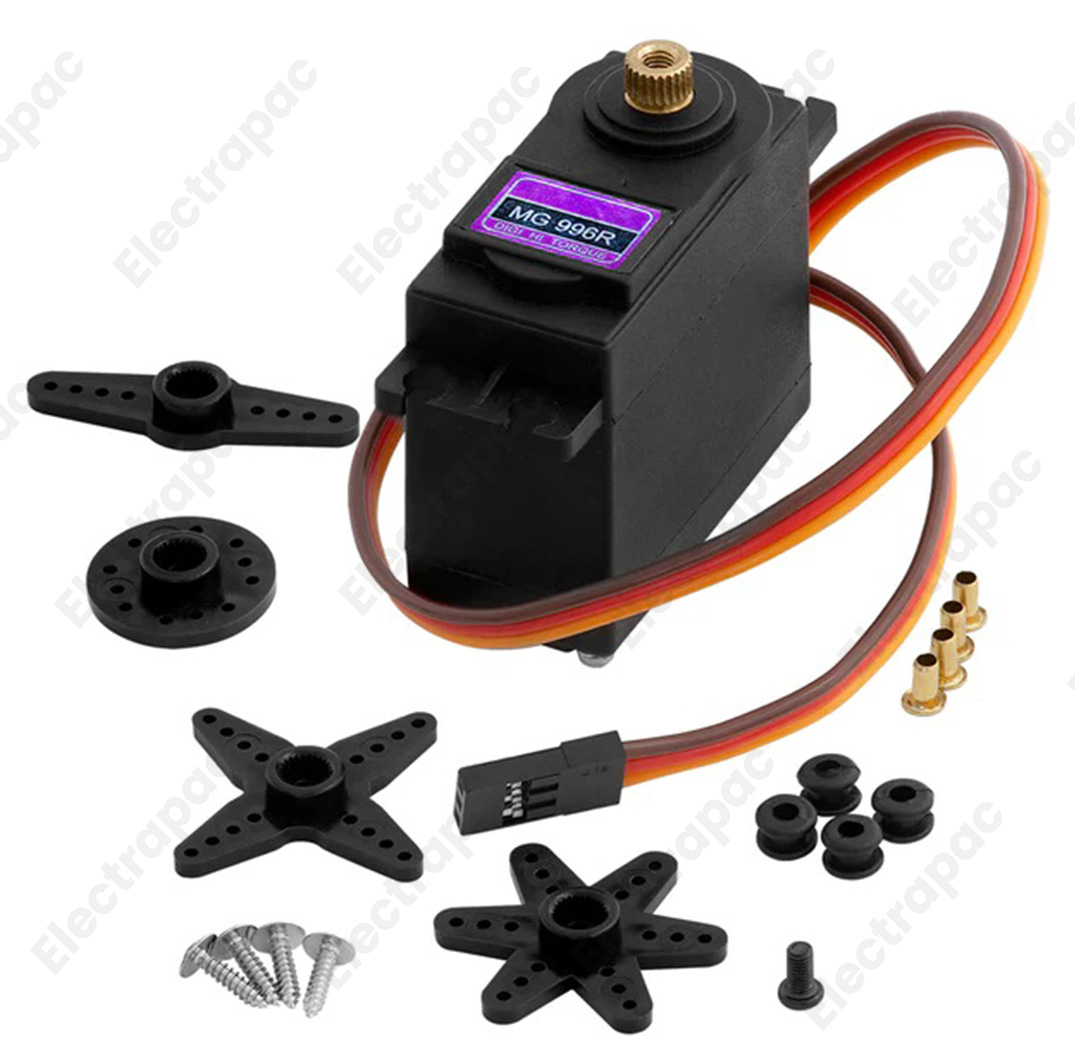

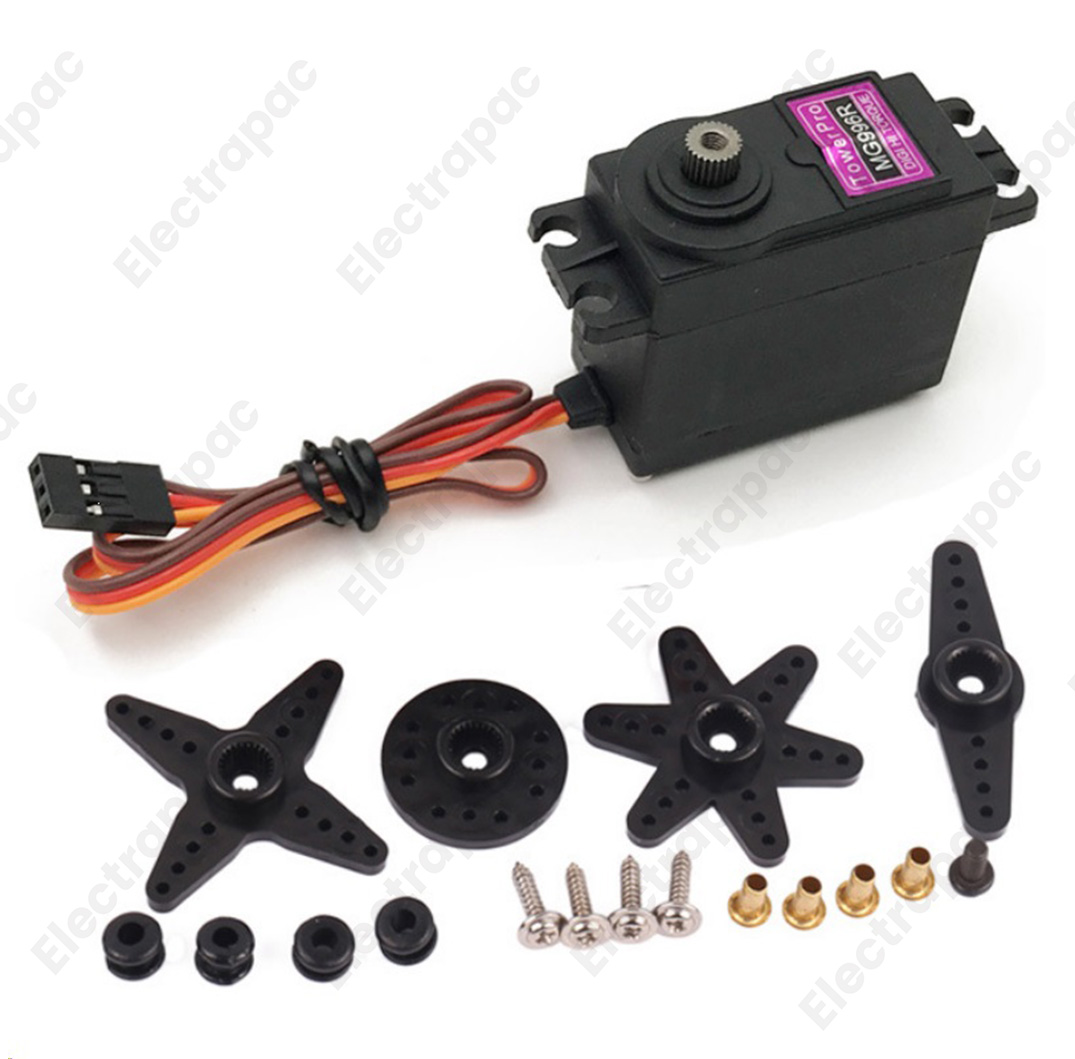

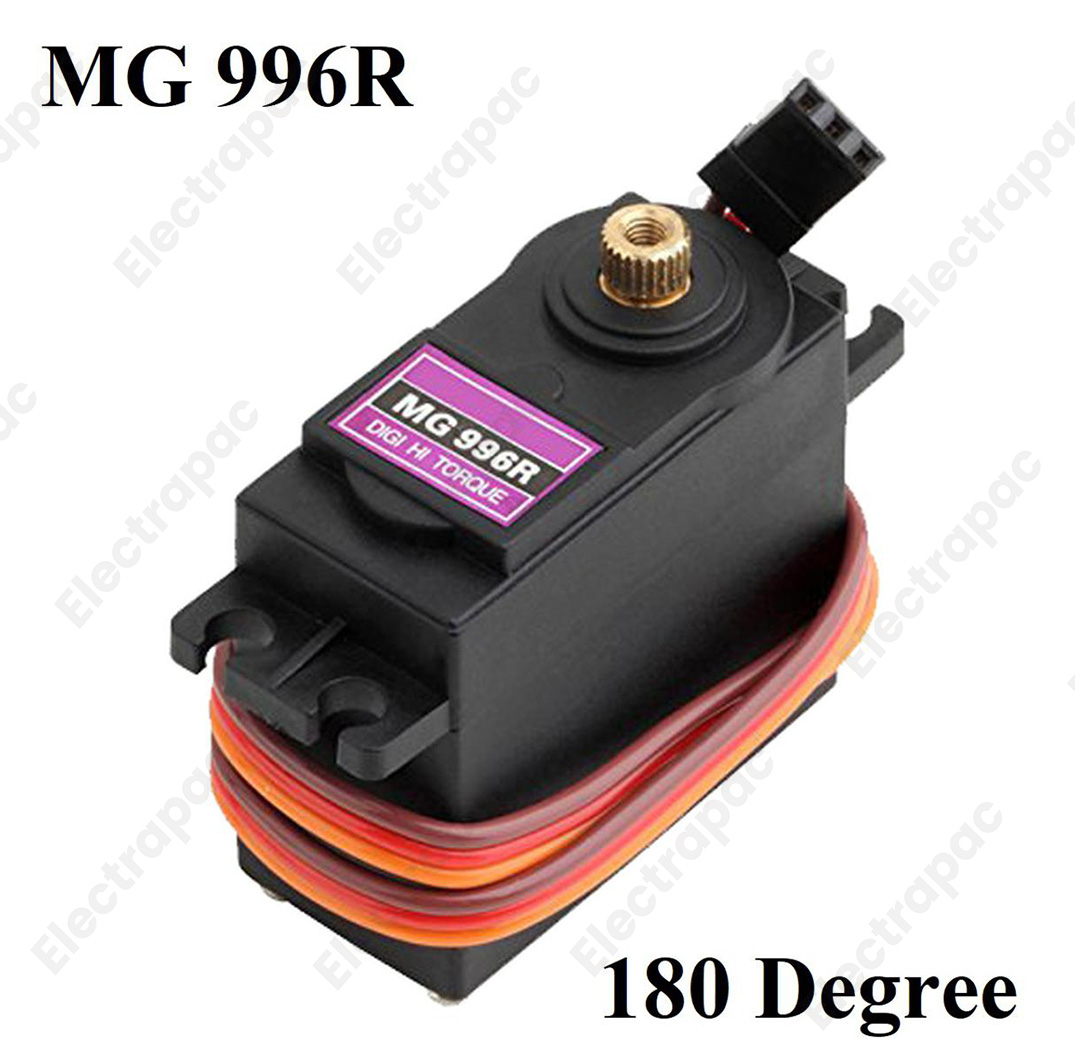

The TowerPro MG996R High-Torque Digital Servo Motor is a heavy-duty upgrade to the famous MG995. At Electrapac, we recommend this servo for projects requiring extreme durability and precise positioning, such as robotic grippers, 1/10 scale RC steering, and industrial automation prototypes.

Product Overview

The MG996R features a full metal gear train and a redesigned internal control system. This "R" version (Revised) significantly improves on its predecessor by offering better centering, higher accuracy, and a more robust PCB that handles shock and vibration much more effectively.

Key Features for Electrapac Customers

• Upgraded Control IC: Unlike older analog servos, the MG996R's digital PCB provides a tighter "dead band," meaning the motor stays exactly where you tell it to without jittering or drifting.

• Double Ball Bearing Design: The output shaft is supported by two ball bearings, which reduces friction and ensures smooth, stable rotation even under heavy mechanical loads.

• Universal Compatibility: Comes with a standard 30cm cable and "S" type connector that fits almost all RC receivers and microcontrollers (Arduino, ESP32, Raspberry Pi).

• Extreme Durability: The full metal gearing is designed to withstand high-stress environments where plastic gears would strip or melt.

• High Torque Performance: With up to 11 kg/cm of torque, it can easily handle the steering of monster trucks or the lifting of heavy robotic arm segments.

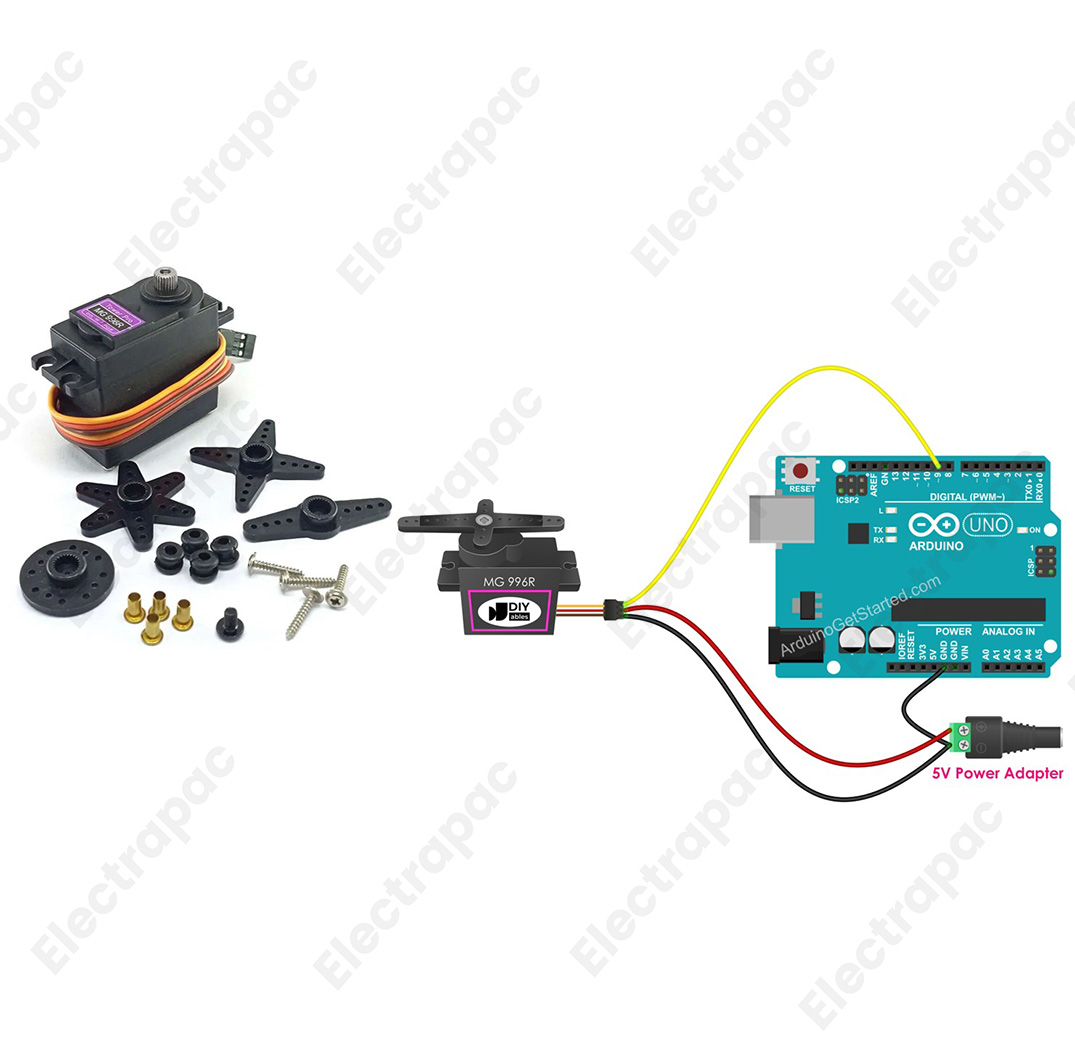

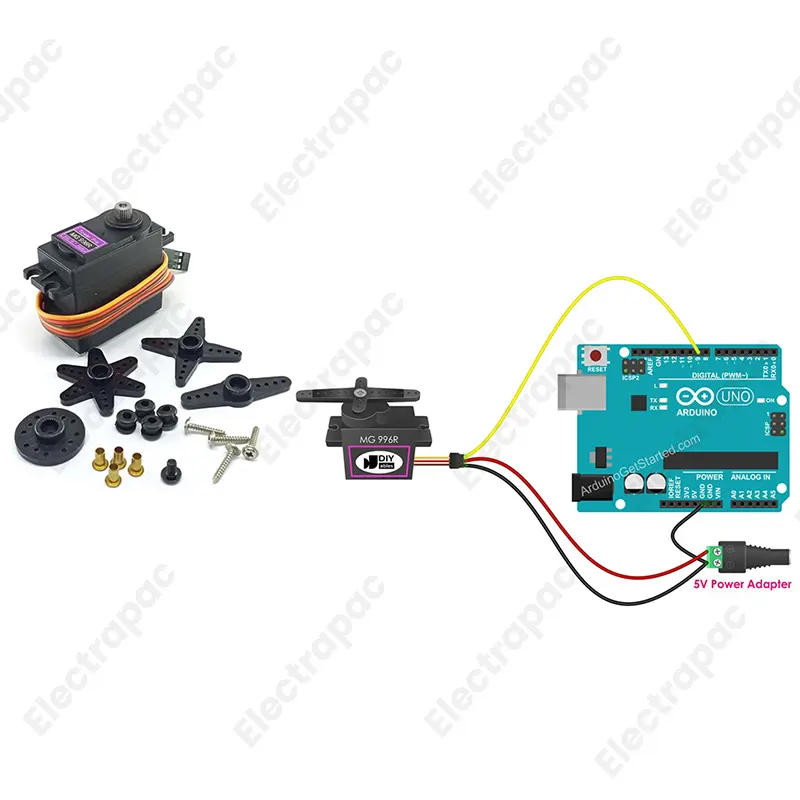

Wiring & Power Guide

The MG996R follows the standard servo wiring code:

1. Brown (GND): Connect to Ground (-).

2. Red (VCC): Connect to Power (+), typically 5V–6V.

3. Orange (Signal): Connect to a PWM-capable pin on your controller.

Important Power Note: Due to its high torque, the MG996R has a stall current of up to 2.5A. We strongly advise against powering this motor directly from an Arduino's 5V pin. Instead, use an external power supply and ensure the Ground (GND) is shared with your microcontroller.

Primary Applications

• Advanced Robotics: Ideal for the "shoulders" and "elbows" of robotic arms or the legs of hexapod walkers.

• RC Vehicles: A favorite for steering in 1:10 scale buggy, monster truck, and crawler models.

• Smart Locks: Strong enough to move heavy deadbolts in home automation projects.

• Pan-Tilt Systems: Perfect for controlling heavy camera rigs for smooth, stable videography.

Why Shop at Electrapac?

We ensure our MG996R stock features genuine TowerPro components with verified metal gear construction. Visit www.electrapac.com to find this servo, aluminum servo horns, and high-current power modules for your next build.
