The DHT11 Digital Temperature and Humidity Sensor is the most popular entry-level environmental sensor for electronics enthusiasts. At Electrapac, we recommend this module for anyone starting with weather stations, home automation, or climate monitoring because of its simplicity and reliable digital output.

Product Overview

The DHT11 combines a capacitive humidity sensor and a thermistor to measure the surrounding air, spitting out a digital signal on the data pin. Unlike older analog sensors, the DHT11 handles the complex analog-to-digital conversion internally. It is "pre-calibrated," meaning you can start reading accurate data as soon as you plug it into your microcontroller.

Key Features for Electrapac Customers

• Digital Output: Since the sensor outputs a digital signal, it is highly resistant to interference. You can run relatively long wires between the sensor and your Arduino without losing accuracy.

• Low Power Consumption: With an average current draw of only 0.2mA during measurement, it is ideal for battery-powered IoT projects.

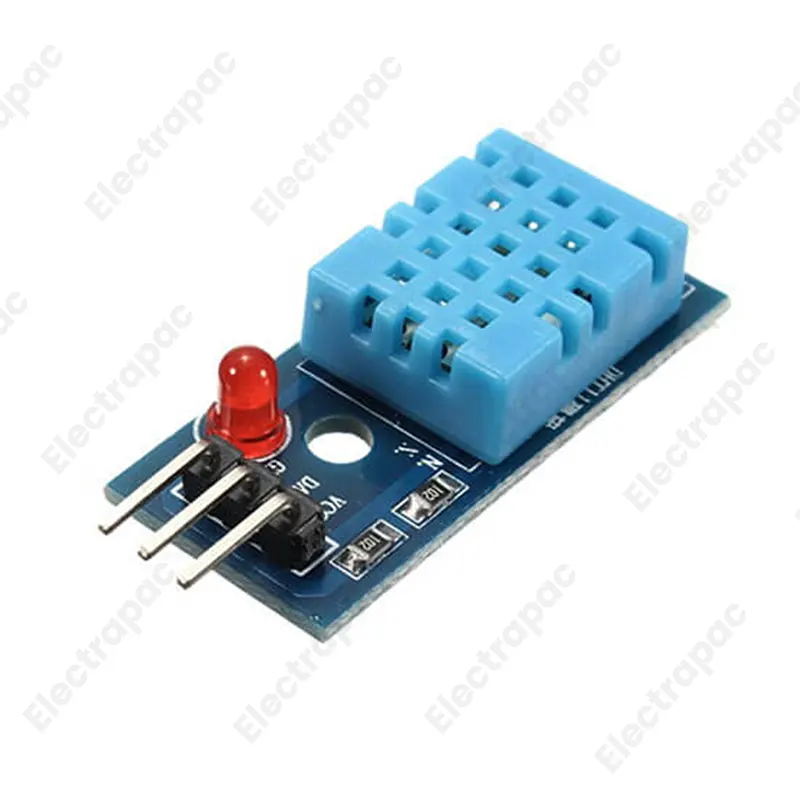

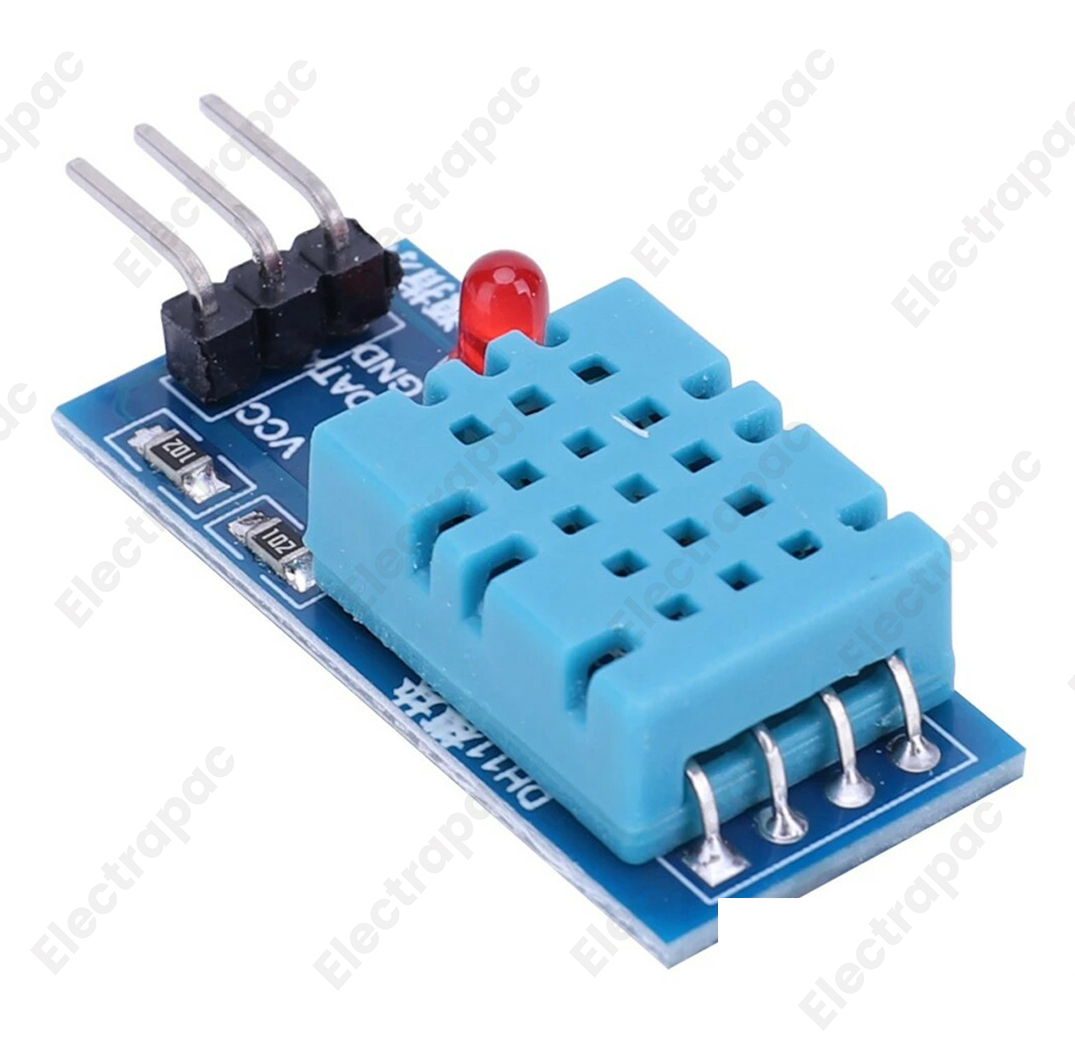

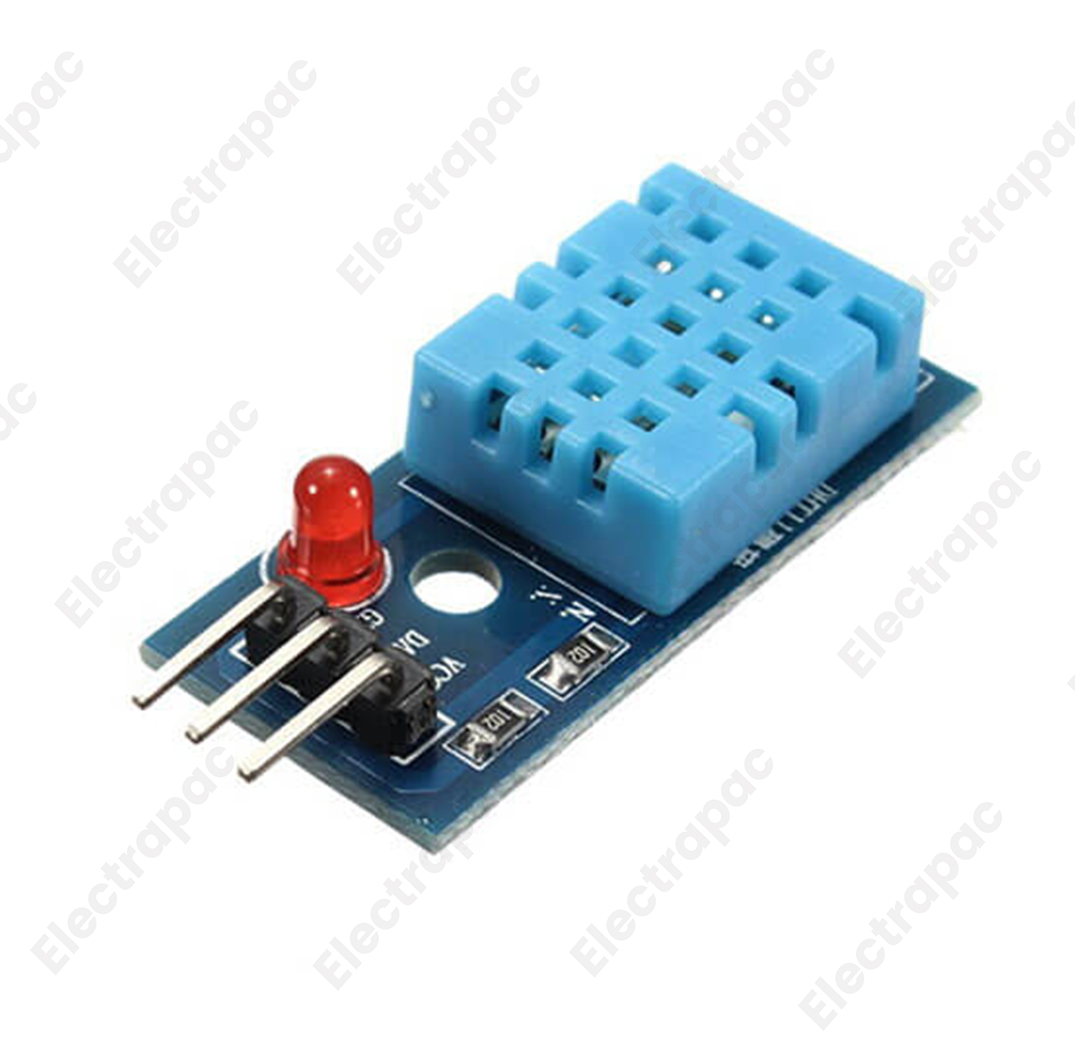

• Integrated Components: Our Electrapac DHT11 modules come mounted on a small PCB that includes the necessary pull-up resistor and a bypass capacitor, making it truly plug-and-play.

• Long-term Stability: The capacitive sensing element is designed to provide stable readings over time, even in moderately dusty environments.

• Wide Library Support: It is one of the most well-documented sensors in the world, with easy-to-use libraries available for Arduino, ESP8266, ESP32, and Raspberry Pi.

Wiring & Connection Guide

The module version of the DHT11 (mounted on a PCB) makes connection incredibly easy with just three pins:

1. VCC (+): Connect to 3.3V or 5V.

2. GND (-): Connect to Ground.

3. DATA (S/Out): Connect to any digital I/O pin on your microcontroller.

Pro-Tip: The DHT11 is a "slow" sensor. It needs about 1 to 2 seconds between readings to provide accurate data. If your code tries to read it too quickly, you may receive a "Checksum Error" or a "Timeout" message.

Primary Applications

• Smart Home Weather Stations: Monitoring indoor temperature and humidity for display on an LCD.

• Dehumidifier Control: Automatically turning on a fan or a dehumidifier when humidity levels exceed 60%.

• Greenhouse Monitoring: Ensuring seedlings stay within the 20°C to 30°C range for optimal growth.

• Server Room Alerts: Sending a notification if the cooling system fails and temperatures rise.

• DIY Incubators: Keeping a steady environment for eggs or biological cultures.
