The DS18B20 Waterproof Temperature Sensor is a high-precision digital thermal probe designed for versatile environments. Encased in a durable stainless steel tube, this sensor is completely moisture-proof and waterproof, making it ideal for monitoring temperatures in liquids, soil, or outdoor settings. It uses a unique 1-Wire interface, allowing multiple sensors to be connected to a single microcontroller pin. Compatible with Arduino, Raspberry Pi, and ESP8266, it is perfect for smart home projects, industrial monitoring, and aquarium temperature control. Read more
The DS18B20 Waterproof Temperature Sensor Probe is a highly accurate, digital thermometer designed for challenging environments.
Unlike analog sensors that can suffer from signal degradation over long cables, the DS18B20 is a Digital Sensor.
Waterproof & Durable: The stainless steel housing is rust-resistant and thermally conductive, ensuring quick response times while keeping the internal electronics dry.
1-Wire Daisy Chaining: Because each DS18B20 has a unique 64-bit serial code burned into it at the factory, you can connect multiple sensors to the same single data pin on your Arduino or Raspberry Pi.
No External Components: It can be powered directly from the data line ("Parasite Power mode"), though for stable industrial use, we recommend a standard 3-wire setup.
Digital Precision: Since the output is digital, there is zero signal loss over long distances (up to 50m or more with proper pull-up resistors).
Wide Compatibility: Works seamlessly with Arduino, ESP32, STM32, and Raspberry Pi using widely available libraries.

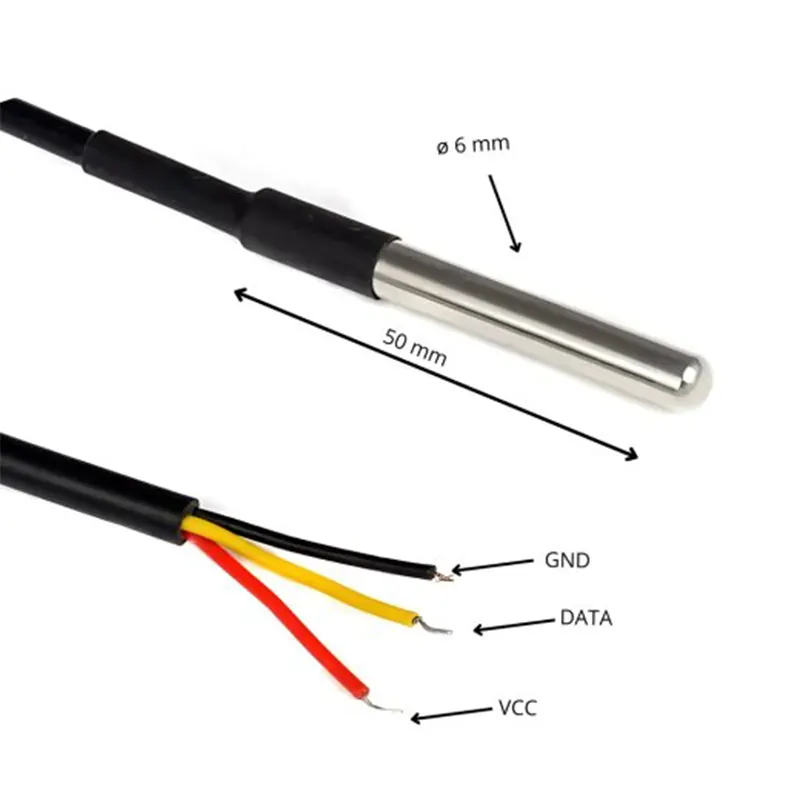

The Electrapac DS18B20 probe typically follows this standard color-coding for its 3-wire interface:
Red Wire: V_cc (Power, 3V–5V)
Black Wire: GND (Ground)
Yellow (or White) Wire: DATA (Digital Signal)

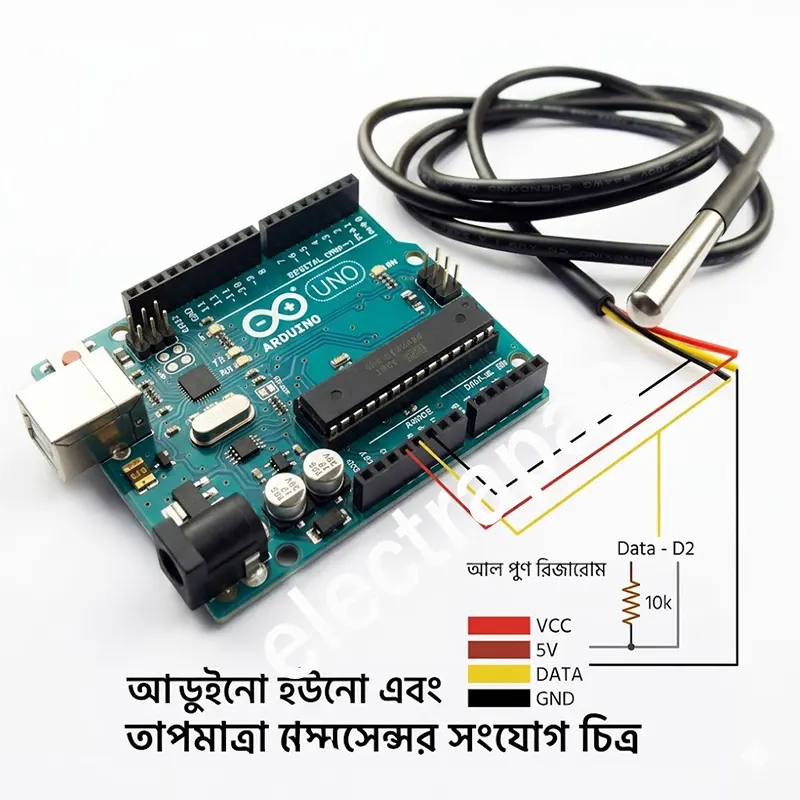

Pro-Tip: To enable communication, you must place a 4.7kΩ pull-up resistor between the Data wire (Yellow) and the Power wire (Red). Without this resistor, the microcontroller will not be able to "read" the digital pulses from the sensor.
Aquarium Monitoring: Safe for continuous immersion to keep your fish or coral at the perfect temperature.
Home Brewing & Fermentation: Monitoring the temperature of liquids inside stainless steel tanks or carboys.
Smart Agriculture: Buried in soil to monitor ground temperature for automated irrigation systems.
HVAC Systems: Measuring air duct or pipe temperatures for climate control automation.
Industrial Cooling: Tracking the temperature of heat sinks or liquid cooling loops in server racks.
We source our DS18B20 Probes with high-grade, flexible PVC cabling and genuine Maxim Integrated sensors for the highest accuracy. Visit us at
| Specifications | Descriptions |
|---|---|
| Power Supply Range | 3.0V to 5.5V |
| Sensing Range | -55°C to +125°C |
| Accuracy | $\pm 0.5$°C (from -10°C to +85°C) |
| Resolution | Programmable from 9 to 12 bits |
| Probe Dimensions | 6mm diameter, 50mm length |
| Cable Length | Usually 100cm (1 meter) |
| Output Leads | Red (VCC), Black (GND), Yellow/White (Data) |
| Package | 1x DS18B20 Water-Proof Temperature Sensor Probe |
