Description:

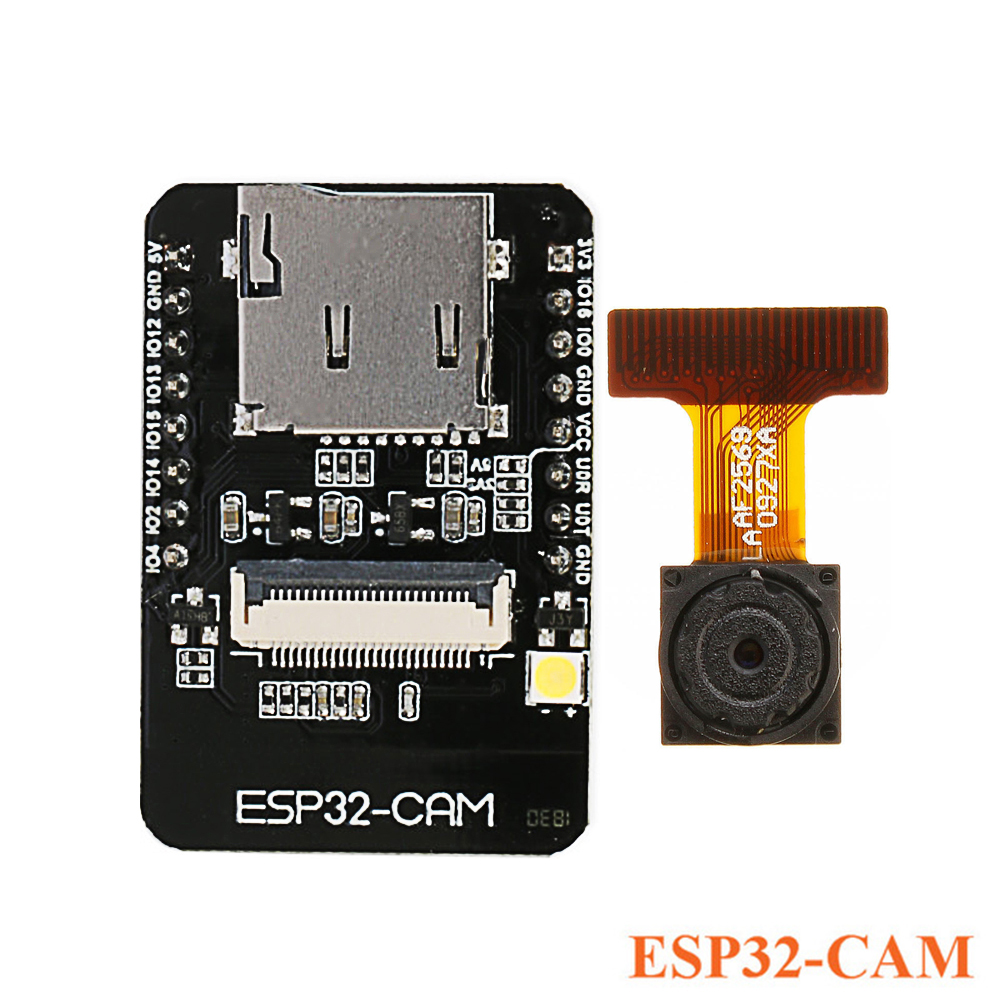

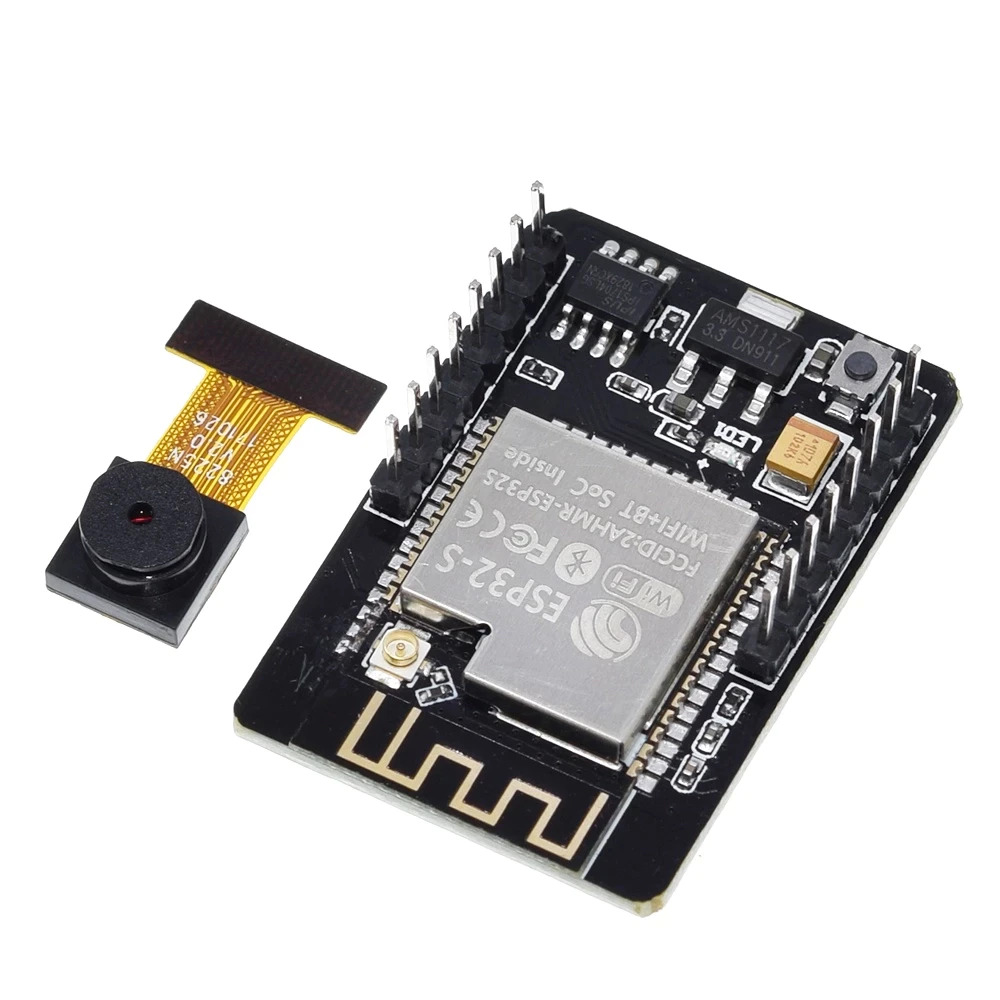

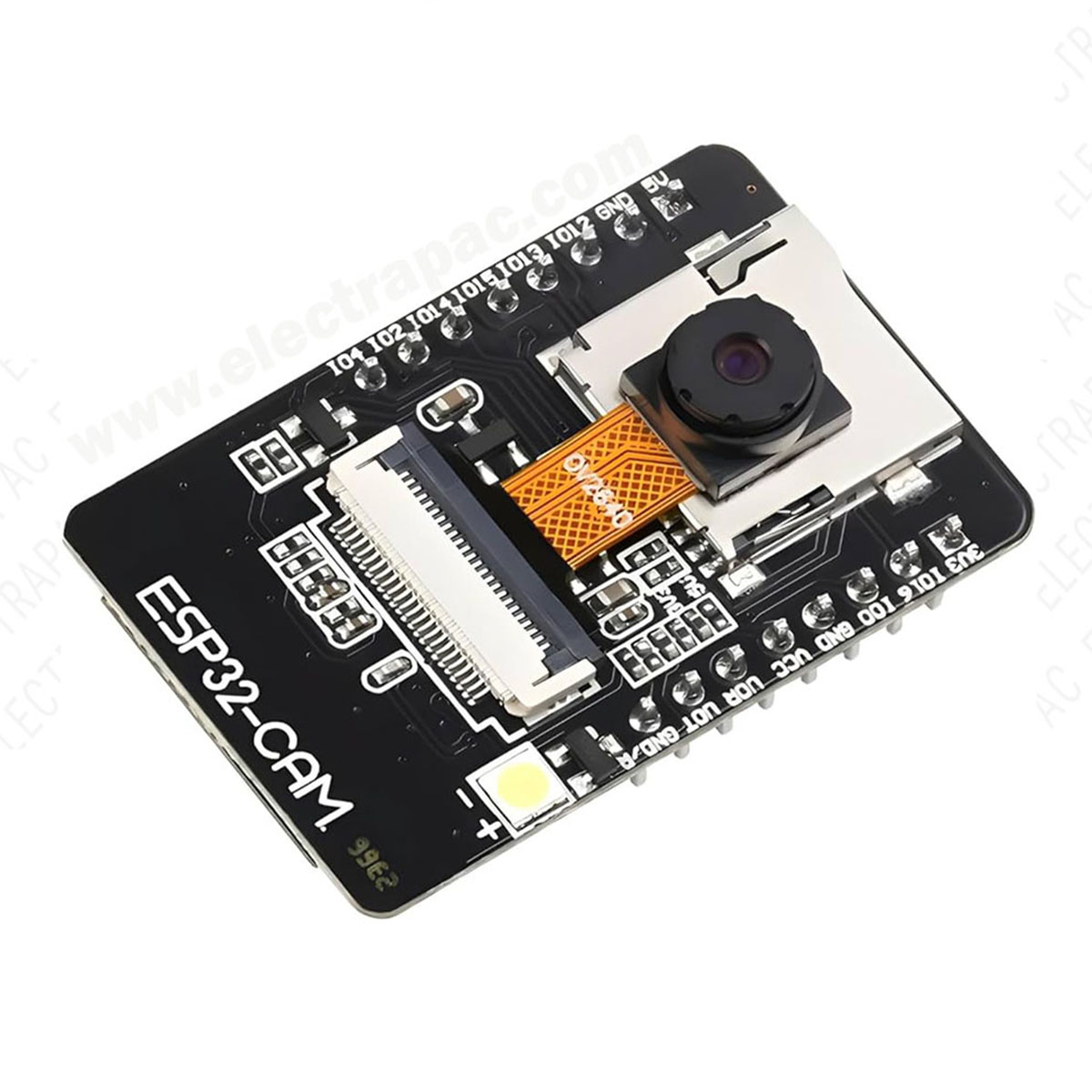

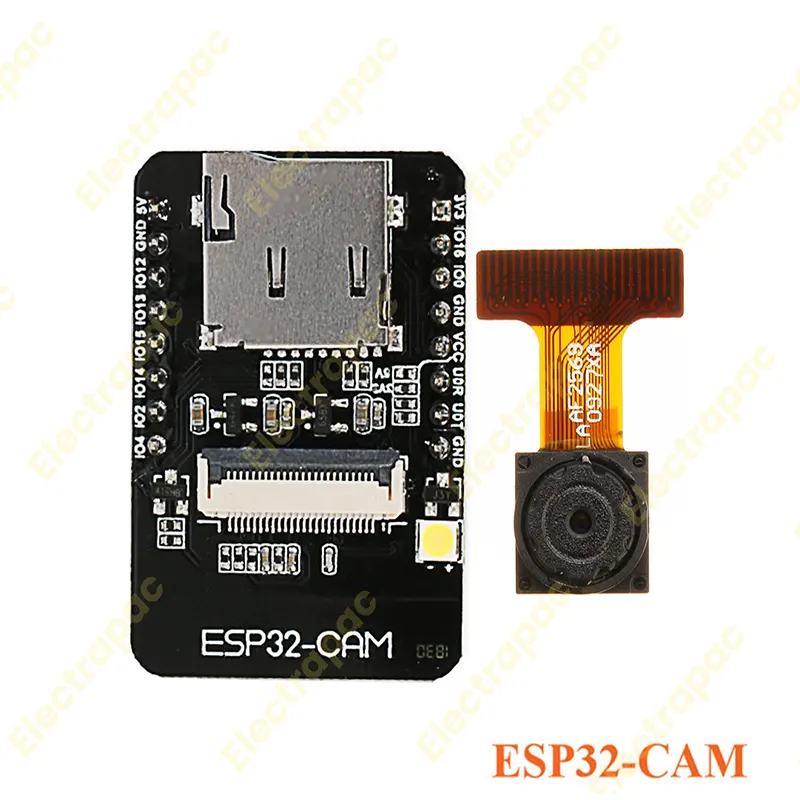

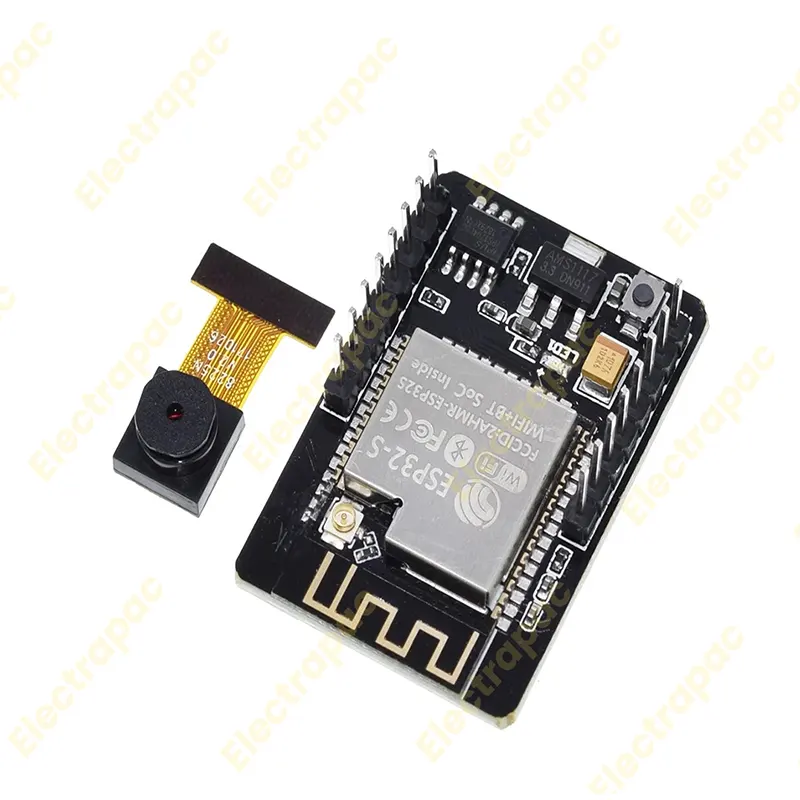

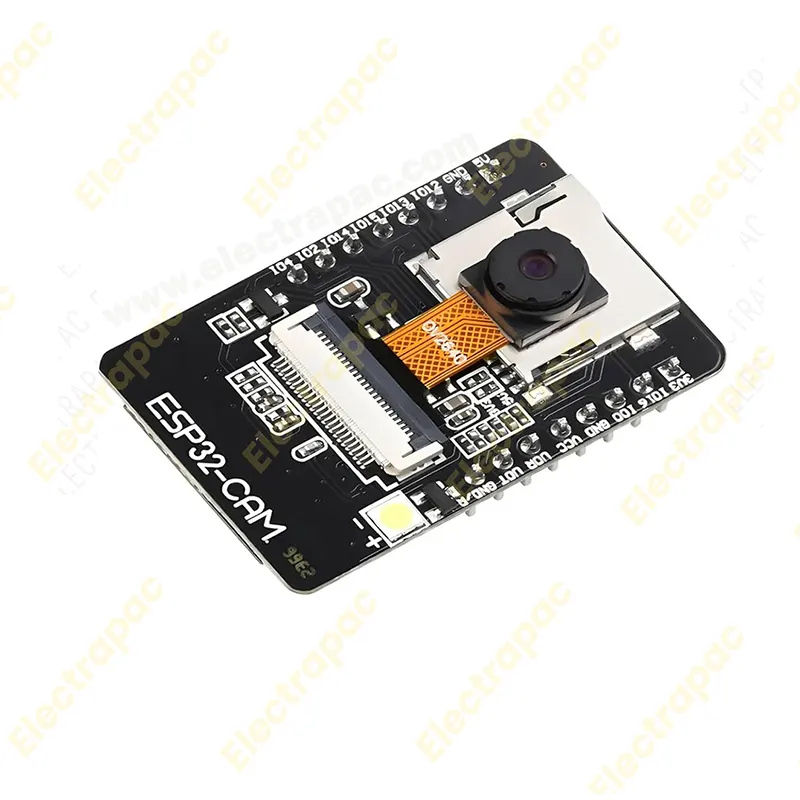

The ESP32-CAM Development Board with OV2640 Camera is an ideal choice for IoT projects that require wireless camera functionality. This board combines WiFi and Bluetooth connectivity, making it perfect for remote monitoring, video streaming, and more. With a 4MB Flash Memory and support for multiple camera modules like the OV2640, it provides a flexible platform for a range of applications. The board’s small form factor, combined with its wide array of supported interfaces, makes it suitable for compact embedded systems and other DIY projects.
Specifications:

• Input Voltage: 5V
• Flash Memory: 4MB
• SRAM: 520kB
• Clock Speed: 160 or 240 MHz
• Digital I/O Pins (DIO): 9
• WiFi: IEEE 802.11 b/g/n/e/i
• Bluetooth: Bluetooth 4.2 BR/EDR and BLE
• Interface Support: UART, SPI, I2C, PWM
• External Storage: microSD card
• Image Output Format: JPEG (for OV2640), BMP, Grayscale
• Spectrum Range: 2412 – 2484MHz
• Cameras Supported: OV2640, OV7670
• Dimensions: 40 x 27 x 12mm
• Weight: 8g

Package:

• 1x ESP32-CAM WiFi Development Board with OV2640 Camera

FAQ:

Q: Can I connect other cameras to the ESP32-CAM board?
A: Yes, the board supports the OV2640 and OV7670 cameras.

Q: What is the image output format supported by the camera?
A: The supported formats are JPEG (OV2640), BMP, and Grayscale.

Q: What is the maximum clock speed of the ESP32-CAM board?
A: The clock speed is 160 MHz or 240 MHz depending on the configuration.

Q: Can I use a microSD card with the board?
A: Yes, the ESP32-CAM supports external storage via microSD cards.

Q: What are the connectivity options for the ESP32-CAM?
A: The board supports WiFi (IEEE 802.11 b/g/n/e/i) and Bluetooth 4.2 BR/EDR and BLE.
