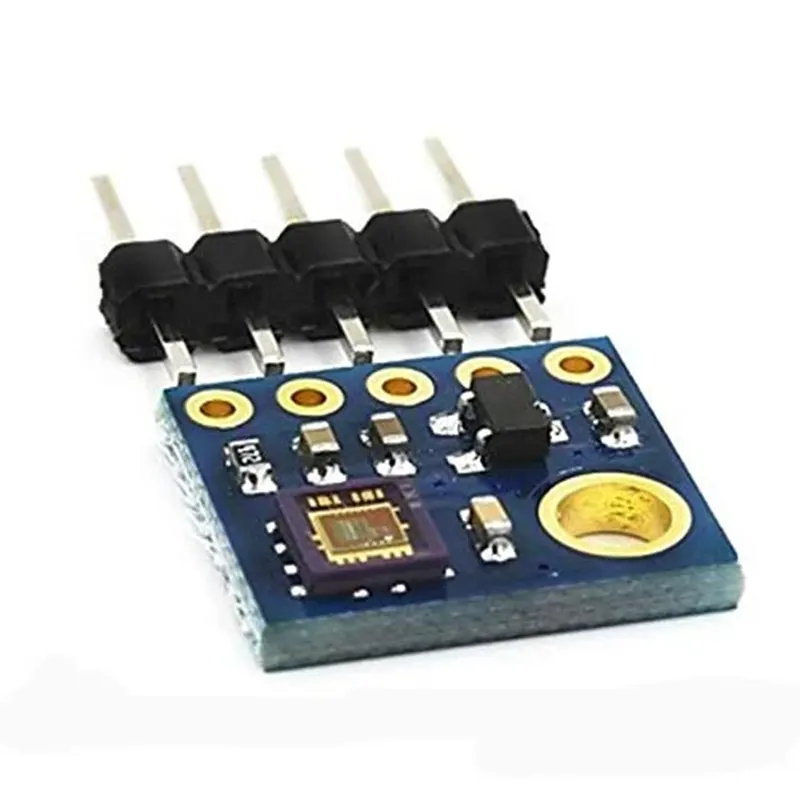

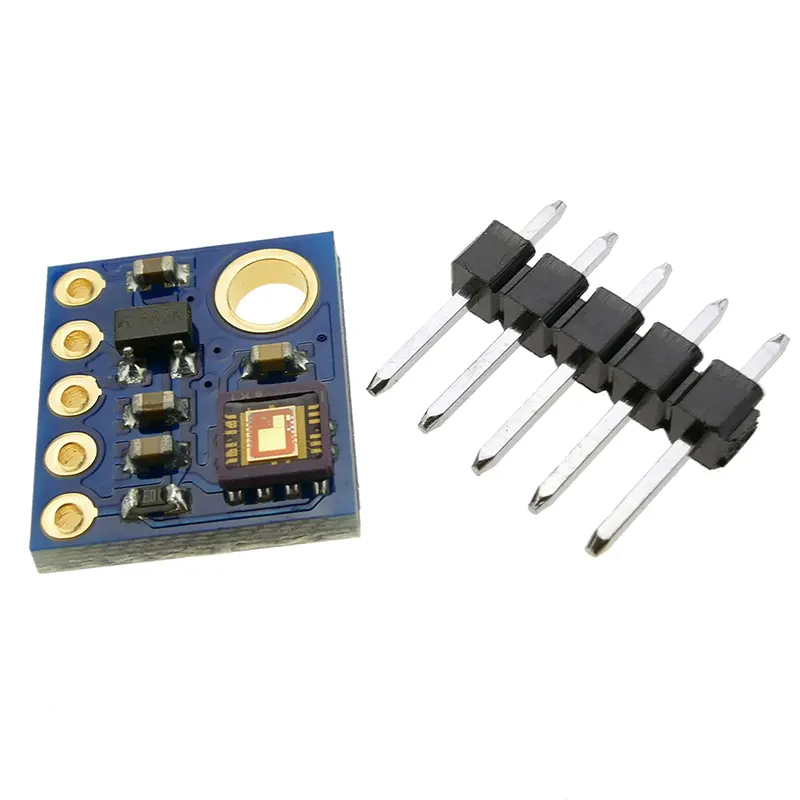

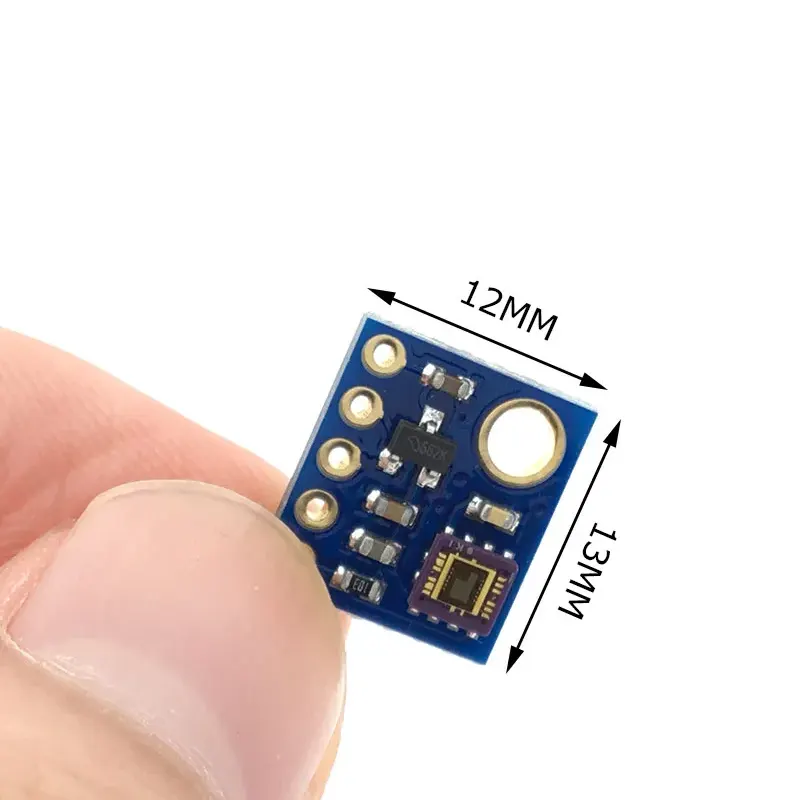

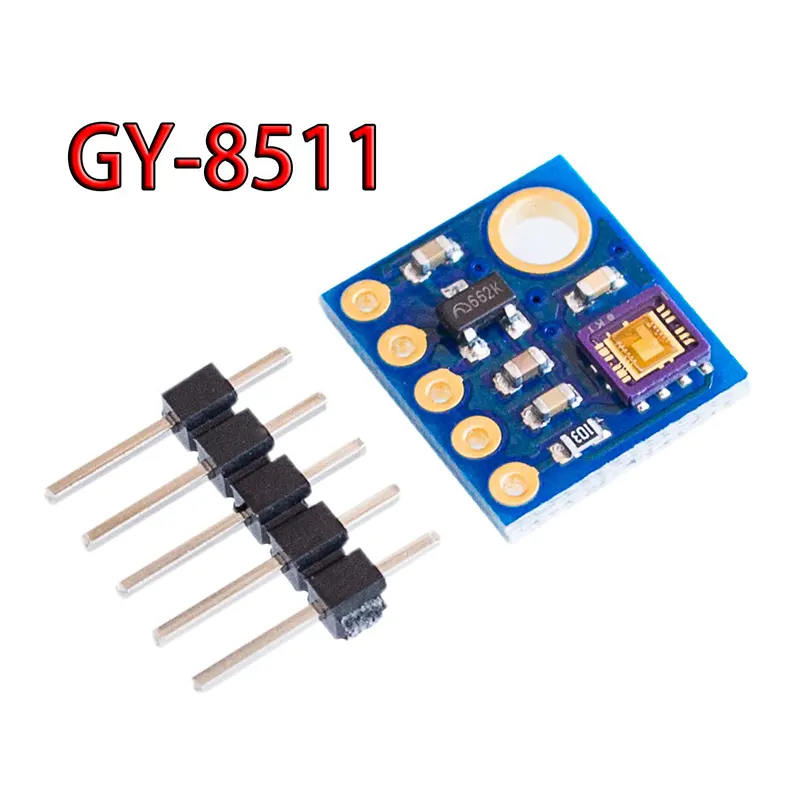

The GY-8511 / ML8511 UV Light Sensor Module is a high-precision analog sensor designed to measure the intensity of ultraviolet (UV) light. At Electrapac, we recommend this module for students and environmental researchers in Bangladesh who are building weather stations, smart wearables, or solar health monitors with Arduino and ESP32.

The heart of this module is the ML8511 IC, an integrated UV sensor that is most sensitive to the UV-A and UV-B spectrum ($280\text{–}390\text{nm}$). Unlike simple phototransistors, the ML8511 converts UV light into a linear analog voltage. This allows your microcontroller to calculate the "UV Index" accurately, helping users know when the sun's rays are at their most dangerous.

Key Features for Electrapac Customers

• High-Precision Linear Output: The output voltage increases linearly with UV intensity, making it much easier to calibrate and code than non-linear light sensors.

• Compact "Internal" Amplifier: The ML8511 includes an internal op-amp, so you don't need external circuitry to boost the signal before it reaches your Arduino.

• Ultra-Low Power Consumption: With a current draw of only 300µA, this sensor is perfect for battery-powered IoT devices and outdoor solar-powered stations.

• Photodiode Technology: Features a high-quality silicon-based photodiode that provides superior stability compared to cheaper LDR-based UV sensors.

• Integrated Enable (EN) Pin: Includes a "Power Down" mode (EN pin) which allows the sensor to enter a sleep state, saving energy in remote deployments.

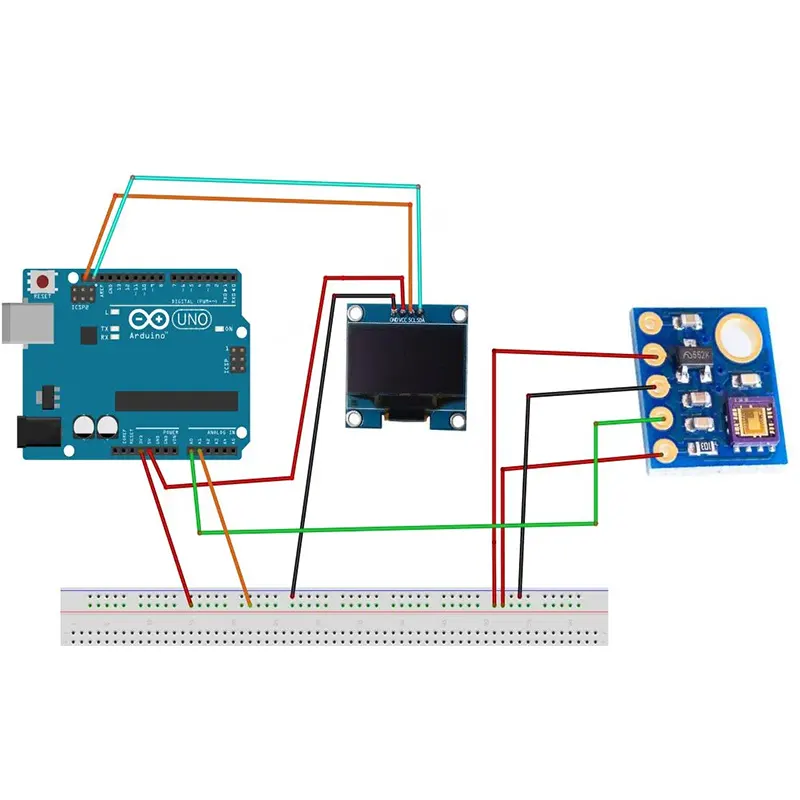

Setting up the Electrapac ML8511 requires attention to the operating voltage, as the IC is natively a 3.3V device:

1. 3.3V / GND: Connect to the 3.3V and Ground pins. Note: Do not connect directly to 5V unless your specific module has a 5V regulator.

2. OUT: Connect to an Analog Pin (e.g., A0).

3. EN (Enable): Connect to 3.3V to keep the sensor active.

4. Reading the Signal: In your code, a voltage of roughly 1.0V typically represents "No UV," while 2.8V to 3.0V represents a "High UV Index."

Pro-Tip: To get the most accurate "UV Index" reading, place the sensor behind a thin piece of UV-transparent glass or plastic. Ensure the small window on the IC is pointing directly toward the sun without any shadows blocking it.

• Smart Weather Stations: Adding a "UV Index" metric to local environmental monitoring systems.

• Wearable Health Tech: Building a watch or badge that alerts the user when they have had too much sun exposure.

• Solar Research: Measuring the efficiency of UV-blocking window tints or protective clothing.

• Industrial Monitoring: Checking for UV leakage in industrial curing lamps or sterilization equipment.

• Smart Home Automation: Automatically closing outdoor awnings when UV levels reach a dangerous peak.

We source our ML8511 UV Modules with high-purity sensor windows to ensure the spectral response remains consistent even after long-term exposure to direct sunlight. Visit us at www.electrapac.com for the environmental sensors that help you understand the atmosphere around you.
