The USB Mini Humidifier DIY Kit (also known as an Ultrasonic Mist Maker) is a fascinating entry-level project for exploring high-frequency electronics. At Electrapac, we love this kit because it’s not just a functional device; it’s a gateway into understanding how sound waves can physically manipulate matter to create cool, dry fog.

Product Overview

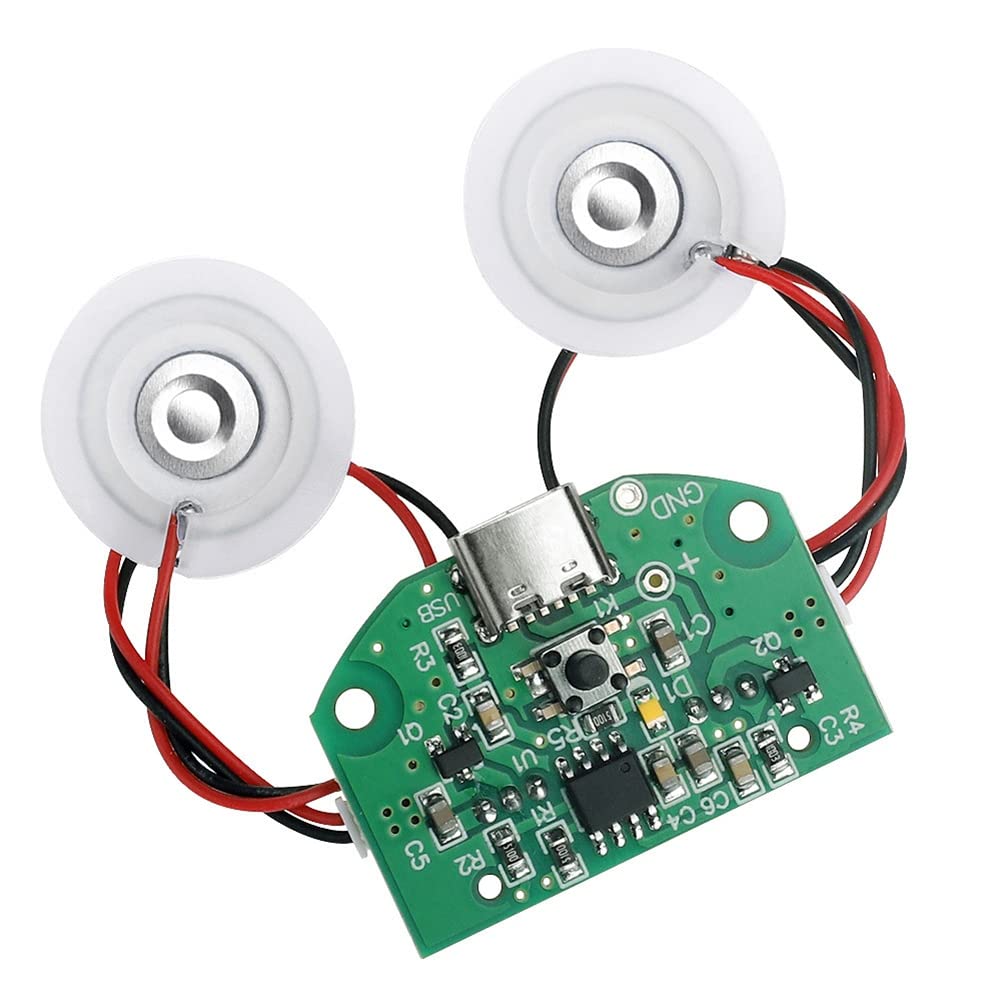

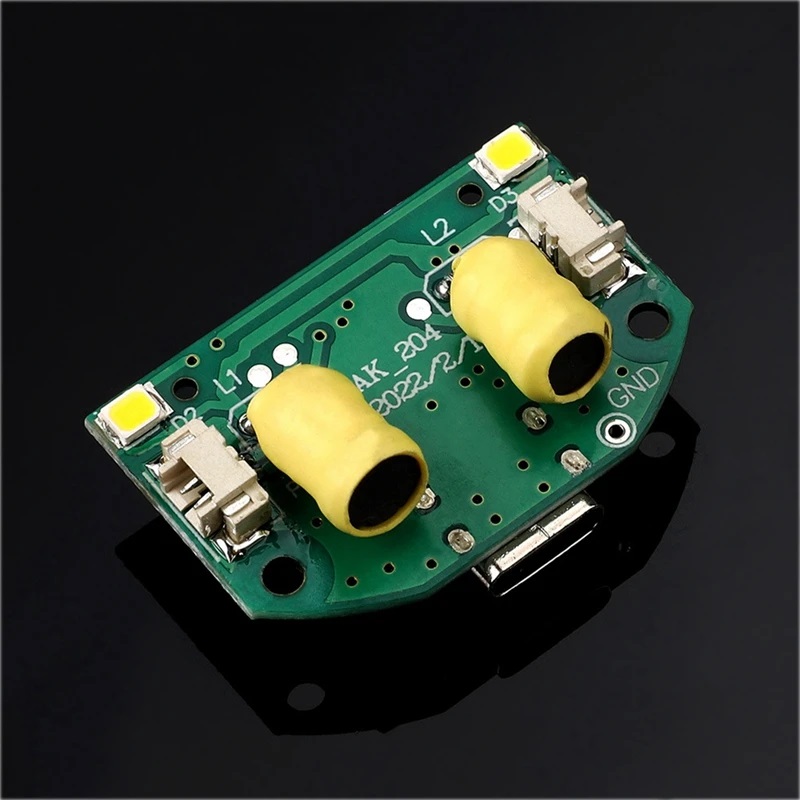

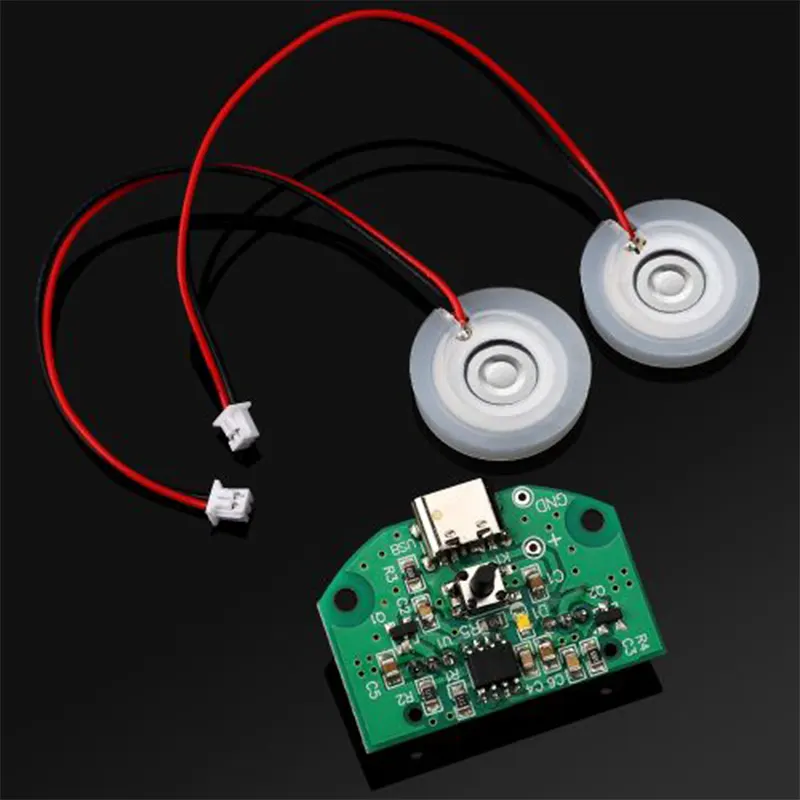

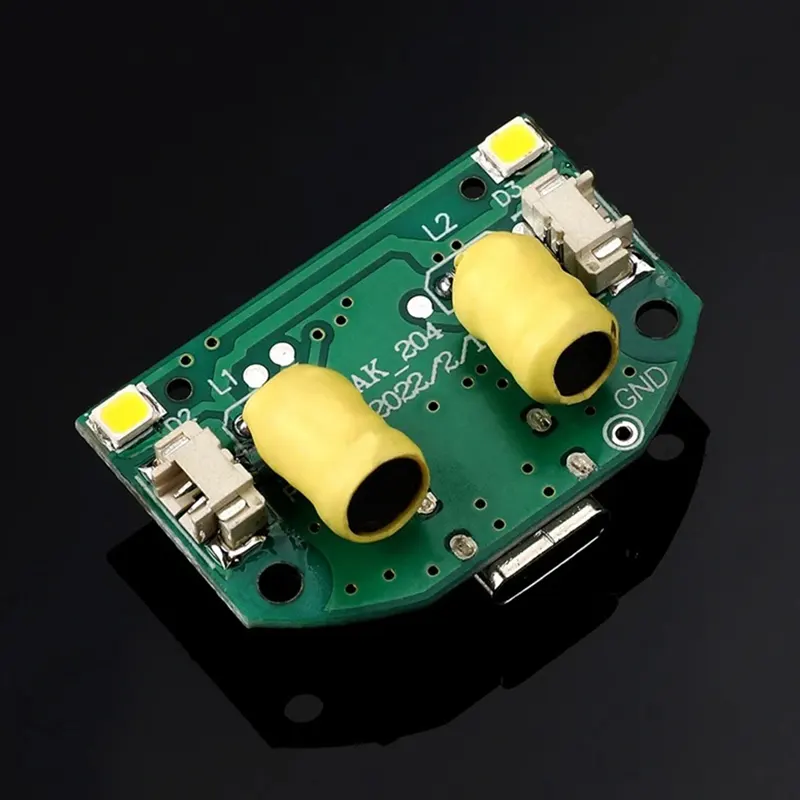

This kit consists of an ultrasonic driver circuit board and a microporous atomizing transducer. By utilizing a fixed-frequency MCU (typically 108kHz), the board creates high-speed vibrations that push water through thousands of microscopic holes in the ceramic plate. The result is a fine, consistent mist that is perfect for personal humidifiers, smart plant care, or even creating "fire" effects with LEDs.

Key Features for Electrapac Customers

• Advanced Atomization: The 740+ micron-level holes ensure the mist is so fine it won't wet your desk or surrounding electronics.

• Smart Safety Timer: Most www.electrapac.com versions include an auto-shutdown feature (typically after 4 hours) to prevent the module from running dry and overheating.

• Oxidation Resistant: The atomizing sheet is coated with a special glaze to prevent the silver layer from oxidizing, ensuring a long operational life.

• Dual Mode Support: Many kits feature a toggle button for Continuous Spray (constant mist) or Intermittent Spray (10s on, 5s off).

• Arduino/ESP32 Compatible: While it works standalone via USB, you can easily control the power pin with a microcontroller to automate humidity based on sensor data.

Step-by-Step Setup Guide

To get the best "fog" from your Electrapac kit, follow these assembly rules:

1. The Cotton Wick: You must use an absorbent cotton core to pull water up to the underside of the ceramic disk. Soak the wick fully in water before the first use.

2. Direction Matters: The "white" or "raised" side of the ceramic disk must face upwards. The flat steel side must be in contact with the wet cotton wick.

3. Power Input: Use a standard 5V/1A USB port. Avoid using "Fast Chargers" (QC/PD) over 2A as they can sometimes damage the small driver circuit.

4. No Submerging: The driver board is not waterproof. Keep it away from the water reservoir.

Primary Applications

• Desktop "Chill" Zone: Create a personal humidifier to keep your skin and eyes hydrated while working at your PC.

• Smart Greenhouse: Connect it to a Soil Moisture Sensor and an Arduino from Electrapac to mist your tropical plants automatically.

• Aromatherapy: Add 1-2 drops of water-soluble essential oils for a DIY scent diffuser.

• Photography & Miniatures: Perfect for creating low-lying "swamp fog" for tabletop gaming or macro photography.

Why Shop at Electrapac?

We source our Mist Maker DIY Kits with high-quality FR-4 epoxy driver boards and 304 stainless steel atomizing sheets. At www.electrapac.com, we provide the modular tools that turn simple water into high-tech atmospheric effects.
