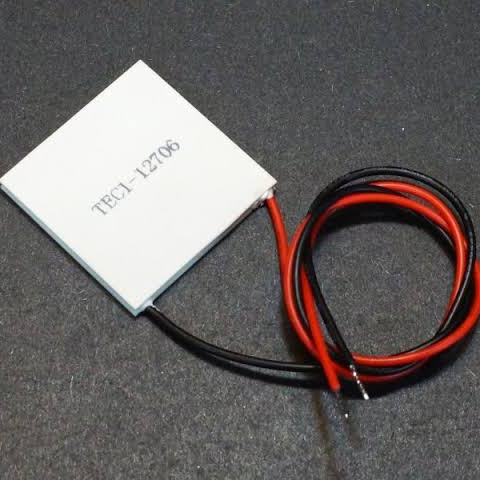

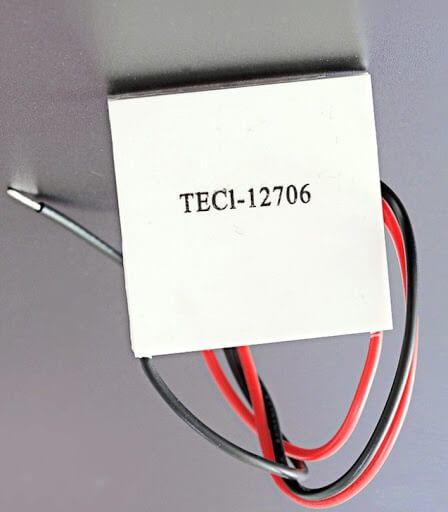

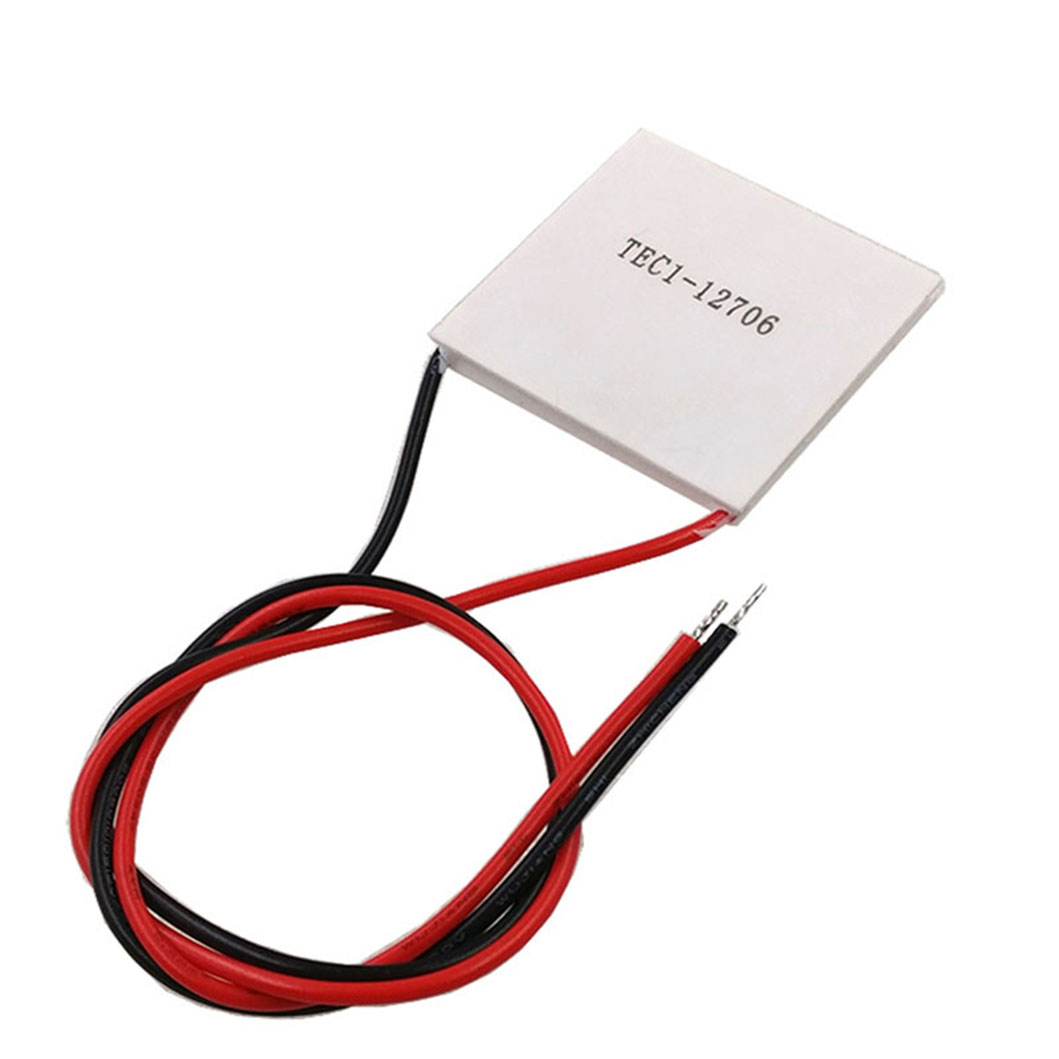

The TEC1-12706 is a solid-state active cooling component that uses the Peltier Effect to create a heat flux between the two sides of the device. When DC current flows through the module, it transfers heat from one side to the other, making one side cold and the opposite side hot.

Features & Functionality

• Solid-State Cooling: No moving parts, no noise, and no vibration. It is extremely reliable if kept within temperature limits.

• Precise Temperature Control: By modulating the input current (often via PWM), you can control the temperature to within fractions of a degree.

• Reversible Action: If you reverse the polarity of the DC power, the hot and cold sides swap. This allows the same device to be used for both heating and cooling.

• Compact & Lightweight: Small enough to fit into portable coolers, CPU chillers, or medical devices.

Common Applications

• Portable Refrigeration: Small car fridges or wine coolers.

• Electronics Cooling: Chilling high-performance CPUs, GPUs, or laser diodes.

• Scientific Instruments: Cooling CCD sensors in digital cameras to reduce "noise" in long-exposure photography.

• Water Dispensers: Desktop water coolers that don't use compressors.

⚠️ Critical Safety & Performance Note

Never power this module without a Heat Sink! The "hot side" of a Peltier module generates a massive amount of heat (both the heat pumped from the cold side plus the electrical heat from the current). Without a large heat sink and thermal paste on the hot side, the module will self-destruct in seconds.
